ZWA10-AHXBB (2010)
Toyota Lexus Ct200h
Production
Dec 2010
-
Dec 2013
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

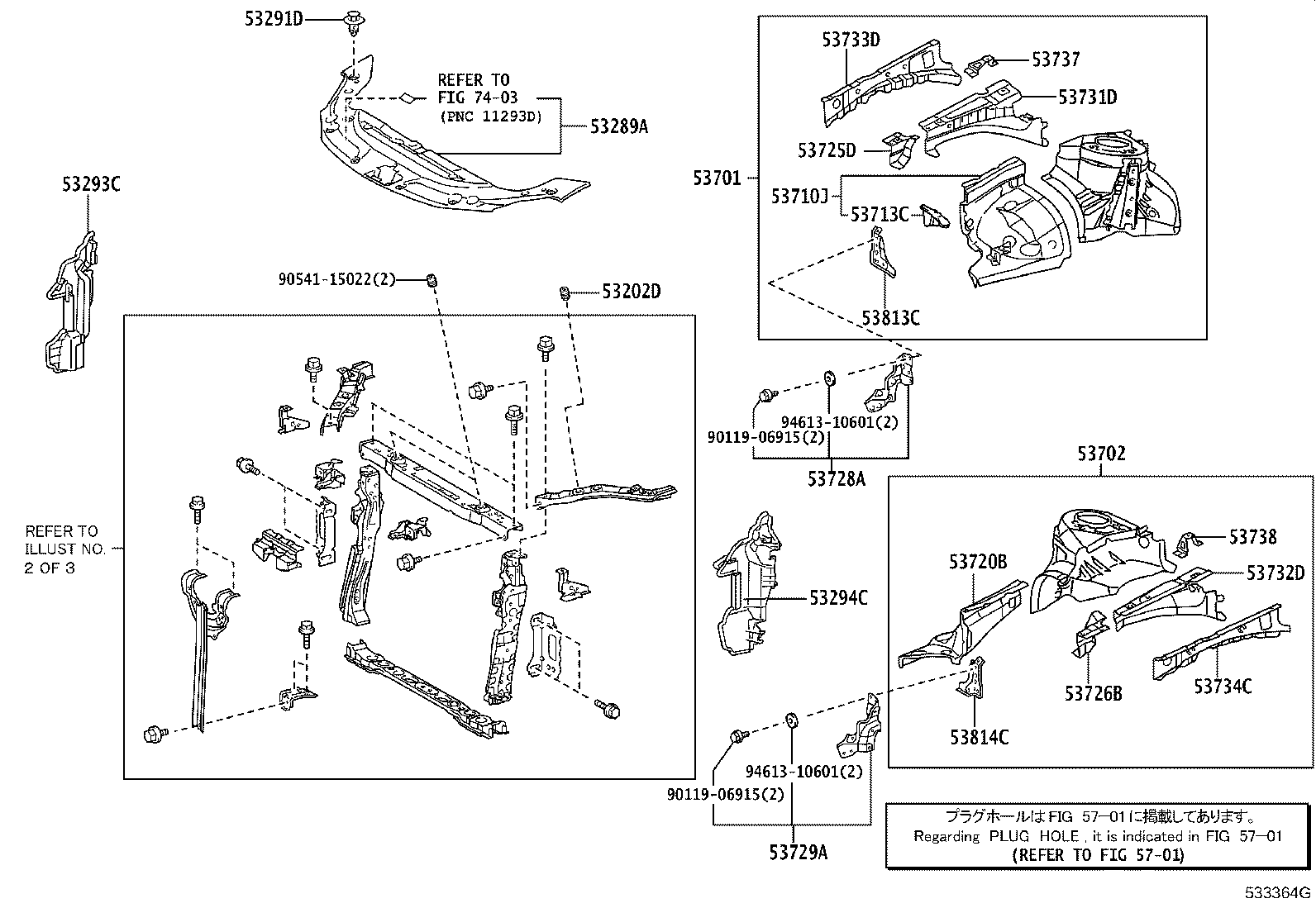

ILLUST NO. 1 OF 3(1012-1309)
Click highlighted areas on diagram
ﾗｼﾞｴｰﾀｻﾎﾟｰﾄ & ﾌﾛﾝﾄﾌｪﾝﾀﾞｴﾌﾟﾛﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53202D - CUSHION, RADIATOR SUPPORT | ||||
| 90541-15031 |
ZWA10 |
2 | ||
| 53289A - COVER, RADIATOR SUPPORT OPENING | ||||
| 53289-76010 |
ZWA10 |
1 | ||
| 53291D - CLIP, RADIATOR SUPPORT TO FRAME | ||||
| 90467-07211 |
ZWA10 |
9 | ||
| 90467-07217 |
ZWA10 |
7 | ||
| 90467-07217 |
ZWA10 |
9 | ||
| 53293C - DEFLECTOR, RADIATOR SIDE, RH | ||||
| 53293-76010 |
ZWA10 |
1 | ||
| 53294C - DEFLECTOR, RADIATOR SIDE, LH | ||||
| 53294-76010 |
ZWA10 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-76010 |
ZWA10 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-76010 |
ZWA10 |
1 | ||
| 53710J - APRON ASSY, FRONT FENDER, RH | ||||
| 53710-12030 |
ZWA10 |
1 | ||
| 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH | ||||
| 53713-12160 |
ZWA10 |
1 | ||
| 53720B - APRON ASSY, FRONT FENDER, LH | ||||
| 53720-12030 |
ZWA10 |
1 | ||
| 53725D - REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH | ||||
| 53725-12040 |
ZWA10 |
1 | ||
| 53726B - REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH | ||||
| 53726-12040 |
ZWA10 |
1 | ||
| 53728A - BRACKET, FENDER APRON, RH | ||||
| 53803-76010 |
ZWA10 |
1 | ||
| 53729A - BRACKET, FENDER APRON, LH | ||||
| 53804-76010 |
ZWA10 |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-12170 |
ZWA10 |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-12150 |
ZWA10 |
1 | ||
| 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH | ||||
| 53733-12070 |
ZWA10 |
1 | ||
| 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH | ||||
| 53734-12070 |
ZWA10 |
1 | ||
| 53737 - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH | ||||
| 53737-76010 |
ZWA10 |
1 | ||
| 53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH | ||||
| 53738-76010 |
ZWA10 |
1 | ||
| 53813C - EXTENSION, FRONT FENDER, RH | ||||
| 53813-47020 |
ZWA10 |
1 | ||
| 53814C - EXTENSION, FRONT FENDER, LH | ||||
| 53814-47020 |
ZWA10 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90541-15022 | ||||
| 94613-10601 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 7403 | ||||

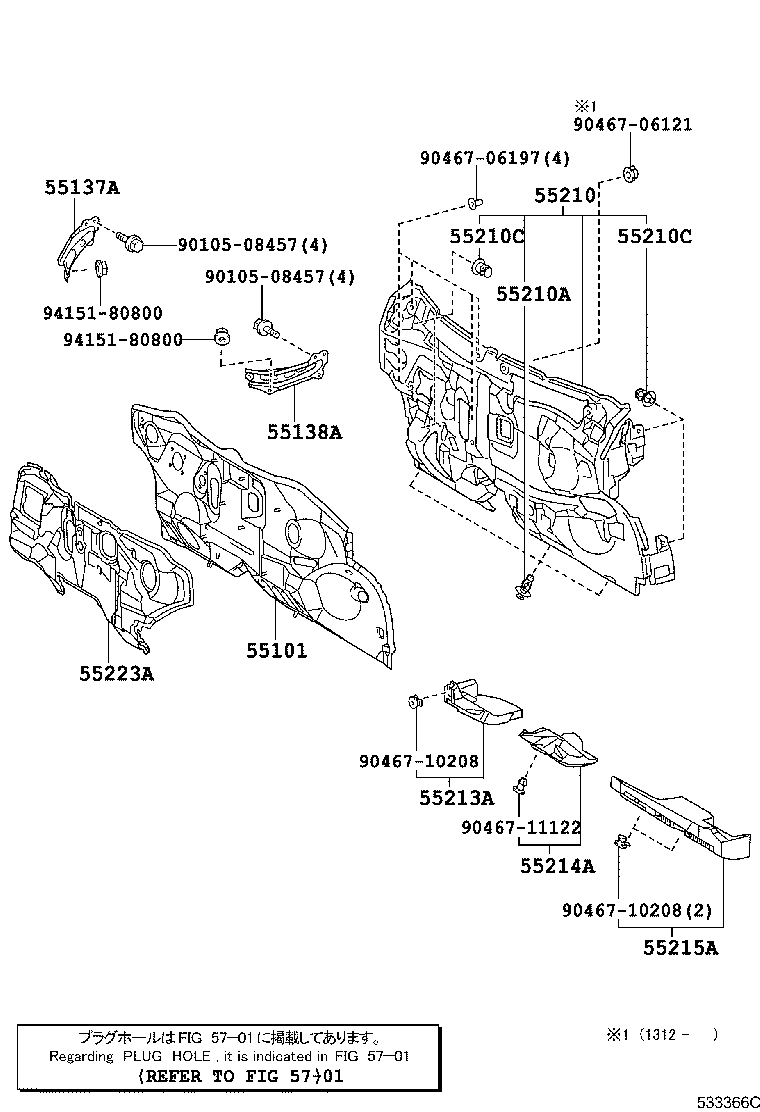

ILLUST NO. 3 OF 3(1012- )
Click highlighted areas on diagram
ﾀﾞｯｼｭ ﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-76010 |
ZWA10 |
1 | ||
| 55137A - BRACE, DASH TO FRAME, RH | ||||
| 55137-76010 |
ZWA10 |
1 | ||
| 55138A - BRACE, DASH TO FRAME, LH | ||||
| 55138-47050 |
ZWA10 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-76020 |
ZWA10 |
1 | ||
| 55210A - CLIP | ||||
| 90467-11127 |
ZWA10 |
3 | ||
| 55210C - CLIP | ||||
| 90467-13079 |
ZWA10 |
4 | ||
| 55210C - CLIP | ||||
| 90467-13079 |
ZWA10 |
4 | ||
| 55213A - PAD, DASH PANEL SILENCER | ||||
| 55213-76030 |
ZWA10 |
1 | ||
| 55214A - PAD, DASH PANEL INSULATOR, NO.2 | ||||
| 55214-47040 |
ZWA10 |
1 | ||
| 55215A - PAD, DASH PANEL INSULATOR, NO.3 | ||||
| 55215-47040 |
ZWA10 |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-75010 |
ZWA10 |
1 | ||
| Common parts | ||||
| 90105-08457 | ||||
| 90467-06121 | ||||
| 90467-06197 | ||||
| 90467-10208 | ||||
| 90467-11122 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 5701 | ||||
ILLUST NO. 2 OF 3(1012- )
Click highlighted areas on diagram

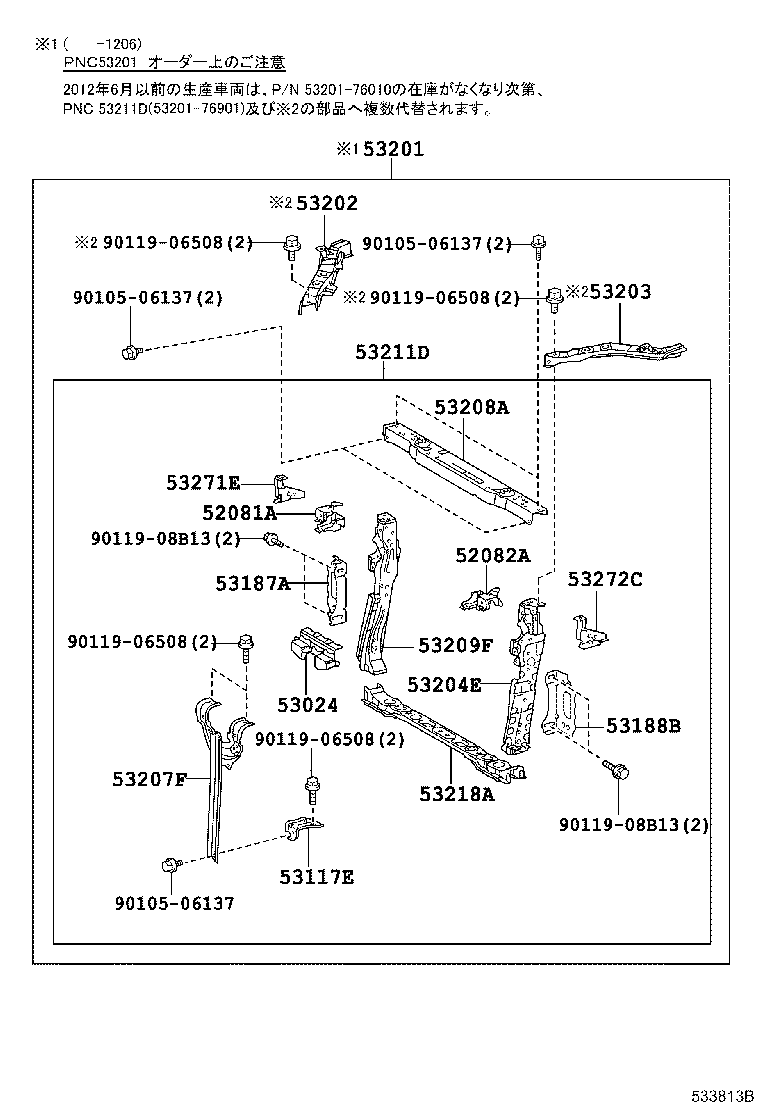

ﾗｼﾞｴｰﾀｻﾎﾟｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52081A - STAY SUB-ASSY, FRONT BUMPER, RH | ||||
| 52081-76010 |
ZWA10 |
1 | ||
| 52082A - STAY SUB-ASSY, FRONT BUMPER, LH | ||||
| 52082-76010 |
ZWA10 |
1 | ||
| 53024 - REINFORCEMENT SUB-ASSY, RADIATOR SUPPORT | ||||
| 53024-76010 |
ZWA10 |
1 | ||
| 53117E - BRACKET, RADIATOR GRILLE, LOWER | ||||
| 53117-72010 |
ZWA10 |
1 | ||
| 53187A - STAY, RADIATOR SUPPORT, RH | ||||
| 53187-12030 |
ZWA10 |
1 | ||
| 53188B - STAY, RADIATOR SUPPORT, LH | ||||
| 53188-12030 |
ZWA10 |
1 | ||
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-76010 |
ZWA10 |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-76010 |
ZWA10 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-76010 |
ZWA10 |
1 | ||
| 53204E - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER, LH | ||||
| 53204-75010 |
ZWA10 |
1 | ||
| 53207F - RETAINER SUB-ASSY, COOL AIR INTAKE DUCT | ||||
| 53207-76010 |
ZWA10 |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-75010 |
ZWA10 |
1 | ||
| 53209F - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER, RH | ||||
| 53209-75010 |
ZWA10 |
1 | ||
| 53211D - SUPPORT, RADIATOR | ||||
| 53201-76901 |
ZWA10 |
1 | ||
| 53218A - SUPPORT, RADIATOR, LOWER | ||||
| 53218-12901 |
ZWA10 |
1 | ||
| 53271E - BRACKET, HEADLAMP MOUNTING, RH | ||||
| 53271-76010 |
ZWA10 |
1 | ||
| 53272C - BRACKET, HEADLAMP MOUNTING, LH | ||||
| 53272-76010 |
ZWA10 |
1 | ||
| Common parts | ||||
| 90105-06137 | ||||
| 90119-06508 | ||||
| 90119-08B13 | ||||

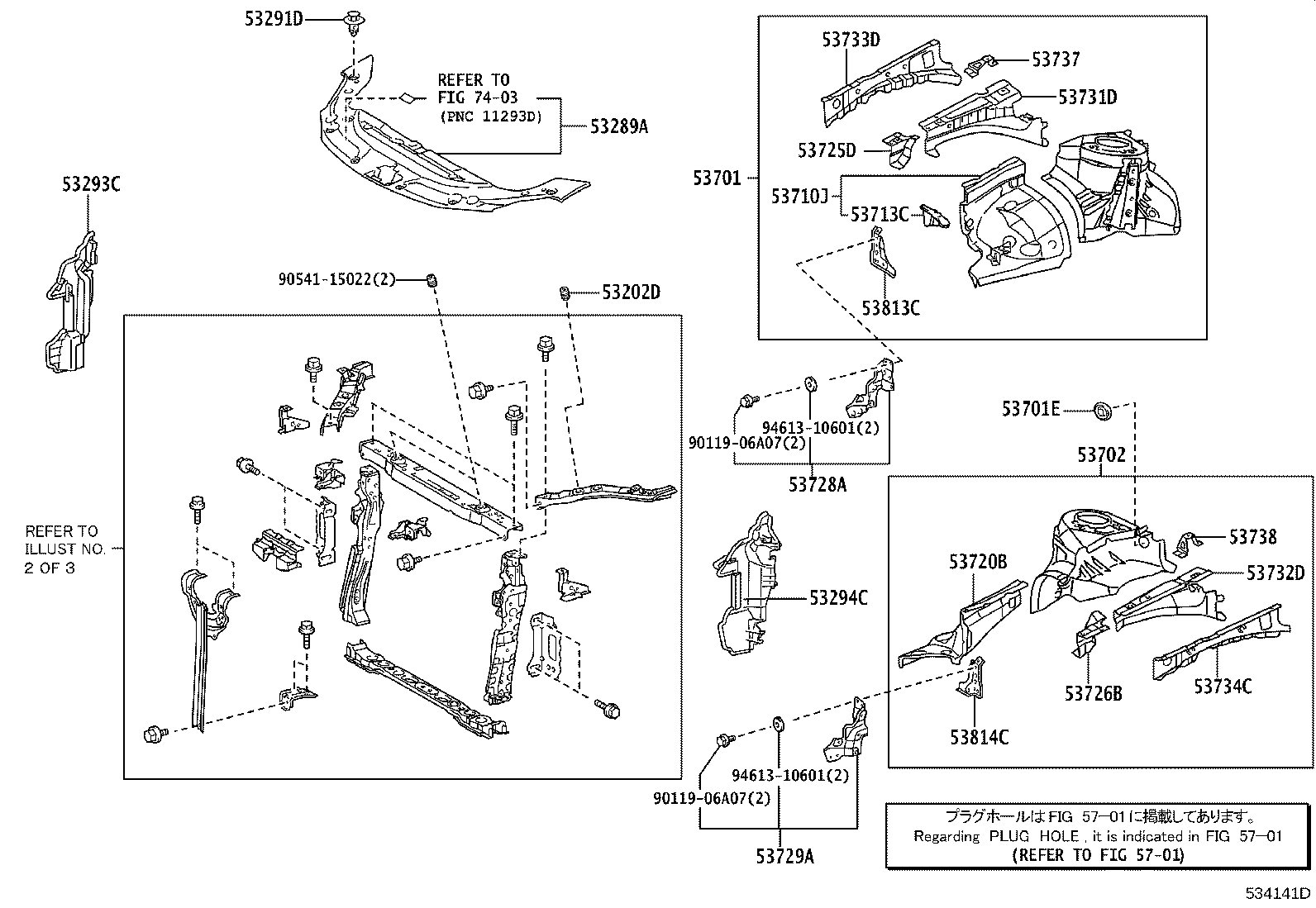

ILLUST NO. 1 OF 3(1309- )
Click highlighted areas on diagram
ﾗｼﾞｴｰﾀｻﾎﾟｰﾄ & ﾌﾛﾝﾄﾌｪﾝﾀﾞｴﾌﾟﾛﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53202D - CUSHION, RADIATOR SUPPORT | ||||
| 90541-15031 |
ZWA10 |
2 | ||
| 53289A - COVER, RADIATOR SUPPORT OPENING | ||||
| 53289-76010 |
ZWA10 |
1 | ||
| 53291D - CLIP, RADIATOR SUPPORT TO FRAME | ||||
| 90467-07211 |
ZWA10 |
9 | ||
| 90467-07217 |
ZWA10 |
7 | ||
| 90467-07217 |
ZWA10 |
9 | ||
| 53293C - DEFLECTOR, RADIATOR SIDE, RH | ||||
| 53293-76010 |
ZWA10 |
1 | ||
| 53294C - DEFLECTOR, RADIATOR SIDE, LH | ||||
| 53294-76010 |
ZWA10 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-76010 |
ZWA10 |
1 | ||
| 53701E - GROMMET(FOR FRONT FENDER APRON) | ||||
| 82817-47G30 |
ZWA10 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-76010 |
ZWA10 |
1 | ||
| 53710J - APRON ASSY, FRONT FENDER, RH | ||||
| 53710-12030 |
ZWA10 |
1 | ||
| 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH | ||||
| 53713-12160 |
ZWA10 |
1 | ||
| 53720B - APRON ASSY, FRONT FENDER, LH | ||||
| 53720-12030 |
ZWA10 |
1 | ||
| 53725D - REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH | ||||
| 53725-12040 |
ZWA10 |
1 | ||
| 53726B - REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH | ||||
| 53726-12040 |
ZWA10 |
1 | ||
| 53728A - BRACKET, FENDER APRON, RH | ||||
| 53803-76010 |
ZWA10 |
1 | ||
| 53729A - BRACKET, FENDER APRON, LH | ||||
| 53804-76010 |
ZWA10 |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-12170 |
ZWA10 |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-12150 |
ZWA10 |
1 | ||
| 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH | ||||
| 53733-12070 |
ZWA10 |
1 | ||
| 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH | ||||
| 53734-12070 |
ZWA10 |
1 | ||
| 53737 - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH | ||||
| 53737-76010 |
ZWA10 |
1 | ||
| 53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH | ||||
| 53738-76010 |
ZWA10 |
1 | ||
| 53813C - EXTENSION, FRONT FENDER, RH | ||||
| 53813-47020 |
ZWA10 |
1 | ||
| 53814C - EXTENSION, FRONT FENDER, LH | ||||
| 53814-47020 |
ZWA10 |
1 | ||
| Common parts | ||||
| 90119-06A07 | ||||
| 90541-15022 | ||||
| 94613-10601 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 7403 | ||||
