ZWA10-AHXBB (2010)
Toyota Lexus Ct200h
Production
Dec 2010
-
Dec 2013
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1012- )

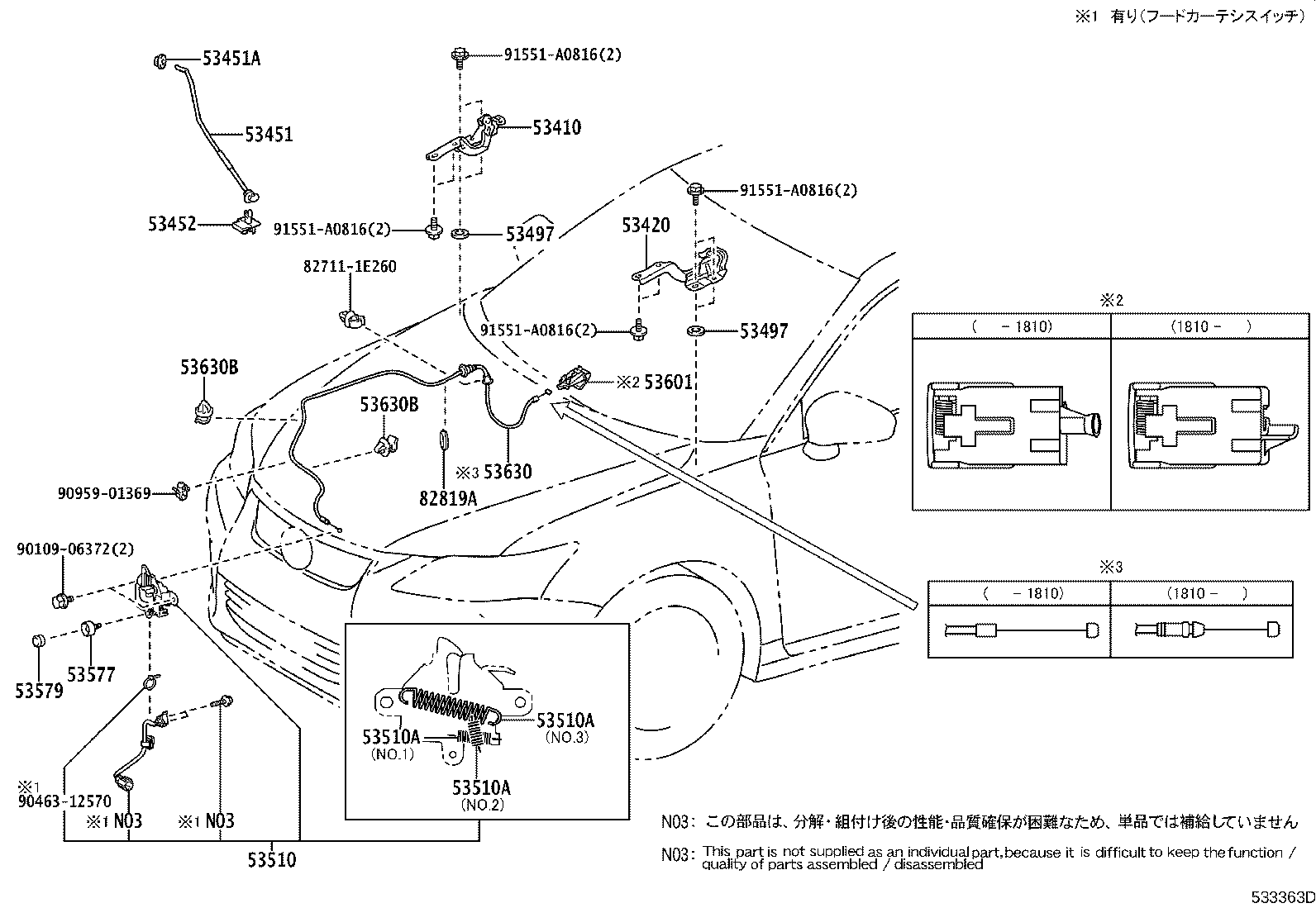

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-76030 |
ZWA10 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-76030 |
ZWA10 |
1 | ||
| 53451 - ROD, HOOD SUPPORT | ||||
| 53440-76010 |
ZWA10 |
1 | ||
| 53451A - GROMMET(FOR HOOD SUPPORT ROD) | ||||
| 90480-15025 |
ZWA10 |
1 | ||
| 53452 - HOLDER, HOOD STAY | ||||
| 53452-76010 |
ZWA10 |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
ZWA10 厚さ=0.5 |
4 | ||
| 53497-20070 |
ZWA10 厚さ=2.0 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
ZWA10 厚さ=0.5 |
4 | ||
| 53497-20070 |
ZWA10 厚さ=2.0 |
4 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-76010 |
ZWA10..B |
1 | ||
| 53510-76010 |
ZWA10..E 盗難防止ｼｽﾃﾑ−有り(*IM,*SEH,*IS,ﾌｰﾄﾞｶｰﾃｼｽｲｯﾁ) |
1 | ||
| 53510-76030 |
ZWA10..E |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-12063 |
ZWA10 線径=1.2,ｺｲﾙ巻数=8.5,NO.2 |
1 | ||
| 90506-09055 |
ZWA10 線径=0.9,ｺｲﾙ巻数=21,NO.1 |
1 | ||
| 90506-16077 |
ZWA10 線径=1.6,ｺｲﾙ巻数=12,NO.3 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-12063 |
ZWA10 線径=1.2,ｺｲﾙ巻数=8.5,NO.2 |
1 | ||
| 90506-09055 |
ZWA10 線径=0.9,ｺｲﾙ巻数=21,NO.1 |
1 | ||
| 90506-16077 |
ZWA10 線径=1.6,ｺｲﾙ巻数=12,NO.3 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-12063 |
ZWA10 線径=1.2,ｺｲﾙ巻数=8.5,NO.2 |
1 | ||
| 90506-09055 |
ZWA10 線径=0.9,ｺｲﾙ巻数=21,NO.1 |
1 | ||
| 90506-16077 |
ZWA10 線径=1.6,ｺｲﾙ巻数=12,NO.3 |
1 | ||
| 53577 - BOLT, HOOD LOCK | ||||
| 53577-33010 |
ZWA10 |
1 | ||
| 53579 - CAP, HOOD LOCK NUT | ||||
| 53579-50010 |
ZWA10 |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-52010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-76010 |
ZWA10 |
1 | ||
| 53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE) | ||||
| 90469-06005 |
ZWA10 |
2 | ||
| 53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE) | ||||
| 90469-06005 |
ZWA10 |
2 | ||
| 82819A - GROMMET, WIRE | ||||
| 82817-47G30 |
ZWA10 |
1 | ||
| Common parts | ||||
| 82711-1E260 | ||||
| 90109-06372 | ||||
| 90463-12570 | ||||
| 90959-01369 | ||||
| 91551-A0816 | ||||
