ZWA10-AHXBB (2010)
Toyota Lexus Ct200h
(1012-1312)

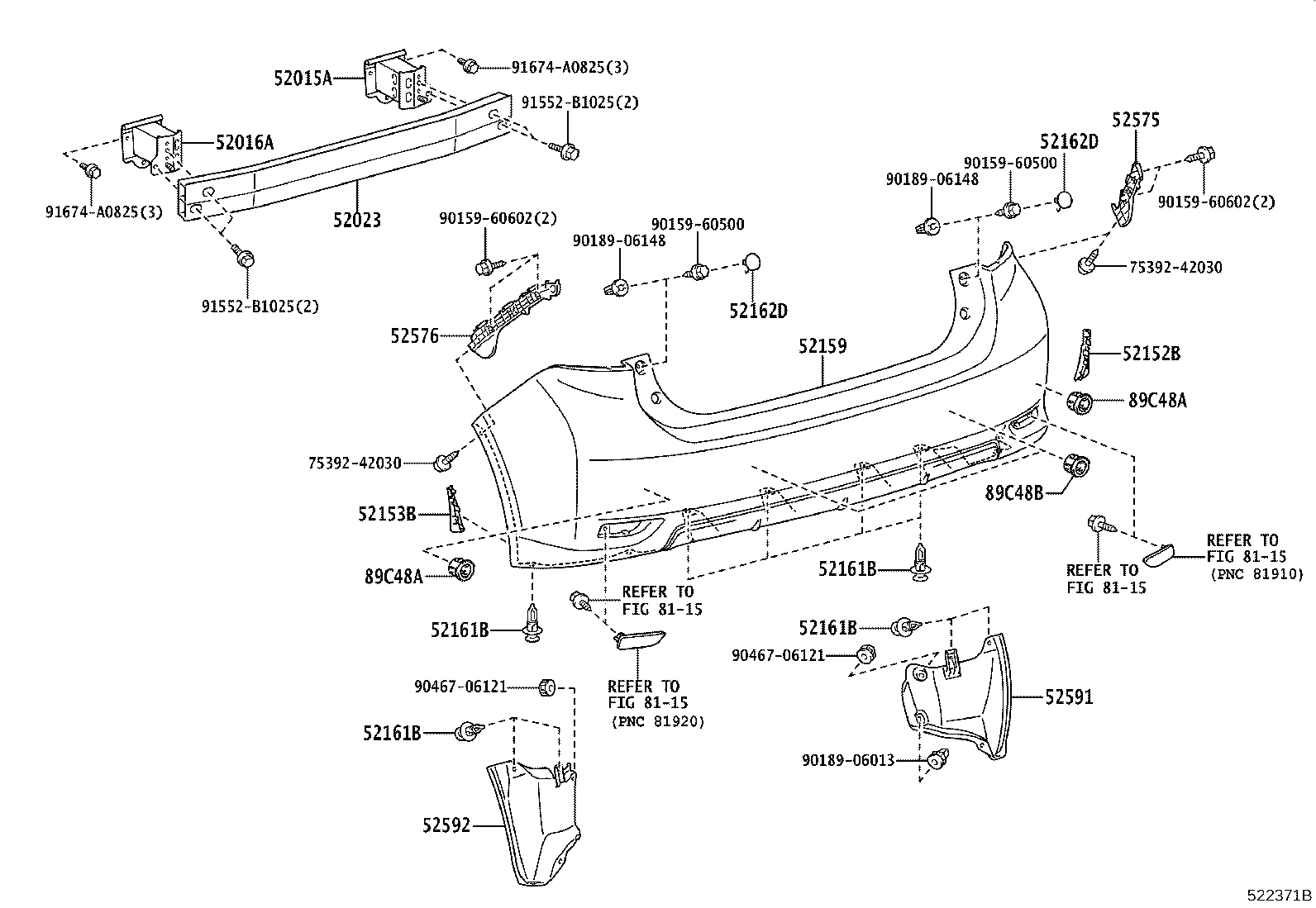

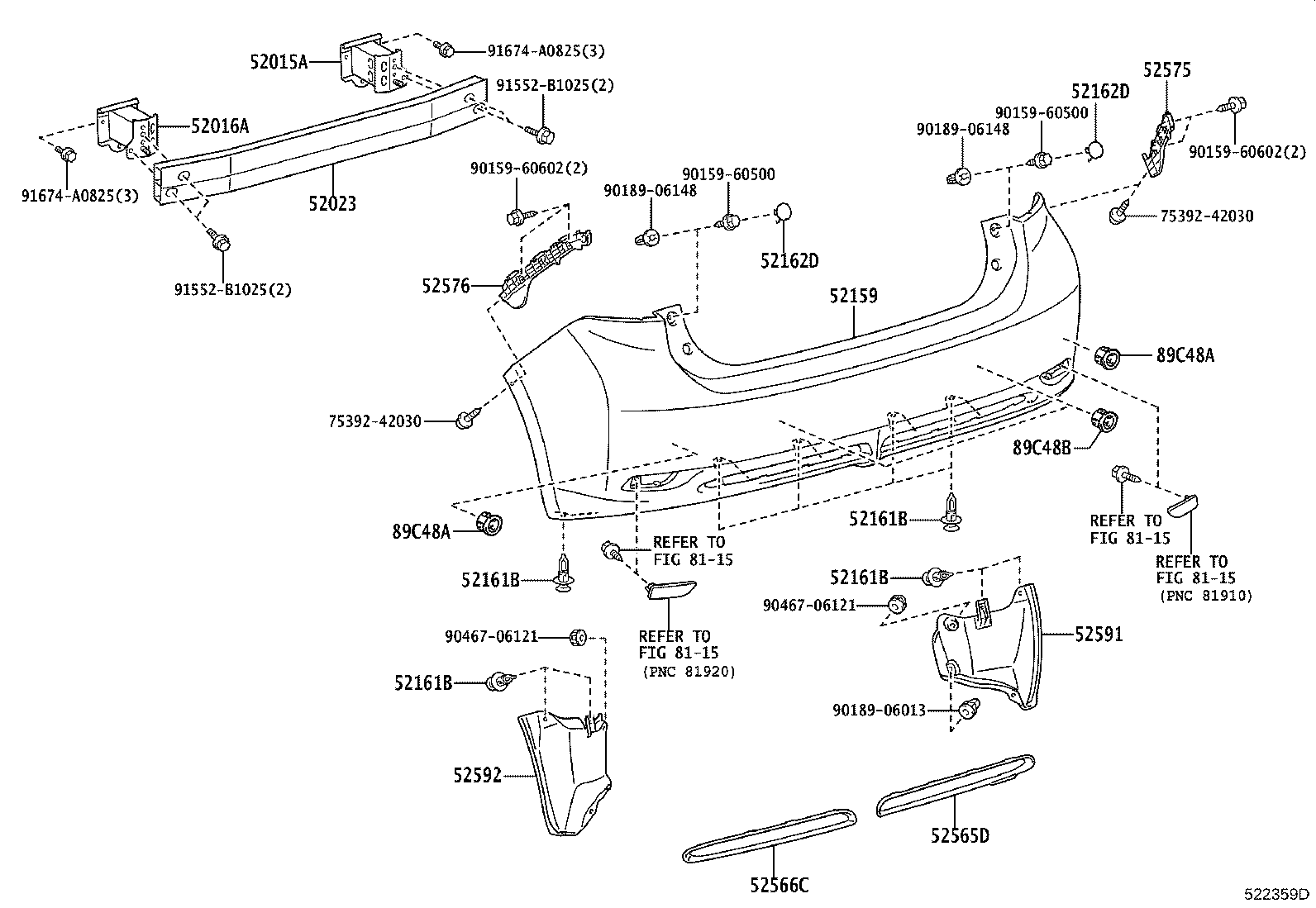

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52015A - ARM SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-76010 |
ZWA10 |
1 | ||
| 52016A - ARM SUB-ASSY, REAR BUMPER, LH | ||||
| 52016-76010 |
ZWA10 |
1 | ||
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52171-76010 |
ZWA10 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-WY010B2 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,DK.GRAY MC.,1G0 |
1 | ||
| 52159-WY010J0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,BLUE ME.,8U1 |
1 | ||
| 52159-WY010C1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,BLACK OPAL MC.,214 |
1 | ||
| 52159-76010B2 |
ZWA10 DK.GRAY MC.,1G0 |
1 | ||
| 52159-WY010D0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,RED MC.CS.,3R1 |
1 | ||
| 52159-WY020B0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER M.M.,1G1 |
1 | ||
| 52159-WY020A0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
1 | ||
| 52159-WY010J1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,SILVERY BLUE ME.,8U9 |
1 | ||
| 52159-WY010B0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,SILVER M.M.,1G1 |
1 | ||
| 52159-WY010C0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,BLACK,212 |
1 | ||
| 52159-WY020C0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
1 | ||
| 52159-WY020C1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK OPAL MC.,214 |
1 | ||
| 52159-WY020E0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
1 | ||
| 52159-WY020B2 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK.GRAY MC.,1G0 |
1 | ||
| 52159-WY010F0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,FLARE YELLOW M.M.,5B1 |
1 | ||
| 52159-WY020F0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FLARE YELLOW M.M.,5B1 |
1 | ||
| 52159-76010B0 |
ZWA10 SILVER M.M.,1G1 |
1 | ||
| 52159-WY010A0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,WHITE PEARL CS.,077 |
1 | ||
| 52159-WY010E0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,FIRE AGATE M.M.,4V3 |
1 | ||
| 52159-76030B0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER M.M.,1G1 |
1 | ||
| 52159-76050J1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,SILVERY BLUE ME.,8U9 |
1 | ||
| 52159-76060B0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER M.M.,1G1 |
1 | ||
| 52159-76060J1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVERY BLUE ME.,8U9 |
1 | ||
| 52159-76050B0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,SILVER M.M.,1G1 |
1 | ||
| 52159-WY020J1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVERY BLUE ME.,8U9 |
1 | ||
| 52159-76030J1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVERY BLUE ME.,8U9 |
1 | ||
| 52159-WY020D0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,RED MC.CS.,3R1 |
1 | ||
| 52159-76030B2 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK.GRAY MC.,1G0 |
1 | ||
| 52159-76010E0 |
ZWA10 FIRE AGATE M.M.,4V3 |
1 | ||
| 52159-76010J0 |
ZWA10 BLUE ME.,8U1 |
1 | ||
| 52159-76010D0 |
ZWA10 RED MC.CS.,3R1 |
1 | ||
| 52159-WY020J0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLUE ME.,8U1 |
1 | ||
| 52159-76030D0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,RED MC.CS.,3R1 |
1 | ||
| 52159-76010J1 |
ZWA10 SILVERY BLUE ME.,8U9 |
1 | ||
| 52159-76030A0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
1 | ||
| 52159-76030B1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,MERCURY GRAY MC.,1H9 |
1 | ||
| 52159-76010F0 |
ZWA10 FLARE YELLOW M.M.,5B1 |
1 | ||
| 52159-76010A0 |
ZWA10 WHITE PEARL CS.,077 |
1 | ||
| 52159-76030E0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
1 | ||
| 52159-76030J0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLUE ME.,8U1 |
1 | ||
| 52159-76050A0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,WHITE PEARL CS.,077 |
1 | ||
| 52159-76010C1 |
ZWA10 BLACK OPAL MC.,214 |
1 | ||
| 52159-76050B1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,MERCURY GRAY MC.,1H9 |
1 | ||
| 52159-76030F0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FLARE YELLOW M.M.,5B1 |
1 | ||
| 52159-76030C1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK OPAL MC.,214 |
1 | ||
| 52159-76030C0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
1 | ||
| 52159-76050C0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,BLACK,212 |
1 | ||
| 52159-76050D0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,RED MC.CS.,3R1 |
1 | ||
| 52159-76060D0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,RED MC.CS.,3R1 |
1 | ||
| 52159-76050C1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,BLACK OPAL MC.,214 |
1 | ||
| 52159-76060C1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK OPAL MC.,214 |
1 | ||
| 52159-76050J0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,BLUE ME.,8U1 |
1 | ||
| 52159-76060A0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
1 | ||
| 52159-76050E0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,FIRE AGATE M.M.,4V3 |
1 | ||
| 52159-76060B1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,MERCURY GRAY MC.,1H9 |
1 | ||
| 52159-76060J0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLUE ME.,8U1 |
1 | ||
| 52159-76010B1 |
ZWA10 MERCURY GRAY MC.,1H9 |
1 | ||
| 52159-76060C0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
1 | ||
| 52159-76030B3 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,PLATINUM SILVER ME.,1J4 |
1 | ||
| 52159-76060E0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
1 | ||
| 52159-76050B3 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,PLATINUM SILVER ME.,1J4 |
1 | ||
| 52159-76010C2 |
ZWA10..B Creative Textile Interior *(A),STARLIGHT BLACK GF.,217 |
1 | ||
| 52159-76050A1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,WHITE NOVA GF.,083 |
1 | ||
| 52159-76010A1 |
ZWA10..B WHITE NOVA GF.,083 |
1 | ||
| 52159-76030A1 |
ZWA10..B ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE NOVA GF.,083 |
1 | ||
| 52159-76060A1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE NOVA GF.,083 |
1 | ||
| 52159-76060C2 |
ZWA10..B Creative Textile Interior *(A)&ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,STARLIGHT BLACK GF.,217 |
1 | ||
| 52159-76050F0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,FLARE YELLOW M.M.,5B1 |
1 | ||
| 52159-76010C0 |
ZWA10 BLACK,212 |
1 | ||
| 52159-76030C2 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,STARLIGHT BLACK GF.,217 |
1 | ||
| 52159-76060B3 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,PLATINUM SILVER ME.,1J4 |
1 | ||
| 52159-76010B3 |
ZWA10 PLATINUM SILVER ME.,1J4 |
1 | ||
| 52159-76050C2 |
ZWA10..B Creative Textile Interior *(A)&ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,STARLIGHT BLACK GF.,217 |
1 | ||
| 52159-76060F0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FLARE YELLOW M.M.,5B1 |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZWA10 |
10 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZWA10 |
10 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZWA10 |
10 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZWA10 |
10 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-76010B0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,SILVER M.M.,1G1 |
2 | ||
| 52161-76010B2 |
ZWA10 DK.GRAY MC.,1G0 |
2 | ||
| 52161-76010B0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER M.M.,1G1 |
2 | ||
| 52161-76010E0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
2 | ||
| 52161-76010C0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
2 | ||
| 52161-76010C1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,BLACK OPAL MC.,214 |
2 | ||
| 52161-76010E0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,FIRE AGATE M.M.,4V3 |
2 | ||
| 52161-76010D0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,RED MC.CS.,3R1 |
2 | ||
| 52161-76010A0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,WHITE PEARL CS.,077 |
2 | ||
| 52161-76010A0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
2 | ||
| 52161-76010C1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK OPAL MC.,214 |
2 | ||
| 52161-76010J1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVERY BLUE ME.,8U9 |
2 | ||
| 52161-76010C0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,BLACK,212 |
2 | ||
| 52161-76010B2 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK.GRAY MC.,1G0 |
2 | ||
| 52161-76010C0 |
ZWA10 BLACK,212 |
2 | ||
| 52161-76010J0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLUE ME.,8U1 |
2 | ||
| 52161-76010F0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,FLARE YELLOW M.M.,5B1 |
2 | ||
| 52161-76010E0 |
ZWA10 FIRE AGATE M.M.,4V3 |
2 | ||
| 52161-76010F0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FLARE YELLOW M.M.,5B1 |
2 | ||
| 52161-76010C1 |
ZWA10 BLACK OPAL MC.,214 |
2 | ||
| 52161-76010B2 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,DK.GRAY MC.,1G0 |
2 | ||
| 52161-76010J0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,BLUE ME.,8U1 |
2 | ||
| 52161-76010F0 |
ZWA10 FLARE YELLOW M.M.,5B1 |
2 | ||
| 52161-76010D0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,RED MC.CS.,3R1 |
2 | ||
| 52161-76010J1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,SILVERY BLUE ME.,8U9 |
2 | ||
| 52161-76010B1 |
ZWA10 MERCURY GRAY MC.,1H9 |
2 | ||
| 52161-76010C2 |
ZWA10..B Creative Textile Interior *(A),STARLIGHT BLACK GF.,217 |
2 | ||
| 52161-76010D0 |
ZWA10 RED MC.CS.,3R1 |
2 | ||
| 52161-76010A0 |
ZWA10 WHITE PEARL CS.,077 |
2 | ||
| 52161-76010J1 |
ZWA10 SILVERY BLUE ME.,8U9 |
2 | ||
| 52161-76010B0 |
ZWA10 SILVER M.M.,1G1 |
2 | ||
| 52161-76010A1 |
ZWA10..B WHITE NOVA GF.,083 |
2 | ||
| 52161-76010J0 |
ZWA10 BLUE ME.,8U1 |
2 | ||
| 52161-76010B3 |
ZWA10 PLATINUM SILVER ME.,1J4 |
2 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-76010B0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,SILVER M.M.,1G1 |
2 | ||
| 52161-76010B2 |
ZWA10 DK.GRAY MC.,1G0 |
2 | ||
| 52161-76010B0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER M.M.,1G1 |
2 | ||
| 52161-76010E0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
2 | ||
| 52161-76010C0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
2 | ||
| 52161-76010C1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,BLACK OPAL MC.,214 |
2 | ||
| 52161-76010E0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,FIRE AGATE M.M.,4V3 |
2 | ||
| 52161-76010D0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,RED MC.CS.,3R1 |
2 | ||
| 52161-76010A0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,WHITE PEARL CS.,077 |
2 | ||
| 52161-76010A0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
2 | ||
| 52161-76010C1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK OPAL MC.,214 |
2 | ||
| 52161-76010J1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVERY BLUE ME.,8U9 |
2 | ||
| 52161-76010C0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,BLACK,212 |
2 | ||
| 52161-76010B2 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK.GRAY MC.,1G0 |
2 | ||
| 52161-76010C0 |
ZWA10 BLACK,212 |
2 | ||
| 52161-76010J0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLUE ME.,8U1 |
2 | ||
| 52161-76010F0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,FLARE YELLOW M.M.,5B1 |
2 | ||
| 52161-76010E0 |
ZWA10 FIRE AGATE M.M.,4V3 |
2 | ||
| 52161-76010F0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FLARE YELLOW M.M.,5B1 |
2 | ||
| 52161-76010C1 |
ZWA10 BLACK OPAL MC.,214 |
2 | ||
| 52161-76010B2 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,DK.GRAY MC.,1G0 |
2 | ||
| 52161-76010J0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,BLUE ME.,8U1 |
2 | ||
| 52161-76010F0 |
ZWA10 FLARE YELLOW M.M.,5B1 |
2 | ||
| 52161-76010D0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,RED MC.CS.,3R1 |
2 | ||
| 52161-76010J1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,SILVERY BLUE ME.,8U9 |
2 | ||
| 52161-76010B1 |
ZWA10 MERCURY GRAY MC.,1H9 |
2 | ||
| 52161-76010C2 |
ZWA10..B Creative Textile Interior *(A),STARLIGHT BLACK GF.,217 |
2 | ||
| 52161-76010D0 |
ZWA10 RED MC.CS.,3R1 |
2 | ||
| 52161-76010A0 |
ZWA10 WHITE PEARL CS.,077 |
2 | ||
| 52161-76010J1 |
ZWA10 SILVERY BLUE ME.,8U9 |
2 | ||
| 52161-76010B0 |
ZWA10 SILVER M.M.,1G1 |
2 | ||
| 52161-76010A1 |
ZWA10..B WHITE NOVA GF.,083 |
2 | ||
| 52161-76010J0 |
ZWA10 BLUE ME.,8U1 |
2 | ||
| 52161-76010B3 |
ZWA10 PLATINUM SILVER ME.,1J4 |
2 | ||
| 52565D - RETAINER, REAR BUMPER, LOWER RH | ||||
| 52565-76010 |
ZWA10 |
1 | ||
| 52566C - RETAINER, REAR BUMPER, LOWER LH | ||||
| 52566-76010 |
ZWA10 |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-76010 |
ZWA10 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-76010 |
ZWA10 |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-76010 |
ZWA10 |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-76010 |
ZWA10 |
1 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-64020B2 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER M.M.,1G1 |
2 | ||
| 89348-64020B6 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK.GRAY MC.,1G0 |
2 | ||
| 89348-64020A1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
2 | ||
| 89348-64020E1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
2 | ||
| 89348-64020F0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FLARE YELLOW M.M.,5B1 |
2 | ||
| 89348-64020J1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLUE ME.,8U1 |
2 | ||
| 89348-64020C2 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK OPAL MC.,214 |
2 | ||
| 89348-64020C1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
2 | ||
| 89348-64020J2 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVERY BLUE ME.,8U9 |
2 | ||
| 89348-30030B8 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER M.M.,1G1 |
2 | ||
| 89348-30030J5 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVERY BLUE ME.,8U9 |
2 | ||
| 89348-64020D0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,RED MC.CS.,3R1 |
2 | ||
| 89348-30030A5 |
ZWA10..B ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE NOVA GF.,083 |
2 | ||
| 89348-30030J6 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLUE ME.,8U1 |
2 | ||
| 89348-30030B0 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,MERCURY GRAY MC.,1H9 |
2 | ||
| 89348-30030B0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,MERCURY GRAY MC.,1H9 |
2 | ||
| 89348-30030C0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
2 | ||
| 89348-30030E1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
2 | ||
| 89348-30030F0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FLARE YELLOW M.M.,5B1 |
2 | ||
| 89348-30030C1 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK OPAL MC.,214 |
2 | ||
| 89348-30030A0 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
2 | ||
| 89348-30030E1 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
2 | ||
| 89348-30030F0 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FLARE YELLOW M.M.,5B1 |
2 | ||
| 89348-30030J6 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLUE ME.,8U1 |
2 | ||
| 89348-30030B6 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,PLATINUM SILVER ME.,1J4 |
2 | ||
| 89348-30030C2 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,STARLIGHT BLACK GF.,217 |
2 | ||
| 89348-30030A0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
2 | ||
| 89348-30030D2 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,RED MC.CS.,3R1 |
2 | ||
| 89348-30030C1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK OPAL MC.,214 |
2 | ||
| 89348-30030C0 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
2 | ||
| 89348-30030B6 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,PLATINUM SILVER ME.,1J4 |
2 | ||
| 89348-30030D2 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,RED MC.CS.,3R1 |
2 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-64020B2 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER M.M.,1G1 |
2 | ||
| 89348-64020B6 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK.GRAY MC.,1G0 |
2 | ||
| 89348-64020A1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
2 | ||
| 89348-64020E1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
2 | ||
| 89348-64020F0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FLARE YELLOW M.M.,5B1 |
2 | ||
| 89348-64020J1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLUE ME.,8U1 |
2 | ||
| 89348-64020C2 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK OPAL MC.,214 |
2 | ||
| 89348-64020C1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
2 | ||
| 89348-64020J2 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVERY BLUE ME.,8U9 |
2 | ||
| 89348-30030B8 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER M.M.,1G1 |
2 | ||
| 89348-30030J5 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVERY BLUE ME.,8U9 |
2 | ||
| 89348-64020D0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,RED MC.CS.,3R1 |
2 | ||
| 89348-30030A5 |
ZWA10..B ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE NOVA GF.,083 |
2 | ||
| 89348-30030J6 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLUE ME.,8U1 |
2 | ||
| 89348-30030B0 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,MERCURY GRAY MC.,1H9 |
2 | ||
| 89348-30030B0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,MERCURY GRAY MC.,1H9 |
2 | ||
| 89348-30030C0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
2 | ||
| 89348-30030E1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
2 | ||
| 89348-30030F0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FLARE YELLOW M.M.,5B1 |
2 | ||
| 89348-30030C1 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK OPAL MC.,214 |
2 | ||
| 89348-30030A0 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
2 | ||
| 89348-30030E1 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
2 | ||
| 89348-30030F0 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FLARE YELLOW M.M.,5B1 |
2 | ||
| 89348-30030J6 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLUE ME.,8U1 |
2 | ||
| 89348-30030B6 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,PLATINUM SILVER ME.,1J4 |
2 | ||
| 89348-30030C2 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,STARLIGHT BLACK GF.,217 |
2 | ||
| 89348-30030A0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
2 | ||
| 89348-30030D2 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,RED MC.CS.,3R1 |
2 | ||
| 89348-30030C1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK OPAL MC.,214 |
2 | ||
| 89348-30030C0 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
2 | ||
| 89348-30030B6 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,PLATINUM SILVER ME.,1J4 |
2 | ||
| 89348-30030D2 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,RED MC.CS.,3R1 |
2 | ||
| 89C48B - RETAINER, ULTRASONIC SENSOR, REAR CENTER | ||||
| 89348-64020A1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
2 | ||
| 89348-64020C1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
2 | ||
| 89348-64020C2 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK OPAL MC.,214 |
2 | ||
| 89348-64020B2 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER M.M.,1G1 |
2 | ||
| 89348-64020B6 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK.GRAY MC.,1G0 |
2 | ||
| 89348-30030B8 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER M.M.,1G1 |
2 | ||
| 89348-64020E1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
2 | ||
| 89348-64020J2 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVERY BLUE ME.,8U9 |
2 | ||
| 89348-64020D0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,RED MC.CS.,3R1 |
2 | ||
| 89348-64020J1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLUE ME.,8U1 |
2 | ||
| 89348-30030B0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,MERCURY GRAY MC.,1H9 |
2 | ||
| 89348-30030E1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
2 | ||
| 89348-30030F0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FLARE YELLOW M.M.,5B1 |
2 | ||
| 89348-64020F0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FLARE YELLOW M.M.,5B1 |
2 | ||
| 89348-30030D2 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,RED MC.CS.,3R1 |
2 | ||
| 89348-30030B6 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,PLATINUM SILVER ME.,1J4 |
2 | ||
| 89348-30030C0 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
2 | ||
| 89348-30030C1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK OPAL MC.,214 |
2 | ||
| 89348-30030B0 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,MERCURY GRAY MC.,1H9 |
2 | ||
| 89348-30030A5 |
ZWA10..B ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE NOVA GF.,083 |
2 | ||
| 89348-30030E1 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
2 | ||
| 89348-30030C0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
2 | ||
| 89348-30030A0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
2 | ||
| 89348-30030C1 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK OPAL MC.,214 |
2 | ||
| 89348-30030C2 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,STARLIGHT BLACK GF.,217 |
2 | ||
| 89348-30030J5 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVERY BLUE ME.,8U9 |
2 | ||
| 89348-30030D2 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,RED MC.CS.,3R1 |
2 | ||
| 89348-30030J6 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLUE ME.,8U1 |
2 | ||
| 89348-30030F0 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FLARE YELLOW M.M.,5B1 |
2 | ||
| 89348-30030J6 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLUE ME.,8U1 |
2 | ||
| 89348-30030A0 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
2 | ||
| 89348-30030B6 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,PLATINUM SILVER ME.,1J4 |
2 | ||
| Common parts | ||||
| 75392-42030 | ||||
| 90159-60500 | ||||
| 90159-60602 | ||||
| 90189-06013 | ||||
| 90189-06148 | ||||
| 90467-06121 | ||||
| 91552-B1025 | ||||
| 91674-A0825 | ||||
| Linked diagrams | ||||
| 8115 | ||||
(1012-1312)B
ｴｱﾛﾊﾞﾝﾊﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52015A - ARM SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-76010 |
ZWA10 |
1 | ||
| 52016A - ARM SUB-ASSY, REAR BUMPER, LH | ||||
| 52016-76010 |
ZWA10 |
1 | ||
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52171-76010 |
ZWA10 |
1 | ||
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52152-WY010 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ |
1 | ||
| 52152-76010 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ |
1 | ||
| 52152-WY010 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 52152-76010 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 52153B - EXTENSION, REAR BUMPER, LH | ||||
| 52153-WY010 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 52153-WY010 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ |
1 | ||
| 52153-76010 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 52153-76010 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-WY010B2 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,DK.GRAY MC.,1G0 |
1 | ||
| 52159-WY010J0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,BLUE ME.,8U1 |
1 | ||
| 52159-WY010C1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,BLACK OPAL MC.,214 |
1 | ||
| 52159-76010B2 |
ZWA10 DK.GRAY MC.,1G0 |
1 | ||
| 52159-WY010D0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,RED MC.CS.,3R1 |
1 | ||
| 52159-WY020B0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER M.M.,1G1 |
1 | ||
| 52159-WY020A0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
1 | ||
| 52159-WY010J1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,SILVERY BLUE ME.,8U9 |
1 | ||
| 52159-WY010B0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,SILVER M.M.,1G1 |
1 | ||
| 52159-WY010C0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,BLACK,212 |
1 | ||
| 52159-WY020C0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
1 | ||
| 52159-WY020C1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK OPAL MC.,214 |
1 | ||
| 52159-WY020E0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
1 | ||
| 52159-WY020B2 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK.GRAY MC.,1G0 |
1 | ||
| 52159-WY010F0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,FLARE YELLOW M.M.,5B1 |
1 | ||
| 52159-WY020F0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FLARE YELLOW M.M.,5B1 |
1 | ||
| 52159-76010B0 |
ZWA10 SILVER M.M.,1G1 |
1 | ||
| 52159-WY010A0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,WHITE PEARL CS.,077 |
1 | ||
| 52159-WY010E0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,FIRE AGATE M.M.,4V3 |
1 | ||
| 52159-76030B0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER M.M.,1G1 |
1 | ||
| 52159-76050J1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,SILVERY BLUE ME.,8U9 |
1 | ||
| 52159-76060B0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER M.M.,1G1 |
1 | ||
| 52159-76060J1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVERY BLUE ME.,8U9 |
1 | ||
| 52159-76050B0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,SILVER M.M.,1G1 |
1 | ||
| 52159-WY020J1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVERY BLUE ME.,8U9 |
1 | ||
| 52159-76030J1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVERY BLUE ME.,8U9 |
1 | ||
| 52159-WY020D0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,RED MC.CS.,3R1 |
1 | ||
| 52159-76030B2 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK.GRAY MC.,1G0 |
1 | ||
| 52159-76010E0 |
ZWA10 FIRE AGATE M.M.,4V3 |
1 | ||
| 52159-76010J0 |
ZWA10 BLUE ME.,8U1 |
1 | ||
| 52159-76010D0 |
ZWA10 RED MC.CS.,3R1 |
1 | ||
| 52159-WY020J0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLUE ME.,8U1 |
1 | ||
| 52159-76030D0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,RED MC.CS.,3R1 |
1 | ||
| 52159-76010J1 |
ZWA10 SILVERY BLUE ME.,8U9 |
1 | ||
| 52159-76030A0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
1 | ||
| 52159-76030B1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,MERCURY GRAY MC.,1H9 |
1 | ||
| 52159-76010F0 |
ZWA10 FLARE YELLOW M.M.,5B1 |
1 | ||
| 52159-76010A0 |
ZWA10 WHITE PEARL CS.,077 |
1 | ||
| 52159-76030E0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
1 | ||
| 52159-76030J0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLUE ME.,8U1 |
1 | ||
| 52159-76050A0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,WHITE PEARL CS.,077 |
1 | ||
| 52159-76010C1 |
ZWA10 BLACK OPAL MC.,214 |
1 | ||
| 52159-76050B1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,MERCURY GRAY MC.,1H9 |
1 | ||
| 52159-76030F0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FLARE YELLOW M.M.,5B1 |
1 | ||
| 52159-76030C1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK OPAL MC.,214 |
1 | ||
| 52159-76030C0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
1 | ||
| 52159-76050C0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,BLACK,212 |
1 | ||
| 52159-76050D0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,RED MC.CS.,3R1 |
1 | ||
| 52159-76060D0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,RED MC.CS.,3R1 |
1 | ||
| 52159-76050C1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,BLACK OPAL MC.,214 |
1 | ||
| 52159-76060C1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK OPAL MC.,214 |
1 | ||
| 52159-76050J0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,BLUE ME.,8U1 |
1 | ||
| 52159-76060A0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
1 | ||
| 52159-76050E0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,FIRE AGATE M.M.,4V3 |
1 | ||
| 52159-76060B1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,MERCURY GRAY MC.,1H9 |
1 | ||
| 52159-76060J0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLUE ME.,8U1 |
1 | ||
| 52159-76010B1 |
ZWA10 MERCURY GRAY MC.,1H9 |
1 | ||
| 52159-76060C0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
1 | ||
| 52159-76030B3 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,PLATINUM SILVER ME.,1J4 |
1 | ||
| 52159-76060E0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
1 | ||
| 52159-76050B3 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,PLATINUM SILVER ME.,1J4 |
1 | ||
| 52159-76010C2 |
ZWA10..B Creative Textile Interior *(A),STARLIGHT BLACK GF.,217 |
1 | ||
| 52159-76050A1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,WHITE NOVA GF.,083 |
1 | ||
| 52159-76010A1 |
ZWA10..B WHITE NOVA GF.,083 |
1 | ||
| 52159-76030A1 |
ZWA10..B ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE NOVA GF.,083 |
1 | ||
| 52159-76060A1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE NOVA GF.,083 |
1 | ||
| 52159-76060C2 |
ZWA10..B Creative Textile Interior *(A)&ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,STARLIGHT BLACK GF.,217 |
1 | ||
| 52159-76050F0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,FLARE YELLOW M.M.,5B1 |
1 | ||
| 52159-76010C0 |
ZWA10 BLACK,212 |
1 | ||
| 52159-76030C2 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,STARLIGHT BLACK GF.,217 |
1 | ||
| 52159-76060B3 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,PLATINUM SILVER ME.,1J4 |
1 | ||
| 52159-76010B3 |
ZWA10 PLATINUM SILVER ME.,1J4 |
1 | ||
| 52159-76050C2 |
ZWA10..B Creative Textile Interior *(A)&ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,STARLIGHT BLACK GF.,217 |
1 | ||
| 52159-76060F0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FLARE YELLOW M.M.,5B1 |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZWA10 |
10 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZWA10 |
10 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZWA10 |
10 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZWA10 |
10 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-76010B0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,SILVER M.M.,1G1 |
2 | ||
| 52161-76010B2 |
ZWA10 DK.GRAY MC.,1G0 |
2 | ||
| 52161-76010B0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER M.M.,1G1 |
2 | ||
| 52161-76010E0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
2 | ||
| 52161-76010C0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
2 | ||
| 52161-76010C1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,BLACK OPAL MC.,214 |
2 | ||
| 52161-76010E0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,FIRE AGATE M.M.,4V3 |
2 | ||
| 52161-76010D0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,RED MC.CS.,3R1 |
2 | ||
| 52161-76010A0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,WHITE PEARL CS.,077 |
2 | ||
| 52161-76010A0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
2 | ||
| 52161-76010C1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK OPAL MC.,214 |
2 | ||
| 52161-76010J1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVERY BLUE ME.,8U9 |
2 | ||
| 52161-76010C0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,BLACK,212 |
2 | ||
| 52161-76010B2 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK.GRAY MC.,1G0 |
2 | ||
| 52161-76010C0 |
ZWA10 BLACK,212 |
2 | ||
| 52161-76010J0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLUE ME.,8U1 |
2 | ||
| 52161-76010F0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,FLARE YELLOW M.M.,5B1 |
2 | ||
| 52161-76010E0 |
ZWA10 FIRE AGATE M.M.,4V3 |
2 | ||
| 52161-76010F0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FLARE YELLOW M.M.,5B1 |
2 | ||
| 52161-76010C1 |
ZWA10 BLACK OPAL MC.,214 |
2 | ||
| 52161-76010B2 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,DK.GRAY MC.,1G0 |
2 | ||
| 52161-76010J0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,BLUE ME.,8U1 |
2 | ||
| 52161-76010F0 |
ZWA10 FLARE YELLOW M.M.,5B1 |
2 | ||
| 52161-76010D0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,RED MC.CS.,3R1 |
2 | ||
| 52161-76010J1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,SILVERY BLUE ME.,8U9 |
2 | ||
| 52161-76010B1 |
ZWA10 MERCURY GRAY MC.,1H9 |
2 | ||
| 52161-76010C2 |
ZWA10..B Creative Textile Interior *(A),STARLIGHT BLACK GF.,217 |
2 | ||
| 52161-76010D0 |
ZWA10 RED MC.CS.,3R1 |
2 | ||
| 52161-76010A0 |
ZWA10 WHITE PEARL CS.,077 |
2 | ||
| 52161-76010J1 |
ZWA10 SILVERY BLUE ME.,8U9 |
2 | ||
| 52161-76010B0 |
ZWA10 SILVER M.M.,1G1 |
2 | ||
| 52161-76010A1 |
ZWA10..B WHITE NOVA GF.,083 |
2 | ||
| 52161-76010J0 |
ZWA10 BLUE ME.,8U1 |
2 | ||
| 52161-76010B3 |
ZWA10 PLATINUM SILVER ME.,1J4 |
2 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-76010B0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,SILVER M.M.,1G1 |
2 | ||
| 52161-76010B2 |
ZWA10 DK.GRAY MC.,1G0 |
2 | ||
| 52161-76010B0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER M.M.,1G1 |
2 | ||
| 52161-76010E0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
2 | ||
| 52161-76010C0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
2 | ||
| 52161-76010C1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,BLACK OPAL MC.,214 |
2 | ||
| 52161-76010E0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,FIRE AGATE M.M.,4V3 |
2 | ||
| 52161-76010D0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,RED MC.CS.,3R1 |
2 | ||
| 52161-76010A0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,WHITE PEARL CS.,077 |
2 | ||
| 52161-76010A0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
2 | ||
| 52161-76010C1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK OPAL MC.,214 |
2 | ||
| 52161-76010J1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVERY BLUE ME.,8U9 |
2 | ||
| 52161-76010C0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,BLACK,212 |
2 | ||
| 52161-76010B2 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK.GRAY MC.,1G0 |
2 | ||
| 52161-76010C0 |
ZWA10 BLACK,212 |
2 | ||
| 52161-76010J0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLUE ME.,8U1 |
2 | ||
| 52161-76010F0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,FLARE YELLOW M.M.,5B1 |
2 | ||
| 52161-76010E0 |
ZWA10 FIRE AGATE M.M.,4V3 |
2 | ||
| 52161-76010F0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FLARE YELLOW M.M.,5B1 |
2 | ||
| 52161-76010C1 |
ZWA10 BLACK OPAL MC.,214 |
2 | ||
| 52161-76010B2 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,DK.GRAY MC.,1G0 |
2 | ||
| 52161-76010J0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,BLUE ME.,8U1 |
2 | ||
| 52161-76010F0 |
ZWA10 FLARE YELLOW M.M.,5B1 |
2 | ||
| 52161-76010D0 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,RED MC.CS.,3R1 |
2 | ||
| 52161-76010J1 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ,SILVERY BLUE ME.,8U9 |
2 | ||
| 52161-76010B1 |
ZWA10 MERCURY GRAY MC.,1H9 |
2 | ||
| 52161-76010C2 |
ZWA10..B Creative Textile Interior *(A),STARLIGHT BLACK GF.,217 |
2 | ||
| 52161-76010D0 |
ZWA10 RED MC.CS.,3R1 |
2 | ||
| 52161-76010A0 |
ZWA10 WHITE PEARL CS.,077 |
2 | ||
| 52161-76010J1 |
ZWA10 SILVERY BLUE ME.,8U9 |
2 | ||
| 52161-76010B0 |
ZWA10 SILVER M.M.,1G1 |
2 | ||
| 52161-76010A1 |
ZWA10..B WHITE NOVA GF.,083 |
2 | ||
| 52161-76010J0 |
ZWA10 BLUE ME.,8U1 |
2 | ||
| 52161-76010B3 |
ZWA10 PLATINUM SILVER ME.,1J4 |
2 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-76010 |
ZWA10 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-76010 |
ZWA10 |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-76010 |
ZWA10 |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-76010 |
ZWA10 |
1 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-64020B2 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER M.M.,1G1 |
2 | ||
| 89348-64020B6 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK.GRAY MC.,1G0 |
2 | ||
| 89348-64020A1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
2 | ||
| 89348-64020E1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
2 | ||
| 89348-64020F0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FLARE YELLOW M.M.,5B1 |
2 | ||
| 89348-64020J1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLUE ME.,8U1 |
2 | ||
| 89348-64020C2 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK OPAL MC.,214 |
2 | ||
| 89348-64020C1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
2 | ||
| 89348-64020J2 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVERY BLUE ME.,8U9 |
2 | ||
| 89348-30030B8 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER M.M.,1G1 |
2 | ||
| 89348-30030J5 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVERY BLUE ME.,8U9 |
2 | ||
| 89348-64020D0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,RED MC.CS.,3R1 |
2 | ||
| 89348-30030A5 |
ZWA10..B ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE NOVA GF.,083 |
2 | ||
| 89348-30030J6 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLUE ME.,8U1 |
2 | ||
| 89348-30030B0 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,MERCURY GRAY MC.,1H9 |
2 | ||
| 89348-30030B0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,MERCURY GRAY MC.,1H9 |
2 | ||
| 89348-30030C0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
2 | ||
| 89348-30030E1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
2 | ||
| 89348-30030F0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FLARE YELLOW M.M.,5B1 |
2 | ||
| 89348-30030C1 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK OPAL MC.,214 |
2 | ||
| 89348-30030A0 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
2 | ||
| 89348-30030E1 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
2 | ||
| 89348-30030F0 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FLARE YELLOW M.M.,5B1 |
2 | ||
| 89348-30030J6 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLUE ME.,8U1 |
2 | ||
| 89348-30030B6 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,PLATINUM SILVER ME.,1J4 |
2 | ||
| 89348-30030C2 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,STARLIGHT BLACK GF.,217 |
2 | ||
| 89348-30030A0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
2 | ||
| 89348-30030D2 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,RED MC.CS.,3R1 |
2 | ||
| 89348-30030C1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK OPAL MC.,214 |
2 | ||
| 89348-30030C0 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
2 | ||
| 89348-30030B6 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,PLATINUM SILVER ME.,1J4 |
2 | ||
| 89348-30030D2 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,RED MC.CS.,3R1 |
2 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-64020B2 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER M.M.,1G1 |
2 | ||
| 89348-64020B6 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK.GRAY MC.,1G0 |
2 | ||
| 89348-64020A1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
2 | ||
| 89348-64020E1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
2 | ||
| 89348-64020F0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FLARE YELLOW M.M.,5B1 |
2 | ||
| 89348-64020J1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLUE ME.,8U1 |
2 | ||
| 89348-64020C2 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK OPAL MC.,214 |
2 | ||
| 89348-64020C1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
2 | ||
| 89348-64020J2 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVERY BLUE ME.,8U9 |
2 | ||
| 89348-30030B8 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER M.M.,1G1 |
2 | ||
| 89348-30030J5 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVERY BLUE ME.,8U9 |
2 | ||
| 89348-64020D0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,RED MC.CS.,3R1 |
2 | ||
| 89348-30030A5 |
ZWA10..B ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE NOVA GF.,083 |
2 | ||
| 89348-30030J6 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLUE ME.,8U1 |
2 | ||
| 89348-30030B0 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,MERCURY GRAY MC.,1H9 |
2 | ||
| 89348-30030B0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,MERCURY GRAY MC.,1H9 |
2 | ||
| 89348-30030C0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
2 | ||
| 89348-30030E1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
2 | ||
| 89348-30030F0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FLARE YELLOW M.M.,5B1 |
2 | ||
| 89348-30030C1 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK OPAL MC.,214 |
2 | ||
| 89348-30030A0 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
2 | ||
| 89348-30030E1 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
2 | ||
| 89348-30030F0 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FLARE YELLOW M.M.,5B1 |
2 | ||
| 89348-30030J6 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLUE ME.,8U1 |
2 | ||
| 89348-30030B6 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,PLATINUM SILVER ME.,1J4 |
2 | ||
| 89348-30030C2 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,STARLIGHT BLACK GF.,217 |
2 | ||
| 89348-30030A0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
2 | ||
| 89348-30030D2 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,RED MC.CS.,3R1 |
2 | ||
| 89348-30030C1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK OPAL MC.,214 |
2 | ||
| 89348-30030C0 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
2 | ||
| 89348-30030B6 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,PLATINUM SILVER ME.,1J4 |
2 | ||
| 89348-30030D2 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,RED MC.CS.,3R1 |
2 | ||
| 89C48B - RETAINER, ULTRASONIC SENSOR, REAR CENTER | ||||
| 89348-64020A1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
2 | ||
| 89348-64020C1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
2 | ||
| 89348-64020C2 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK OPAL MC.,214 |
2 | ||
| 89348-64020B2 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER M.M.,1G1 |
2 | ||
| 89348-64020B6 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK.GRAY MC.,1G0 |
2 | ||
| 89348-30030B8 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER M.M.,1G1 |
2 | ||
| 89348-64020E1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
2 | ||
| 89348-64020J2 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVERY BLUE ME.,8U9 |
2 | ||
| 89348-64020D0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,RED MC.CS.,3R1 |
2 | ||
| 89348-64020J1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLUE ME.,8U1 |
2 | ||
| 89348-30030B0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,MERCURY GRAY MC.,1H9 |
2 | ||
| 89348-30030E1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
2 | ||
| 89348-30030F0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FLARE YELLOW M.M.,5B1 |
2 | ||
| 89348-64020F0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FLARE YELLOW M.M.,5B1 |
2 | ||
| 89348-30030D2 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,RED MC.CS.,3R1 |
2 | ||
| 89348-30030B6 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,PLATINUM SILVER ME.,1J4 |
2 | ||
| 89348-30030C0 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
2 | ||
| 89348-30030C1 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK OPAL MC.,214 |
2 | ||
| 89348-30030B0 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,MERCURY GRAY MC.,1H9 |
2 | ||
| 89348-30030A5 |
ZWA10..B ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE NOVA GF.,083 |
2 | ||
| 89348-30030E1 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FIRE AGATE M.M.,4V3 |
2 | ||
| 89348-30030C0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,212 |
2 | ||
| 89348-30030A0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
2 | ||
| 89348-30030C1 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK OPAL MC.,214 |
2 | ||
| 89348-30030C2 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,STARLIGHT BLACK GF.,217 |
2 | ||
| 89348-30030J5 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVERY BLUE ME.,8U9 |
2 | ||
| 89348-30030D2 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,RED MC.CS.,3R1 |
2 | ||
| 89348-30030J6 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLUE ME.,8U1 |
2 | ||
| 89348-30030F0 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,FLARE YELLOW M.M.,5B1 |
2 | ||
| 89348-30030J6 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLUE ME.,8U1 |
2 | ||
| 89348-30030A0 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,077 |
2 | ||
| 89348-30030B6 |
ZWA10..B Creative Textile Interior *(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,PLATINUM SILVER ME.,1J4 |
2 | ||
| Common parts | ||||
| 75392-42030 | ||||
| 90159-60500 | ||||
| 90159-60602 | ||||
| 90189-06013 | ||||
| 90189-06148 | ||||
| 90467-06121 | ||||
| 91552-B1025 | ||||
| 91674-A0825 | ||||
| Linked diagrams | ||||
| 8115 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
