ZWA10-AHXBB (2010)
Toyota Lexus Ct200h
(1012- )

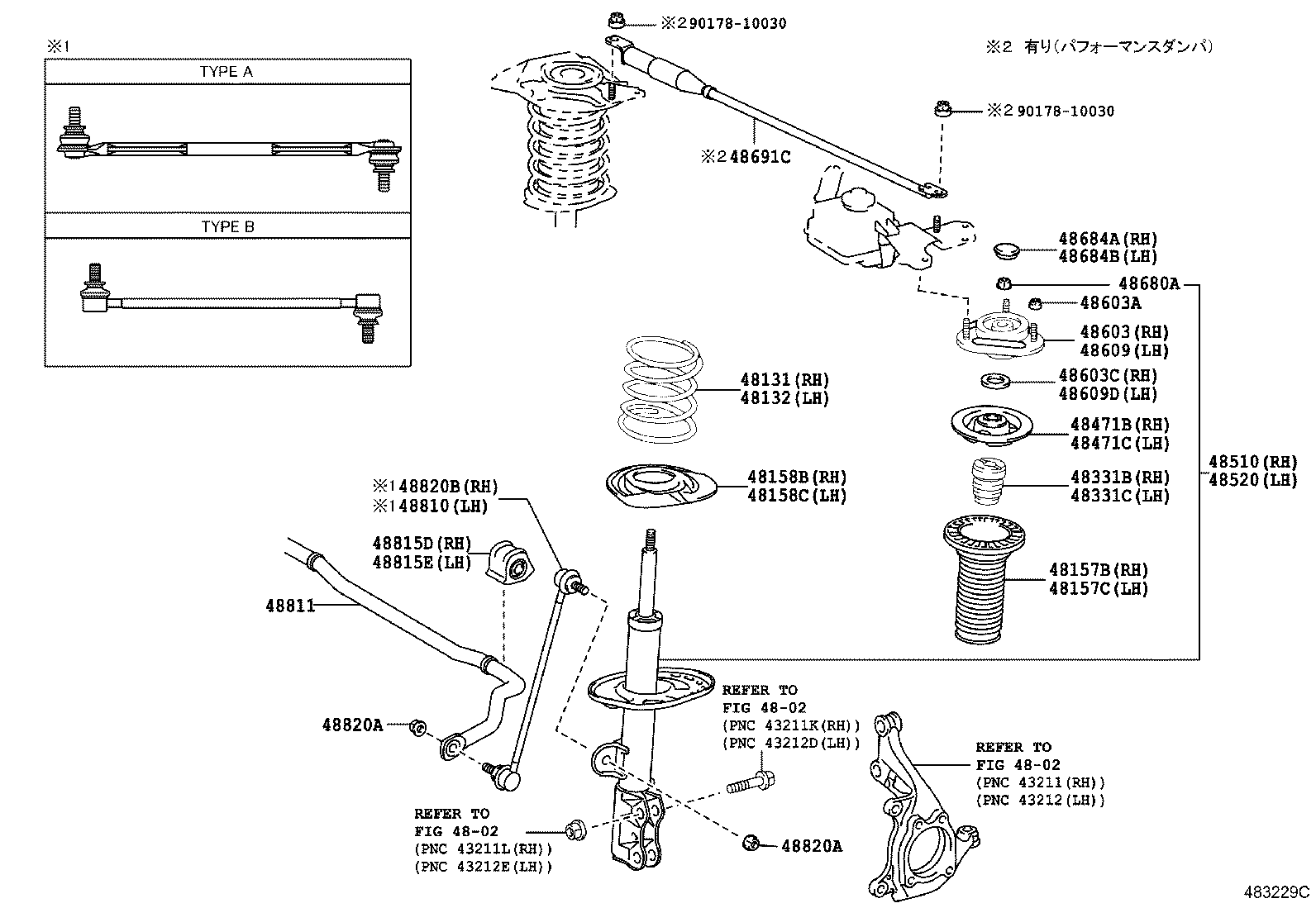

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-76010 |
ZWA10..B |
1 | ||
| 48131-76030 |
ZWA10..B F SPORT |
1 | ||
| 48131-76020 |
ZWA10..E |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-76030 |
ZWA10..B F SPORT |
1 | ||
| 48131-76010 |
ZWA10..B |
1 | ||
| 48131-76020 |
ZWA10..E |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-42030 |
ZWA10 |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-42030 |
ZWA10 |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-12040 |
ZWA10 |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-12040 |
ZWA10 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-12220 |
ZWA10 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-12220 |
ZWA10 |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48044-42010 |
ZWA10 |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48044-42010 |
ZWA10 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-79205 |
ZWA10..B ﾏｰｸ 48510−76080,F SPORT |
1 | ||
| 48510-79115 |
ZWA10..B ﾏｰｸ 48510−76010,F SPORT |
1 | ||
| 48510-79225 |
ZWA10..B ﾏｰｸ 48510−76090 |
1 | ||
| 48510-79095 |
ZWA10..E ﾏｰｸ 48510−76040 |
1 | ||
| 48510-79105 |
ZWA10..B ﾏｰｸ 48510−76050 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-79095 |
ZWA10..E ﾏｰｸ 48520−76040 |
1 | ||
| 48520-79225 |
ZWA10..B ﾏｰｸ 48520−76090 |
1 | ||
| 48520-79105 |
ZWA10..B ﾏｰｸ 48520−76050 |
1 | ||
| 48520-79205 |
ZWA10..B ﾏｰｸ 48520−76080,F SPORT |
1 | ||
| 48520-79115 |
ZWA10..B ﾏｰｸ 48520−76010,F SPORT |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-12570 |
ZWA10 |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90178-10030 |
ZWA10 |
6 | ||
| 48603C - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH) | ||||
| 90303-22002 |
ZWA10 |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-12570 |
ZWA10 |
1 | ||
| 48609D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH) | ||||
| 90303-22002 |
ZWA10 |
1 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 90177-14005 |
ZWA10 |
2 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-52010 |
ZWA10 |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-52010 |
ZWA10 |
1 | ||
| 48691C - DAMPER, SUSPENSION TOWER | ||||
| 48691-76010 |
ZWA10..B ﾊﾟﾌｫｰﾏﾝｽﾀﾞﾝﾊﾟ−有り |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-47020 |
ZWA10 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48820-42030 |
ZWA10 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-47070 |
ZWA10 |
1 | ||
| 48815D - BUSH, FRONT STABILIZER BAR, RH | ||||
| 48815-75020 |
ZWA10 |
1 | ||
| 48815E - BUSH, FRONT STABILIZER BAR, LH | ||||
| 48815-75010 |
ZWA10 |
1 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-12151 |
ZWA10 |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-12151 |
ZWA10 |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-47020 |
ZWA10 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48820-42030 |
ZWA10 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| Common parts | ||||
| 90178-10030 | ||||
| Linked diagrams | ||||
| 4802 | ||||
