ZWA10-AHXBB (2010)
Toyota Lexus Ct200h
Production
Dec 2010
-
Dec 2013
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1012- )

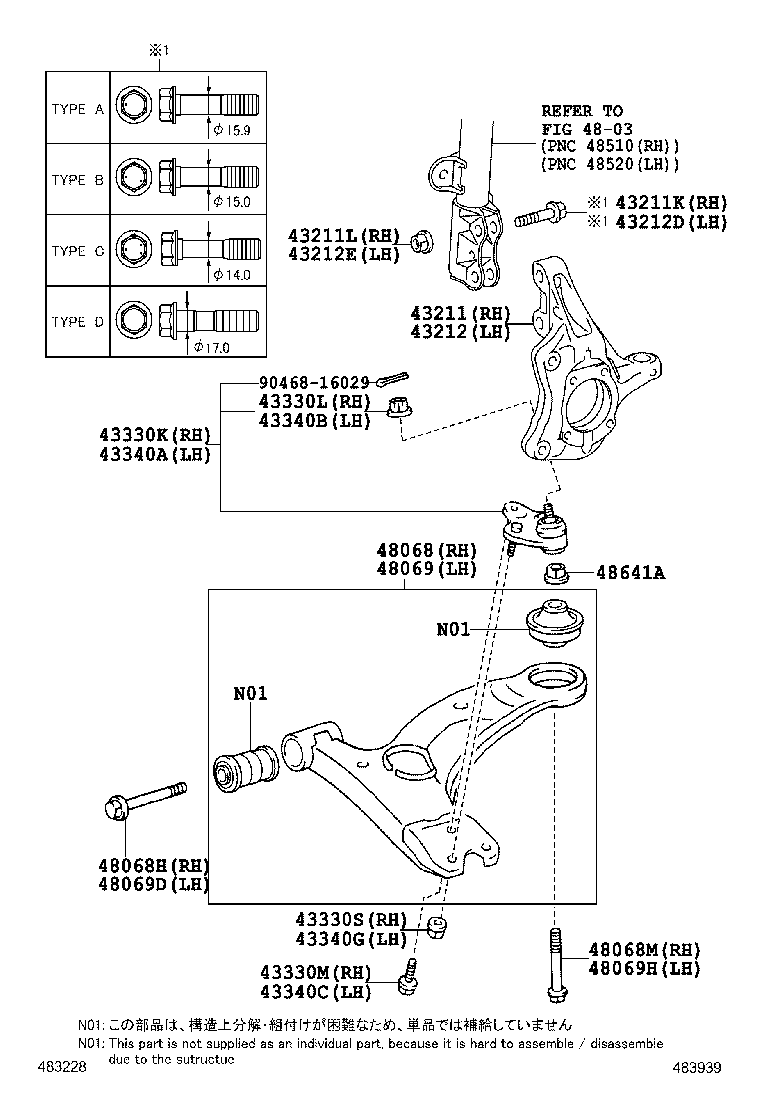

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43201-47030 |
ZWA10 |
1 | ||
| 43211K - BOLT (FOR STEERING KNUCKLE RH) | ||||
| 90105-17018 |
ZWA10 外径=14,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 90105-17017 |
ZWA10 外径=15,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 90105-17019 |
ZWA10 外径=17,TYPE D:ｲﾗｽﾄ参照 |
2 | ||
| 90105-17016 |
ZWA10 外径=15.9,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 43211L - NUT (FOR STEERING KNUCKLE RH) | ||||
| 90178-17003 |
ZWA10 |
2 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43202-47030 |
ZWA10 |
1 | ||
| 43212D - BOLT (FOR STEERING KNUCKLE LH) | ||||
| 90105-17018 |
ZWA10 外径=14,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 90105-17016 |
ZWA10 外径=15.9,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 90105-17017 |
ZWA10 外径=15,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 90105-17019 |
ZWA10 外径=17,TYPE D:ｲﾗｽﾄ参照 |
2 | ||
| 43212E - NUT (FOR STEERING KNUCKLE LH) | ||||
| 90178-17003 |
ZWA10 |
2 | ||
| 43330K - JOINT ASSY, LOWER BALL, FRONT RH | ||||
| 43330-49185 |
ZWA10 |
1 | ||
| 43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90171-14013 |
ZWA10 |
1 | ||
| 43330M - BOLT (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90105-12346 |
ZWA10 |
1 | ||
| 43330S - NUT (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90178-12019 |
ZWA10 |
2 | ||
| 43340A - JOINT ASSY, LOWER BALL, FRONT LH | ||||
| 43330-49185 |
ZWA10 |
1 | ||
| 43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90171-14013 |
ZWA10 |
1 | ||
| 43340C - BOLT (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90105-12346 |
ZWA10 |
1 | ||
| 43340G - NUT (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90178-12019 |
ZWA10 |
2 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-47050 |
ZWA10 |
1 | ||
| 48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 91554-L1690 |
ZWA10 |
1 | ||
| 90105-16090 |
ZWA10 |
1 | ||
| 48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH) | ||||
| 91554-L1690 |
ZWA10 |
1 | ||
| 90105-16090 |
ZWA10 |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-47050 |
ZWA10 |
1 | ||
| 48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 91554-L1690 |
ZWA10 |
1 | ||
| 90105-16090 |
ZWA10 |
1 | ||
| 48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH) | ||||
| 90105-16090 |
ZWA10 |
1 | ||
| 91554-L1690 |
ZWA10 |
1 | ||
| 48641A - NUT(FOR SUSPENSION LOWER ARM SHAFT) | ||||
| 90178-16006 |
ZWA10 |
2 | ||
| Common parts | ||||
| 90468-16029 | ||||
| Linked diagrams | ||||
| 4803 | ||||
