ZWA10-AHXBB (2010)
Toyota Lexus Ct200h
Production
Dec 2010
-
Dec 2013
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1012- )

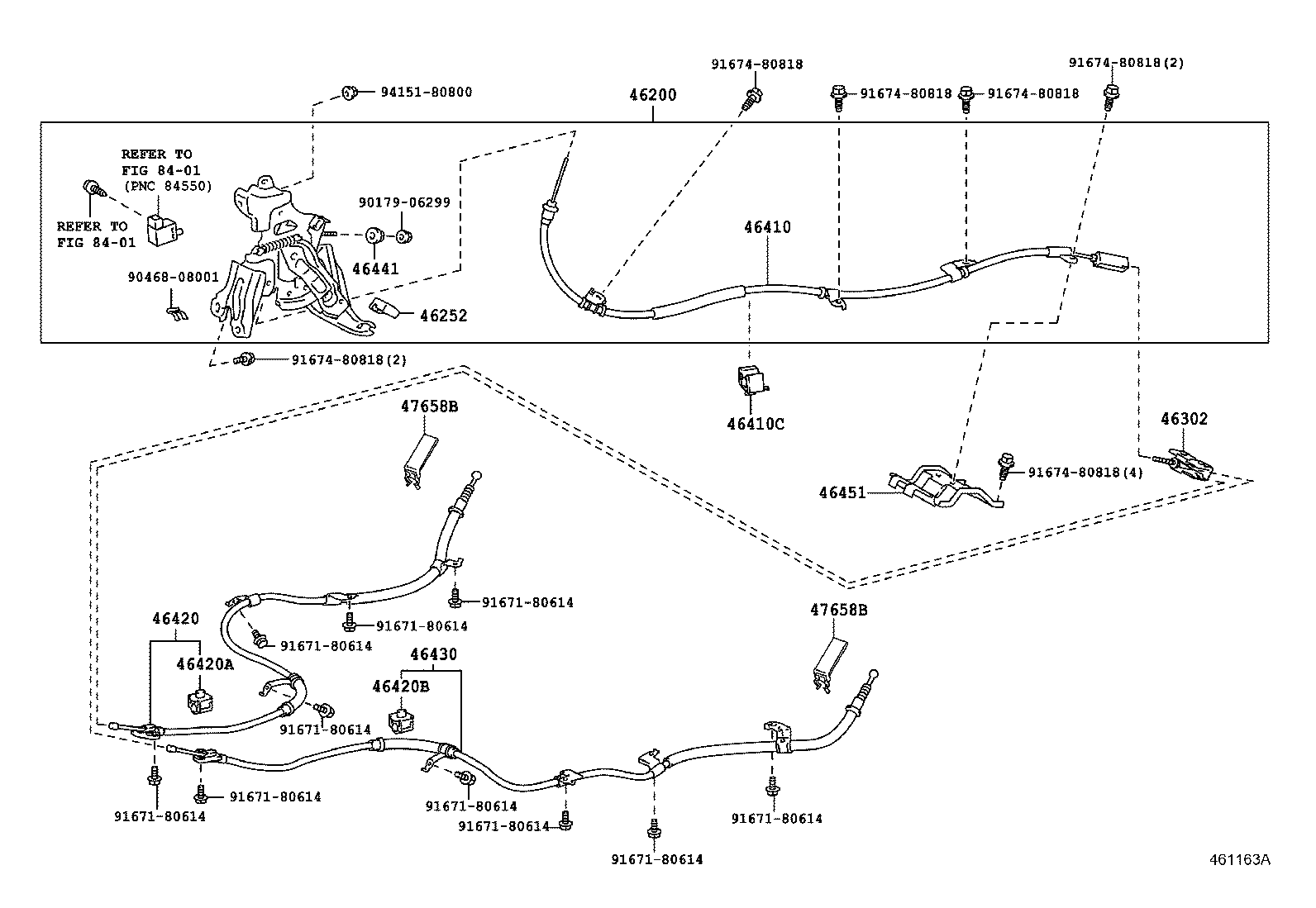

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46200 - PEDAL ASSY, PARKING BRAKE CONTROL | ||||
| 46200-76010 |
ZWA10 |
1 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-47010 |
ZWA10 |
1 | ||
| 46302 - ROD SUB-ASSY, PARKING BRAKE PULL, NO.1 | ||||
| 46302-75010 |
ZWA10 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-76010 |
ZWA10 |
1 | ||
| 46410C - CLAMP(FOR PARKING BRAKE FRONT CABLE) | ||||
| 46411-47020 |
ZWA10 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-76020 |
ZWA10..B |
1 | ||
| 46420-76010 |
ZWA10..E |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46402-12030 |
ZWA10 |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 46402-12030 |
ZWA10 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-76010 |
ZWA10..E |
1 | ||
| 46430-76020 |
ZWA10..B |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-12010 |
ZWA10 |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-76010 |
ZWA10 |
1 | ||
| 47658B - PROTECTOR, PARKING BRAKE LEVER | ||||
| 47658-12010 |
ZWA10 |
2 | ||
| 47658B - PROTECTOR, PARKING BRAKE LEVER | ||||
| 47658-12010 |
ZWA10 |
2 | ||
| Common parts | ||||
| 90179-06299 | ||||
| 90468-08001 | ||||
| 91671-80614 | ||||
| 91674-80818 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
