ZWA10-AHXBB (2010)
Toyota Lexus Ct200h
(1012-1312)
3ﾎﾝｽﾎﾟｰｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-76050C2 |
ZWA10..B 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻き(ﾃﾞｨﾝﾌﾟﾙ加工),有り(ｽﾃｱ潟塔Oﾋｰﾀ&ﾊﾟﾄﾞﾙｽｲｯﾁ),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 45100-76040C2 |
ZWA10..B 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻き(ﾃﾞｨﾝﾌﾟﾙ加工),有り(ﾊﾟﾄﾞﾙXｲｯﾁ),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 45100-7603020 |
ZWA10..B 3本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−木目,有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ父pﾄﾞﾙｽｲｯﾁ),BLACK & BROWN,TRIM0#,2# |
1 | ||
| 45100-76010C3 |
ZWA10 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 45100-76010C5 |
ZWA10..B 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,Creative Textile Interior *(A)父Xﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻き､有り(ﾊﾟﾄﾞﾙｽｲｯﾁ),BLACK & BLUE,TRIM20 |
1 | ||
| 45100-76010C4 |
ZWA10..B 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,Creative Textile Interior *(A)父Xﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻き､有り(ﾊﾟﾄﾞﾙｽｲｯﾁ),BLACK & RED,TRIM20 |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-76020C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 45184 - COVER, STEERING WHEEL BOSS, LOWER | ||||
| 45184-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-76010C0 |
ZWA10..B BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 45186-76020C0 |
ZWA10..E BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 45186-76010C0 |
ZWA10..E ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(電気式),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 45186-76010C0 |
ZWA10..E ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-76010C0 |
ZWA10..B BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 45186-76020C0 |
ZWA10..E BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 45186-76010C0 |
ZWA10..E ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(電気式),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 45186-76010C0 |
ZWA10..E ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 45187 - COVER, STEERING WHEEL, LOWER NO.3 | ||||
| 45187-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
ZWA10 |
1 | ||
| 45713A - DAMPER, STEERING SHAKE | ||||
| 45713-76010 |
ZWA10 |
1 | ||
| 45713-76011 |
ZWA10 |
1 | ||
| 55910E - CONTROL ASSY, STEERING WHEEL HEATER | ||||
| 55910-76010 |
ZWA10..B ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−木目,有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ&ﾊﾟﾄﾞﾙｽｲｯﾁ) |
1 | ||
| 55910-76010 |
ZWA10..B ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻き(ﾃﾞｨﾝﾌﾟﾙ加工),有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ&ﾊﾟﾄﾞﾙｽｲｯﾁ) |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40113 | ||||

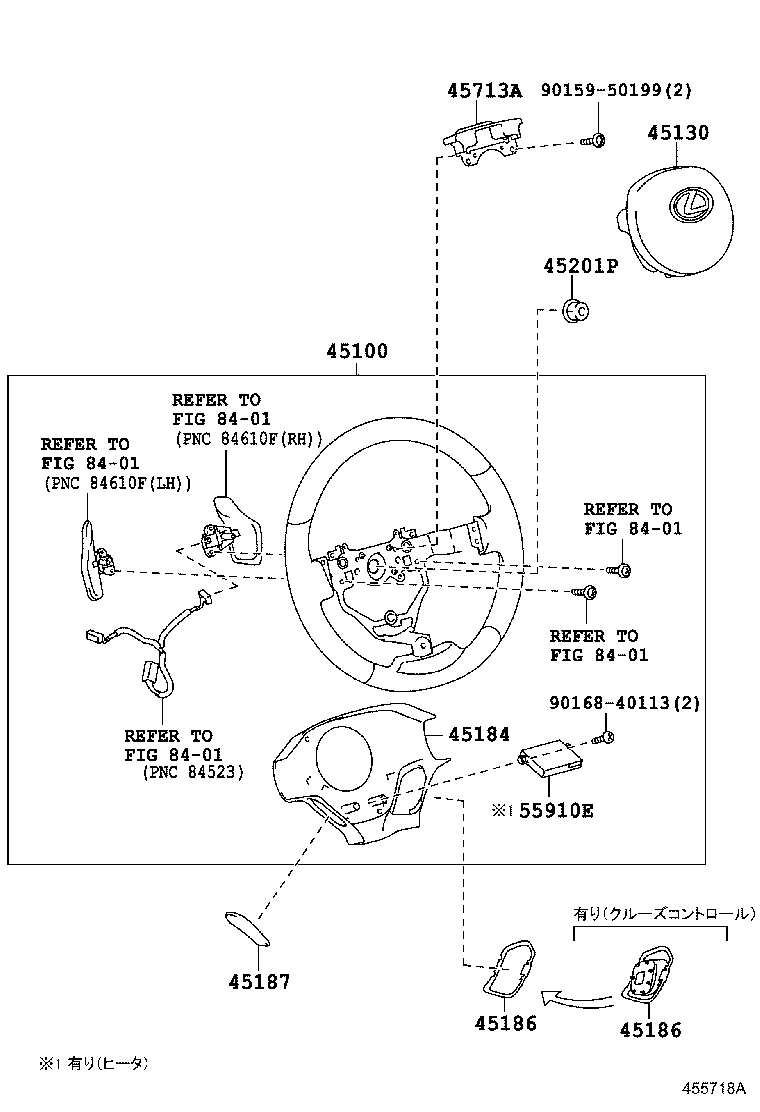

| Linked diagrams | ||||
| 8401 | ||||
