Toyota Lexus ct200h ZWA10 DISC WHEEL & WHEEL CAP

ZWA10-AHXBB (2010)

Toyota Lexus Ct200h

Production Dec 2010 - Dec 2013

Engine 2ZRFXE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

ﾊﾞﾗﾝｽｳｪｲﾄ

Click highlighted areas on diagram

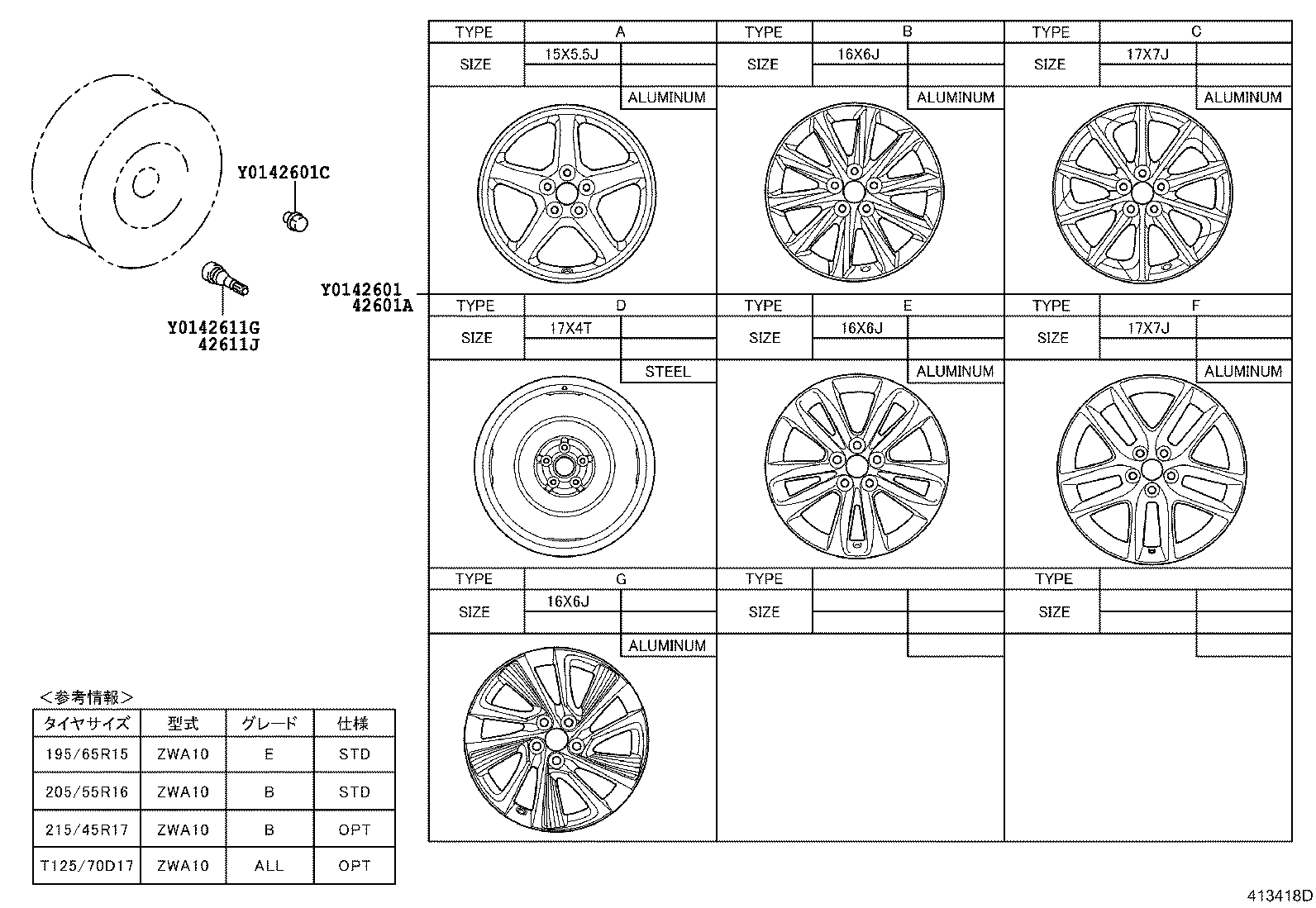

ﾃﾞｨｽｸﾎｲｰﾙ

Part #	Description	Period	Qty
42601 - WHEEL, DISC
42611-76050	ZWA10..B 17X7J,#,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−215/45R17 7J ｻﾏｰﾀｲﾔ,TYPE C:ｲﾗｽﾄ参照	12/2010 - 12/2013	4
42611-76010	ZWA10..E 15X5.5J,#,TYPE A:ｲﾗｽﾄ参照	12/2010 - 12/2013	4
42611-76070	ZWA10..B 17X7J,#,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−215/45R17 7J ｻﾏｰﾀｲﾔ@F−SPORT,TYPE C:ｲﾗｽﾄ参照	12/2010 - 12/2013	4
4261A-76010	ZWA10..B 17X7J,#,Creative Textile Interior *(A)&ﾀｲп父fｨｽｸﾎｲｰﾙ−215/45R17 7J ｻﾏｰﾀｲﾔ,TYPE C:ｲﾗｽﾄ参照	10/2012 - 12/2013	4
42611-76030	ZWA10..B 16X6J,#,TYPE B:ｲﾗｽﾄ参照	12/2010 - 12/2013	4
42601A - WHEEL, DISC (FOR SPARE)
42611-21150	ZWA10 17X4T,ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17),TYPE D:ｲﾗｽﾄ参照	12/2010 - 12/2013	1
42601C - NUT, HUB (FOR AXLE)
90942-01033	ZWA10	12/2010 - 12/2013	20
42611G - VALVE (FOR TUBELESS TIRE)
90942-05028	ZWA10	12/2010 - 12/2013	4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009	ZWA10 ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)	12/2010 - 12/2013	1

Click highlighted areas on diagram

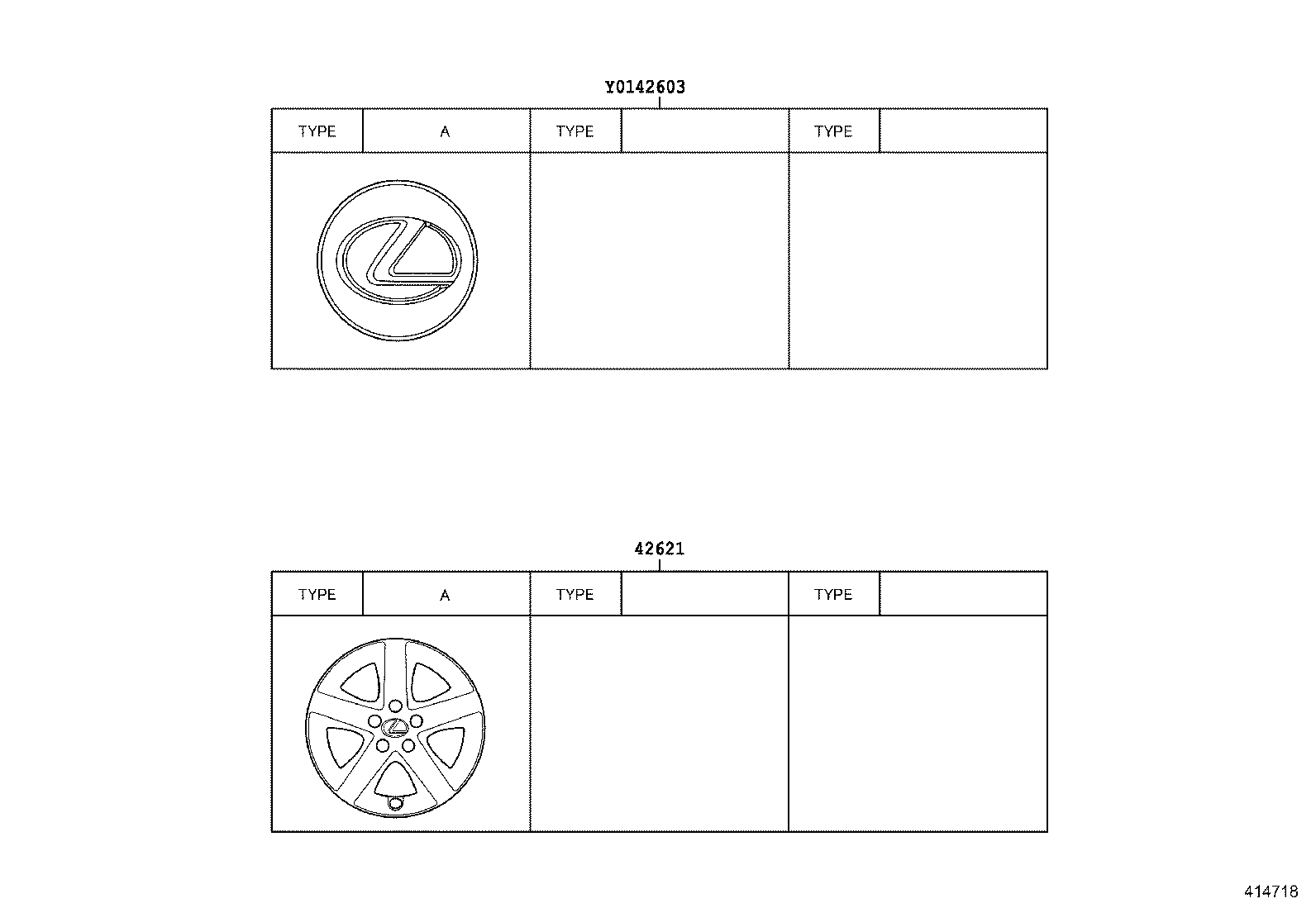

ﾎｲｰﾙﾊﾌﾞｵｰﾅﾒﾝﾄ & ﾎｲｰﾙｷｬｯﾌﾟ

Part #	Description	Period	Qty
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-76010	ZWA10..B *ALU,TYPE A:ｲﾗｽﾄ参照	12/2010 - 12/2013	4
42603-76021	ZWA10..B *CHR,F SPORT&ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−215/45R17 7J ｻ}ｰﾀｲﾔ F−SPORT,TYPE A:ｲﾗｽﾄ参照	01/2013 - 12/2013	4
42603-76020	ZWA10..B *CHR,F SPORT&ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−215/45R17 7J ｻ}ｰﾀｲﾔ F−SPORT,TYPE A:ｲﾗｽﾄ参照	12/2010 - 12/2012	4
42603-76030	ZWA10..B CHR,Creative Textile Interior (A),TYPE A:ｲﾗｽﾄ参照	10/2012 - 12/2013	4
42621 - CAP, WHEEL
42602-76010	ZWA10..E TYPE A:ｲﾗｽﾄ参照	12/2010 - 12/2013	4
