ZWA10-AHXBB (2010)
Toyota Lexus Ct200h
Production
Dec 2010
-
Dec 2013
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1012-1312)

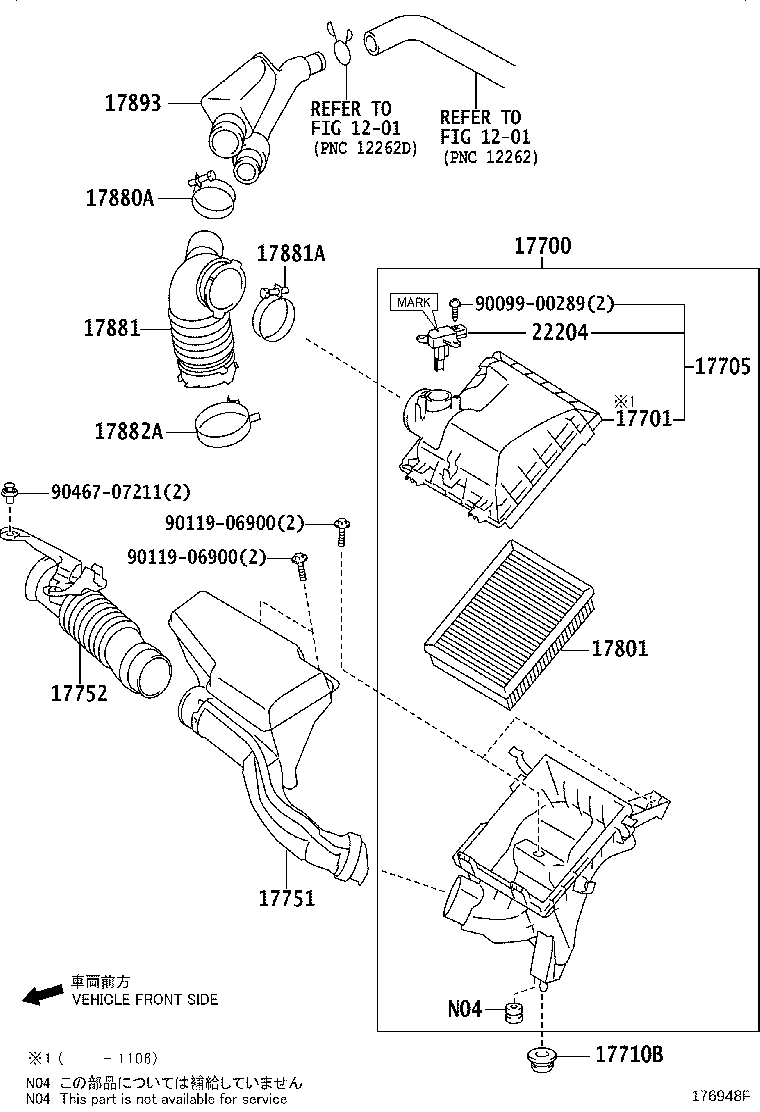

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-37290 |
2ZRFXE..ZWA10 |
1 | ||
| 17700-37291 |
2ZRFXE..ZWA10 |
1 | ||
| 17700-37292 |
2ZRFXE..ZWA10 |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-37220 |
2ZRFXE..ZWA10 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-37161 |
2ZRFXE..ZWA10 |
1 | ||
| 17705-37160 |
2ZRFXE..ZWA10 |
1 | ||
| 17710B - GROMMET | ||||
| 90480-18006 |
2ZRFXE..ZWA10 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-37100 |
2ZRFXE..ZWA10 |
1 | ||
| 17752 - INLET, AIR CLEANER, NO.2 | ||||
| 17752-37060 |
2ZRFXE..ZWA10 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-3702079 |
2ZRFXE..ZWA10 |
1 | ||
| 17801-3702179 |
2ZRFXE..ZWA10 |
1 | ||
| 17880A - CLAMP, HOSE | ||||
| 96111-10480 |
2ZRFXE..ZWA10 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-37220 |
2ZRFXE..ZWA10 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10650 |
2ZRFXE..ZWA10 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90466-62002 |
2ZRFXE..ZWA10 |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-37050 |
2ZRFXE..ZWA10 |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-28010 |
2ZRFXE..ZWA10 |
1 | ||
| 22204-0T040 |
2ZRFXE..ZWA10 ﾏｰｸ 22204−0T040 |
1 | ||
| 22204-0V010 |
2ZRFXE..ZWA10 ﾏｰｸ 22204−0V010 |
1 | ||
| 22204-28010 |
2ZRFXE..ZWA10 ﾏｰｸ 22204−28010 |
1 | ||
| 22204-0V020 |
2ZRFXE..ZWA10 ﾏｰｸ 22204−0V020 |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-06900 | ||||
| 90467-07211 | ||||
| Linked diagrams | ||||
| 1201 | ||||
