ZWA10-AHXBB (2010)
Toyota Lexus Ct200h

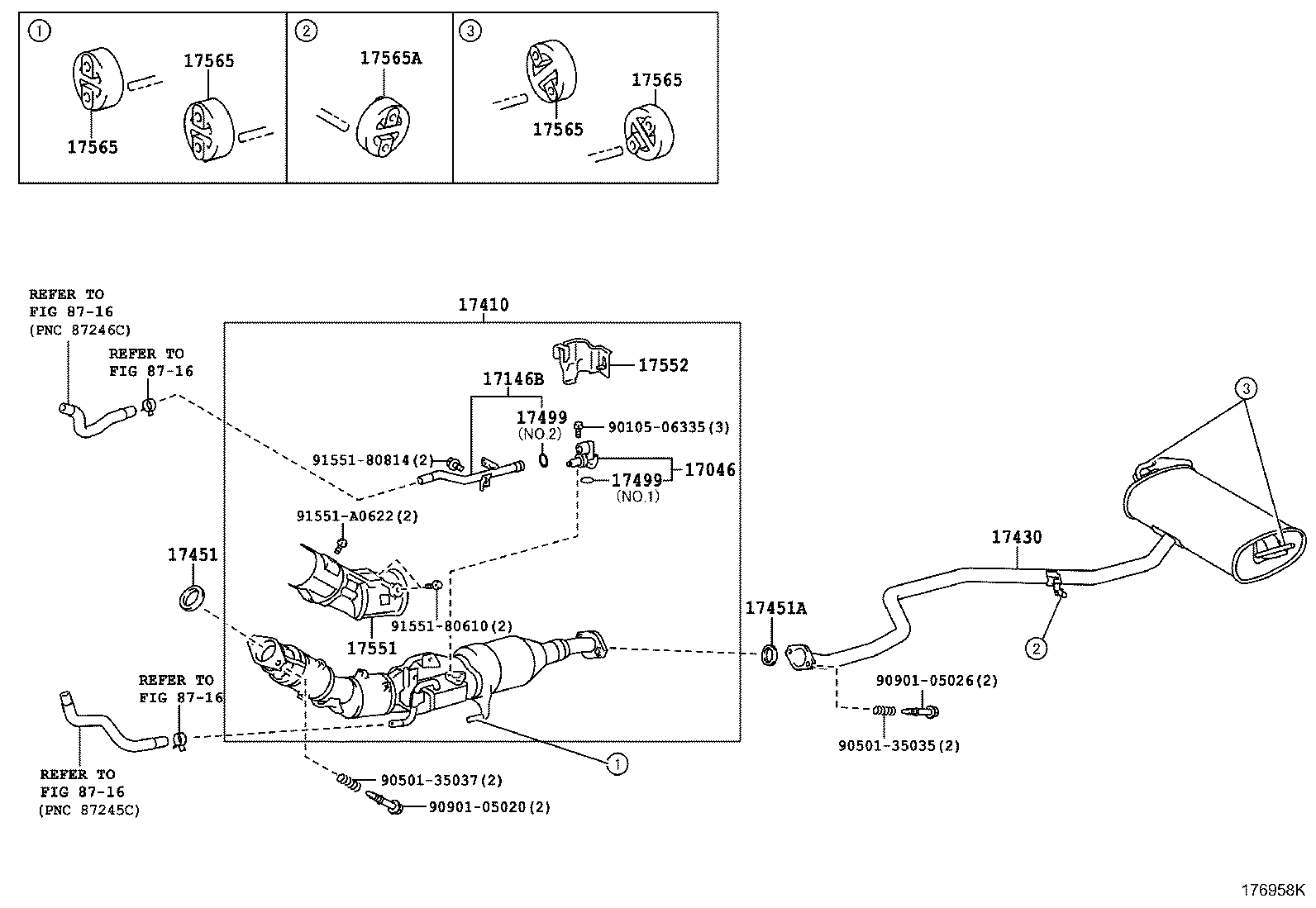

(1201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17046 - ACTUATOR SUB-ASSY, EXHAUST PIPE GAS CONTROL | ||||
| 17046-21030 |
2ZRFXE..ZWA10 |
1 | ||
| 17046-31030 |
2ZRFXE..ZWA10 |
1 | ||
| 17046-21031 |
2ZRFXE..ZWA10 |
1 | ||
| 17046-31031 |
2ZRFXE..ZWA10 |
1 | ||
| 17146B - PIPE, EXHAUST BY-PASS | ||||
| 17146-37030 |
2ZRFXE..ZWA10 |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-37530 |
2ZRFXE..ZWA10 |
1 | ||
| 17410-37532 |
2ZRFXE..ZWA10 |
1 | ||
| 17410-37531 |
2ZRFXE..ZWA10 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-37460 |
2ZRFXE..ZWA10 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 17451-28040 |
2ZRFXE..ZWA10 |
1 | ||
| 17451A - GASKET, EXHAUST PIPE, NO.2 | ||||
| 17451-23042 |
2ZRFXE..ZWA10 |
1 | ||
| 17499 - GASKET, EXHAUST PIPE GAS CONTROL ACTUATOR | ||||
| 17499-31020 |
2ZRFXE..ZWA10 NO.1 |
1 | ||
| 17499-37010 |
2ZRFXE..ZWA10 NO.2 |
1 | ||
| 17499 - GASKET, EXHAUST PIPE GAS CONTROL ACTUATOR | ||||
| 17499-31020 |
2ZRFXE..ZWA10 NO.1 |
1 | ||
| 17499-37010 |
2ZRFXE..ZWA10 NO.2 |
1 | ||
| 17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1 | ||||
| 17551-37040 |
2ZRFXE..ZWA10 |
1 | ||
| 17552 - INSULATOR, EXHAUST PIPE HEAT, NO.2 | ||||
| 17551-21030 |
2ZRFXE..ZWA10 |
1 | ||
| 17552-37020 |
2ZRFXE..ZWA10 |
1 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-22040 |
2ZRFXE..ZWA10 |
4 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-22040 |
2ZRFXE..ZWA10 |
4 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-22040 |
2ZRFXE..ZWA10 |
4 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-22040 |
2ZRFXE..ZWA10 |
4 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-22030 |
2ZRFXE..ZWA10 |
1 | ||
| Common parts | ||||
| 90105-06335 | ||||
| 90501-35035 | ||||
| 90501-35037 | ||||
| 90901-05020 | ||||
| 90901-05026 | ||||
| 91551-80610 | ||||
| 91551-80814 | ||||
| 91551-A0622 | ||||
| Linked diagrams | ||||
| 8716 | ||||

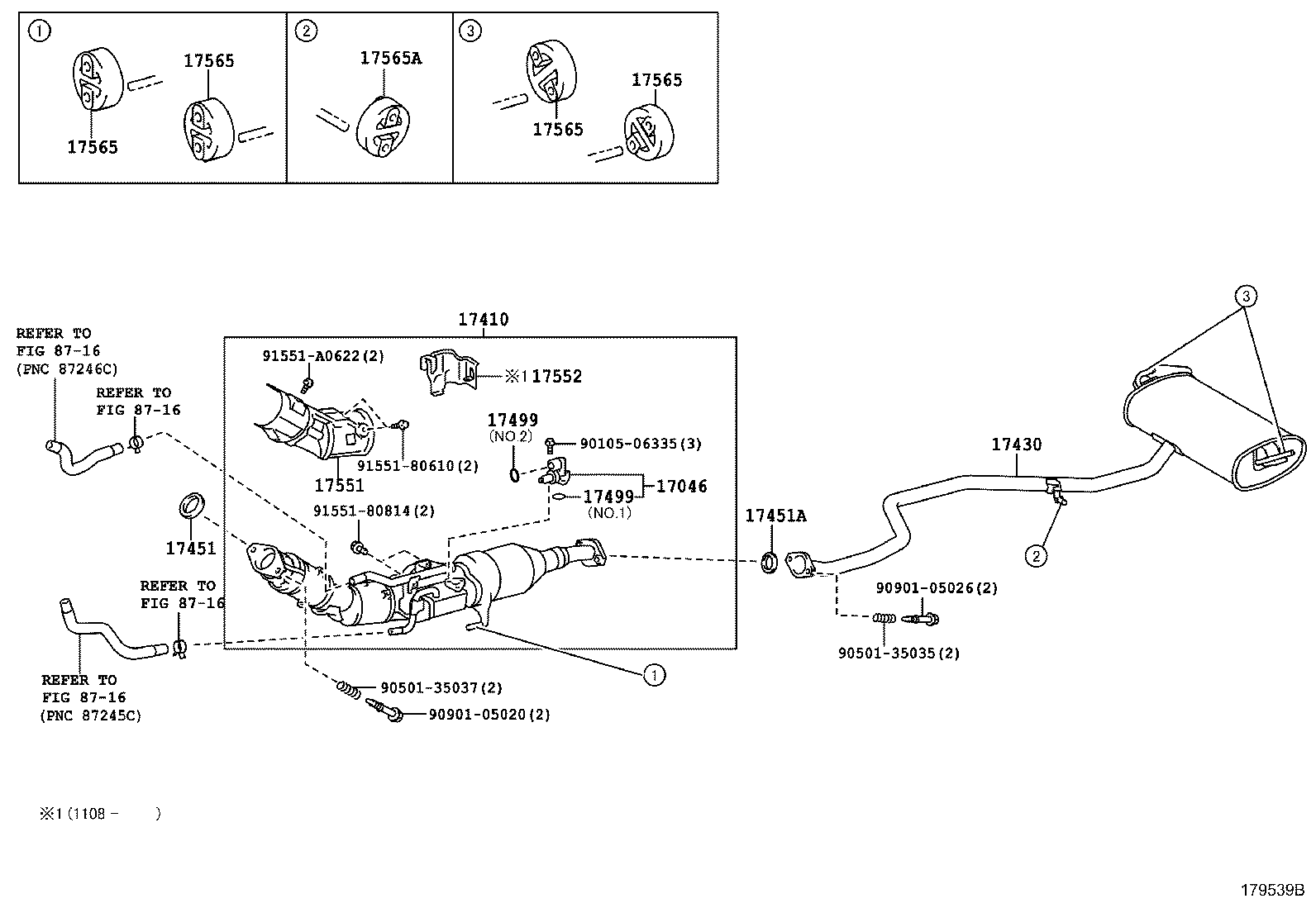

(1012-1201)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17046 - ACTUATOR SUB-ASSY, EXHAUST PIPE GAS CONTROL | ||||
| 17046-21030 |
2ZRFXE..ZWA10 |
1 | ||
| 17046-31030 |
2ZRFXE..ZWA10 |
1 | ||
| 17046-21031 |
2ZRFXE..ZWA10 |
1 | ||
| 17046-31031 |
2ZRFXE..ZWA10 |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-37530 |
2ZRFXE..ZWA10 |
1 | ||
| 17410-37532 |
2ZRFXE..ZWA10 |
1 | ||
| 17410-37531 |
2ZRFXE..ZWA10 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-37460 |
2ZRFXE..ZWA10 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 17451-28040 |
2ZRFXE..ZWA10 |
1 | ||
| 17451A - GASKET, EXHAUST PIPE, NO.2 | ||||
| 17451-23042 |
2ZRFXE..ZWA10 |
1 | ||
| 17499 - GASKET, EXHAUST PIPE GAS CONTROL ACTUATOR | ||||
| 17499-31020 |
2ZRFXE..ZWA10 NO.1 |
1 | ||
| 17499-37010 |
2ZRFXE..ZWA10 NO.2 |
1 | ||
| 17499 - GASKET, EXHAUST PIPE GAS CONTROL ACTUATOR | ||||
| 17499-31020 |
2ZRFXE..ZWA10 NO.1 |
1 | ||
| 17499-37010 |
2ZRFXE..ZWA10 NO.2 |
1 | ||
| 17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1 | ||||
| 17551-37040 |
2ZRFXE..ZWA10 |
1 | ||
| 17552 - INSULATOR, EXHAUST PIPE HEAT, NO.2 | ||||
| 17551-21030 |
2ZRFXE..ZWA10 |
1 | ||
| 17552-37020 |
2ZRFXE..ZWA10 |
1 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-22040 |
2ZRFXE..ZWA10 |
4 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-22040 |
2ZRFXE..ZWA10 |
4 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-22040 |
2ZRFXE..ZWA10 |
4 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-22040 |
2ZRFXE..ZWA10 |
4 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-22030 |
2ZRFXE..ZWA10 |
1 | ||
| Common parts | ||||
| 90105-06335 | ||||
| 90501-35035 | ||||
| 90501-35037 | ||||
| 90901-05020 | ||||
| 90901-05026 | ||||
| 91551-80610 | ||||
| 91551-80814 | ||||
| 91551-A0622 | ||||
| Linked diagrams | ||||
| 8716 | ||||
