ZWA10-AHXBB (2010)
Toyota Lexus Ct200h
Production
Dec 2010
-
Dec 2013
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1012- )

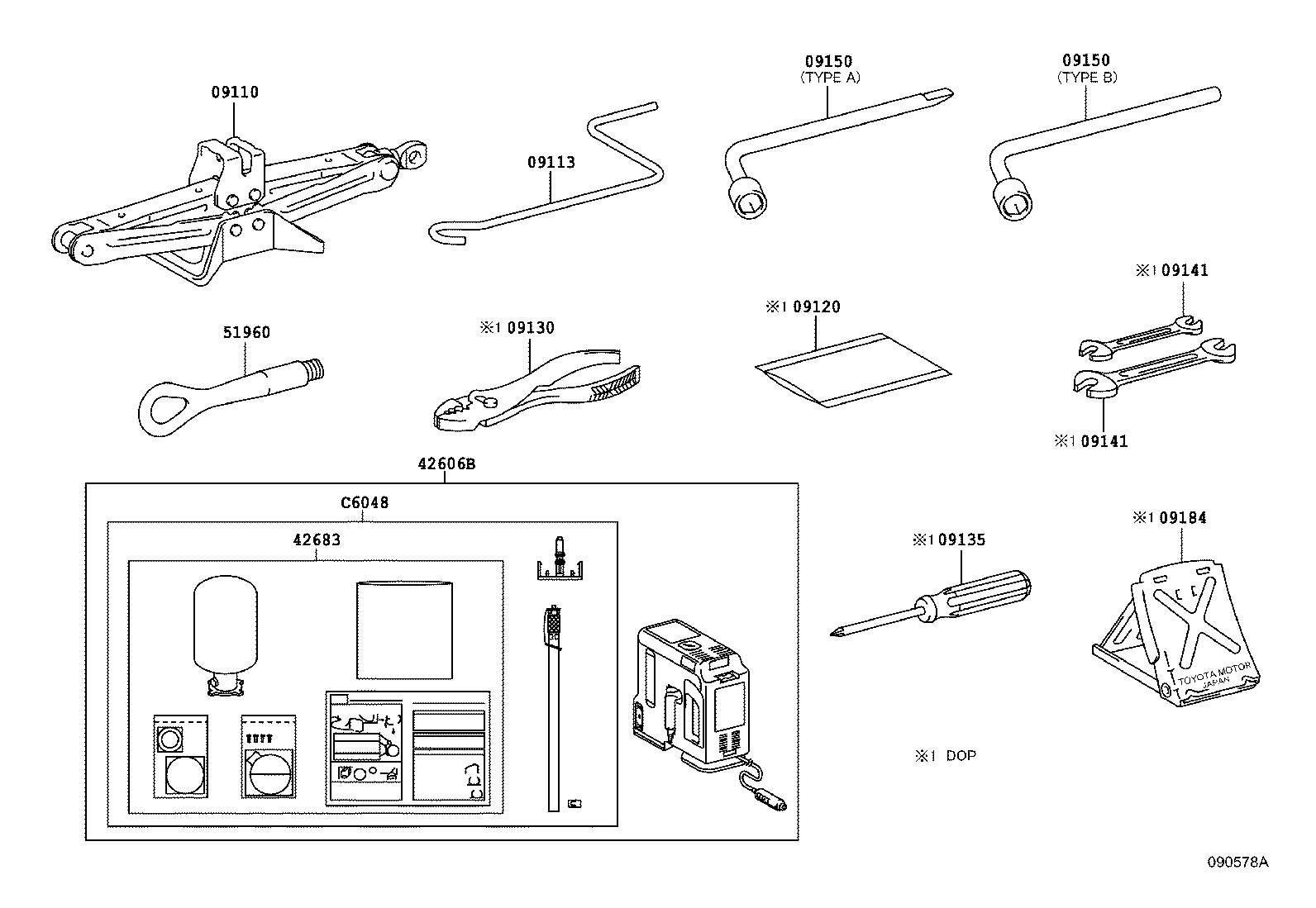

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 09110 - JACK ASSY | ||||
| 09111-33030 |
ZWA10 |
1 | ||
| 09113 - HANDLE, JACK | ||||
| 09113-52031 |
ZWA10 |
1 | ||
| 09113-52030 |
ZWA10 |
1 | ||
| 09120 - BAG, TOOL | ||||
| 09120-28040 |
ZWA10 ﾂｰﾙ(DOP)−有り |
1 | ||
| 09130 - PLIERS | ||||
| 99913-11500 |
ZWA10 ﾂｰﾙ(DOP)−有り |
1 | ||
| 09135 - DRIVER, SCREW | ||||
| 99915-10700 |
ZWA10 ﾂｰﾙ(DOP)−有り |
1 | ||
| 09141 - SPANNER | ||||
| 99914-11214 |
ZWA10 12 X 14,ﾂｰﾙ(DOP)−有り |
1 | ||
| 99914-10810 |
ZWA10 8 X 10,ﾂｰﾙ(DOP)−有り |
1 | ||
| 09141 - SPANNER | ||||
| 99914-11214 |
ZWA10 12 X 14,ﾂｰﾙ(DOP)−有り |
1 | ||
| 99914-10810 |
ZWA10 8 X 10,ﾂｰﾙ(DOP)−有り |
1 | ||
| 09150 - WRENCH, HUB NUT BOX | ||||
| 09150-48010 |
ZWA10..B TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 09150-76010 |
ZWA10..E TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 09150-35070 |
ZWA10..E TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 09150-76020 |
ZWA10..B TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 09150 - WRENCH, HUB NUT BOX | ||||
| 09150-48010 |
ZWA10..B TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 09150-76010 |
ZWA10..E TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 09150-35070 |
ZWA10..E TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 09150-76020 |
ZWA10..B TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 09184 - STOPPER, WHEEL | ||||
| 09184-00010 |
ZWA10 ﾂｰﾙ(DOP)−有り |
1 | ||
| 42606B - REPAIR KIT, TUBELESS TIRE | ||||
| 42606-50010 |
ZWA10 |
1 | ||
| 42606-50011 |
ZWA10 |
1 | ||
| 42683 - SEAL, TIRE REPAIR | ||||
| 42683-50010 |
ZWA10 |
1 | ||
| 42683-50011 |
ZWA10 |
1 | ||
| 51960 - HOOK ASSY, FRONT | ||||
| 51961-50042 |
ZWA10 |
1 | ||
| 51961-50040 |
ZWA10 |
1 | ||
| C6048 - REPAIR SET, TIRE | ||||
| C6048-50010 |
ZWA10 |
1 | ||
| C6048-50011 |
ZWA10 |
1 | ||
