Toyota Levin/trueno AE111 HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

AE111-BCPZF (1995)

Toyota Levin/Trueno

Production May 1995 - Aug 2000

Engine 4AGE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

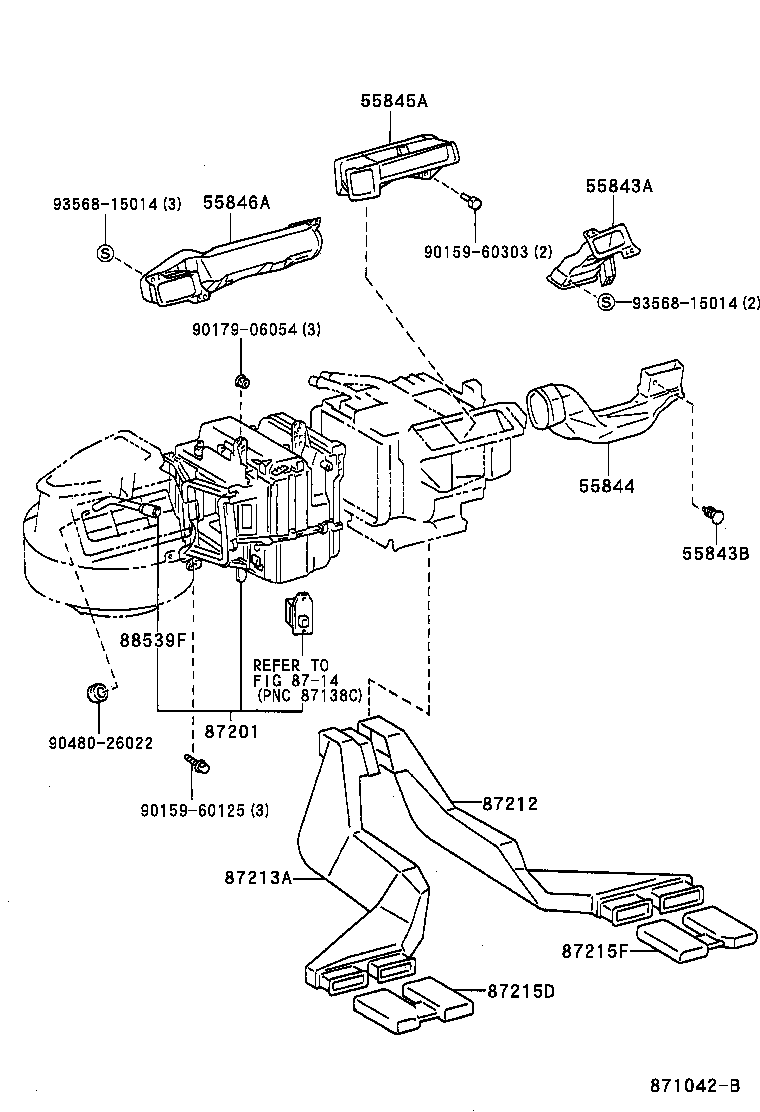

ｴｱﾀﾞｸﾄ

Part #	Description	Period	Qty
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-12250	AE11#	05/1995 - 04/1997	1
55843-12250	AE11#	04/1997 - 08/2000	1
55843B - CLIP, HEATER TO REGISTER DUCT
90467-05020B1	AE11# SHADOW GRAY,TRIM1#	05/1995 - 04/1997	1
90467-0502022	AE11# BLACK,TRIM12	04/1997 - 08/2000	1
90467-05020B1	AE11# SHADOW GRAY,TRIM12	04/1997 - 08/2000	1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-12410	AE11#	05/1995 - 04/1997	1
55844-12410	AE11#	04/1997 - 04/1998	1
55844-12411	AE11#	04/1998 - 08/2000	1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-12200	AE11#	05/1995 - 04/1997	1
55845-12200	AE11#	04/1997 - 08/2000	1
55846A - DUCT, HEATER TO REGISTER, NO.4
55846-12220	AE11#	05/1995 - 10/1996	1
55846-12230	AE11#	10/1996 - 04/1997	1
55846-12230	AE11#	04/1997 - 08/2000	1
87212 - DUCT, AIR, REAR NO.1
87212-12080	AE11# ｶﾝﾚｲﾁｼﾖｳ	05/1995 - 04/1997	1
87212-13010	AE11# ｶﾝﾚｲﾁｼﾖｳ	04/1997 - 08/2000	1
87213A - DUCT, AIR REAR NO.2
87213-13010	AE11# ｶﾝﾚｲﾁｼﾖｳ	04/1997 - 08/2000	1
87213-12050	AE11# ｶﾝﾚｲﾁｼﾖｳ	05/1995 - 04/1997	1
87215D - DUCT, AIR, REAR NO.4
87216-12010	AE11# ｶﾝﾚｲﾁｼﾖｳ	04/1997 - 08/2000	1
87216-12010	AE11# ｶﾝﾚｲﾁｼﾖｳ	05/1995 - 04/1997	1
87215F - DUCT, AIR, REAR NO.3
87215-12020	AE11# ｶﾝﾚｲﾁｼﾖｳ	05/1995 - 04/1997	1
87215-12020	AE11# ｶﾝﾚｲﾁｼﾖｳ	04/1997 - 08/2000	1
Common parts
90159-60125
90159-60303
90179-06054
90480-26022
93568-15014
Linked diagrams
8714

Click highlighted areas on diagram

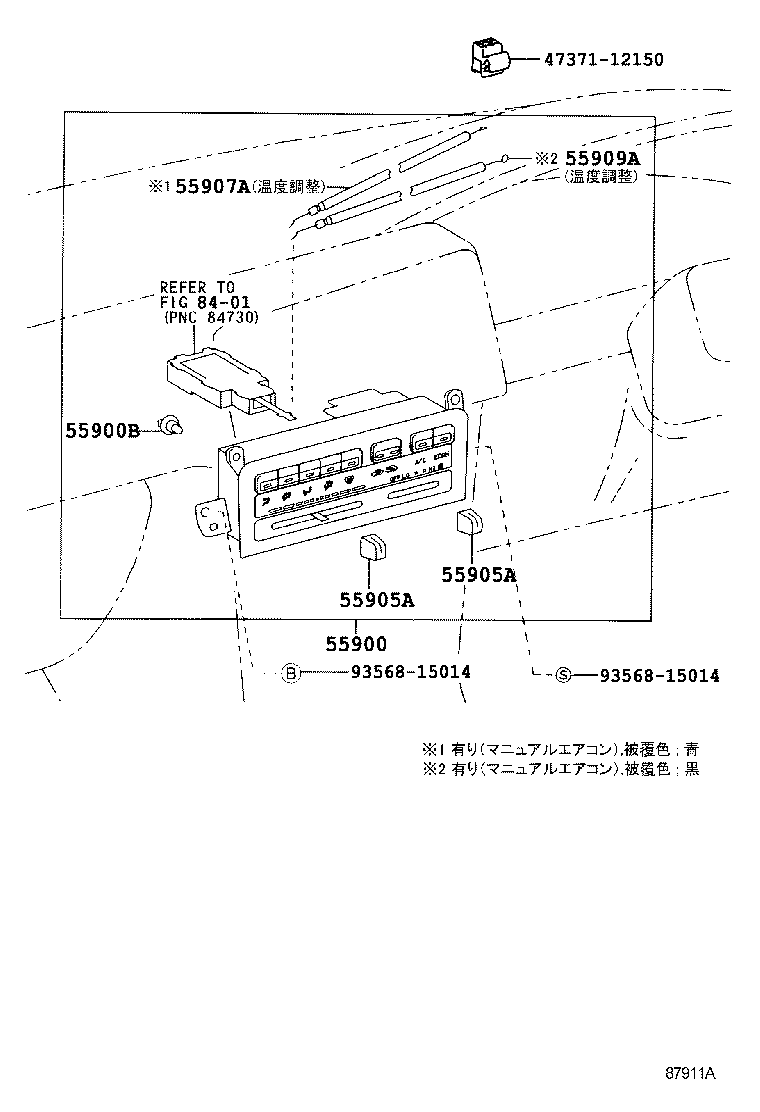

ﾌﾟﾂｼﾕｼｷﾋ-ﾀｺﾝﾄﾛ-ﾙ

Part #	Description	Period	Qty
55900 - CONTROL ASSY, AIR CONDITIONER
55900-12710	AE111 ｱﾘ(ｵ-ﾄｴｱｺﾝ)	05/1995 - 02/1996	1
55900-12760	AE111	05/1995 - 02/1996	1
55900-12711	AE111 ｱﾘ(ｵ-ﾄｴｱｺﾝ)	02/1996 - 04/1997	1
55900-12711	AE111 ｱﾘ(ｵ-ﾄｴｱｺﾝ)	04/1997 - 08/2000	1
55900-12761	AE111	04/1997 - 08/2000	1
55900-12761	AE111	02/1996 - 04/1997	1
55900B - BULB, AIR CONDITIONER CONTROL
84999-70018	AE111 14V 1.4W,ｷｬｯﾌﾟ付き	02/1996 - 04/1997	2
84999-70012	AE111 14V 1.4W,ｷｬｯﾌﾟ付き	05/1995 - 02/1996	2
84999-70018	AE111 14V 1.4W,ｷｬｯﾌﾟ付き	04/1997 - 08/2000	2
55905A - KNOB, HEATER CONTROL
55905-20380	AE111	04/1997 - 08/2000	2
55905-20380	AE111	05/1995 - 04/1997	2
55905A - KNOB, HEATER CONTROL
55905-20380	AE111	04/1997 - 08/2000	2
55905-20380	AE111	05/1995 - 04/1997	2
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-12430	AE11# ﾌﾞﾙ-	05/1995 - 04/1997	1
55907-12430	AE11# ﾌﾞﾙ-	04/1997 - 08/2000	1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-12300	AE11# ﾌﾞﾗﾂｸ	05/1995 - 04/1997	1
55909-12300	AE11# ﾌﾞﾗﾂｸ	04/1997 - 08/2000	1
Common parts
47371-12150
93568-15014
Linked diagrams
8401

Click highlighted areas on diagram

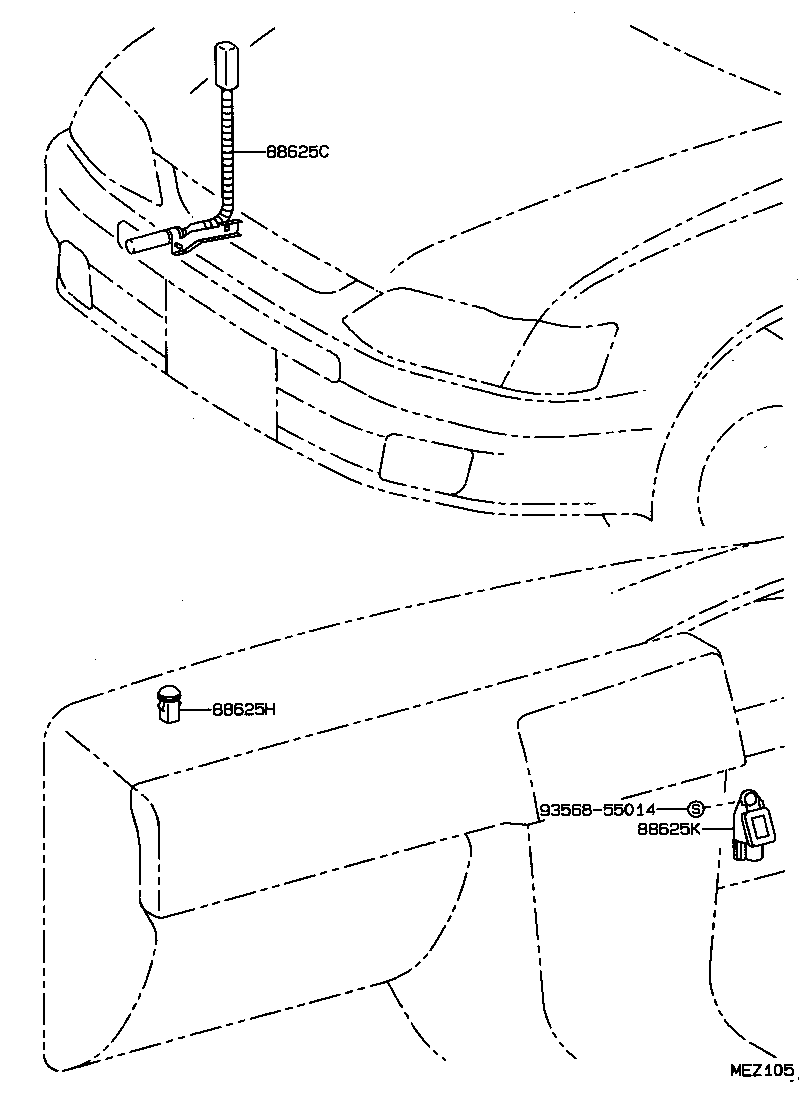

ｵ-ﾄｴｱｺﾝｾﾝｻ

Part #	Description	Period	Qty
88625C - THERMISTOR, COOLER
88625-12320	AE111	05/1995 - 04/1997	1
88625-12320	AE111	04/1997 - 08/2000	1
88625H - THERMISTOR, COOLER (SOLAR SENSOR)
88625-32160	AE111	04/1997 - 08/2000	1
88625-32160	AE111	05/1995 - 04/1997	1
88625K - THERMISTOR, COOLER
88790-12020	AE111	05/1995 - 04/1997	1
88790-12020	AE111	04/1997 - 08/2000	1
Common parts
93568-55014
