Toyota Levin/trueno AE111 FUEL TANK & TUBE

AE111-BCPZF (1995)

Toyota Levin/Trueno

Production May 1995 - Aug 2000

Engine 4AGE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

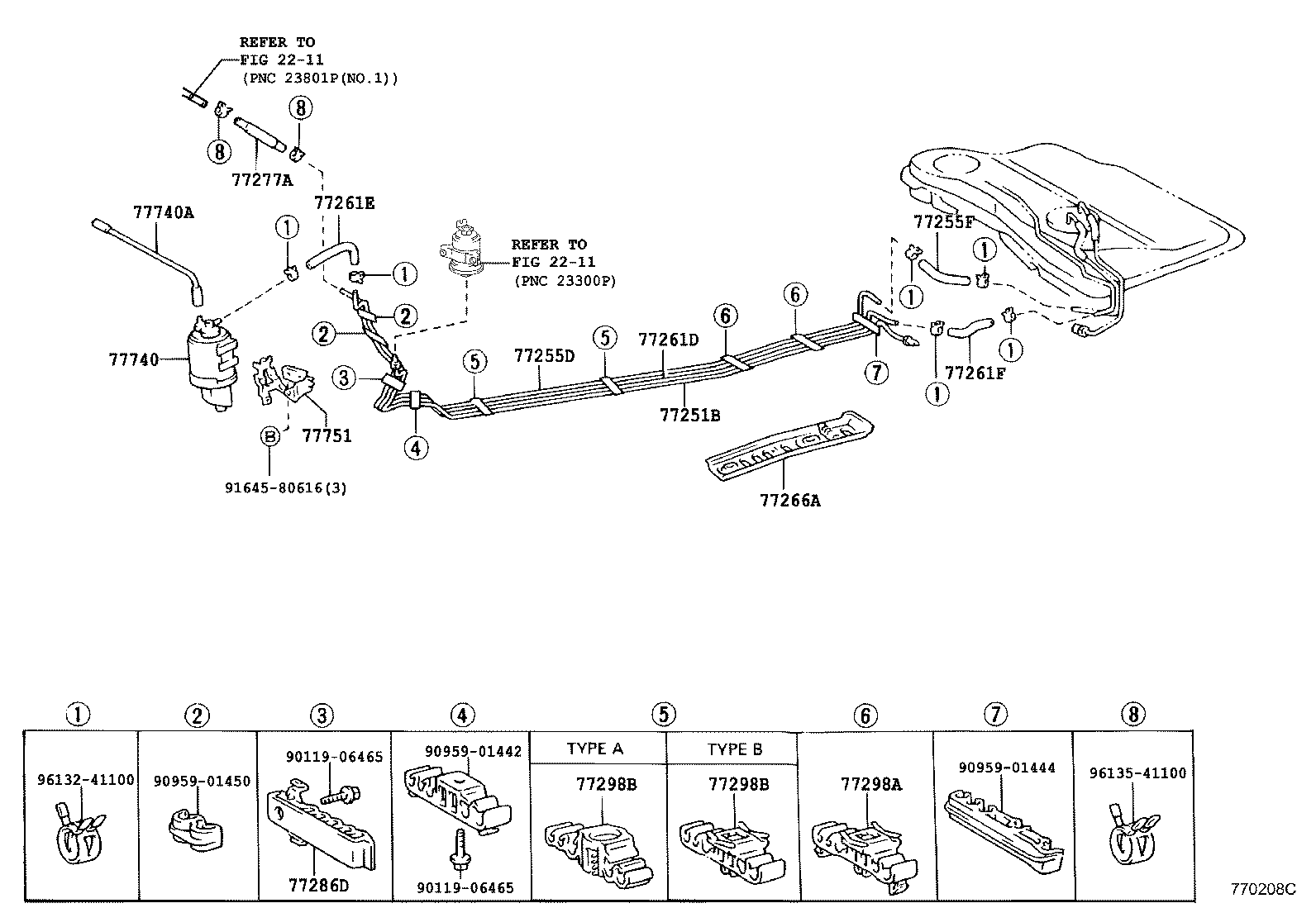

ILLUST NO. 2 OF 2(9505- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
77251B - TUBE, FUEL MAIN
77251-12520	AE11#	05/1995 - 04/1997	1
77251-12520	AE11#	04/1997 - 08/2000	1
77255D - TUBE, FUEL RETURN
77255-12460	AE11#	04/1997 - 08/2000	1
77255-12460	AE11#	05/1995 - 04/1997	1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
95333-06020	AE11# *H,L=130	05/1995 - 04/1997	1
95333-06020	AE11# *H,L=130	04/1997 - 08/2000	1
77261D - TUBE, FUEL TANK TO CANISTER
77261-12380	AE11#	04/1997 - 08/2000	1
77261-12380	AE11#	05/1995 - 04/1997	1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
95333-06020	AE11# *H,L=160	04/1997 - 08/2000	1
95333-06020	AE11# *H,L=160	05/1995 - 04/1997	1
77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
95333-06020	AE11# *H,L=160	04/1997 - 08/2000	1
95333-06020	AE11# *H,L=160	05/1995 - 04/1997	1
77266A - PROTECTOR, FUEL TUBE, NO.1
77267-12130	AE11#	05/1995 - 04/1997	1
77267-12130	AE11#	04/1997 - 08/2000	1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-12130	AE111..BZG,BZV 長さ=280	05/1995 - 04/1997	1
90447-12130	AE111..BZG,BZR,BZV 長さ=280	04/1997 - 08/2000	1
77286D - CLAMP, FUEL TUBE, NO.2
77286-12040	AE11#	05/1995 - 04/1997	1
77286-12040	AE11#	04/1997 - 08/2000	1
77298A - CLAMP, FUEL TUBE, NO.4
77298-12030	AE11#	05/1995 - 04/1997	2
77298-12030	AE11#	04/1997 - 08/2000	2
77298B - CLAMP, FUEL TUBE, NO.4
77298-12040	AE11#..4FC,5F ﾀｲﾌﾟ A	04/1997 - 08/2000	2
77298-12050	AE11# ﾀｲﾌﾟ B	05/1995 - 04/1997	2
77298-12040	AE11# ﾀｲﾌﾟ A	05/1995 - 04/1997	2
77298-12050	AE11#..4FC,5F ﾀｲﾌﾟ B	04/1997 - 08/2000	2
77298B - CLAMP, FUEL TUBE, NO.4
77298-12040	AE11#..4FC,5F ﾀｲﾌﾟ A	04/1997 - 08/2000	2
77298-12050	AE11# ﾀｲﾌﾟ B	05/1995 - 04/1997	2
77298-12040	AE11# ﾀｲﾌﾟ A	05/1995 - 04/1997	2
77298-12050	AE11#..4FC,5F ﾀｲﾌﾟ B	04/1997 - 08/2000	2
77740 - CANISTER ASSY, CHARCOAL
77740-12660	AE11#..BZG,BZV,FZ	05/1995 - 04/1997	1
77740-10140	AE11#	04/1997 - 08/2000	1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
90999-92002	AE111..BZG,BZV H,L=220,ﾏｰｸ=#	05/1995 - 04/1997	1
90999-92002	AE111..BZG,BZR,BZV H,L=220,ﾏｰｸ=#	04/1997 - 08/2000	1
77751 - BRACKET, CHARCOAL CANISTER BASE
77750-12080	AE11#	05/1995 - 04/1997	1
77750-12080	AE11#	04/1997 - 08/2000	1
Common parts
90119-06465
90959-01442
90959-01444
90959-01450
91645-80616
96132-41100
96135-41100
Linked diagrams
2211

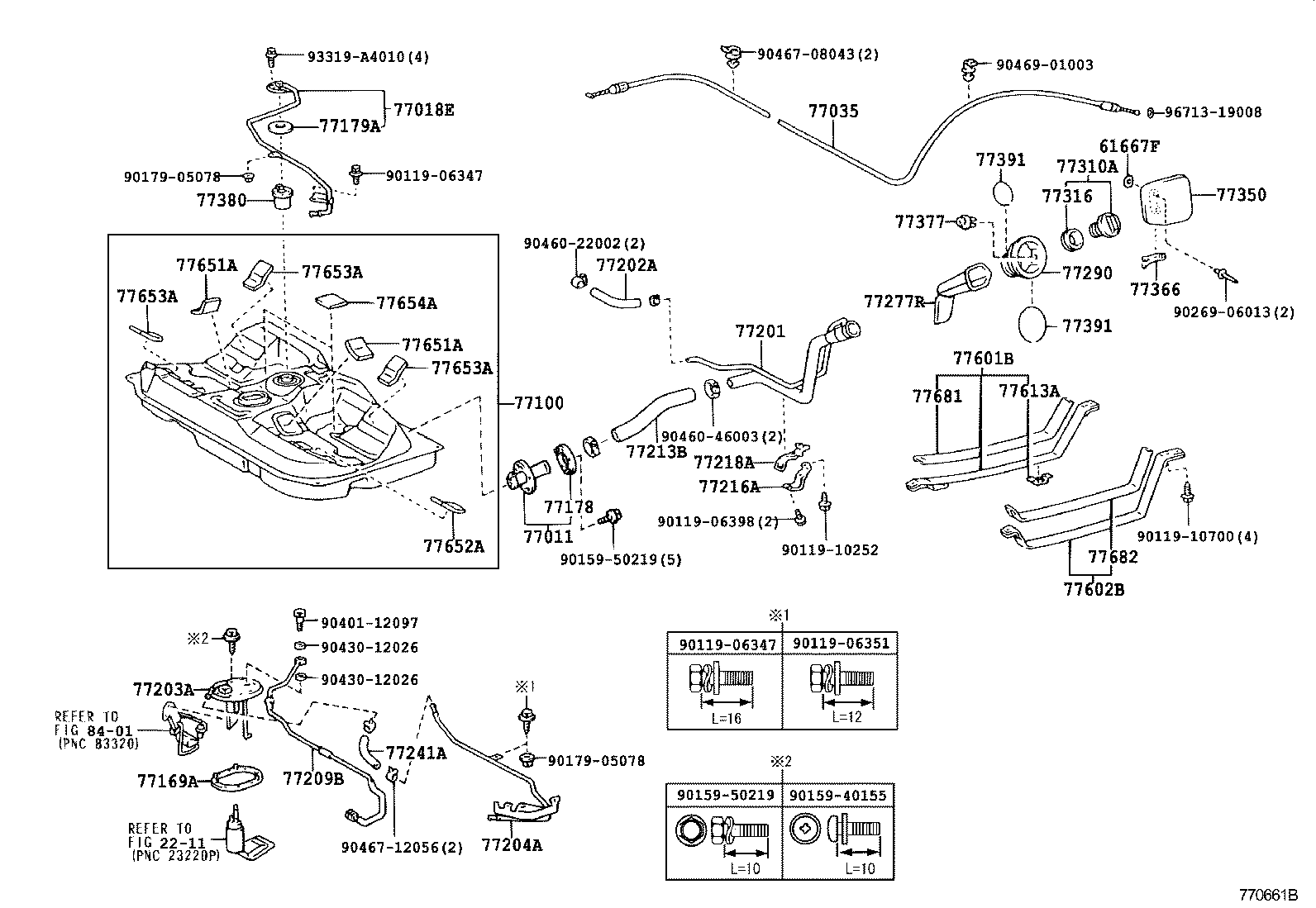

ILLUST NO. 1 OF 2(9505- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
61667F - SEAL, QUARTER PANEL
61667-12110	AE11#	05/1995 - 04/1997	2
61667-12110	AE11#..4FC,5F	04/1997 - 05/1997	2
77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-12090	AE11#	04/1997 - 08/2000	1
77011-12090	AE11#	05/1995 - 04/1997	1
77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT
77018-12050	AE11# ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆｼﾖｳ	04/1997 - 08/2000	1
77018-12020	AE11#..4FC,5F	04/1997 - 05/1997	1
77018-12020	AE11#	05/1995 - 04/1997	1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-12340	AE11#	05/1995 - 04/1997	1
77035-12340	AE11#	04/1997 - 08/2000	1
77100 - TANK ASSY, FUEL
77001-12937	AE11#	04/1997 - 08/2000	1
77001-12932	AE11#	05/1995 - 04/1997	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-20040	AE11#	05/1995 - 04/1997	1
77169-20040	AE11#	04/1997 - 08/2000	1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-20030	AE11#	04/1997 - 08/2000	1
77178-20030	AE11#	05/1995 - 04/1997	1
77179A - GASKET, FUEL TANK BREATHER TUBE
77179-26010	AE11#	04/1997 - 08/2000	1
77179-26010	AE11#	05/1995 - 04/1997	1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-12430	AE11#	04/1997 - 08/2000	1
77201-12430	AE11#	05/1995 - 04/1997	1
77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE)
95311-13022	AE11# 長さ=220	05/1995 - 04/1997	1
95311-13022	AE11# 長さ=220	04/1997 - 08/2000	1
77203A - TUBE SUB-ASSY, FUEL SUCTION
77203-12220	AE111	05/1995 - 04/1997	1
77203-12220	AE111..BZG,BZR,BZV	04/1997 - 08/2000	1
77204A - TUBE, FUEL TANK RETURN
77204-12080	AE11#	04/1997 - 08/2000	1
77204-12050	AE11#	05/1995 - 04/1997	1
77209B - TUBE SUB-ASSY, FUEL PUMP
77209-12130	AE11#	04/1997 - 08/2000	1
77209-12110	AE11#	05/1995 - 04/1997	1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-12170	AE11#	04/1997 - 08/2000	1
77213-12170	AE11#	05/1995 - 04/1997	1
77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1
77216-12070	AE11#	04/1997 - 08/2000	1
77216-12070	AE11#	05/1995 - 04/1997	1
77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3
77218-12030	AE11#	04/1997 - 08/2000	1
77218-12030	AE11#	05/1995 - 04/1997	1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95333-06020	AE111 *H,L=110	05/1995 - 04/1997	1
95333-06020	AE11# *H,L=110	04/1997 - 08/2000	1
77277R - PROTECTOR, FUEL TANK FILLER PIPE
77277-12160	AE11#	05/1995 - 04/1997	1
77277-12160	AE11#	04/1997 - 08/2000	1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77291-12120	AE11#	04/1997 - 08/2000	1
77291-12120	AE11#	05/1995 - 04/1997	1
77310A - CAP ASSY, FUEL TANK
77310-16011	AE11#	05/1995 - 04/1997	1
77310-48010	AE11#	03/1998 - 08/2000	1
77310-16011	AE11#	04/1997 - 03/1998	1
77316 - GASKET, FUEL TANK CAP
77316-16010	AE11#	04/1997 - 08/2000	1
77316-16010	AE11#	05/1995 - 04/1997	1
77350 - LID ASSY, FUEL FILLER OPENING
77350-12380	AE11#	05/1995 - 04/1997	1
77350-12380	AE11#	04/1997 - 08/2000	1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-12090	AE11#	04/1997 - 08/2000	1
77360-12090	AE11#	05/1995 - 04/1997	1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-12050	AE11#	04/1997 - 08/2000	1
77377-12050	AE11#	05/1995 - 04/1997	1
77380 - VALVE ASSY, FUEL CUT OFF
77380-26010	AE11#	05/1995 - 04/1997	1
77380-26010	AE11#	04/1997 - 08/2000	1
77391 - RING, FUEL INLET BOX
77391-12020	AE11# 内側	05/1995 - 04/1997	1
77391-12030	AE11# 外側	05/1995 - 04/1997	1
77391-12030	AE11# 外側	04/1997 - 08/2000	1
77391-12020	AE11# 内側	04/1997 - 08/2000	1
77391 - RING, FUEL INLET BOX
77391-12020	AE11# 内側	05/1995 - 04/1997	1
77391-12030	AE11# 外側	05/1995 - 04/1997	1
77391-12030	AE11# 外側	04/1997 - 08/2000	1
77391-12020	AE11# 内側	04/1997 - 08/2000	1
77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH
77601-12210	AE11#	04/1997 - 08/2000	1
77601-12210	AE11#	05/1995 - 04/1997	1
77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH
77602-12150	AE11#	05/1995 - 04/1997	1
77602-12150	AE11#	04/1997 - 08/2000	1
77613A - BRACKET, FUEL TANK BAND, NO.1
77613-16030	AE11#	05/1995 - 04/1997	1
77613-16030	AE11#	04/1997 - 08/2000	1
77651A - CUSHION, FUEL TANK, NO.1
77651-20050	AE11#	04/1997 - 08/2000	2
77651-20050	AE11#	05/1995 - 04/1997	2
77651A - CUSHION, FUEL TANK, NO.1
77651-20050	AE11#	04/1997 - 08/2000	2
77651-20050	AE11#	05/1995 - 04/1997	2
77652A - CUSHION, FUEL TANK, NO.2
77652-12110	AE11#	04/1997 - 08/2000	1
77652-12110	AE11#	05/1995 - 04/1997	1
77653A - CUSHION, FUEL TANK, NO.3
77653-17010	AE11#	05/1995 - 04/1997	3
77653-17010	AE11#	04/1997 - 08/2000	3
77653A - CUSHION, FUEL TANK, NO.3
77653-17010	AE11#	05/1995 - 04/1997	3
77653-17010	AE11#	04/1997 - 08/2000	3
77653A - CUSHION, FUEL TANK, NO.3
77653-17010	AE11#	05/1995 - 04/1997	3
77653-17010	AE11#	04/1997 - 08/2000	3
77654A - CUSHION, FUEL TANK, NO.4
77654-12070	AE11#	05/1995 - 04/1997	2
77654-12070	AE11#	04/1997 - 08/2000	2
77681 - SEAT, FUEL TANK BAND, RH
77681-32060	AE11#	04/1997 - 08/2000	1
77681-32060	AE11#	05/1995 - 04/1997	1
77682 - SEAT, FUEL TANK BAND, LH
77681-32060	AE11#	05/1995 - 04/1997	1
77681-32060	AE11#	04/1997 - 08/2000	1
Common parts
90119-06347
90119-06351
90119-06398
90119-10252
90119-10700
90159-40155
90159-50219
90179-05078
90269-06013
90401-12097
90430-12026
90460-22002
90460-46003
90467-08043
90467-12056
90469-01003
93319-A4010
96713-19008
Linked diagrams
2211
8401
