AE111-BCPZF (1995)

Toyota Levin/Trueno

Production May 1995 - Aug 2000
Engine 4AGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

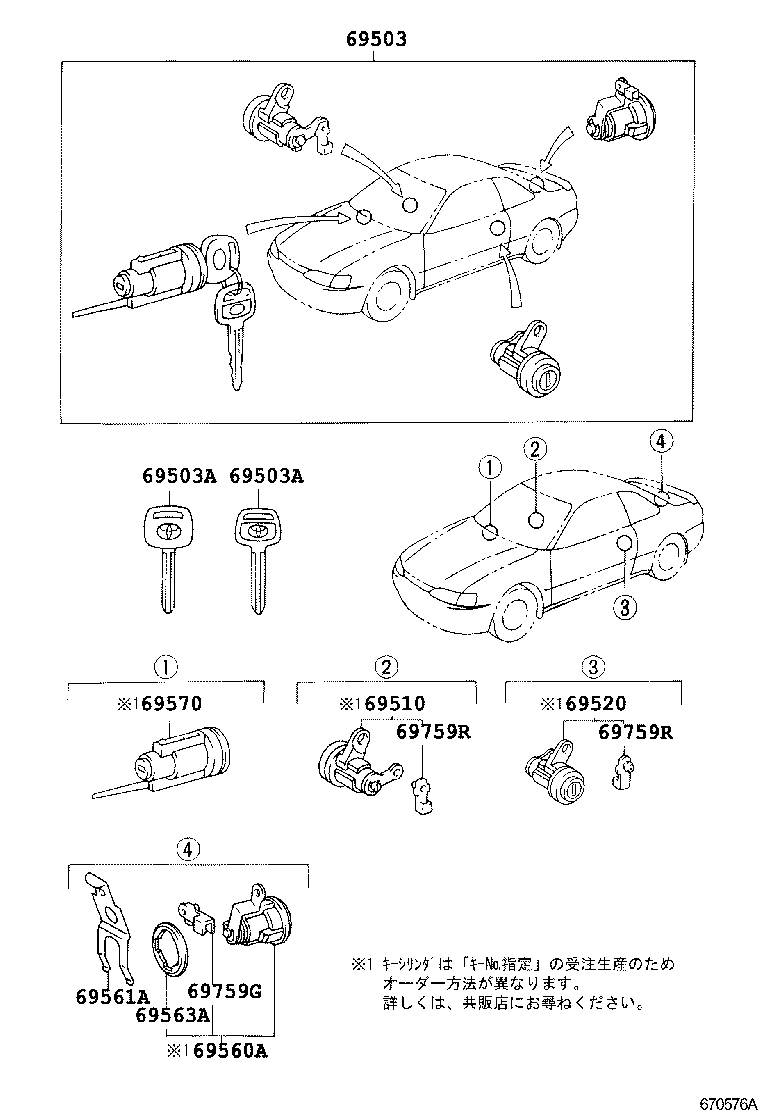

Click highlighted areas on diagram

diagram 69503 69503A 69503A 69510 69520 69560A 69561A 69563A 69570 69759G 69759R 69759R
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-1A870

AE11#

 1
69005-1E060

AE111..BZG,XZ

 1
69005-1E410

AE111

ｱﾘ(ｲﾙﾐﾈ-ﾃﾂﾄﾞｴﾝﾄﾘ-ｼｽﾃﾑ(ｲｸﾞﾆｼﾖﾝｷ- ｼﾖｳﾒｲ))

 1
69005-1E060

AE111..(BZG,XZ)..(4FC,5F)

 1
69503A - KEY, BLANK
90999-00185

AE11#

ﾏｽﾀｰｷｰ,*68付き

 1
90999-00185

AE11#

ﾏｽﾀｰｷｰ,*68付き

 1
90999-00186

AE11#

ﾏｽﾀｰｷｰ

 2
90999-00186

AE11#

ﾏｽﾀｰｷｰ

 2
69503A - KEY, BLANK
90999-00185

AE11#

ﾏｽﾀｰｷｰ,*68付き

 1
90999-00185

AE11#

ﾏｽﾀｰｷｰ,*68付き

 1
90999-00186

AE11#

ﾏｽﾀｰｷｰ

 2
90999-00186

AE11#

ﾏｽﾀｰｷｰ

 2
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
69510-12260

AE11#

 1
69510-12260

AE11#

 1
69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH
69520-12260

AE11#

 1
69520-12260

AE11#

 1
69560A - CYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK
69560-32290

AE11#

 1
69560-32290

AE11#

 1
69561A - RETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER
69561-12180

AE11#

 1
69561-12180

AE11#

 1
69563A - PAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER
69563-20040

AE11#

 1
69563-20040

AE11#

 1
69570 - CYLINDER ASSY, IGNITION SWITCH LOCK
69570-12150

AE11#

 1
69570-20220

AE111

ｱﾘ(ｲﾙﾐﾈ-ﾃﾂﾄﾞｴﾝﾄﾘ-ｼｽﾃﾑ(ｲｸﾞﾆｼﾖﾝｷ- ｼﾖｳﾒｲ))

 1
69570-20220

AE111..BZG,XZ

 1
69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER
69759-20090

AE11#

 1
69759-20090

AE11#

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-30050

AE11#

左側

 1
69759-30040

AE11#

右側

 1
69759-30050

AE11#

左側

 1
69759-30040

AE11#

右側

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-30050

AE11#

左側

 1
69759-30040

AE11#

右側

 1
69759-30050

AE11#

左側

 1
69759-30040

AE11#

右側

 1
