AE111-BCPZF (1995)
Toyota Levin/Trueno
Production
May 1995
-
Aug 2000
Engine
4AGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )BZG,BZR,BZV

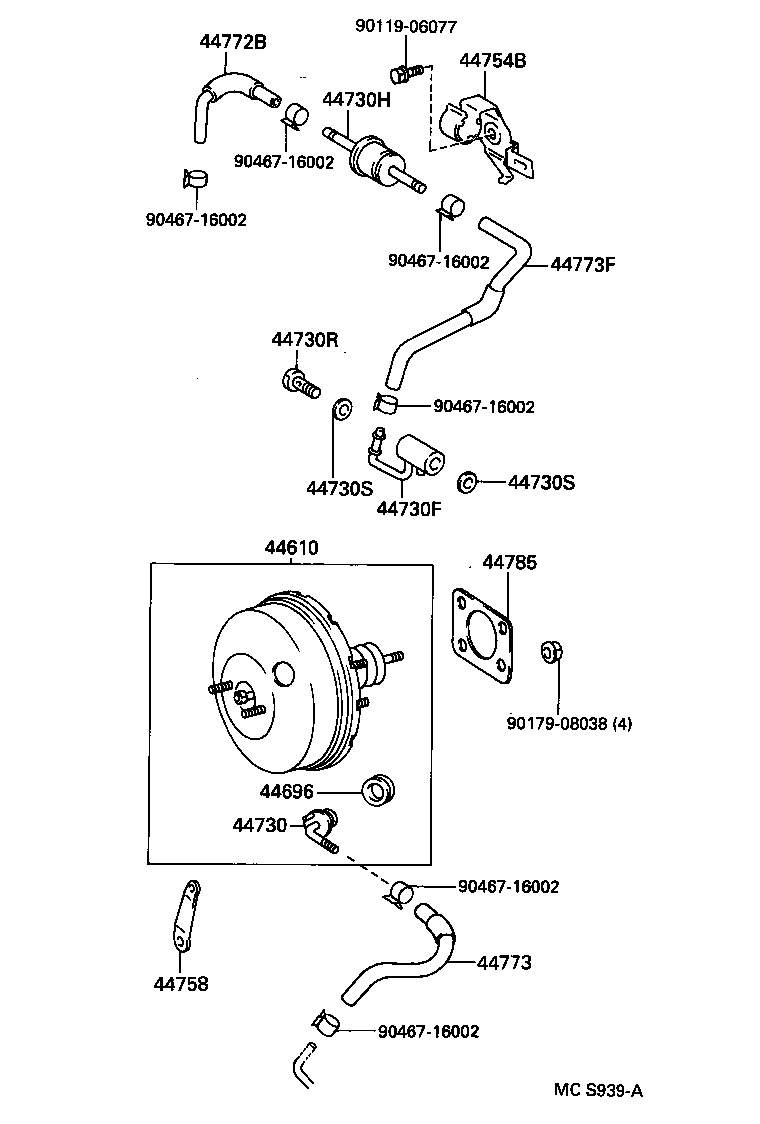

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-1E230 |
AE111..BZG,BZV |
1 | ||
| 44610-1E230 |
AE111..BZG,BZR,BZV |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24517 |
AE111..BZG,BZR,BZV |
1 | ||
| 90480-24517 |
AE111..BZG,BZV |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-12050 |
AE111..BZG,BZR,BZV |
1 | ||
| 44730-12050 |
AE111..BZG,BZV |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90405-09162 |
AE111..BZG,BZV |
1 | ||
| 90405-09162 |
AE111..BZG,BZR,BZV |
1 | ||
| 44730H - VALVE ASSY, VACUUM CHECK(FOR VACUUM RESERVOIR) | ||||
| 44730-20120 |
AE111..BZG,BZR,BZV |
1 | ||
| 44730-20120 |
AE111..BZG,BZV |
1 | ||
| 44730R - BOLT, UNION(FOR VACUUM HOSE UNION) | ||||
| 90401-10054 |
AE111..BZG,BZV |
1 | ||
| 90401-10054 |
AE111..BZG,BZR,BZV |
1 | ||
| 44730S - GASKET(FOR VACUUM HOSE UNION) | ||||
| 90430-10015 |
AE111..BZG,BZV |
2 | ||
| 90430-10015 |
AE111..BZG,BZR,BZV |
2 | ||
| 44730S - GASKET(FOR VACUUM HOSE UNION) | ||||
| 90430-10015 |
AE111..BZG,BZV |
2 | ||
| 90430-10015 |
AE111..BZG,BZR,BZV |
2 | ||
| 44754B - BRACKET, VACUUM TUBE | ||||
| 44758-12310 |
AE111..BZG,BZR,BZV |
1 | ||
| 44758-12310 |
AE111..BZG,BZV |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-12300 |
AE11# |
1 | ||
| 44758-12300 |
AE11# |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-12420 |
AE111..BZG,BZV |
1 | ||
| 44772-12420 |
AE111..BZG,BZR,BZV |
1 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| 44773-12631 |
AE111..BZG,BZR,BZV |
1 | ||
| 44773-12631 |
AE111..BZG,BZV |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-12610 |
AE111..BZG,BZV |
1 | ||
| 44773-12610 |
AE111..BZG,BZR,BZV |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-20020 |
AE11# |
1 | ||
| 44785-20020 |
AE11# |
1 | ||
| Common parts | ||||
| 90119-06077 | ||||
| 90179-08038 | ||||
| 90467-16002 | ||||
