Toyota Levin/trueno AE111 STEERING WHEEL

AE111-BCPZF (1995)

Toyota Levin/Trueno

Production May 1995 - Aug 2000

Engine 4AGE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9505-9605) ; (9605- )FZ,XZ

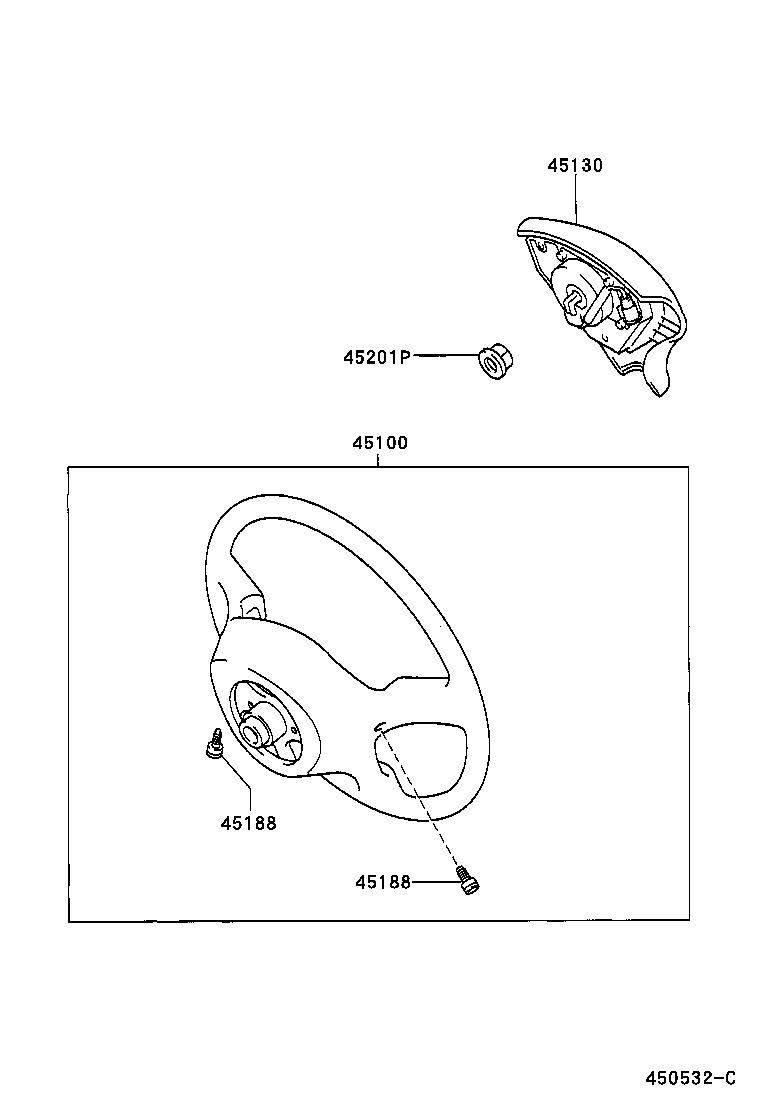

Click highlighted areas on diagram

ｱﾘ(ｷｶｲｼｷ *80)

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-12750C0	AE11#..BZG,BZV,FZ 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLACK,TRIM1#	05/1995 - 04/1996	1
45100-12840C0	AE111..BZG,BZV 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1#	05/1996 - 07/1996	1
45100-12751B0	AE111..BZG,BZV 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1#	04/1996 - 05/1996	1
45102-12620	AE111..BZG,BZV 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,MOMO	05/1995 - 05/1996	1
45100-12870C0	AE111..BZG,BZV 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1#	07/1996 - 04/1997	1
45100-12731C0	AE111..BZG 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1#	05/1995 - 05/1996	1
45100-12751C0	AE11# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM1#	04/1996 - 05/1996	1
45100-12891C1	AE111..BZG,BZR,BZV 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK / RED,TRIM1#	04/1998 - 08/2000	1
45100-12850C0	AE111..BZG,BZV 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM1#	12/1996 - 04/1997	1
45100-12891C0	AE111..BZG,BZR,BZV 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1#	04/1997 - 08/2000	1
45108B - BUTTON SUB-ASSY, HORN(FOR STEERING WHEEL ASSY)
45108-12010C0	AE11# BLACK,TRIM1#	05/1995 - 05/1996	1
45130 - BUTTON ASSY, HORN
45130-12820C0	AE111..BZG BLACK,TRIM1#	05/1995 - 05/1996	1
45140-12010	AE111..BZG,BZV MOMO	05/1995 - 05/1996	1
45130-1A070C0	AE111..BZG,BZV ｱﾘ(ﾚｻﾞ- ｽﾃｱﾘﾝｸﾞﾎｲ-ﾙ),BLACK,TRIM1#	05/1996 - 07/1996	1
45130-1A060C0	AE111..BZG,BZV ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM1#	12/1996 - 04/1997	1
45130-1A080C0	AE111..BZG,BZV BLACK,TRIM1#	07/1996 - 04/1997	1
45130-1A120C0	AE111..BZG,BZR,BZV ｱﾘ(ﾃﾞﾝｷｼｷ *80 & 3-SPOKE),BLACK,TRIM1#	04/1997 - 08/2000	1
45130-12840C0	AE11# ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM1#	05/1995 - 05/1996	1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-20040C0	AE111..BZG,BZV BLACK,TRIM1#	05/1996 - 04/1997	1
45187-20050C0	AE111..BZG,BZV ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM1#	12/1996 - 04/1997	1
45187-12010C0	AE11# BLACK,TRIM1#	05/1995 - 05/1996	1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60007	AE111..BZG,BZV 長さ=18,ｱﾘ(ﾃﾞﾝｷｼｷ *80)	12/1996 - 04/1997	1
90148-60011	AE11# 長さ=15.5	05/1995 - 04/1997	2
90148-60007	AE11# 長さ=18	03/1999 - 08/2000	2
90148-60036	AE111..BZG,BZR,BZV 長さ=18.0	04/1997 - 03/1999	2
90148-60007	AE111..BZG,BZV 長さ=18	07/1996 - 04/1997	2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60007	AE111..BZG,BZV 長さ=18,ｱﾘ(ﾃﾞﾝｷｼｷ *80)	12/1996 - 04/1997	1
90148-60011	AE11# 長さ=15.5	05/1995 - 04/1997	2
90148-60007	AE11# 長さ=18	03/1999 - 08/2000	2
90148-60036	AE111..BZG,BZR,BZV 長さ=18.0	04/1997 - 03/1999	2
90148-60007	AE111..BZG,BZV 長さ=18	07/1996 - 04/1997	2
45201P - NUT, STEERING WHEEL SET
90179-12071	AE11#	05/1995 - 04/1997	1
90179-12071	AE11#	04/1997 - 08/2000	1
45713A - DAMPER, STEERING SHAKE
45713-12020	AE11#	05/1995 - 05/1996	1
Common parts
90159-50265

(9612- )4FC,5F

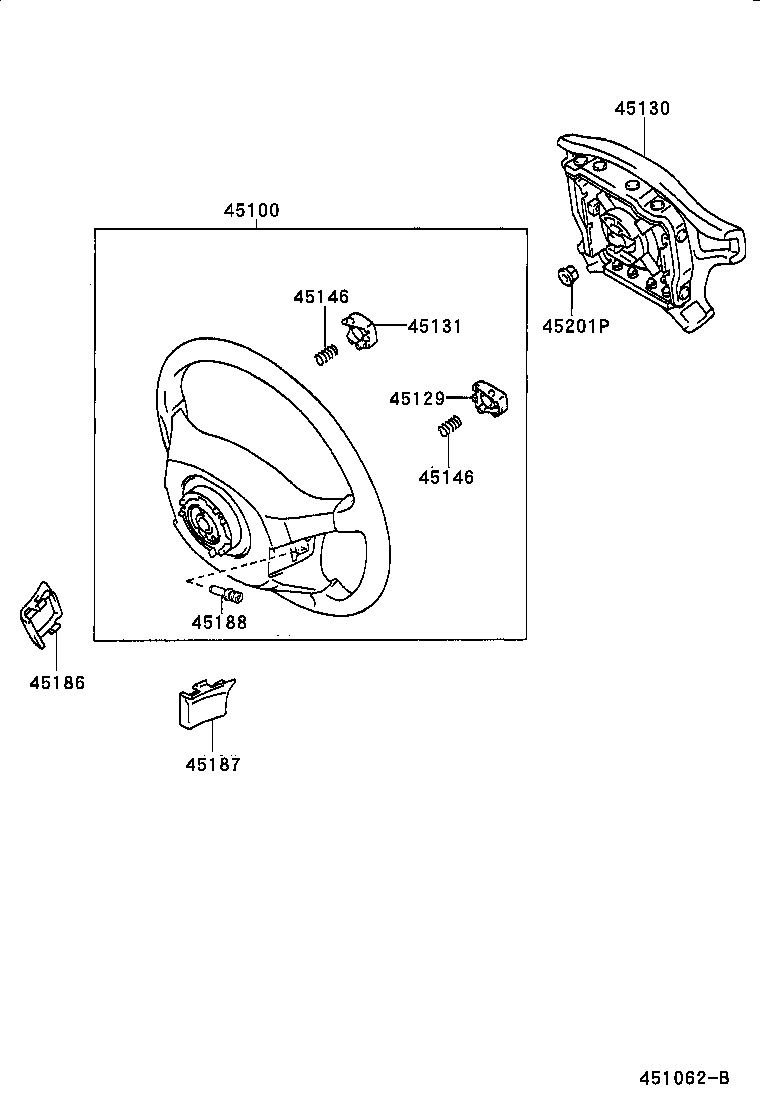

Click highlighted areas on diagram

4-SPOKE, ｱﾘ(ﾃﾞﾝｷｼｷ *80)

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-12750C0	AE11#..BZG,BZV,FZ 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLACK,TRIM1#	05/1995 - 04/1996	1
45100-12840C0	AE111..BZG,BZV 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1#	05/1996 - 07/1996	1
45100-12751B0	AE111..BZG,BZV 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1#	04/1996 - 05/1996	1
45102-12620	AE111..BZG,BZV 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,MOMO	05/1995 - 05/1996	1
45100-12870C0	AE111..BZG,BZV 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1#	07/1996 - 04/1997	1
45100-12731C0	AE111..BZG 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1#	05/1995 - 05/1996	1
45100-12751C0	AE11# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM1#	04/1996 - 05/1996	1
45100-12891C1	AE111..BZG,BZR,BZV 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK / RED,TRIM1#	04/1998 - 08/2000	1
45100-12850C0	AE111..BZG,BZV 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM1#	12/1996 - 04/1997	1
45100-12891C0	AE111..BZG,BZR,BZV 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1#	04/1997 - 08/2000	1
45130 - BUTTON ASSY, HORN
45130-12820C0	AE111..BZG BLACK,TRIM1#	05/1995 - 05/1996	1
45140-12010	AE111..BZG,BZV MOMO	05/1995 - 05/1996	1
45130-1A070C0	AE111..BZG,BZV ｱﾘ(ﾚｻﾞ- ｽﾃｱﾘﾝｸﾞﾎｲ-ﾙ),BLACK,TRIM1#	05/1996 - 07/1996	1
45130-1A060C0	AE111..BZG,BZV ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM1#	12/1996 - 04/1997	1
45130-1A080C0	AE111..BZG,BZV BLACK,TRIM1#	07/1996 - 04/1997	1
45130-1A120C0	AE111..BZG,BZR,BZV ｱﾘ(ﾃﾞﾝｷｼｷ *80 & 3-SPOKE),BLACK,TRIM1#	04/1997 - 08/2000	1
45130-12840C0	AE11# ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM1#	05/1995 - 05/1996	1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-20050C0	AE111..BZG,BZV BLACK,TRIM1#	05/1996 - 04/1997	1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-20040C0	AE111..BZG,BZV BLACK,TRIM1#	05/1996 - 04/1997	1
45187-20050C0	AE111..BZG,BZV ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM1#	12/1996 - 04/1997	1
45187-12010C0	AE11# BLACK,TRIM1#	05/1995 - 05/1996	1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60007	AE111..BZG,BZV 長さ=18,ｱﾘ(ﾃﾞﾝｷｼｷ *80)	12/1996 - 04/1997	1
90148-60011	AE11# 長さ=15.5	05/1995 - 04/1997	2
90148-60007	AE11# 長さ=18	03/1999 - 08/2000	2
90148-60036	AE111..BZG,BZR,BZV 長さ=18.0	04/1997 - 03/1999	2
90148-60007	AE111..BZG,BZV 長さ=18	07/1996 - 04/1997	2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60007	AE111..BZG,BZV 長さ=18,ｱﾘ(ﾃﾞﾝｷｼｷ *80)	12/1996 - 04/1997	1
90148-60011	AE11# 長さ=15.5	05/1995 - 04/1997	2
90148-60007	AE11# 長さ=18	03/1999 - 08/2000	2
90148-60036	AE111..BZG,BZR,BZV 長さ=18.0	04/1997 - 03/1999	2
90148-60007	AE111..BZG,BZV 長さ=18	07/1996 - 04/1997	2
45201P - NUT, STEERING WHEEL SET
90179-12071	AE11#	05/1995 - 04/1997	1
90179-12071	AE11#	04/1997 - 08/2000	1

(9705- )BZG,BZR,BZV

Click highlighted areas on diagram

3-SPOKE, ｱﾘ(ﾃﾞﾝｷｼｷ *80)

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-12750C0	AE11#..BZG,BZV,FZ 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLACK,TRIM1#	05/1995 - 04/1996	1
45100-12840C0	AE111..BZG,BZV 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1#	05/1996 - 07/1996	1
45100-12751B0	AE111..BZG,BZV 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1#	04/1996 - 05/1996	1
45102-12620	AE111..BZG,BZV 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,MOMO	05/1995 - 05/1996	1
45100-12870C0	AE111..BZG,BZV 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1#	07/1996 - 04/1997	1
45100-12731C0	AE111..BZG 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1#	05/1995 - 05/1996	1
45100-12751C0	AE11# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM1#	04/1996 - 05/1996	1
45100-12891C1	AE111..BZG,BZR,BZV 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK / RED,TRIM1#	04/1998 - 08/2000	1
45100-12850C0	AE111..BZG,BZV 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM1#	12/1996 - 04/1997	1
45100-12891C0	AE111..BZG,BZR,BZV 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1#	04/1997 - 08/2000	1
45130 - BUTTON ASSY, HORN
45130-12820C0	AE111..BZG BLACK,TRIM1#	05/1995 - 05/1996	1
45140-12010	AE111..BZG,BZV MOMO	05/1995 - 05/1996	1
45130-1A070C0	AE111..BZG,BZV ｱﾘ(ﾚｻﾞ- ｽﾃｱﾘﾝｸﾞﾎｲ-ﾙ),BLACK,TRIM1#	05/1996 - 07/1996	1
45130-1A060C0	AE111..BZG,BZV ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM1#	12/1996 - 04/1997	1
45130-1A080C0	AE111..BZG,BZV BLACK,TRIM1#	07/1996 - 04/1997	1
45130-1A120C0	AE111..BZG,BZR,BZV ｱﾘ(ﾃﾞﾝｷｼｷ *80 & 3-SPOKE),BLACK,TRIM1#	04/1997 - 08/2000	1
45130-12840C0	AE11# ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM1#	05/1995 - 05/1996	1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60007	AE111..BZG,BZV 長さ=18,ｱﾘ(ﾃﾞﾝｷｼｷ *80)	12/1996 - 04/1997	1
90148-60011	AE11# 長さ=15.5	05/1995 - 04/1997	2
90148-60007	AE11# 長さ=18	03/1999 - 08/2000	2
90148-60036	AE111..BZG,BZR,BZV 長さ=18.0	04/1997 - 03/1999	2
90148-60007	AE111..BZG,BZV 長さ=18	07/1996 - 04/1997	2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60007	AE111..BZG,BZV 長さ=18,ｱﾘ(ﾃﾞﾝｷｼｷ *80)	12/1996 - 04/1997	1
90148-60011	AE11# 長さ=15.5	05/1995 - 04/1997	2
90148-60007	AE11# 長さ=18	03/1999 - 08/2000	2
90148-60036	AE111..BZG,BZR,BZV 長さ=18.0	04/1997 - 03/1999	2
90148-60007	AE111..BZG,BZV 長さ=18	07/1996 - 04/1997	2
45201P - NUT, STEERING WHEEL SET
90179-12071	AE11#	05/1995 - 04/1997	1
90179-12071	AE11#	04/1997 - 08/2000	1

(9605- )BZG,BZV..4FC,5F

Click highlighted areas on diagram

ｱﾘ(ｷｶｲｼｷ *80)

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-12750C0	AE11#..BZG,BZV,FZ 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLACK,TRIM1#	05/1995 - 04/1996	1
45100-12840C0	AE111..BZG,BZV 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1#	05/1996 - 07/1996	1
45100-12751B0	AE111..BZG,BZV 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1#	04/1996 - 05/1996	1
45102-12620	AE111..BZG,BZV 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,MOMO	05/1995 - 05/1996	1
45100-12870C0	AE111..BZG,BZV 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1#	07/1996 - 04/1997	1
45100-12731C0	AE111..BZG 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1#	05/1995 - 05/1996	1
45100-12751C0	AE11# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM1#	04/1996 - 05/1996	1
45100-12891C1	AE111..BZG,BZR,BZV 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK / RED,TRIM1#	04/1998 - 08/2000	1
45100-12850C0	AE111..BZG,BZV 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM1#	12/1996 - 04/1997	1
45100-12891C0	AE111..BZG,BZR,BZV 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1#	04/1997 - 08/2000	1
45129 - BUTTON, HORN, NO.2
45129-20130C0	AE111..(BZG,BZV)..4FC BLACK,TRIM1#	04/1997 - 05/1997	1
45129-20130C0	AE111..BZG,BZV BLACK,TRIM1#	05/1996 - 04/1997	1
45130 - BUTTON ASSY, HORN
45130-12820C0	AE111..BZG BLACK,TRIM1#	05/1995 - 05/1996	1
45140-12010	AE111..BZG,BZV MOMO	05/1995 - 05/1996	1
45130-1A070C0	AE111..BZG,BZV ｱﾘ(ﾚｻﾞ- ｽﾃｱﾘﾝｸﾞﾎｲ-ﾙ),BLACK,TRIM1#	05/1996 - 07/1996	1
45130-1A060C0	AE111..BZG,BZV ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM1#	12/1996 - 04/1997	1
45130-1A080C0	AE111..BZG,BZV BLACK,TRIM1#	07/1996 - 04/1997	1
45130-1A120C0	AE111..BZG,BZR,BZV ｱﾘ(ﾃﾞﾝｷｼｷ *80 & 3-SPOKE),BLACK,TRIM1#	04/1997 - 08/2000	1
45130-12840C0	AE11# ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM1#	05/1995 - 05/1996	1
45131 - BUTTON, HORN, NO.1
45131-20250C0	AE111..(BZG,BZV)..4FC BLACK,TRIM1#	04/1997 - 05/1997	1
45131-20250C0	AE111..BZG,BZV BLACK,TRIM1#	05/1996 - 04/1997	1
45146 - SPRING, HORN BUTTON CONTACT
45146-20260	AE111..(BZG,BZV)..4FC	04/1997 - 05/1997	2
45146-20260	AE111..BZG,BZV	05/1996 - 04/1997	2
45146-32080	AE11#..BZG,BZV,FZ	05/1995 - 05/1996	3
45146 - SPRING, HORN BUTTON CONTACT
45146-20260	AE111..(BZG,BZV)..4FC	04/1997 - 05/1997	2
45146-20260	AE111..BZG,BZV	05/1996 - 04/1997	2
45146-32080	AE11#..BZG,BZV,FZ	05/1995 - 05/1996	3
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-20050C0	AE111..BZG,BZV BLACK,TRIM1#	05/1996 - 04/1997	1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-20040C0	AE111..BZG,BZV BLACK,TRIM1#	05/1996 - 04/1997	1
45187-20050C0	AE111..BZG,BZV ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM1#	12/1996 - 04/1997	1
45187-12010C0	AE11# BLACK,TRIM1#	05/1995 - 05/1996	1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60007	AE111..BZG,BZV 長さ=18,ｱﾘ(ﾃﾞﾝｷｼｷ *80)	12/1996 - 04/1997	1
90148-60011	AE11# 長さ=15.5	05/1995 - 04/1997	2
90148-60007	AE11# 長さ=18	03/1999 - 08/2000	2
90148-60036	AE111..BZG,BZR,BZV 長さ=18.0	04/1997 - 03/1999	2
90148-60007	AE111..BZG,BZV 長さ=18	07/1996 - 04/1997	2
45201P - NUT, STEERING WHEEL SET
90179-12071	AE11#	05/1995 - 04/1997	1
90179-12071	AE11#	04/1997 - 08/2000	1

(9505-9605)BZG

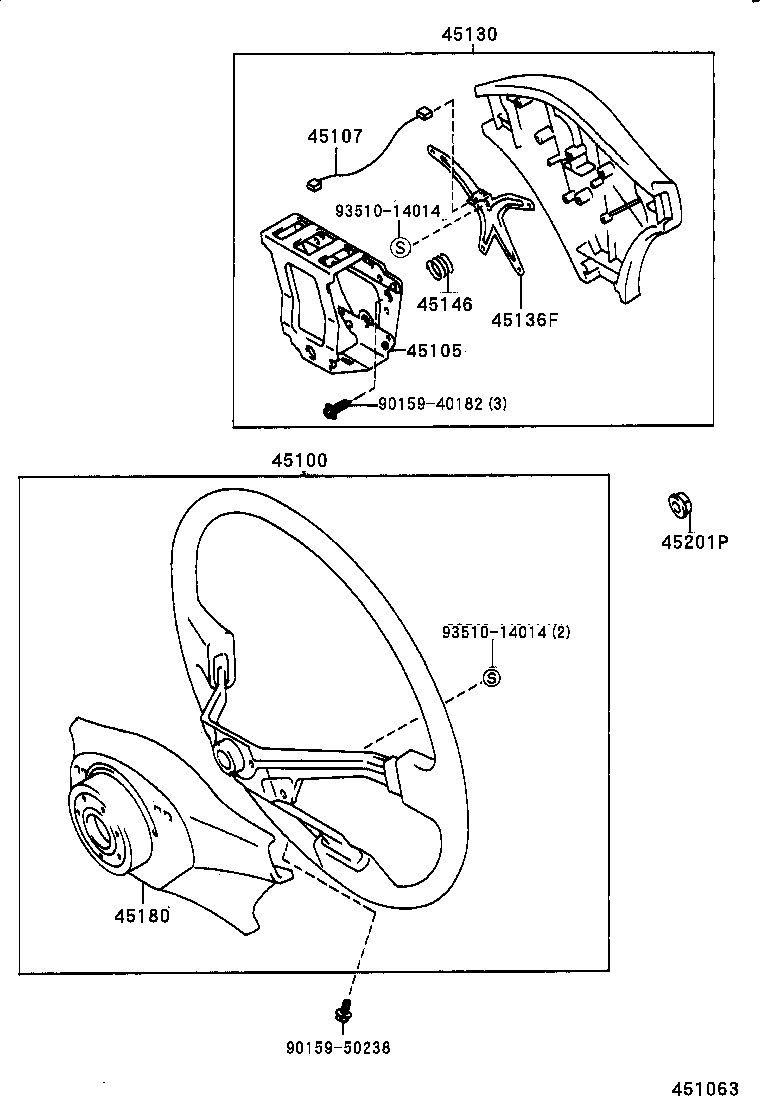

Click highlighted areas on diagram

LEATHER,3-SPOKE

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-12750C0	AE11#..BZG,BZV,FZ 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLACK,TRIM1#	05/1995 - 04/1996	1
45100-12840C0	AE111..BZG,BZV 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1#	05/1996 - 07/1996	1
45100-12751B0	AE111..BZG,BZV 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1#	04/1996 - 05/1996	1
45102-12620	AE111..BZG,BZV 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,MOMO	05/1995 - 05/1996	1
45100-12870C0	AE111..BZG,BZV 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1#	07/1996 - 04/1997	1
45100-12731C0	AE111..BZG 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1#	05/1995 - 05/1996	1
45100-12751C0	AE11# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM1#	04/1996 - 05/1996	1
45100-12891C1	AE111..BZG,BZR,BZV 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK / RED,TRIM1#	04/1998 - 08/2000	1
45100-12850C0	AE111..BZG,BZV 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM1#	12/1996 - 04/1997	1
45100-12891C0	AE111..BZG,BZR,BZV 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1#	04/1997 - 08/2000	1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-12230	AE11#..BZG,BZV,FZ	05/1995 - 05/1996	1
45107 - WIRE SUB-ASSY, HORN BUTTON
45107-12010	AE11#..BZG,BZV,FZ	05/1995 - 05/1996	1
45130 - BUTTON ASSY, HORN
45130-12820C0	AE111..BZG BLACK,TRIM1#	05/1995 - 05/1996	1
45140-12010	AE111..BZG,BZV MOMO	05/1995 - 05/1996	1
45130-1A070C0	AE111..BZG,BZV ｱﾘ(ﾚｻﾞ- ｽﾃｱﾘﾝｸﾞﾎｲ-ﾙ),BLACK,TRIM1#	05/1996 - 07/1996	1
45130-1A060C0	AE111..BZG,BZV ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM1#	12/1996 - 04/1997	1
45130-1A080C0	AE111..BZG,BZV BLACK,TRIM1#	07/1996 - 04/1997	1
45130-1A120C0	AE111..BZG,BZR,BZV ｱﾘ(ﾃﾞﾝｷｼｷ *80 & 3-SPOKE),BLACK,TRIM1#	04/1997 - 08/2000	1
45130-12840C0	AE11# ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM1#	05/1995 - 05/1996	1
45136F - PLATE, HORN BUTTON CONTACT, NO.1
45136-32130	AE11#..BZG,BZV,FZ	05/1995 - 05/1996	1
45146 - SPRING, HORN BUTTON CONTACT
45146-20260	AE111..(BZG,BZV)..4FC	04/1997 - 05/1997	2
45146-20260	AE111..BZG,BZV	05/1996 - 04/1997	2
45146-32080	AE11#..BZG,BZV,FZ	05/1995 - 05/1996	3
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-12190C0	AE111..BZG BLACK,TRIM1#	05/1995 - 05/1996	1
45201P - NUT, STEERING WHEEL SET
90179-12071	AE11#	05/1995 - 04/1997	1
90179-12071	AE11#	04/1997 - 08/2000	1
Common parts
90159-40182
90159-50238
93510-14014

(9505-9605)BZG,BZV

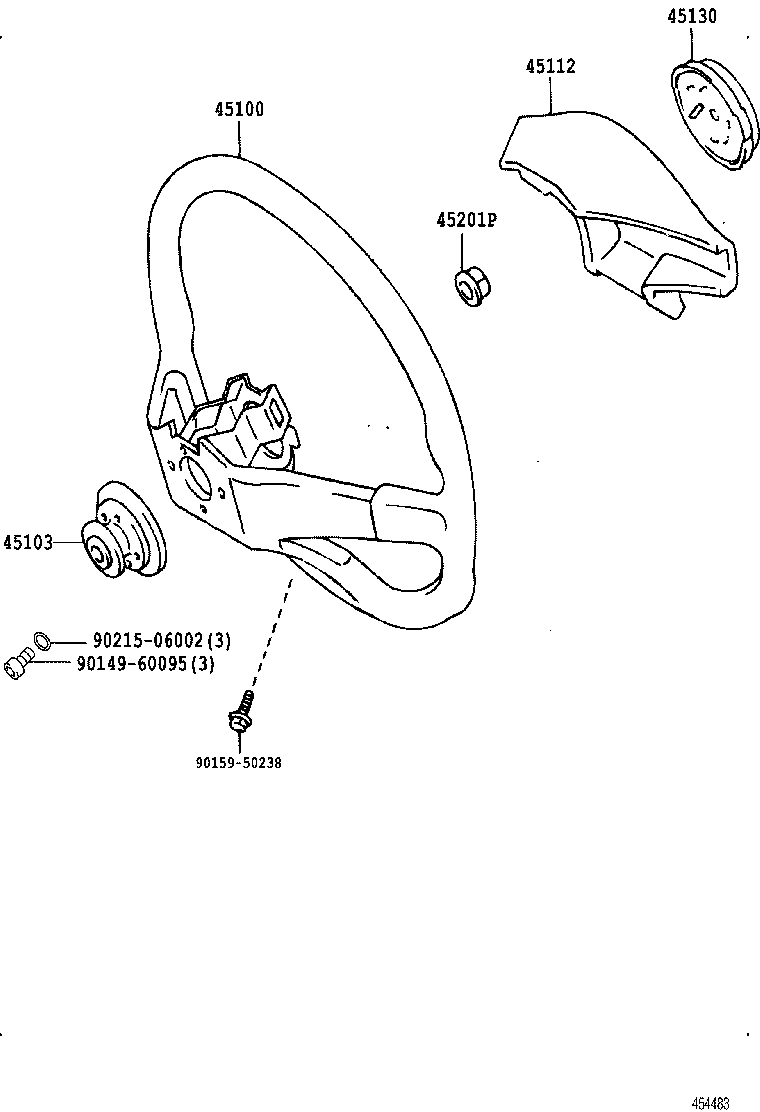

Click highlighted areas on diagram

MOMO

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-12750C0	AE11#..BZG,BZV,FZ 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLACK,TRIM1#	05/1995 - 04/1996	1
45100-12840C0	AE111..BZG,BZV 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1#	05/1996 - 07/1996	1
45100-12751B0	AE111..BZG,BZV 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1#	04/1996 - 05/1996	1
45102-12620	AE111..BZG,BZV 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,MOMO	05/1995 - 05/1996	1
45100-12870C0	AE111..BZG,BZV 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1#	07/1996 - 04/1997	1
45100-12731C0	AE111..BZG 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1#	05/1995 - 05/1996	1
45100-12751C0	AE11# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM1#	04/1996 - 05/1996	1
45100-12891C1	AE111..BZG,BZR,BZV 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK / RED,TRIM1#	04/1998 - 08/2000	1
45100-12850C0	AE111..BZG,BZV 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM1#	12/1996 - 04/1997	1
45100-12891C0	AE111..BZG,BZR,BZV 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1#	04/1997 - 08/2000	1
45103 - HUB SUB-ASSY, STEERING WHEEL
45103-12520	AE111..BZG,BZV	05/1995 - 05/1996	1
45112 - PAD, STEERING WHEEL
45112-12500	AE111..BZG,BZV	05/1995 - 05/1996	1
45130 - BUTTON ASSY, HORN
45130-12820C0	AE111..BZG BLACK,TRIM1#	05/1995 - 05/1996	1
45140-12010	AE111..BZG,BZV MOMO	05/1995 - 05/1996	1
45130-1A070C0	AE111..BZG,BZV ｱﾘ(ﾚｻﾞ- ｽﾃｱﾘﾝｸﾞﾎｲ-ﾙ),BLACK,TRIM1#	05/1996 - 07/1996	1
45130-1A060C0	AE111..BZG,BZV ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM1#	12/1996 - 04/1997	1
45130-1A080C0	AE111..BZG,BZV BLACK,TRIM1#	07/1996 - 04/1997	1
45130-1A120C0	AE111..BZG,BZR,BZV ｱﾘ(ﾃﾞﾝｷｼｷ *80 & 3-SPOKE),BLACK,TRIM1#	04/1997 - 08/2000	1
45130-12840C0	AE11# ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM1#	05/1995 - 05/1996	1
45201P - NUT, STEERING WHEEL SET
90179-12071	AE11#	05/1995 - 04/1997	1
90179-12071	AE11#	04/1997 - 08/2000	1
Common parts
90149-60095
90159-50238
90215-06002

AE111-BCPZF (1995)

(9505-9605) ; (9605- )FZ,XZ

(9612- )4FC,5F

(9705- )BZG,BZR,BZV

(9605- )BZG,BZV..4FC,5F

(9505-9605)BZG

(9505-9605)BZG,BZV

Part Price Details
