AE111-BCPZF (1995)
Toyota Levin/Trueno
Production
May 1995
-
Aug 2000
Engine
4AGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9505-0008)

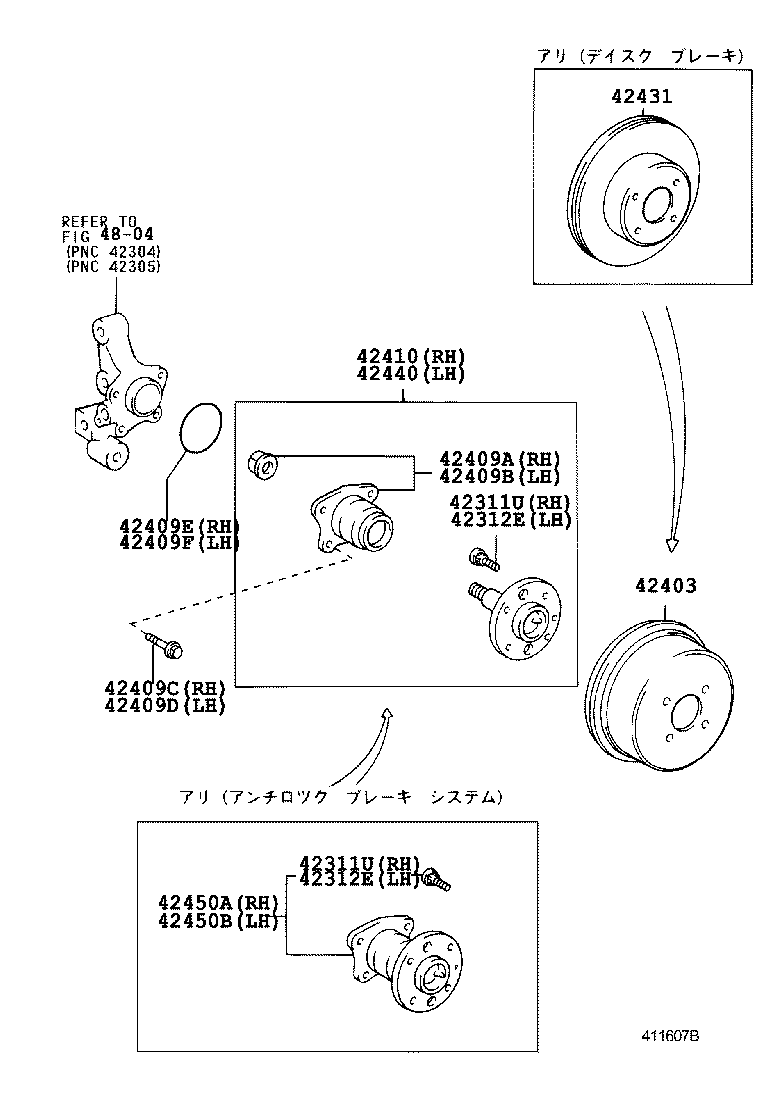

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02047 |
AE11# |
4 | ||
| 90942-02047 |
AE11# |
4 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02047 |
AE11# |
4 | ||
| 90942-02047 |
AE11# |
4 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02047 |
AE11# |
4 | ||
| 90942-02047 |
AE11# |
4 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02047 |
AE11# |
4 | ||
| 90942-02047 |
AE11# |
4 | ||
| 42409A - BEARING SUB-ASSY, REAR AXLE, RH | ||||
| 42409-19015 |
AE11# |
1 | ||
| 42409B - BEARING SUB-ASSY, REAR AXLE, LH | ||||
| 42409-19015 |
AE11# |
1 | ||
| 42409C - BOLT (FOR REAR AXLE BEARING RH) | ||||
| 90105-10404 |
AE11# |
4 | ||
| 90105-10404 |
AE11# |
4 | ||
| 42409D - BOLT (FOR REAR AXLE BEARING LH) | ||||
| 90105-10404 |
AE11# |
4 | ||
| 90105-10404 |
AE11# |
4 | ||
| 42409E - RING, O (FOR REAR AXLE BEARING RH) | ||||
| 90301-61002 |
AE11# |
1 | ||
| 90301-61002 |
AE11# |
1 | ||
| 42409F - RING, O (FOR REAR AXLE BEARING LH) | ||||
| 90301-61002 |
AE11# |
1 | ||
| 90301-61002 |
AE11# |
1 | ||
| 42410 - HUB & BEARING ASSY, REAR AXLE, RH | ||||
| 42410-12100 |
AE111..BZG,BZV |
1 | ||
| 42431 - DISC, REAR | ||||
| 42431-12150 |
AE111..BZG,BZR,BZV |
2 | ||
| 42431-12150 |
AE111..BZG,BZV |
2 | ||
| 42440 - HUB & BEARING ASSY, REAR AXLE, LH | ||||
| 42410-12100 |
AE111..BZG,BZV |
1 | ||
| 42450A - HUB & BEARING ASSY, REAR AXLE, RH | ||||
| 42450-12040 |
AE111..BZG,BZV |
1 | ||
| 42450-12040 |
AE111..BZG,BZR,BZV |
1 | ||
| 42450B - HUB & BEARING ASSY, REAR AXLE, LH | ||||
| 42450-12040 |
AE111..BZG,BZV |
1 | ||
| 42450-12040 |
AE111..BZG,BZR,BZV |
1 | ||
| Linked diagrams | ||||
| 4804 | ||||
