AE111-BCPZF (1995)
Toyota Levin/Trueno

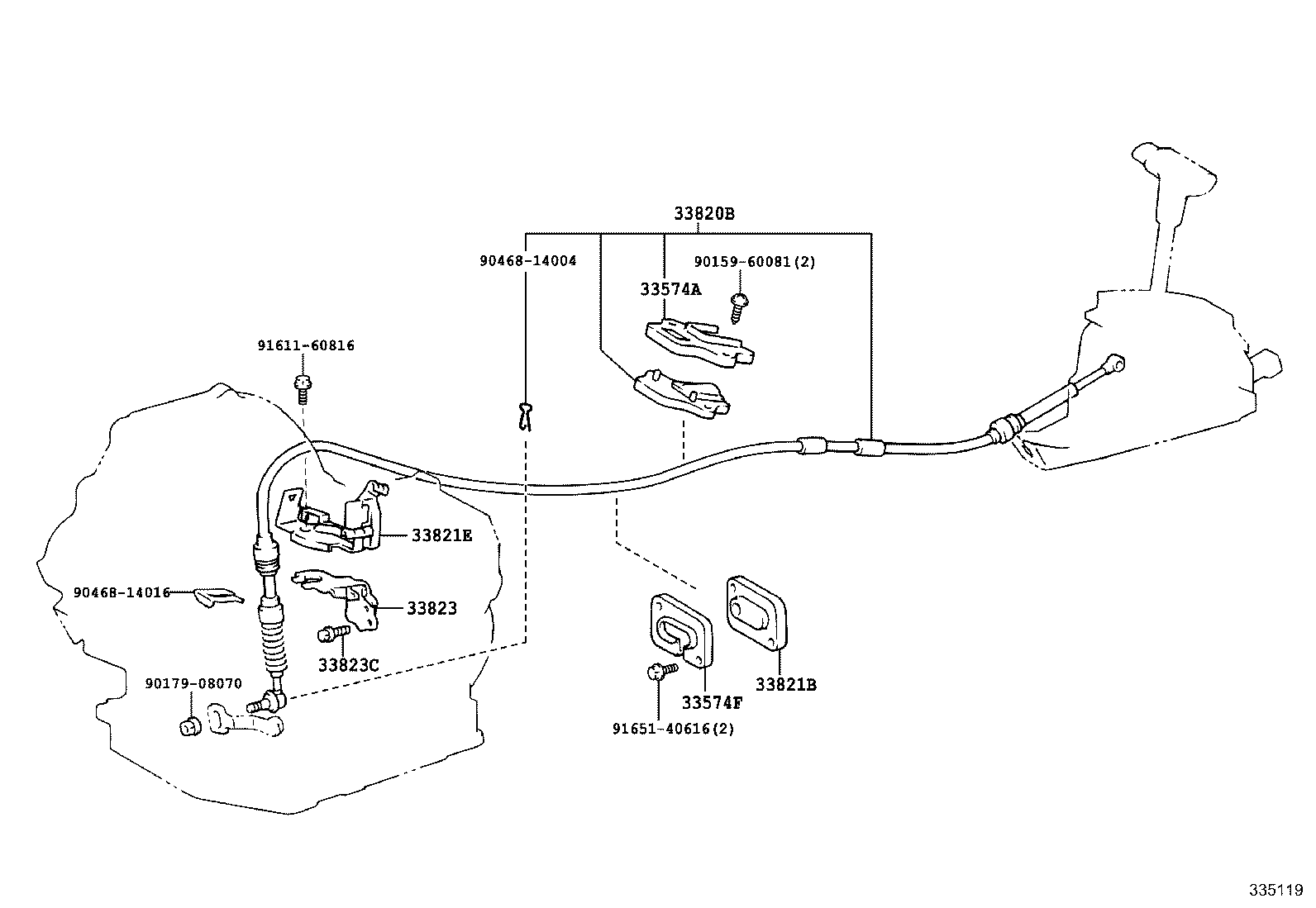

ILLUST NO. 2 OF 2(9505- )4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-12040 |
AE11#..4FC |
1 | ||
| 33574-12040 |
AE11#..4FC |
1 | ||
| 33574F - RETAINER, DUST SEAL (FOR FLOOR SHIFT) | ||||
| 33574-12080 |
AE11# |
1 | ||
| 33574-12080 |
AE11# |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-12640 |
AE111..(BZG,BZV)..4FC |
1 | ||
| 33820-12640 |
AE111..(BZG,BZV)..4FC |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01672 |
AE11#..4FC |
1 | ||
| 90480-01672 |
AE11#..4FC |
1 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90929-01354 |
AE111..(BZG,BZV)..4FC |
1 | ||
| 90929-01354 |
AE111..(BZG,BZV)..4FC |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-12170 |
AE111..4FC |
1 | ||
| 33823-12170 |
AE111..4FC |
1 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91612-61022 |
AE11#..4FC |
2 | ||
| 91611-61022 |
AE11#..4FC |
2 | ||
| Common parts | ||||
| 90159-60081 | ||||
| 90179-08070 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 91611-60816 | ||||
| 91651-40616 | ||||

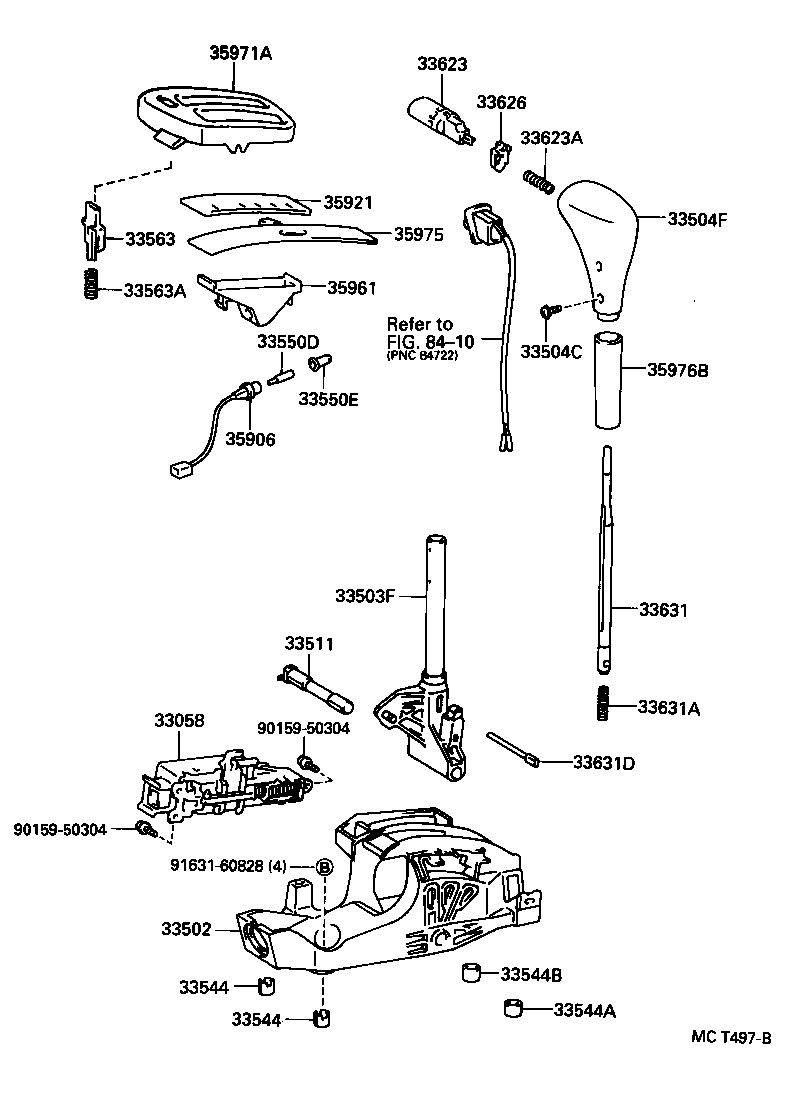

ILLUST NO. 1 OF 2(9505- )4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID | ||||
| 33560-12011 |
AE11#..4FC |
1 | ||
| 33560-12010 |
AE11#..4FC |
1 | ||
| 33560-12011 |
AE11#..4FC |
1 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33521-12260 |
AE11#..4FC |
1 | ||
| 33521-12260 |
AE11#..4FC |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-12060 |
AE11#..4FC |
1 | ||
| 33055-12060 |
AE11#..4FC |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40221 |
AE11#..4FC |
1 | ||
| 90159-40221 |
AE11#..4FC |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-12220B0 |
AE11#..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 33542-12220C0 |
AE11#..4FC BLACK,TRIM1# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-16060 |
AE11#..4FC |
1 | ||
| 33511-16060 |
AE11#..4FC |
1 | ||
| 33544 - INSERT, SHIFT LEVER, NO.1 | ||||
| 90387-09043 |
AE11#..4FC |
2 | ||
| 90387-09043 |
AE11#..4FC |
2 | ||
| 33544 - INSERT, SHIFT LEVER, NO.1 | ||||
| 90387-09043 |
AE11#..4FC |
2 | ||
| 90387-09043 |
AE11#..4FC |
2 | ||
| 33544A - INSERT, SHIFT LEVER, NO.2 | ||||
| 90387-08143 |
AE11#..4FC |
1 | ||
| 90387-08143 |
AE11#..4FC |
1 | ||
| 33544B - INSERT, SHIFT LEVER, NO.3 | ||||
| 90387-09049 |
AE11#..4FC |
1 | ||
| 90387-09049 |
AE11#..4FC |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11014 |
AE11#..4FC 14V 1.4W |
1 | ||
| 90981-11014 |
AE11#..4FC 14V 1.4W |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-04041 |
AE11#..4FC |
1 | ||
| 90339-04041 |
AE11#..4FC |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-12080 |
AE11#..4FC |
1 | ||
| 33563-12080 |
AE11#..4FC |
1 | ||
| 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) | ||||
| 90501-08126 |
AE11#..4FC |
1 | ||
| 90501-08126 |
AE11#..4FC |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-12140B0 |
AE11#..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 33623-12140C0 |
AE11#..4FC BLACK,TRIM1# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-06082 |
AE11#..4FC |
1 | ||
| 90501-06082 |
AE11#..4FC |
1 | ||
| 33626 - STOPPER, SHIFT LEVER BUTTON | ||||
| 33626-16010 |
AE11#..4FC |
1 | ||
| 33626-16010 |
AE11#..4FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-12141 |
AE11#..4FC |
1 | ||
| 33631-12140 |
AE11#..4FC |
1 | ||
| 33631-12141 |
AE11#..4FC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-09105 |
AE11#..4FC |
1 | ||
| 90501-09105 |
AE11#..4FC |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90249-03020 |
AE11#..4FC |
1 | ||
| 90249-03020 |
AE11#..4FC |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-16060 |
AE11#..4FC |
1 | ||
| 35906-16060 |
AE11#..4FC |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-12410 |
AE11#..4FC |
1 | ||
| 35921-12410 |
AE11#..4FC |
1 | ||
| 35961 - HOUSING, POSITION INDICATOR LAMP | ||||
| 35961-16010 |
AE11#..4FC |
1 | ||
| 35961-16010 |
AE11#..4FC |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-12350B0 |
AE11#..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 35971-12350C0 |
AE11#..4FC BLACK,TRIM1# |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-12230B0 |
AE11#..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 35975-12230C0 |
AE11#..4FC BLACK,TRIM1# |
1 | ||
| 35976B - COVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT) | ||||
| 35976-12090C0 |
AE11#..4FC BLACK,TRIM1# |
1 | ||
| 35976-12090B0 |
AE11#..4FC SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90159-50304 | ||||
| 91631-60828 | ||||
| Linked diagrams | ||||
| 8410 | ||||
