AE111-BCPZF (1995)
Toyota Levin/Trueno

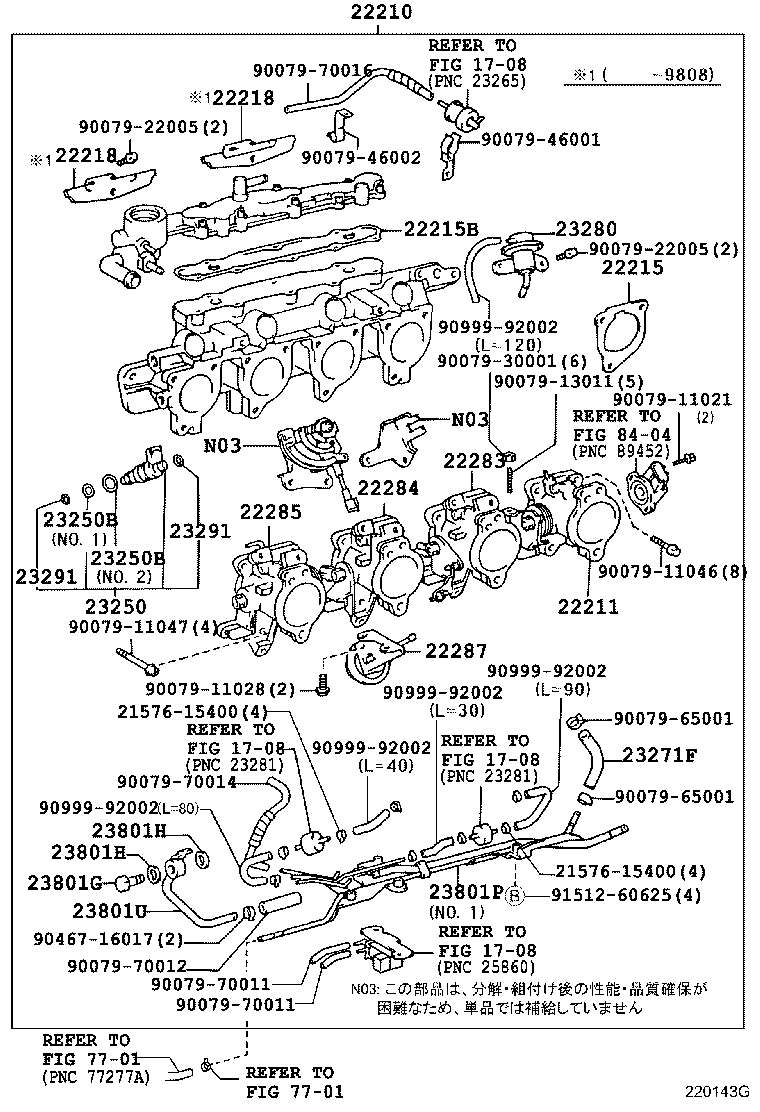

ILLUST NO. 2 OF 2(9505- )4AGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-16760 |
4AGE..AE111 |
1 | ||
| 22210-16761 |
4AGE..AE111 |
1 | ||
| 22210-16762 |
4AGE..AE111 |
1 | ||
| 22210-16763 |
4AGE..AE111 |
1 | ||
| 22210-16761 |
4AGE..AE111 |
1 | ||
| 22211 - BODY, THROTTLE | ||||
| 22211-16760 |
4AGE..AE111 |
1 | ||
| 22211-16760 |
4AGE..AE111 |
1 | ||
| 22215 - GASKET, THROTTLE BODY COVER | ||||
| 22215-16760 |
4AGE..AE111 |
4 | ||
| 22215-16760 |
4AGE..AE111 |
4 | ||
| 22215B - GASKET, THROTTLE BODY COVER, NO.2 | ||||
| 22224-16760 |
4AGE..AE111 |
1 | ||
| 22224-16760 |
4AGE..AE111 |
1 | ||
| 22218 - COVER(FOR THROTTLE BODY) | ||||
| 22218-16571 |
4AGE..AE111 |
2 | ||
| 22218-16571 |
4AGE..AE111 |
2 | ||
| 22218 - COVER(FOR THROTTLE BODY) | ||||
| 22218-16571 |
4AGE..AE111 |
2 | ||
| 22218-16571 |
4AGE..AE111 |
2 | ||
| 22283 - BODY, THROTTLE, NO.2 | ||||
| 22283-16760 |
4AGE..AE111 |
1 | ||
| 22283-16760 |
4AGE..AE111 |
1 | ||
| 22284 - BODY, THROTTLE, NO.3 | ||||
| 22284-16760 |
4AGE..AE111 |
1 | ||
| 22284-16760 |
4AGE..AE111 |
1 | ||
| 22285 - BODY, THROTTLE, NO.4 | ||||
| 22285-16760 |
4AGE..AE111 |
1 | ||
| 22285-16760 |
4AGE..AE111 |
1 | ||
| 22287 - OPENER | ||||
| 22287-16760 |
4AGE..AE111 |
1 | ||
| 22287-16760 |
4AGE..AE111 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-19015 |
4AGE..AE111 |
4 | ||
| 23209-19015 |
4AGE..AE111 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-17007 |
4AGE..AE111 NO.2 |
4 | ||
| 90301-14006 |
4AGE..AE111 NO.1 |
4 | ||
| 90301-17007 |
4AGE..AE111 NO.2 |
4 | ||
| 90301-14006 |
4AGE..AE111 NO.1 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-17007 |
4AGE..AE111 NO.2 |
4 | ||
| 90301-14006 |
4AGE..AE111 NO.1 |
4 | ||
| 90301-17007 |
4AGE..AE111 NO.2 |
4 | ||
| 90301-14006 |
4AGE..AE111 NO.1 |
4 | ||
| 23271F - HOSE, FUEL | ||||
| 95333-06020 |
4AGE..AE111 |
1 | ||
| 95333-06020 |
4AGE..AE111 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-16160 |
4AGE..AE111 |
1 | ||
| 23280-16160 |
4AGE..AE111 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-75010 |
4AGE..AE111 |
8 | ||
| 23291-75010 |
4AGE..AE111 |
8 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-75010 |
4AGE..AE111 |
8 | ||
| 23291-75010 |
4AGE..AE111 |
8 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90079-20002 |
4AGE..AE111 |
1 | ||
| 90079-20002 |
4AGE..AE111 |
1 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-10015 |
4AGE..AE111 |
2 | ||
| 90430-10015 |
4AGE..AE111 |
2 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-10015 |
4AGE..AE111 |
2 | ||
| 90430-10015 |
4AGE..AE111 |
2 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-16070 |
4AGE..AE111 NO.1 |
1 | ||
| 23801-16070 |
4AGE..AE111 |
1 | ||
| 23801-16070 |
4AGE..AE111 NO.1 |
1 | ||
| 90923-01380 |
4AGE..AE111 NO.2 |
1 | ||
| 90923-01380 |
4AGE..AE111 NO.2 |
1 | ||
| 23801U - UNION | ||||
| 90079-74002 |
4AGE..AE111 |
1 | ||
| 90079-74002 |
4AGE..AE111 |
1 | ||
| Common parts | ||||
| 21576-15400 | ||||
| 90079-11021 | ||||
| 90079-11028 | ||||
| 90079-11046 | ||||
| 90079-11047 | ||||
| 90079-13011 | ||||
| 90079-22005 | ||||
| 90079-30001 | ||||
| 90079-46001 | ||||
| 90079-46002 | ||||
| 90079-65001 | ||||
| 90079-70011 | ||||
| 90079-70012 | ||||
| 90079-70014 | ||||
| 90079-70016 | ||||
| 90467-16017 | ||||
| 90999-92002 | ||||
| 91512-60625 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 7701 | ||||
| 8404 | ||||

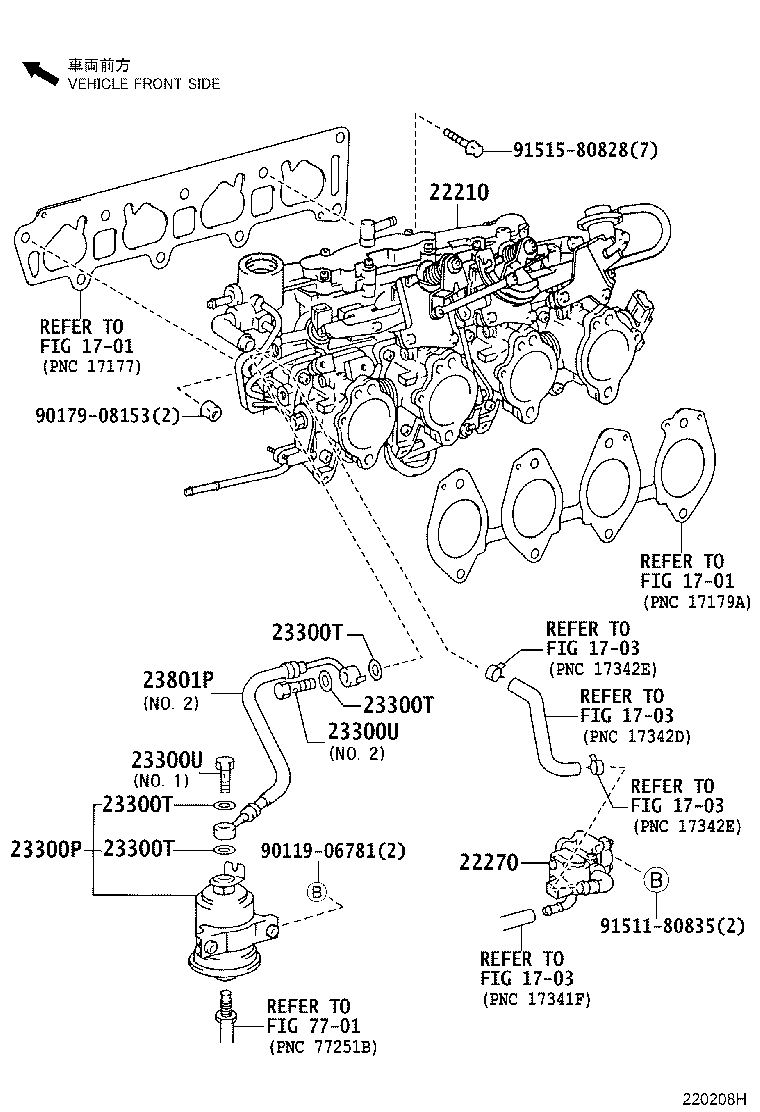

ILLUST NO. 1 OF 2(9505- )4AGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-16760 |
4AGE..AE111 |
1 | ||
| 22210-16761 |
4AGE..AE111 |
1 | ||
| 22210-16762 |
4AGE..AE111 |
1 | ||
| 22210-16763 |
4AGE..AE111 |
1 | ||
| 22210-16761 |
4AGE..AE111 |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-16070 |
4AGE..AE111 |
1 | ||
| 22270-16070 |
4AGE..AE111 |
1 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-19295 |
4A#,5AFE..AE11# |
1 | ||
| 23300-19295 |
4A#,5AFE..AE11# |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
4A#,5AFE..AE11# |
2 | ||
| 90430-12026 |
4A#,5AFE..AE11# |
2 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
4A#,5AFE..AE11# |
2 | ||
| 90430-12026 |
4A#,5AFE..AE11# |
2 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
4A#,5AFE..AE11# |
2 | ||
| 90430-12026 |
4A#,5AFE..AE11# |
2 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
4A#,5AFE..AE11# |
2 | ||
| 90430-12026 |
4A#,5AFE..AE11# |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
4AGE..AE111 NO.1 |
1 | ||
| 96341-11200 |
4AGE..AE111 NO.2 |
1 | ||
| 90401-12097 |
4AGE..AE111 |
2 | ||
| 90401-12097 |
4AGE..AE111 |
2 | ||
| 90401-12097 |
4AGE..AE111 NO.1 |
1 | ||
| 96341-11200 |
4AGE..AE111 NO.2 |
1 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
4AGE..AE111 NO.1 |
1 | ||
| 96341-11200 |
4AGE..AE111 NO.2 |
1 | ||
| 90401-12097 |
4AGE..AE111 |
2 | ||
| 90401-12097 |
4AGE..AE111 |
2 | ||
| 90401-12097 |
4AGE..AE111 NO.1 |
1 | ||
| 96341-11200 |
4AGE..AE111 NO.2 |
1 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-16070 |
4AGE..AE111 NO.1 |
1 | ||
| 23801-16070 |
4AGE..AE111 |
1 | ||
| 23801-16070 |
4AGE..AE111 NO.1 |
1 | ||
| 90923-01380 |
4AGE..AE111 NO.2 |
1 | ||
| 90923-01380 |
4AGE..AE111 NO.2 |
1 | ||
| Common parts | ||||
| 90119-06781 | ||||
| 90179-08153 | ||||
| 91511-80835 | ||||
| 91515-80828 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 1703 | ||||
| 7701 | ||||
(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-16451 |
4A#,5AFE..AE11# |
1 | ||
| 23217-16451 |
4A#,5AFE..AE11# |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23220-74021 |
4AGE..AE111 |
1 | ||
| 23220-74020 |
4A#..AE111 |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23220-74021 |
4AGE..AE111 |
1 | ||
| 23220-74020 |
4A#..AE111 |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
4A#,5AFE..AE11# |
1 | ||
| 23229-16010 |
4A#,5AFE..AE11# |
1 | ||
| 23239 - HOSE | ||||
| 23239-11010 |
4A#,5AFE..AE11# |
1 | ||
| 23239-11010 |
4A#,5AFE..AE11# |
1 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74610 |
4A#,5AFE..AE11# |
1 | ||
| 23249-74610 |
4A#,5AFE..AE11# |
1 | ||
| Common parts | ||||
| 90467-12067 | ||||
| Linked diagrams | ||||
| 7701 | ||||
