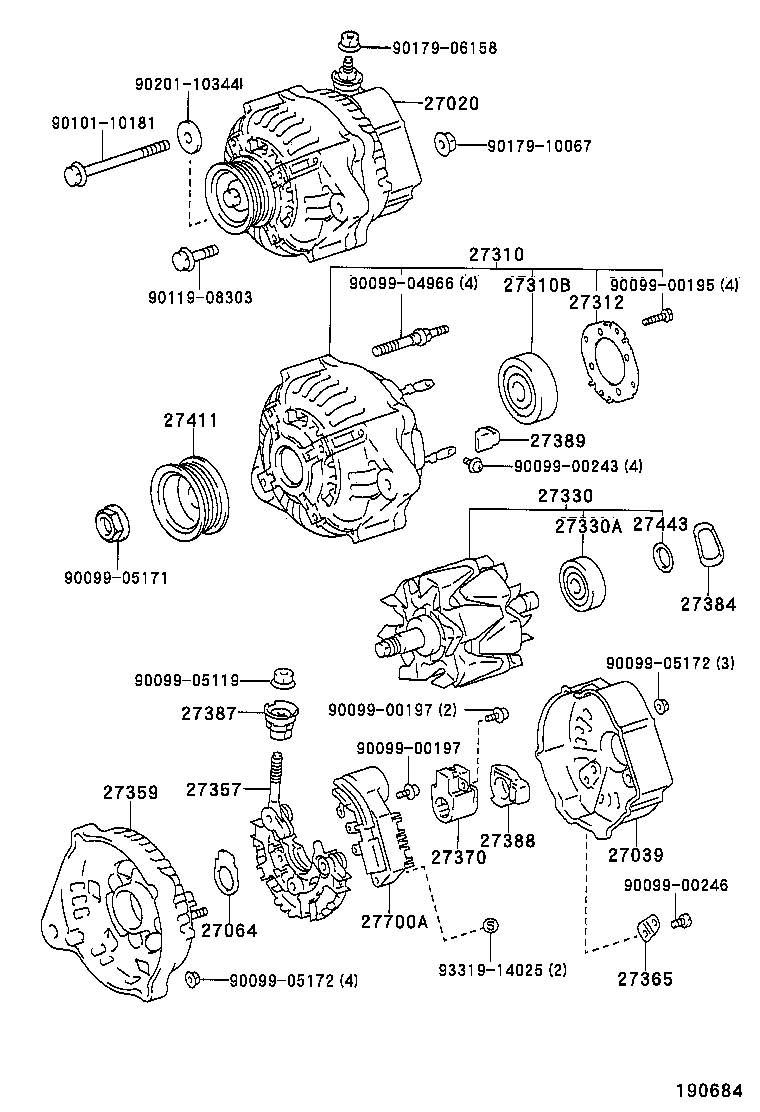

Toyota Levin/trueno AE111 ALTERNATOR

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-16360	4AGE..AE111..4FC 12V 80A	05/1995 - 04/1997	1
27060-16470	4AGE..AE111..4FC 12V 80A	04/1997 - 08/2000	1
27039 - COVER, ALTERNATOR REAR END
27039-55080	4A#,5AFE..AE11#..4FC	05/1995 - 04/1997	1
27039-55080	4A#,5AFE..AE11#..4FC	04/1997 - 08/2000	1
27064 - SEAL, ALTERNATOR PLATE
27064-42010	4A#,5AFE..AE11#..4FC	04/1997 - 08/2000	1
27064-42010	4A#,5AFE..AE11#..4FC	05/1995 - 04/1997	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-16310	4AGE..AE111..4FC	05/1995 - 04/1997	1
27310-16470	4AGE..AE111..4FC	04/1997 - 08/2000	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10192	4A#,5AFE..AE11#..4FC	05/1995 - 04/1997	1
90099-10192	4A#,5AFE..AE11#..4FC	04/1997 - 08/2000	1
27312 - PLATE, RETAINER
27312-42010	4A#,5AFE..AE11#..4FC	05/1995 - 04/1997	1
27312-42010	4A#,5AFE..AE11#..4FC	04/1997 - 08/2000	1
27330 - ROTOR ASSY, ALTERNATOR
27330-46080	4AGE..AE111..4FC	05/1995 - 04/1997	1
27330-46080	4AGE..AE111..4FC	04/1997 - 07/2000	1
27330-16400	4AGE..AE111..4FC	07/2000 - 08/2000	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10194	4AGE..AE111	04/1997 - 08/2000	1
90099-10194	4AGE..AE111	05/1995 - 04/1997	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-55080	4A#,5AFE..AE11#..4FC	05/1995 - 04/1997	1
27357-55080	4A#,5AFE..AE11#..4FC	04/1997 - 08/2000	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-16310	4AGE..AE111..4FC	05/1995 - 04/1997	1
27359-16310	4AGE..AE111..4FC	04/1997 - 08/2000	1
27365 - PLATE, TERMINAL
27365-55080	4A#,5AFE..AE11#..4FC	05/1995 - 04/1997	1
27365-55080	4A#,5AFE..AE11#..4FC	04/1997 - 08/2000	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060	4A#,5AFE..AE11#..4FC	05/1995 - 04/1997	1
27370-75060	4A#,5AFE..AE11#..4FC	04/1997 - 08/2000	1
27384 - WASHER
27384-50030	4A#,5AFE..AE11#..4FC	04/1997 - 08/2000	1
27384-50030	4A#,5AFE..AE11#..4FC	05/1995 - 04/1997	1
27387 - INSULATOR, TERMINAL
27387-42020	4A#,5AFE..AE11#..4FC	05/1995 - 04/1997	1
27387-42020	4A#,5AFE..AE11#..4FC	04/1997 - 08/1997	1
27387-42021	4A#,5AFE..AE11#..4FC	08/1997 - 08/2000	1
27388 - COVER, ALTERNATOR BRUSH
27388-42010	4A#,5AFE..AE11#..4FC	04/1997 - 08/2000	1
27388-42010	4A#,5AFE..AE11#..4FC	05/1995 - 04/1997	1
27389 - INSULATOR, TERMINAL
27389-42010	4A#,5AFE..AE11#..4FC	05/1995 - 04/1997	4
27389-42010	4A#,5AFE..AE11#..4FC	04/1997 - 08/2000	4
27411 - PULLEY, ALTERNATOR
27411-74050	4AGE..AE111..4FC	05/1995 - 04/1997	1
27411-74050	4AGE..AE111..4FC	04/1997 - 08/2000	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	4A#,5AFE..AE11#	04/1997 - 08/2000	1
27443-63020	4A#,5AFE..AE11#	05/1995 - 04/1997	1
27700A - REGULATOR ASSY, GENERATOR
27700-74040	4A#,5AFE..AE11#	05/1995 - 04/1997	1
27700-74040	4A#,5AFE..AE11#	04/1997 - 08/2000	1
Common parts
90099-00195
90099-00197
90099-00243
90099-00246
90099-04966
90099-05119
90099-05171
90099-05172
90101-10181
90119-08303
90179-06158
90179-10067
90201-10344
93319-14025

AE111-BCPZF (1995)

(9505- )4AGE..4FC
