AE111-BCPZF (1995)
Toyota Levin/Trueno
Production
May 1995
-
Aug 2000
Engine
4AGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )4AGE

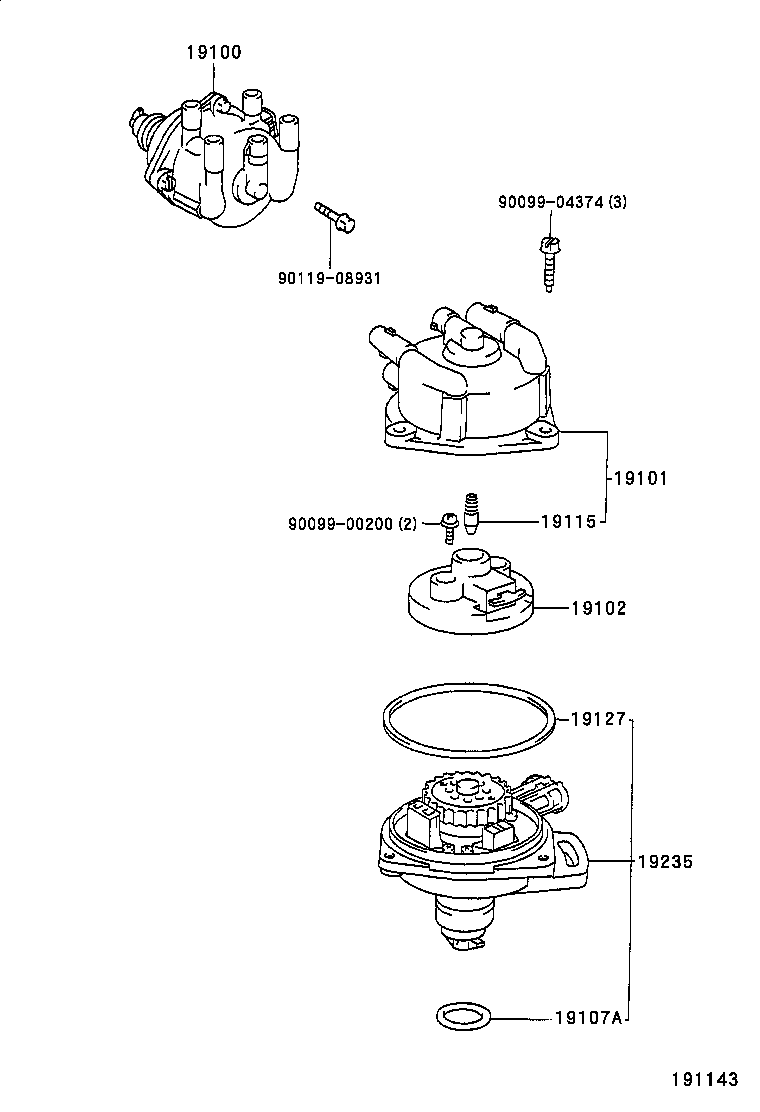

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19100-16270 |
4AGE..AE111 |
1 | ||
| 19100-16270 |
4AGE..AE111 |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-16010 |
4AGE..AE111 |
1 | ||
| 19101-16010 |
4AGE..AE111 |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-74040 |
4AGE..AE111 |
1 | ||
| 19102-74040 |
4AGE..AE111 |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14091 |
4AGE..AE111 |
1 | ||
| 90099-14127 |
4A#,5AFE..AE11# |
1 | ||
| 90099-14127 |
4A#,5AFE..AE11# |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-88280 |
4AGE..AE111 |
1 | ||
| 19115-88280 |
4AGE..AE111 |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-74040 |
4AGE..AE111 |
1 | ||
| 19127-74040 |
4AGE..AE111 |
1 | ||
| 19235 - HOUSING, DISTRIBUTOR | ||||
| 19235-16060 |
4AGE..AE111 |
1 | ||
| 19235-16060 |
4AGE..AE111 |
1 | ||
| Common parts | ||||
| 90099-00200 | ||||
| 90099-04374 | ||||
| 90119-08931 | ||||
