AE111-BCPZF (1995)
Toyota Levin/Trueno
Production
May 1995
-
Aug 2000
Engine
4AGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )

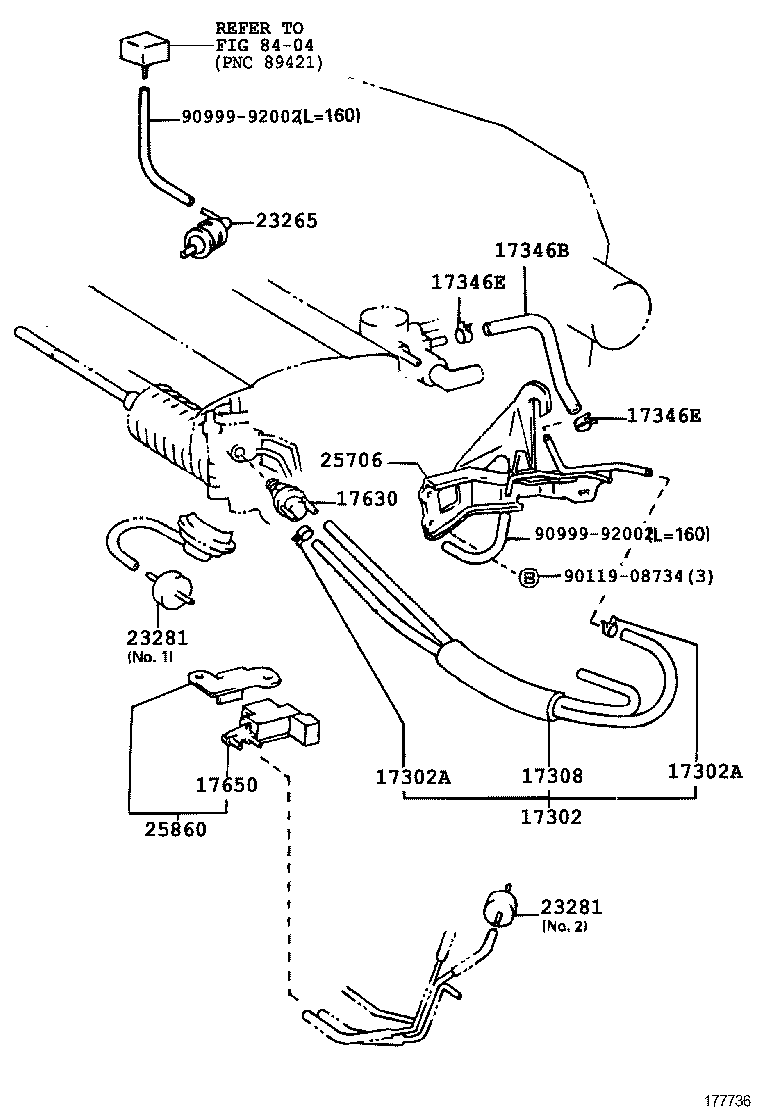

Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|
(9505- )4AGE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17302 - HOSE SUB-ASSY, AIR | ||||
| 17302-16040 |
4AGE..AE111 |
1 | ||
| 17302-16040 |
4AGE..AE111 |
1 | ||
| 17302A - CLIP, HOSE | ||||
| 96132-51000 |
4A#,5AFE..AE11# |
2 | ||
| 96132-51000 |
4A#,5AFE..AE11# |
2 | ||
| 17302A - CLIP, HOSE | ||||
| 96132-51000 |
4A#,5AFE..AE11# |
2 | ||
| 96132-51000 |
4A#,5AFE..AE11# |
2 | ||
| 17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP) | ||||
| 17308-16040 |
4AGE..AE111 |
1 | ||
| 17308-16040 |
4AGE..AE111 |
1 | ||
| 17346B - HOSE, AIR, NO.6 | ||||
| 17346-16020 |
4AGE..AE111 |
1 | ||
| 17346-16020 |
4AGE..AE111 |
1 | ||
| 17346E - CLIP(FOR AIR HOSE NO.6) | ||||
| 96132-41000 |
4AGE..AE111 |
2 | ||
| 96132-41000 |
4AGE..AE111 |
2 | ||
| 90467-10099 |
4AGE..AE111 |
2 | ||
| 17346E - CLIP(FOR AIR HOSE NO.6) | ||||
| 96132-41000 |
4AGE..AE111 |
2 | ||
| 96132-41000 |
4AGE..AE111 |
2 | ||
| 90467-10099 |
4AGE..AE111 |
2 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-16040 |
4AGE..AE111 |
1 | ||
| 17630-16040 |
4AGE..AE111 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12110 |
4AGE..AE111 |
1 | ||
| 90910-12144 |
4AGE..AE111 |
1 | ||
| 90910-12218 |
4AGE..AE111 |
1 | ||
| 90910-12110 |
4AGE..AE111 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11009 |
4AGE..AE111 |
1 | ||
| 90917-11009 |
4AGE..AE111 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01091 |
4AGE..AE111 NO.1 |
1 | ||
| 90925-01091 |
4AGE..AE111 NO.1 |
1 | ||
| 90925-01095 |
4AGE..AE111 NO.2 |
1 | ||
| 90925-01095 |
4AGE..AE111 NO.2 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01091 |
4AGE..AE111 NO.1 |
1 | ||
| 90925-01091 |
4AGE..AE111 NO.1 |
1 | ||
| 90925-01095 |
4AGE..AE111 NO.2 |
1 | ||
| 90925-01095 |
4AGE..AE111 NO.2 |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-16420 |
4AGE..AE111 |
1 | ||
| 25706-16420 |
4AGE..AE111 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-16140 |
4AGE..AE111 |
1 | ||
| 25860-16142 |
4AGE..AE111 |
1 | ||
| 25860-16141 |
4AGE..AE111 |
1 | ||
| 25860-16141 |
4AGE..AE111 |
1 | ||
| Common parts | ||||
| 90119-08734 | ||||
| 90999-92002 | ||||
| Linked diagrams | ||||
| 8404 | ||||
