AE111-BCPZF (1995)

Toyota Levin/Trueno

Production May 1995 - Aug 2000
Engine 4AGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )4AGE

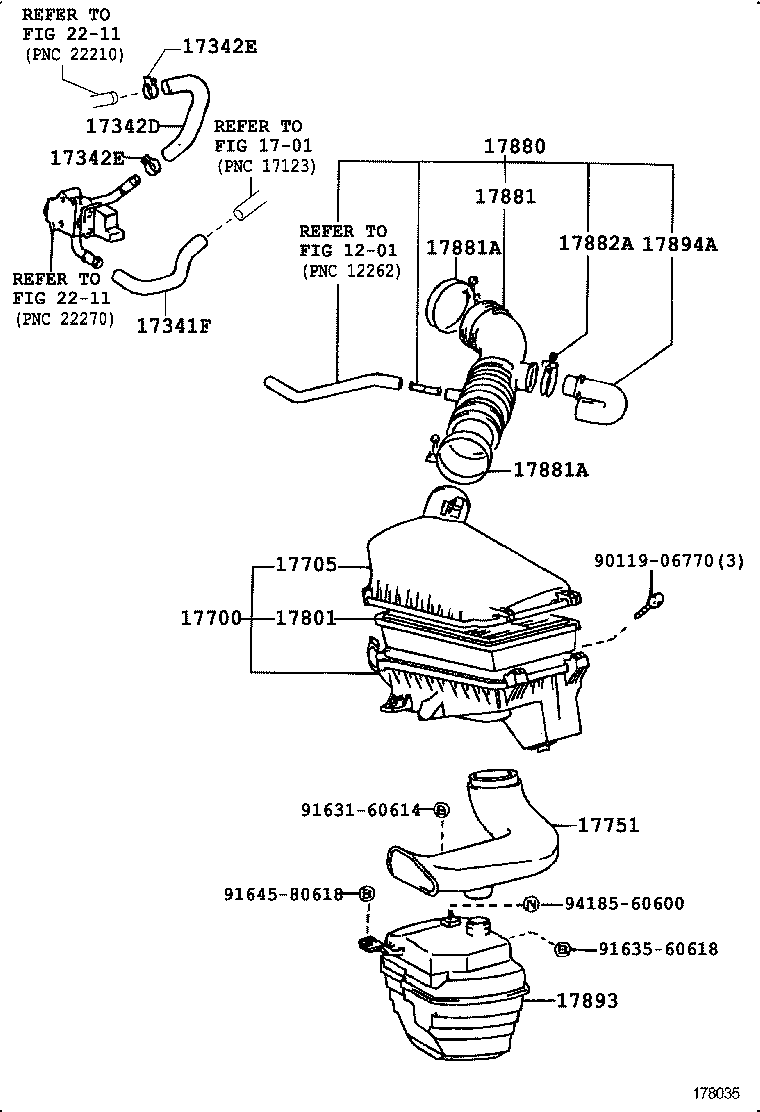

Click highlighted areas on diagram

diagram 1201 1701 17341F 17342D 17342E 17342E 17700 17705 17751 17801 17880 17881 17881A 17881A 17882A 17893 17894A 2211 2211 9011906770 9163160614 9163560618 9164580618 9418560600
Part # Description Qty Price
17341F - HOSE, AIR, NO.1
17341-16200

4AGE..AE111

 1
17341-16200

4AGE..AE111

 1
17342D - HOSE, AIR, NO.2
17342-16110

4AGE..AE111

 1
17342-16110

4AGE..AE111

 1
17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2)
96134-42300

4AGE..AE111

 2
96134-42300

4AGE..AE111

 2
17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2)
96134-42300

4AGE..AE111

 2
96134-42300

4AGE..AE111

 2
17700 - CLEANER ASSY, AIR
17700-16880

4AGE..AE111

 1
17700-1A020

4AGE..AE111

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-16490

4AGE..AE111

 1
17705-16490

4AGE..AE111

 1
17751 - INLET, AIR CLEANER, NO.1
17751-16100

4AGE..AE111

 1
17751-16120

4AGE..AE111

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-15070

4A#,5AFE..AE11#

 1
17801-15070

4A#,5AFE..AE11#

 1
17880 - HOSE ASSY, AIR CLEANER
17880-16251

4AGE..AE111

 1
17880-16251

4AGE..AE111

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-16371

4AGE..AE111

 1
17881-16371

4AGE..AE111

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10900

4AGE..AE111

 2
96111-10900

4AGE..AE111

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10900

4AGE..AE111

 2
96111-10900

4AGE..AE111

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10490

4AGE..AE111

 1
96111-10490

4AGE..AE111

 1
17893 - RESONATOR, INTAKE AIR
17893-15050

4A#,5AFE..AE11#

 1
17893-15050

4A#,5AFE..AE11#

 1
17894A - RESONATOR, INTAKE AIR, NO.2
17894-11050

4AGE..AE111

 1
17894-11050

4AGE..AE111

 1
Common parts
90119-06770
91631-60614
91635-60618
91645-80618
94185-60600
Linked diagrams
1201
1701
2211
