AE111-BCPZF (1995)
Toyota Levin/Trueno

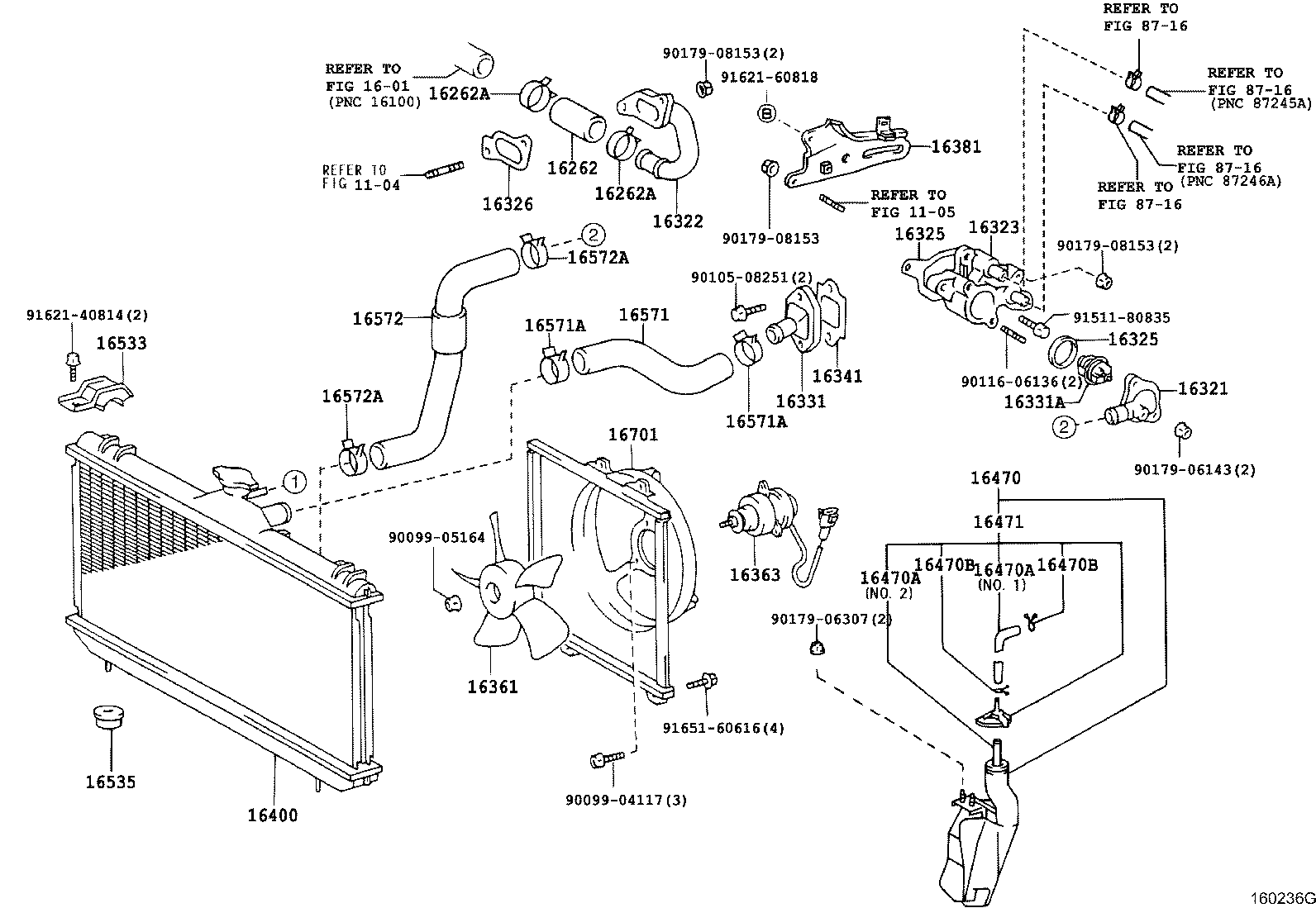

ILLUST NO. 1 OF 2(9505- )4AGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16262 - HOSE, WATER INLET | ||||
| 90445-42002 |
4AGE..AE111 |
1 | ||
| 90445-42002 |
4AGE..AE111 |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-37002 |
4A#,5AFE..AE11# |
2 | ||
| 90467-37002 |
4A#,5AFE..AE11# |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-37002 |
4A#,5AFE..AE11# |
2 | ||
| 90467-37002 |
4A#,5AFE..AE11# |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-16050 |
4AGE..AE111 |
1 | ||
| 16321-16050 |
4AGE..AE111 |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-16050 |
4AGE..AE111 |
1 | ||
| 16322-16050 |
4AGE..AE111 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-16150 |
4AGE..AE111 |
1 | ||
| 16323-16150 |
4AGE..AE111 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-16020 |
4AGE..AE111 CYLINDER HEAD SIDE |
1 | ||
| 16325-16020 |
4AGE..AE111 CYLINDER HEAD SIDE |
1 | ||
| 16325-62010 |
4AGE..AE111 THERMOSTAT SIDE |
1 | ||
| 16325-62010 |
4AGE..AE111 THERMOSTAT SIDE |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-16020 |
4AGE..AE111 CYLINDER HEAD SIDE |
1 | ||
| 16325-16020 |
4AGE..AE111 CYLINDER HEAD SIDE |
1 | ||
| 16325-62010 |
4AGE..AE111 THERMOSTAT SIDE |
1 | ||
| 16325-62010 |
4AGE..AE111 THERMOSTAT SIDE |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-16010 |
4AGE..AE111 |
1 | ||
| 16326-16010 |
4AGE..AE111 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-16100 |
4AGE..AE111 |
1 | ||
| 16331-16100 |
4AGE..AE111 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03075 |
4AGE..AE111 *WAX 82−95 |
1 | ||
| 90916-03075 |
4AGE..AE111 *WAX 82−95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-16040 |
4AGE..AE111 |
1 | ||
| 16341-16040 |
4AGE..AE111 |
1 | ||
| 16361 - FAN | ||||
| 16361-11020 |
4AGE..AE111..4FC |
1 | ||
| 16361-11020 |
4AFE..AE111;4AGE,5AFE..AE11#..4FC |
1 | ||
| 16361-11020 |
4AGE..AE111..4FC |
1 | ||
| 16361-11020 |
4AGE..AE111..4FC |
1 | ||
| 16361-11020 |
4AFE..AE111;4AGE,5AFE..AE11#..4FC |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-74020 |
4AGE..AE111..4FC |
1 | ||
| 16363-74020 |
4AGE..AE111..4FC |
1 | ||
| 16363-74020 |
4AFE..AE111;4AGE,5AFE..AE11#..4FC |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-16080 |
4AGE..AE111 |
1 | ||
| 16381-16080 |
4AGE..AE111 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-15700 |
4AGE..AE111..4FC |
1 | ||
| 16400-16670 |
4AGE..AE111..4FC |
1 | ||
| 16400-15700 |
4AGE,5AFE..AE11#..4FC |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-15090 |
4A#,5AFE..AE11# |
1 | ||
| 16470-15100 |
4A#,5AFE..AE11# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16478-15090 |
4A#,5AFE..AE11# NO.1 |
1 | ||
| 16478-15090 |
4A#,5AFE..AE11# NO.1 |
1 | ||
| 90445-12078 |
4A#,5AFE..AE11# NO.2 |
1 | ||
| 90445-12078 |
4A#,5AFE..AE11# NO.2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16478-15090 |
4A#,5AFE..AE11# NO.1 |
1 | ||
| 16478-15090 |
4A#,5AFE..AE11# NO.1 |
1 | ||
| 90445-12078 |
4A#,5AFE..AE11# NO.2 |
1 | ||
| 90445-12078 |
4A#,5AFE..AE11# NO.2 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4A#,5AFE..AE11# |
2 | ||
| 90467-11085 |
4A#,5AFE..AE11# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4A#,5AFE..AE11# |
2 | ||
| 90467-11085 |
4A#,5AFE..AE11# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-15100 |
4A#,5AFE..AE11# |
1 | ||
| 16405-15100 |
4A#,5AFE..AE11# |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-15120 |
4A#,5AFE..AE11# |
2 | ||
| 16533-15120 |
4A#,5AFE..AE11# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90916-04002 |
4A#..AE111 東海ｺﾞﾑ |
2 | ||
| 90916-04002 |
4AGE..AE111..4FC 東海ｺﾞﾑ |
2 | ||
| 90916-04003 |
4AGE..AE111..4FC TOYOTA GOUSEI |
2 | ||
| 90916-04003 |
4AGE..AE111..4FC TOYOTA GOUSEI |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-16250 |
4AGE..AE111 |
1 | ||
| 16571-16250 |
4AGE..AE111 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34003 |
4A#,5AFE..AE11# |
2 | ||
| 90467-34003 |
4A#,5AFE..AE11# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34003 |
4A#,5AFE..AE11# |
2 | ||
| 90467-34003 |
4A#,5AFE..AE11# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-16120 |
4AGE..AE111 |
1 | ||
| 16572-16120 |
4AGE..AE111 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
4A#,5AFE..AE11# |
2 | ||
| 90467-34003 |
4A#,5AFE..AE11# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
4A#,5AFE..AE11# |
2 | ||
| 90467-34003 |
4A#,5AFE..AE11# |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-16251 |
4AGE..AE111..4FC |
1 | ||
| 16711-16251 |
4AGE..AE111..4FC |
1 | ||
| Common parts | ||||
| 90099-04117 | ||||
| 90099-05164 | ||||
| 90105-08251 | ||||
| 90116-06136 | ||||
| 90179-06143 | ||||
| 90179-06307 | ||||
| 90179-08153 | ||||
| 91511-80835 | ||||
| 91621-40814 | ||||
| 91621-60818 | ||||
| 91651-60616 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1105 | ||||
| 1601 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-15700 |
4AGE..AE111..4FC |
1 | ||
| 16400-16670 |
4AGE..AE111..4FC |
1 | ||
| 16400-15700 |
4AGE,5AFE..AE11#..4FC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
4A#,5AFE..AE11# |
1 | ||
| 23322-54010 |
4A#,5AFE..AE11#..4FC,5F |
1 | ||
| 23322-54010 |
4A#,5AFE..AE11# |
1 | ||
| 23322-54010 |
4A#,5AFE..AE11# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
4A#,5AFE..AE11# |
1 | ||
| 96711-19007 |
4A#,5AFE..AE11#..4FC,5F |
1 | ||
| 16492-21050 |
4A#,5AFE..AE11# |
1 | ||
| 16492-21050 |
4A#,5AFE..AE11#..4FC,5F |
1 | ||
| 96711-19007 |
4A#,5AFE..AE11# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
4A#,5AFE..AE11# |
1 | ||
| 16401-72090 |
4A#,5AFE..AE11# |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-16670 |
4AGE..AE111 |
1 | ||
| 16403-15700 |
4AGE,5AFE..AE11# |
1 | ||
| 16403-16670 |
4AGE..AE111..4FC |
1 | ||
| 16403-15700 |
4AGE..AE111;5AFE..AE110..5F |
1 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-74520 |
4A#,5AFE..AE11#..4FC |
2 | ||
| 16406-74520 |
4A#,5AFE..AE11#..4FC |
2 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-11380 |
4AGE..AE111..4FC;4AFE,5AFE..AE11#..5F |
1 | ||
| 16442-11380 |
4A#,5AFE..AE11# |
1 | ||
| 16442-11380 |
4AGE..AE111;4AFE,5AFE..AE11#..5F |
1 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-11380 |
4A#,5AFE..AE11# |
1 | ||
| 16451-11380 |
4A#,5AFE..AE11#..4FC,5F |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-11420 |
4A#,5AFE..AE11#..4FC,5F |
1 | ||
| 16452-11420 |
4A#,5AFE..AE11# |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-11420 |
4AGE..AE111..4FC;4AFE,5AFE..AE11#..5F |
1 | ||
| 16462-11420 |
4A#,5AFE..AE11# |
1 | ||
| 16462-11420 |
4AGE..AE111;4AFE,5AFE..AE11#..5F |
1 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-11310 |
4A#,5AFE..AE11#..4FC |
1 | ||
| 16491-11310 |
4A#,5AFE..AE11#..4FC |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-62060 |
4A#,5AFE..AE11#..4FC |
2 | ||
| 16492-62060 |
4A#,5AFE..AE11#..4FC |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-74520 |
4A#,5AFE..AE11#..4FC |
2 | ||
| 16493-74520 |
4A#,5AFE..AE11#..4FC |
2 | ||
