AE111-BCPZF (1995)
Toyota Levin/Trueno
Production
May 1995
-
Aug 2000
Engine
4AGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )4AGE

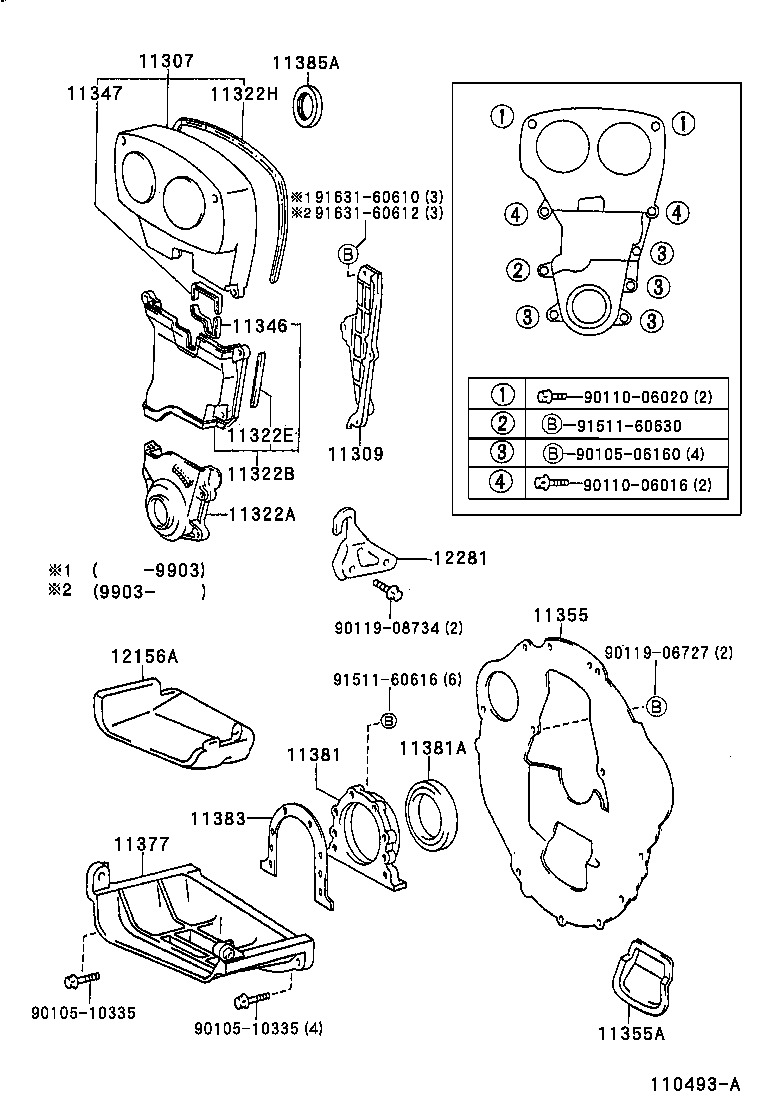

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11307 - COVER, SUB-ASSY, TIMING BELT, NO.3 | ||||
| 11304-16090 |
4AGE..AE111 |
1 | ||
| 11304-16090 |
4AGE..AE111 |
1 | ||
| 11309 - COVER SUB-ASSY, TIMING BELT, NO.4 | ||||
| 11325-16030 |
4AGE..AE111 |
1 | ||
| 11325-16030 |
4AGE..AE111 |
1 | ||
| 11322A - COVER, TIMING BELT, NO.1 | ||||
| 11302-16020 |
4AGE..AE111 |
1 | ||
| 11302-16020 |
4AGE..AE111 |
1 | ||
| 11322B - COVER, TIMING BELT, NO.2 | ||||
| 11303-16080 |
4AGE..AE111 |
1 | ||
| 11303-16080 |
4AGE..AE111 |
1 | ||
| 11322E - GASKET, TIMING BELT COVER, NO.2 | ||||
| 11329-16020 |
4AGE..AE111 |
1 | ||
| 11329-16020 |
4AGE..AE111 |
1 | ||
| 11322H - GASKET, TIMING BELT COVER, NO.3 | ||||
| 11319-16020 |
4AGE..AE111 |
1 | ||
| 11319-16020 |
4AGE..AE111 |
1 | ||
| 11346 - GASKET, TIMING BELT COVER, NO.4 | ||||
| 11346-16040 |
4AGE..AE111 |
1 | ||
| 11346-16040 |
4AGE..AE111 |
1 | ||
| 11347 - GASKET, TIMING BELT COVER, NO.5 | ||||
| 11347-16030 |
4AGE..AE111 |
1 | ||
| 11347-16030 |
4AGE..AE111 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-15080 |
4A#,5AFE..AE11#..4FC |
1 | ||
| 11355-15080 |
4A#,5AFE..AE11#..4FC |
1 | ||
| 11355A - PLUG, HOLE(FOR REAR END PLATE) | ||||
| 90950-01264 |
4A#,5AFE..AE11#..4FC |
1 | ||
| 90950-01264 |
4A#,5AFE..AE11#..4FC |
1 | ||
| 11377 - STIFFENER, REAR END PLATE | ||||
| 11377-15012 |
4A#,5AFE..AE11# |
1 | ||
| 11377-15012 |
4A#,5AFE..AE11# |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-15010 |
4A#,5AFE..AE11# |
1 | ||
| 11381-15010 |
4A#,5AFE..AE11# |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-70007 |
4A#,5AFE..AE11# |
1 | ||
| 90311-70007 |
4A#,5AFE..AE11# |
1 | ||
| 11383 - GASKET, ENGINE REAR OIL SEAL RETAINER | ||||
| 11383-16010 |
4A#,5AFE..AE11# |
1 | ||
| 11383-16010 |
4A#,5AFE..AE11# |
1 | ||
| 11385A - SEAL, OIL(FOR CAMSHAFT) | ||||
| 90311-40016 |
4AGE..AE111 INTAKE |
1 | ||
| 90311-35013 |
4AGE..AE111 EXHAUST |
1 | ||
| 90311-35013 |
4AGE..AE111 EXHAUST |
1 | ||
| 90311-40015 |
4AGE..AE111 INTAKE |
1 | ||
| 90311-40016 |
4AGE..AE111 INTAKE |
1 | ||
| 90311-35022 |
4AGE..AE111 EXHAUST |
1 | ||
| 12156A - INSULATOR, OIL PAN | ||||
| 12156-16010 |
4AGE..AE111 |
1 | ||
| 12281 - HANGER, ENGINE, NO.1 | ||||
| 12281-16041 |
4AGE..AE111 |
1 | ||
| 12281-16041 |
4AGE..AE111 |
1 | ||
| Common parts | ||||
| 90105-06160 | ||||
| 90105-10335 | ||||
| 90110-06016 | ||||
| 90110-06020 | ||||
| 90119-06727 | ||||
| 90119-08734 | ||||
| 91511-60616 | ||||
| 91511-60630 | ||||
| 91631-60610 | ||||
| 91631-60612 | ||||
