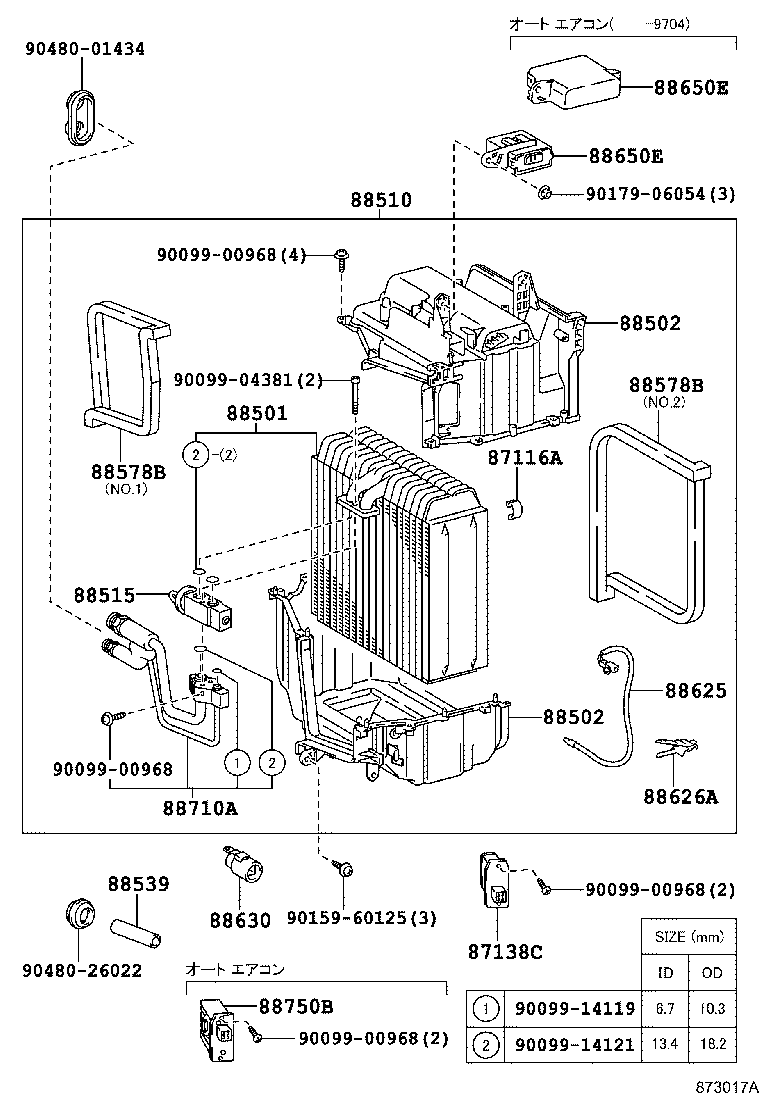

Toyota Levin/trueno AE111 HEATING & AIR CONDITIONING - COOLER UNIT

Part #	Description	Period	Qty
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010	AE111	05/1995 - 04/1997	3
87116-14010	AE111	04/1997 - 08/2000	3
87138C - RESISTOR, BLOWER
87138-12140	AE11#	04/1997 - 08/2000	1
87138-12140	AE11#	05/1995 - 04/1997	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12391	AE111	05/1995 - 04/1997	1
88501-12391	AE111	04/1997 - 08/2000	1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-12180	AE111 ｱﾘ(ｵ-ﾄｴｱｺﾝ),UPPER	05/1995 - 04/1997	1
88502-12180	AE111 ｱﾘ(ｵ-ﾄｴｱｺﾝ),UPPER	04/1997 - 08/2000	1
88502-12190	AE111 UPPER	05/1995 - 04/1997	1
88502-12190	AE111 UPPER	04/1997 - 08/2000	1
88502-12200	AE111 LOWER	05/1995 - 04/1997	1
88502-12200	AE111 LOWER	04/1997 - 08/2000	1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-12180	AE111 ｱﾘ(ｵ-ﾄｴｱｺﾝ),UPPER	05/1995 - 04/1997	1
88502-12180	AE111 ｱﾘ(ｵ-ﾄｴｱｺﾝ),UPPER	04/1997 - 08/2000	1
88502-12190	AE111 UPPER	05/1995 - 04/1997	1
88502-12190	AE111 UPPER	04/1997 - 08/2000	1
88502-12200	AE111 LOWER	05/1995 - 04/1997	1
88502-12200	AE111 LOWER	04/1997 - 08/2000	1
88510 - UNIT ASSY, COOLER
88510-1A300	AE111	04/1997 - 08/2000	1
88510-1A480	AE111 ｱﾘ(ｵ-ﾄｴｱｺﾝ)	05/1995 - 04/1997	1
88510-1A480	AE111 ｱﾘ(ｵ-ﾄｴｱｺﾝ)	04/1997 - 08/2000	1
88510-1A300	AE111	05/1995 - 04/1997	1
88515 - VALVE, COOLER EXPANSION
88515-20100	AE11#	04/1997 - 08/2000	1
88515-20100	AE11#	05/1995 - 04/1997	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12160	AE111	04/1997 - 08/2000	1
88539-12120	AE11#	05/1995 - 04/1997	1
88539-12160	AE111 ｱﾘ(ｵ-ﾄｴｱｺﾝ)	05/1995 - 04/1997	1
88578B - PACKING, COOLING UNIT, NO.1
88578-12470	AE111 NO.1	04/1997 - 08/2000	1
88578-20470	AE111 NO.2	04/1997 - 08/2000	1
88578-12470	AE111 NO.1	05/1995 - 04/1997	1
88578-20470	AE111 NO.2	05/1995 - 04/1997	1
88578B - PACKING, COOLING UNIT, NO.1
88578-12470	AE111 NO.1	04/1997 - 08/2000	1
88578-20470	AE111 NO.2	04/1997 - 08/2000	1
88578-12470	AE111 NO.1	05/1995 - 04/1997	1
88578-20470	AE111 NO.2	05/1995 - 04/1997	1
88625 - THERMISTOR, COOLER, NO.1
88625-12280	AE11#	05/1995 - 04/1997	1
88625-12280	AE11#	04/1997 - 08/2000	1
88626A - HOLDER, THERMISTOR
88626-28010	AE11#	04/1997 - 08/2000	1
88626-28010	AE11#	05/1995 - 04/1997	1
88630 - RELAY ASSY, COOLER
88630-12140	AE111	05/1995 - 04/1997	1
88630-13010	AE111	04/1997 - 08/2000	1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-1E050	AE111..BZG,BZR,BZV	04/1997 - 08/2000	1
88650-1E100	AE111..(BZG,BZV)..4FC ｱﾘ(ｵ-ﾄｴｱｺﾝ)	04/1997 - 08/2000	1
88650-1E100	AE111..BZG,BZV ｱﾘ(ｵ-ﾄｴｱｺﾝ)	05/1995 - 04/1997	1
88650-1E050	AE111..BZG,BZV	05/1995 - 04/1997	1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-1E050	AE111..BZG,BZR,BZV	04/1997 - 08/2000	1
88650-1E100	AE111..(BZG,BZV)..4FC ｱﾘ(ｵ-ﾄｴｱｺﾝ)	04/1997 - 08/2000	1
88650-1E100	AE111..BZG,BZV ｱﾘ(ｵ-ﾄｴｱｺﾝ)	05/1995 - 04/1997	1
88650-1E050	AE111..BZG,BZV	05/1995 - 04/1997	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-12330	AE11#	04/1997 - 08/2000	1
88710-12330	AE11#	05/1995 - 04/1997	1
88750B - TRANSISTOR ASSY, BLOWER RESISTOR
88750-12010	AE111	04/1997 - 08/2000	1
88750-12010	AE111	05/1995 - 04/1997	1
Common parts
90099-00968
90099-04381
90099-14119
90099-14121
90159-60125
90179-06054
90480-01434
90480-26022

AE111-BCPVF (1995)

(9505- )AE111
