Toyota Levin/trueno AE111 WIRING & CLAMP

AE111-BCPGK (1995)

Toyota Levin/Trueno

Production May 1995 - Aug 2000

Engine 4AFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 7 OF 8(9505- )

Click highlighted areas on diagram

ﾌﾕ-ｼﾞﾌﾞﾙﾘﾝｸﾘﾍﾟｱ

Part #	Description	Period	Qty
82991 - WIRE, FUSIBLE LINK REPAIR
82991-12070	AE11#	05/1995 - 04/1997	1
82991-12070	AE11#	04/1997 - 08/2000	1

Part #

Description

Qty

Price

82991 - WIRE, FUSIBLE LINK REPAIR

82991-12070

AE11#

82991-12070

AE11#

ILLUST NO. 5 OF 8(9505- )

Click highlighted areas on diagram

ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ

Part #	Description	Period	Qty	Price
Common parts
82711-14350
82711-16790
82711-1A680
82711-1A770
82711-1E300
82711-24420
82711-3H630
82715-12020
82715-12150
82715-12160
82715-12180
82715-12261
82715-12350
90119-06539
90159-60080
91611-60812
91611-60816
91621-40608

ILLUST NO. 3 OF 8(9505- )

Click highlighted areas on diagram

ｶｳﾙ,ｲﾝﾊﾟﾈ

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-1L200	AE11#	05/1995 - 05/1996	1
82131-1L210	AE111..BZG,XZ ｱﾘ(66),ｱﾘ(ﾑ-ﾝﾙ-ﾌ),ｱﾘ(RW),ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞｻｳﾝﾄﾞｼｽﾃﾑ) OR ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	05/1995 - 05/1996	1
82131-1L230	AE111..BZG,XZ ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞｻｳﾝﾄﾞｼｽﾃﾑ & ｵ-ﾄｴｱｺﾝ) OR ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ & ｵ-ﾄｴｱｺﾝ)	05/1995 - 05/1996	1
82131-1L201	AE11#	05/1996 - 10/1996	1
82131-1L220	AE111 ｱﾘ(ｵ-ﾄｴｱｺﾝ)	05/1995 - 05/1996	1
82131-1L240	AE11#	10/1996 - 04/1997	1
82131-1L480	AE111 ｱﾘ(ｵ-ﾄｴｱｺﾝ)	10/1996 - 04/1997	1
82131-1L231	AE111..BZG,XZ ｱﾘ(ﾑ-ﾝﾙ-ﾌ & ｵ-ﾄｴｱｺﾝ),ｱﾘ(*RW & ｵ-ﾄｴｱｺﾝ) OR ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞｻｳﾝﾄﾞｼｽﾃﾑ & ｵ-ﾄｴｱｺﾝ)	05/1996 - 10/1996	1
82131-1L250	AE111..BZG,XZ ｱﾘ(ﾑ-ﾝﾙ-ﾌ),ｱﾘ(*RW),ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞｻｳﾝﾄﾞｼｽﾃﾑ) OR ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	10/1996 - 04/1997	1
82131-1L211	AE111..BZG,XZ ｱﾘ(ﾑ-ﾝﾙ-ﾌ),ｱﾘ(*RW),ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞｻｳﾝﾄﾞｼｽﾃﾑ) OR ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	05/1996 - 10/1996	1
82131-1L221	AE111 ｱﾘ(ｵ-ﾄｴｱｺﾝ)	05/1996 - 10/1996	1
82135-12060	AE11# ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞｻｳﾝﾄﾞｼｽﾃﾑ OR ﾑ-ﾝﾙ-ﾌ OR ﾘﾔﾜｲﾊﾟ OR ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	04/1998 - 08/2000	1
82131-1L850	AE111 ｱﾘ(ｵ-ﾄｴｱｺﾝ & ｻﾝﾙ-ﾌ)	04/1997 - 04/1998	1
82131-1L840	AE111 ｱﾘ(ｵ-ﾄｴｱｺﾝ)	04/1997 - 04/1998	1
82131-1L830	AE11# ｱﾘ(ｻﾝﾙ-ﾌ)	04/1997 - 04/1998	1
82131-1L820	AE11#	04/1997 - 04/1998	1
82135-12050	AE11#	04/1998 - 08/2000	1
82131-1L490	AE111..BZG,XZ ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ & ｵ-ﾄｴｱｺﾝ)	10/1996 - 04/1997	1
82135-12080	AE111 ｱﾘ(ｵ-ﾄｴｱｺﾝ & ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	04/1998 - 08/2000	1
82135-12070	AE111 ｱﾘ(ｵ-ﾄｴｱｺﾝ)	04/1998 - 08/2000	1
82141 - WIRE, INSTRUMENT PANEL
82141-1K030	AE111..4FC	05/1995 - 05/1996	1
82141-1K050	AE111..(BZG,XZ)..4FC ｱﾘ(*66) OR ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞｻｳﾝﾄﾞｼｽﾃﾑ)	05/1995 - 05/1996	1
82141-1K090	AE111..(BZG,XZ)..4FC ｱﾘ(*66 & ｵ-ﾄｴｱｺﾝ) OR ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞｻｳﾝﾄﾞｼｽﾃﾑ)	05/1995 - 05/1996	1
82141-1K051	AE111..(BZG,XZ)..4FC ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞｻｳﾝﾄﾞｼｽﾃﾑ)	05/1996 - 04/1997	1
82141-1L600	AE111..4FC ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ)	10/1996 - 04/1997	1
82141-1K031	AE111..4FC	05/1996 - 04/1997	1
82141-1K070	AE111..4FC ｱﾘ(ｵ-ﾄｴｱｺﾝ)	05/1995 - 05/1996	1
82141-1K091	AE111..(BZG,XZ)..4FC ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞｻｳﾝﾄﾞｼｽﾃﾑ & ｵ-ﾄｴｱｺﾝ)	05/1996 - 04/1997	1
82141-1K071	AE111..4FC ｱﾘ(ｵ-ﾄｴｱｺﾝ)	05/1996 - 04/1997	1
82141-1L640	AE111..4FC ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ & ｵ-ﾄｴｱｺﾝ)	10/1996 - 04/1997	1
82141-1N660	AE111..4FC ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞｻｳﾝﾄﾞｼｽﾃﾑ & ｵ-ﾄｴｱｺﾝ)	04/1997 - 11/1997	1
82141-1N640	AE111..4FC ｱﾘ(ｵ-ﾄｴｱｺﾝ)	04/1997 - 11/1997	1
82141-1L620	AE111..(BZG,XZ)..4FC ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ & ｽ-ﾊﾟ- ﾗｲﾌﾞｻｳﾝﾄﾞｼｽﾃﾑ)	10/1996 - 04/1997	1
82141-1L660	AE111..(BZG,XZ)..4FC ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ & ｵ-ﾄｴｱｺﾝ & ｽ-ﾊﾟ- ﾗｲﾌﾞｻｳﾝﾄﾞｼｽﾃﾑ)	10/1996 - 04/1997	1
82141-1N600	AE111..4FC	04/1997 - 11/1997	1
82141-1N601	AE111..4FC	11/1997 - 04/1998	1
82141-1N641	AE111..4FC ｱﾘ(ｵ-ﾄｴｱｺﾝ)	11/1997 - 04/1998	1
82141-1N661	AE111..4FC ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞｻｳﾝﾄﾞｼｽﾃﾑ & ｵ-ﾄｴｱｺﾝ)	11/1997 - 04/1998	1
82141-1N621	AE111..4FC ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞｻｳﾝﾄﾞｼｽﾃﾑ)	11/1997 - 04/1998	1
82141-1N620	AE111..4FC ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞｻｳﾝﾄﾞｼｽﾃﾑ)	04/1997 - 11/1997	1
82141-1T100	AE111..4FC ｱﾘ(ｵ-ﾄｴｱｺﾝ & ｽ-ﾊﾟ- ﾗｲﾌﾞｻｳﾝﾄﾞｼｽﾃﾑ)	04/1998 - 08/2000	1
82141-1T080	AE111..4FC ｱﾘ(ｵ-ﾄｴｱｺﾝ)	04/1998 - 08/2000	1
82141-1T040	AE111..4FC	04/1998 - 08/2000	1
82141-1T060	AE111..4FC ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞｻｳﾝﾄﾞｼｽﾃﾑ)	04/1998 - 08/2000	1
82143 - WIRE, INSTRUMENT PANEL, NO.3
82143-12060	AE11#	04/1997 - 04/1998	1
82143-12080	AE11#	04/1998 - 08/2000	1
82223 - WIRE, SWITCH
82223-12560	AE11#..BZV,FZ,XZ	05/1995 - 04/1997	1
82223-12580	AE11#..FZ,XZ	04/1997 - 08/2000	1
82666D - HOLDER, CONNECTOR NO.5
82666-12210	AE11#	04/1997 - 08/2000	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-1A620	AE11#	04/1997 - 08/2000	1
82824D - CONNECTOR, WIRING HARNESS
82824-24010	AE11# NO.1	05/1995 - 04/1997	1
82824E - CONNECTOR, WIRING HARNESS
82824-12210	AE110;AE111..4FC	05/1995 - 04/1997	1
82824-12210	AE110;AE111..4FC ﾌﾞﾗｯｸ	04/1997 - 08/2000	1
82824-30130	AE11# ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),GRAY	10/1996 - 04/1997	1
82824-12220	AE110;AE111..4FC NATURAL	05/1995 - 04/1997	1
82824-30130	AE11#..4FC,5F ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),GRAY	04/1997 - 08/2000	1
82824-12220	AE110;AE111..4FC NATURAL	04/1997 - 08/2000	1
82824K - CONNECTOR, WIRING HARNESS
82824-12210	AE11#	04/1997 - 08/2000	1
Common parts
90159-70003
Linked diagrams
8401

ILLUST NO. 5 OF 8(9505- )

Click highlighted areas on diagram

ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ

Part #	Description	Period	Qty	Price
Common parts
82711-1E260
82711-1E340
82711-1E350
82711-3F040
82715-12220
82715-12280
82715-12510
90119-06539
90119-10087

ILLUST NO. 2 OF 8(9505- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙ-ﾑ

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-1H321	AE11#	05/1996 - 04/1997	1
82111-1H330	AE11# ｱﾘ(*66)	05/1995 - 05/1996	1
82111-1K120	AE11#	04/1997 - 04/1998	1
82111-1K330	AE11#	04/1998 - 08/2000	1
82111-1H320	AE11#	05/1995 - 05/1996	1
82210C - FUSIBLE LINK
90982-08257	AE11# 40A,ｵｽ端子,緑	04/1997 - 08/2000	1
90982-08282	AE11# 50A,ﾒｽ端子,赤	05/1995 - 04/1997	1
90982-08257	AE11# 40A,ｵｽ端子,緑	05/1995 - 04/1997	1
90982-08246	AE11# 100A,ｵｽ端子,青	05/1995 - 04/1997	1
90982-08246	AE11# 100A,ｵｽ端子,青	04/1997 - 08/2000	1
90982-08280	AE11# 30A,ﾒｽ端子,桃	05/1995 - 04/1997	1
90982-08228	AE11# 50A,ｵｽ端子,赤	04/1997 - 08/2000	1
90982-08228	AE11# 50A,ｵｽ端子,赤	05/1995 - 04/1997	1
90982-08280	AE11# 30A,ﾒｽ端子,桃	04/1997 - 08/2000	1
90982-08282	AE11# 50A,ﾒｽ端子,赤	04/1997 - 08/2000	1
82210C - FUSIBLE LINK
90982-08257	AE11# 40A,ｵｽ端子,緑	04/1997 - 08/2000	1
90982-08282	AE11# 50A,ﾒｽ端子,赤	05/1995 - 04/1997	1
90982-08257	AE11# 40A,ｵｽ端子,緑	05/1995 - 04/1997	1
90982-08246	AE11# 100A,ｵｽ端子,青	05/1995 - 04/1997	1
90982-08246	AE11# 100A,ｵｽ端子,青	04/1997 - 08/2000	1
90982-08280	AE11# 30A,ﾒｽ端子,桃	05/1995 - 04/1997	1
90982-08228	AE11# 50A,ｵｽ端子,赤	04/1997 - 08/2000	1
90982-08228	AE11# 50A,ｵｽ端子,赤	05/1995 - 04/1997	1
90982-08280	AE11# 30A,ﾒｽ端子,桃	04/1997 - 08/2000	1
90982-08282	AE11# 50A,ﾒｽ端子,赤	04/1997 - 08/2000	1
Common parts
90119-06005
90119-06390
90119-06539
91515-G0616
Linked diagrams
8401

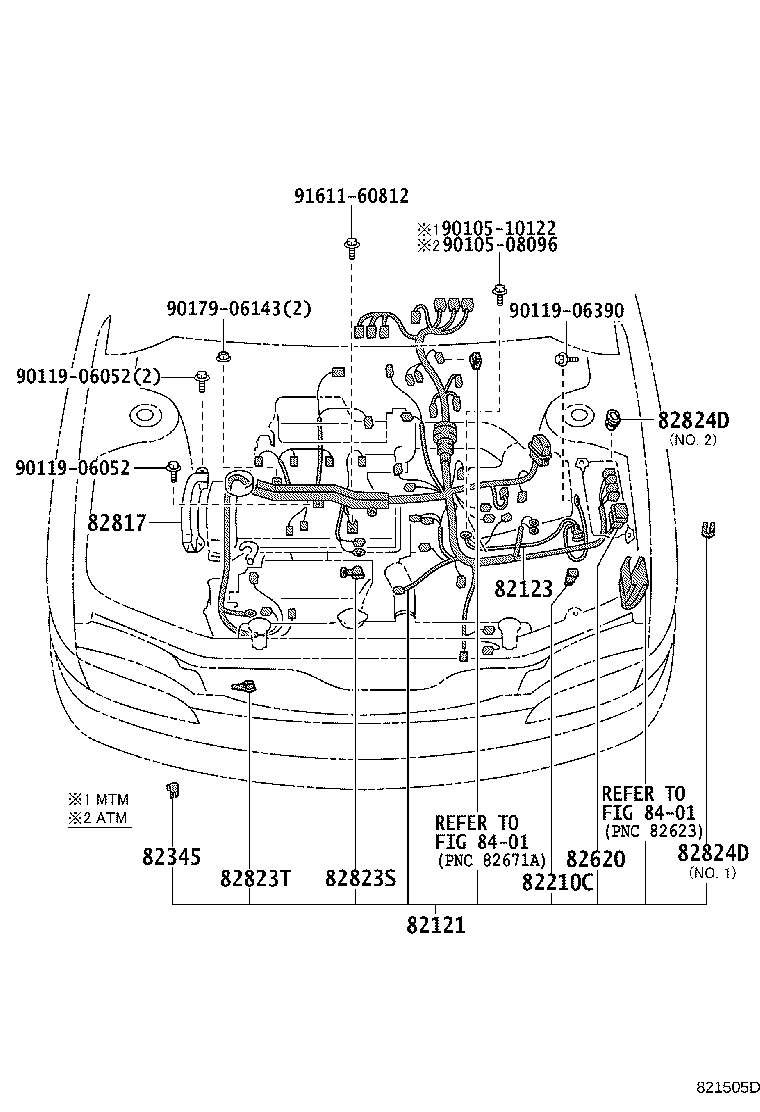

ILLUST NO. 1 OF 8(9505- )FZ,XZ

Click highlighted areas on diagram

ｴﾝｼﾞﾝ

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-1L391	AE111..XZ..4FC	05/1996 - 04/1997	1
82121-1L390	AE111..XZ..4FC	05/1995 - 05/1996	1
82121-1N521	AE111..XZ..4FC	04/1998 - 08/2000	1
82121-1N520	AE111..XZ..4FC	04/1997 - 04/1998	1
82123 - WIRE, ENGINE, NO.3
82123-12290	AE11#	04/1997 - 08/2000	1
82123-12290	AE11#	05/1995 - 04/1997	1
82210C - FUSIBLE LINK
90982-08257	AE11# 40A,ｵｽ端子,緑	04/1997 - 08/2000	1
90982-08282	AE11# 50A,ﾒｽ端子,赤	05/1995 - 04/1997	1
90982-08257	AE11# 40A,ｵｽ端子,緑	05/1995 - 04/1997	1
90982-08246	AE11# 100A,ｵｽ端子,青	05/1995 - 04/1997	1
90982-08246	AE11# 100A,ｵｽ端子,青	04/1997 - 08/2000	1
90982-08280	AE11# 30A,ﾒｽ端子,桃	05/1995 - 04/1997	1
90982-08228	AE11# 50A,ｵｽ端子,赤	04/1997 - 08/2000	1
90982-08228	AE11# 50A,ｵｽ端子,赤	05/1995 - 04/1997	1
90982-08280	AE11# 30A,ﾒｽ端子,桃	04/1997 - 08/2000	1
90982-08282	AE11# 50A,ﾒｽ端子,赤	04/1997 - 08/2000	1
82620 - BLOCK ASSY, FUSIBLE LINK
82620-12240	AE11#..FZ,XZ;AE111..(BZG,BZV)..4FC	05/1995 - 05/1996	1
82620-12240	AE11#	04/1997 - 08/2000	1
82620-12240	AE11#	05/1996 - 04/1997	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-1A070	AE11#..FZ,XZ	04/1997 - 08/2000	1
82817-1A070	AE11#..FZ,XZ	05/1995 - 04/1997	1
82823S - CAP, STARTER TERMINAL
82823-12090	AE11#	05/1995 - 04/1997	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22060	AE11#	05/1995 - 04/1997	1
82824D - CONNECTOR, WIRING HARNESS
82824-24010	AE11# NO.1	05/1995 - 04/1997	1
82824D - CONNECTOR, WIRING HARNESS
82824-24010	AE11# NO.1	05/1995 - 04/1997	1
Common parts
90105-08096
90105-10122
90119-06052
90119-06390
90179-06143
91611-60812
Linked diagrams
8401

ILLUST NO. 8 OF 8(9505- )

Click highlighted areas on diagram

ｺﾈｸﾀ

Part #	Description	Period	Qty	Price
Common parts
90980-10481
90980-10619
90980-11019
90980-11075
90980-11095
90980-11156
90980-11162
90980-11314

ILLUST NO. 4 OF 8(9505- )

Click highlighted areas on diagram

ﾙ-ﾌ,ﾄﾞｱ,ﾌﾛｱ

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-1A840	AE11#..FZ,XZ	04/1997 - 08/2000	1
82151-1A520	AE11#..BZV,FZ,XZ	05/1995 - 04/1997	1
82151-1A540	AE111..BZG,XZ ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞｻｳﾝﾄﾞｼｽﾃﾑ) OR ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	05/1995 - 04/1997	1
82151-1A860	AE111 ｱﾘ(ﾂｲ-ﾀｽﾋﾟ-ｶ)	04/1997 - 08/2000	1
82152 - WIRE, FRONT DOOR, LH
82152-1A300	AE111..BZG,XZ ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞｻｳﾝﾄﾞｼｽﾃﾑ) OR ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	05/1995 - 04/1997	1
82152-1A280	AE11#..BZV,FZ,XZ	05/1995 - 04/1997	1
82152-1A301	AE111 ｱﾘ(ﾂｲ-ﾀｽﾋﾟ-ｶ)	04/1997 - 08/2000	1
82152-1A281	AE11#..FZ,XZ	04/1997 - 08/2000	1
82161 - WIRE, FLOOR
82161-1L390	AE11# ｱﾘ(*66)	05/1995 - 05/1996	1
82161-1L420	AE11# ｱﾘ(ﾘﾔｽﾎﾟｲﾗ & ﾘﾔﾜｲﾊﾟ)	05/1995 - 05/1996	1
82161-1L430	AE111..BZG,XZ ｱﾘ(*66 & ﾘﾔｽﾎﾟｲﾗ) OR ｱﾘ(ﾘﾔｽﾎﾟｲﾗ & ｽ-ﾊﾟ- ﾗｲﾌﾞｻｳﾝﾄﾞｼｽﾃﾑ)	05/1995 - 05/1996	1
82161-1L421	AE11# ｱﾘ(ﾘﾔｽﾎﾟｲﾗ & ﾘﾔﾜｲﾊﾟ)	05/1996 - 04/1997	1
82161-1L400	AE11# ｱﾘ(ﾘﾔｽﾎﾟｲﾗ)	05/1995 - 05/1996	1
82161-1L432	AE111..BZG,XZ ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞｻｳﾝﾄﾞｼｽﾃﾑ & ﾘﾔｽﾎﾟｲﾗ)	04/1997 - 08/2000	1
82161-1L460	AE11#..BZV,FZ,XZ	05/1995 - 05/1996	1
82161-1L401	AE11# ｱﾘ(ﾘﾔｽﾎﾟｲﾗ)	05/1996 - 04/1997	1
82161-1L461	AE11#..BZV,FZ,XZ	05/1996 - 04/1997	1
82161-1L422	AE11# ｱﾘ(ﾘﾔｽﾎﾟｲﾗ & ﾘﾔﾜｲﾊﾟ) OR ｱﾘ(ﾘﾔﾜｲﾊﾟ)	04/1997 - 08/2000	1
82161-1L402	AE11#..BZG,FZ,XZ ｱﾘ(ﾘﾔｽﾎﾟｲﾗ)	04/1997 - 08/2000	1
82161-1L462	AE11#..FZ,XZ	04/1997 - 08/2000	1
82161-1L431	AE111..BZG,XZ ｱﾘ(ﾘﾔｽﾎﾟｲﾗ & ｽ-ﾊﾟ- ﾗｲﾌﾞｻｳﾝﾄﾞｼｽﾃﾑ)	05/1996 - 04/1997	1
82163 - WIRE, FLOOR, NO.3
82163-12090	AE111..BZG,XZ	05/1995 - 04/1997	1
82163-12100	AE111	04/1997 - 08/2000	1
82171 - WIRE, ROOF, NO.1
82171-12680	AE11#	05/1995 - 04/1997	1
82171-12810	AE111 ｱﾘ(ｻﾝﾙ-ﾌ & ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	04/1997 - 08/2000	1
82171-12700	AE11# ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	05/1995 - 04/1997	1
82171-12800	AE11# ｱﾘ(ｻﾝﾙ-ﾌ)	04/1997 - 08/2000	1
82171-12690	AE111 ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	05/1995 - 04/1997	1
82171-12790	AE111 ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	04/1997 - 08/2000	1
82171-12680	AE11#	04/1997 - 08/2000	1
82666A - HOLDER, CONNECTOR NO.2
82666-22070	AE111	04/1997 - 08/2000	1
82666-22070	AE111..BZG,XZ	05/1995 - 04/1997	1
Common parts
90159-70003
Linked diagrams
5804

ILLUST NO. 6 OF 8(9505- )

Click highlighted areas on diagram

ｹ-ﾌﾞﾙﾎﾞﾝﾄﾞ

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07206	AE11# FENDER,A31,A32,B11	05/1996 - 04/1997	1
90980-07299	AE11#..FZ,XZ MANIFOLD	05/1995 - 04/1997	1
90980-07351	AE11#..FZ,XZ LH FENDER-T/M	05/1995 - 04/1997	1
90980-07206	AE11# FENDER,A31,A32,B11	04/1997 - 08/2000	1
90980-07206	AE11#..FZ,XZ FENDER,A31,A32,B11	05/1995 - 05/1996	1
90980-07299	AE111..BZG..6F;AE11#..BZR,FZ,XZ MANIFOLD	04/1997 - 08/2000	1
90980-07351	AE11#..FZ,XZ LH FENDER-T/M	04/1997 - 08/2000	1
90980-07384	AE11# FENDER,PLANT NO.M12	08/1995 - 04/1997	1
90980-07384	AE11# FENDER,PLANT NO.M12	04/1997 - 08/2000	1
82001 - CABLE, BOND, NO.1
90980-07206	AE11# FENDER,A31,A32,B11	05/1996 - 04/1997	1
90980-07299	AE11#..FZ,XZ MANIFOLD	05/1995 - 04/1997	1
90980-07351	AE11#..FZ,XZ LH FENDER-T/M	05/1995 - 04/1997	1
90980-07206	AE11# FENDER,A31,A32,B11	04/1997 - 08/2000	1
90980-07206	AE11#..FZ,XZ FENDER,A31,A32,B11	05/1995 - 05/1996	1
90980-07299	AE111..BZG..6F;AE11#..BZR,FZ,XZ MANIFOLD	04/1997 - 08/2000	1
90980-07351	AE11#..FZ,XZ LH FENDER-T/M	04/1997 - 08/2000	1
90980-07384	AE11# FENDER,PLANT NO.M12	08/1995 - 04/1997	1
90980-07384	AE11# FENDER,PLANT NO.M12	04/1997 - 08/2000	1
82001 - CABLE, BOND, NO.1
90980-07206	AE11# FENDER,A31,A32,B11	05/1996 - 04/1997	1
90980-07299	AE11#..FZ,XZ MANIFOLD	05/1995 - 04/1997	1
90980-07351	AE11#..FZ,XZ LH FENDER-T/M	05/1995 - 04/1997	1
90980-07206	AE11# FENDER,A31,A32,B11	04/1997 - 08/2000	1
90980-07206	AE11#..FZ,XZ FENDER,A31,A32,B11	05/1995 - 05/1996	1
90980-07299	AE111..BZG..6F;AE11#..BZR,FZ,XZ MANIFOLD	04/1997 - 08/2000	1
90980-07351	AE11#..FZ,XZ LH FENDER-T/M	04/1997 - 08/2000	1
90980-07384	AE11# FENDER,PLANT NO.M12	08/1995 - 04/1997	1
90980-07384	AE11# FENDER,PLANT NO.M12	04/1997 - 08/2000	1
82001 - CABLE, BOND, NO.1
90980-07206	AE11# FENDER,A31,A32,B11	05/1996 - 04/1997	1
90980-07299	AE11#..FZ,XZ MANIFOLD	05/1995 - 04/1997	1
90980-07351	AE11#..FZ,XZ LH FENDER-T/M	05/1995 - 04/1997	1
90980-07206	AE11# FENDER,A31,A32,B11	04/1997 - 08/2000	1
90980-07206	AE11#..FZ,XZ FENDER,A31,A32,B11	05/1995 - 05/1996	1
90980-07299	AE111..BZG..6F;AE11#..BZR,FZ,XZ MANIFOLD	04/1997 - 08/2000	1
90980-07351	AE11#..FZ,XZ LH FENDER-T/M	04/1997 - 08/2000	1
90980-07384	AE11# FENDER,PLANT NO.M12	08/1995 - 04/1997	1
90980-07384	AE11# FENDER,PLANT NO.M12	04/1997 - 08/2000	1
82001 - CABLE, BOND, NO.1
90980-07206	AE11# FENDER,A31,A32,B11	05/1996 - 04/1997	1
90980-07299	AE11#..FZ,XZ MANIFOLD	05/1995 - 04/1997	1
90980-07351	AE11#..FZ,XZ LH FENDER-T/M	05/1995 - 04/1997	1
90980-07206	AE11# FENDER,A31,A32,B11	04/1997 - 08/2000	1
90980-07206	AE11#..FZ,XZ FENDER,A31,A32,B11	05/1995 - 05/1996	1
90980-07299	AE111..BZG..6F;AE11#..BZR,FZ,XZ MANIFOLD	04/1997 - 08/2000	1
90980-07351	AE11#..FZ,XZ LH FENDER-T/M	04/1997 - 08/2000	1
90980-07384	AE11# FENDER,PLANT NO.M12	08/1995 - 04/1997	1
90980-07384	AE11# FENDER,PLANT NO.M12	04/1997 - 08/2000	1
82001 - CABLE, BOND, NO.1
90980-07206	AE11# FENDER,A31,A32,B11	05/1996 - 04/1997	1
90980-07299	AE11#..FZ,XZ MANIFOLD	05/1995 - 04/1997	1
90980-07351	AE11#..FZ,XZ LH FENDER-T/M	05/1995 - 04/1997	1
90980-07206	AE11# FENDER,A31,A32,B11	04/1997 - 08/2000	1
90980-07206	AE11#..FZ,XZ FENDER,A31,A32,B11	05/1995 - 05/1996	1
90980-07299	AE111..BZG..6F;AE11#..BZR,FZ,XZ MANIFOLD	04/1997 - 08/2000	1
90980-07351	AE11#..FZ,XZ LH FENDER-T/M	04/1997 - 08/2000	1
90980-07384	AE11# FENDER,PLANT NO.M12	08/1995 - 04/1997	1
90980-07384	AE11# FENDER,PLANT NO.M12	04/1997 - 08/2000	1
82001 - CABLE, BOND, NO.1
90980-07206	AE11# FENDER,A31,A32,B11	05/1996 - 04/1997	1
90980-07299	AE11#..FZ,XZ MANIFOLD	05/1995 - 04/1997	1
90980-07351	AE11#..FZ,XZ LH FENDER-T/M	05/1995 - 04/1997	1
90980-07206	AE11# FENDER,A31,A32,B11	04/1997 - 08/2000	1
90980-07206	AE11#..FZ,XZ FENDER,A31,A32,B11	05/1995 - 05/1996	1
90980-07299	AE111..BZG..6F;AE11#..BZR,FZ,XZ MANIFOLD	04/1997 - 08/2000	1
90980-07351	AE11#..FZ,XZ LH FENDER-T/M	04/1997 - 08/2000	1
90980-07384	AE11# FENDER,PLANT NO.M12	08/1995 - 04/1997	1
90980-07384	AE11# FENDER,PLANT NO.M12	04/1997 - 08/2000	1
Common parts
82711-14110
90119-06311
90119-06390
90464-00744

AE111-BCPGK (1995)

ILLUST NO. 7 OF 8(9505- )

ILLUST NO. 5 OF 8(9505- )

ILLUST NO. 3 OF 8(9505- )

ILLUST NO. 5 OF 8(9505- )

ILLUST NO. 2 OF 8(9505- )

ILLUST NO. 1 OF 8(9505- )FZ,XZ

ILLUST NO. 8 OF 8(9505- )

ILLUST NO. 4 OF 8(9505- )

ILLUST NO. 6 OF 8(9505- )

Part Price Details
