AE111-BCPGK (1995)

Toyota Levin/Trueno

Production May 1995 - Aug 2000
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

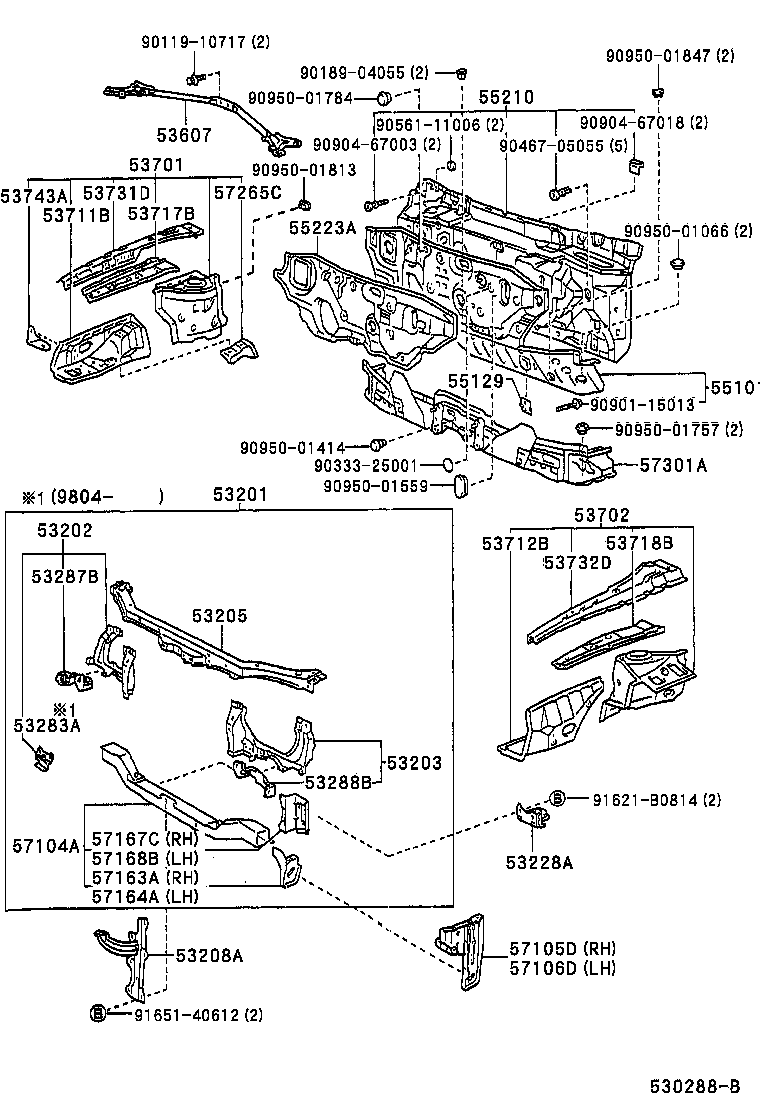

Click highlighted areas on diagram

diagram 53201 53202 53203 53205 53208A 53228A 53283A 53287B 53288B 53607 53701 53702 53711B 53712B 53717B 53718B 53731D 53732D 53743A 55101 55129 55210 55223A 57104A 57105D 57106D 57163A 57164A 57167C 57168B 57265C 57301A 9011910717 9018904055 9033325001 9046705055 9056111006 9090115013 9090467003 9090467018 9095001066 9095001414 9095001559 9095001757 9095001784 9095001813 9095001847 91621B0814 9165140612
Part # Description Qty Price
53201 - SUPPORT SUB-ASSY, RADIATOR
53201-1A151

AE11#

 1
53201-1A090

AE11#

 1
53201-1A150

AE11#

 1
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-12361

AE11#

 1
53202-12360

AE11#

 1
53202-12360

AE11#

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-12311

AE11#

 1
53203-12310

AE11#

 1
53203-12310

AE11#

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-12161

AE11#

 1
53205-12161

AE11#

 1
53205-12160

AE11#

 1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53208-12460

AE11#

 1
53208-12430

AE11#

 1
53228A - BRACKET, RADIATOR MOUNTING, LOWER NO.1
53228-12130

AE11#

 1
53228-12130

AE11#

 1
53283A - REINFORCEMENT, RADIATOR SUPPORT, LOWER
53283-12010

AE11#

 1
53287B - EXTENSION, RADIATOR SUPPORT, RH
53287-12050

AE11#

 3
53287-12050

AE11#

 1
53288B - EXTENSION, RADIATOR SUPPORT, LH
53288-12050

AE11#

 3
53288-12050

AE11#

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-1A052

AE11#

 1
53701-1A052

AE11#

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-1A042

AE11#

 1
53702-1A042

AE11#

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-12902

AE11#

 1
53711-12902

AE11#

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-12182

AE11#

 1
53712-12182

AE11#

 1
53717B - GUSSET, FENDER APRON, RH
53717-12051

AE11#

 1
53717-12051

AE11#

 1
53718B - GUSSET, FENDER APRON, LH
53718-12051

AE11#

 1
53718-12051

AE11#

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-12150

AE11#

 1
53731-12150

AE11#

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-12130

AE11#

 1
53732-12130

AE11#

 1
53743A - REINFORCEMENT, FRONT FENDER APRON, FRONT RH
53743-12040

AE11#

 1
55101 - PANEL SUB-ASSY, DASH
55101-1E490

AE11#..(FZ,XZ)..4FC

 1
55101-1E270

AE11#..4FC

 1
55129 - COVER, DASH PANEL HOLE
55129-12030

AE11#

 2
55129-12030

AE11#

 2
55210 - INSULATOR ASSY, DASH PANEL
55210-12440

AE11#

 1
55210-12440

AE11#

 1
57104A - MEMBER SUB-ASSY, FRONT CROSS
57104-12090

AE11#

 1
57104-12080

AE11#

 1
57104-12030

AE11#

 1
57105D - PLATE SUB-ASSY, FRONT SIDE MEMBER, RH
57105-12130

AE11#

 1
57105-12080

AE11#

 1
57105-12120

AE11#

 1
57106D - PLATE SUB-ASSY, FRONT SIDE MEMBER, LH
57106-12080

AE11#

 1
57106-12110

AE11#

 1
57163A - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH
57163-12130

AE11#

 1
57163-12120

AE11#

 1
57164A - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH
57164-12070

AE11#

 1
57164-12080

AE11#

 1
57167C - GUSSET, FRONT CROSSMEMBER SIDE, RH
57167-12100

AE11#

 1
57167-12100

AE11#

 1
57168B - GUSSET, FRONT CROSSMEMBER SIDE, LH
57168-12100

AE11#

 1
57168-12100

AE11#

 1
57265C - BRACKET, ENGINE MOUNTING, RH
57265-12050

AE11#

 1
57265-12050

AE11#

 1
57301A - MEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT
57301-12150

AE11#..BZG,FZ,XZ

 1
57301-13010

AE11#..BZG,FZ,XZ

 1
Common parts
90119-10717
90189-04055
90333-25001
90467-05055
90561-11006
90901-15013
90904-67003
90904-67018
90950-01066
90950-01414
90950-01559
90950-01757
90950-01784
90950-01813
90950-01847
91621-B0814
91651-40612
