AE111-BCMZF (1995)

Toyota Levin/Trueno

Production May 1995 - Apr 1997
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

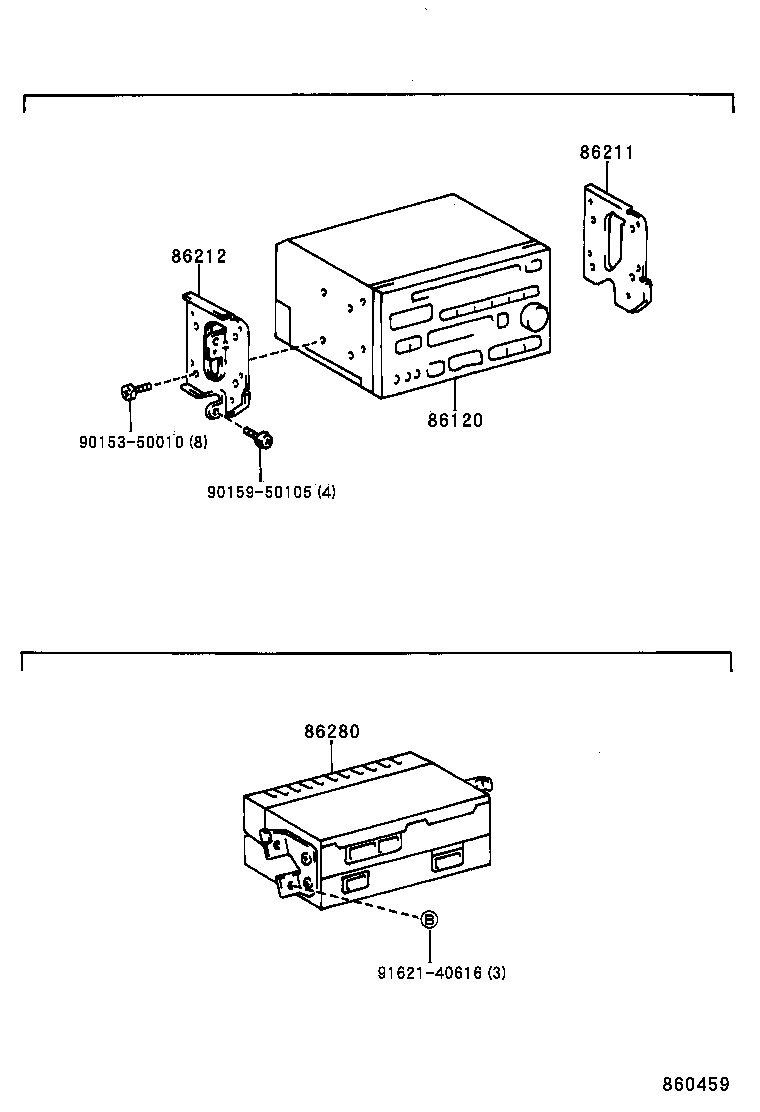

ILLUST NO. 1 OF 2(9505- )

Click highlighted areas on diagram

diagram 86120 86211 86212 86280 9015350010 9015950105 9162140616
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-2B471

AE111..BZG,XZ

FUJITSU TEN,ID=15825

 1
86211 - BRACKET, RADIO, NO.1
86211-12290

AE11#

 1
86212 - BRACKET, RADIO, NO.2
86212-12270

AE11#

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-12200

AE111..BZG,XZ

 1
Common parts
90153-50010
90159-50105
91621-40616

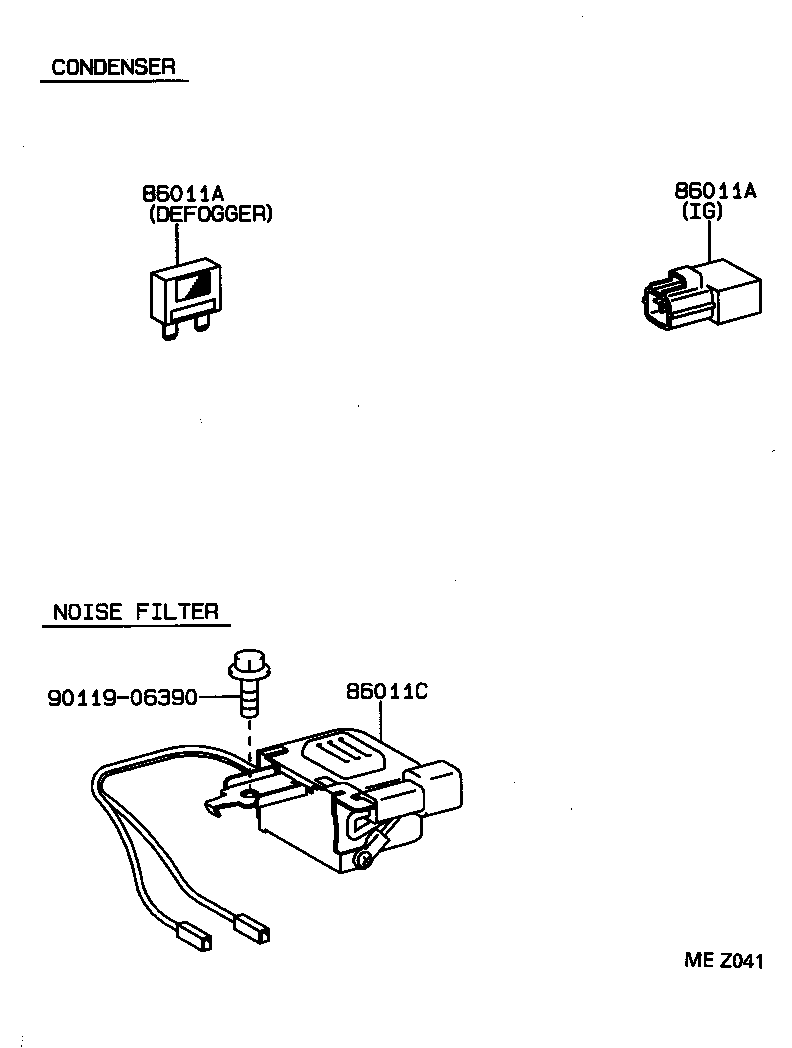

ILLUST NO. 2 OF 2(9505- )

Click highlighted areas on diagram

diagram 86011A 86011A 86011C 9011906390
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04066

AE11#

DEFOGGER

 1
90980-04083

AE111..BZG,BZV

IG

 1
86011A - CONDENSER, RADIO SETTING
90980-04066

AE11#

DEFOGGER

 1
90980-04083

AE111..BZG,BZV

IG

 1
86011C - FILTER, NOISE
90980-05199

AE11#

 1
Common parts
90119-06390
