AE111-BCMZF (1995)

Toyota Levin/Trueno

Production May 1995 - Apr 1997
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

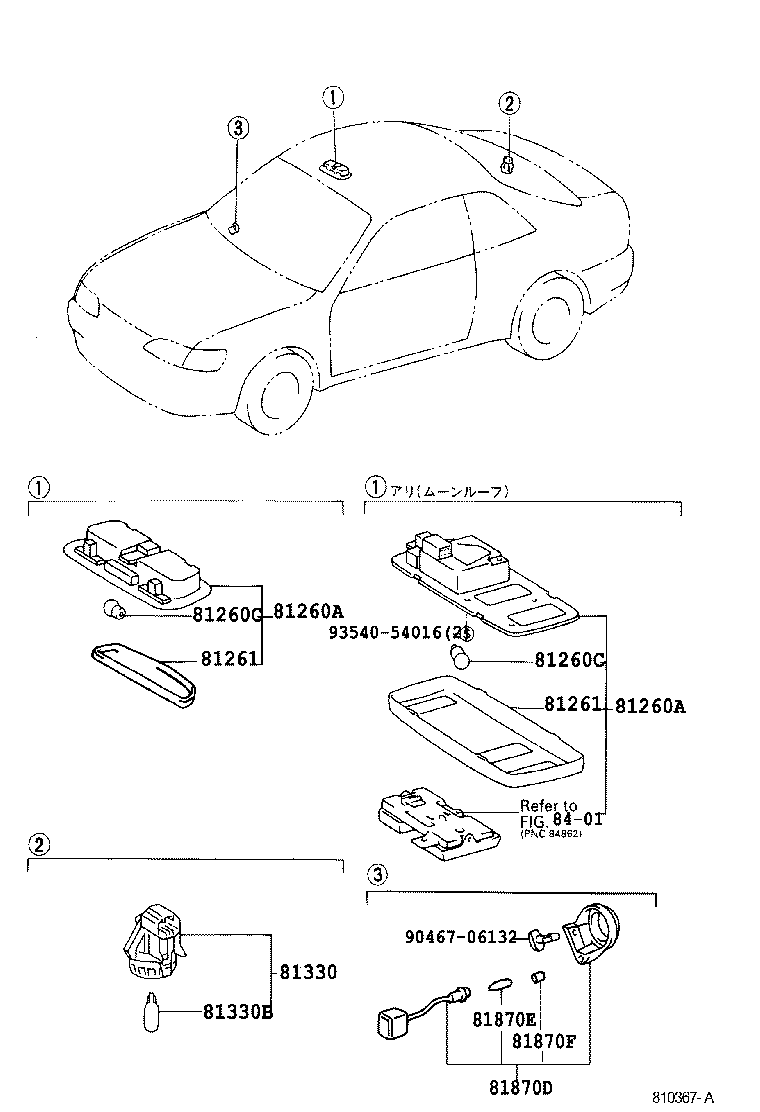

Click highlighted areas on diagram

diagram 81260A 81260A 81260C 81260C 81261 81261 81330 81330B 81870D 81870E 81870F 8401 9046706132 9354054016
Part # Description Qty Price
81260A - LAMP ASSY, MAP
81260-12090B0

AE11#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LT.GRAY,TRIM1#

 1
81260-16060B0

AE11#

LT.GRAY,TRIM1#

 1
81260A - LAMP ASSY, MAP
81260-12090B0

AE11#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LT.GRAY,TRIM1#

 1
81260-16060B0

AE11#

LT.GRAY,TRIM1#

 1
81260C - BULB(FOR MAP LAMP)
90981-12014

AE11#

12V 10W,ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ)

 1
90981-12005

AE11#

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-12014

AE11#

12V 10W,ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ)

 1
90981-12005

AE11#

12V 8W

 2
81261 - LENS AND COVER, MAP LAMP
81261-20220B2

AE11#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LT.GRAY,TRIM1#

 1
81261-16060

AE11#

 1
81261 - LENS AND COVER, MAP LAMP
81261-20220B2

AE11#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LT.GRAY,TRIM1#

 1
81261-16060

AE11#

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-12020

AE111..BZG

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90981-11020

AE111..BZG

12V 3.8W

 1
81870D - LAMP ASSY, KEY CYLINDER
81870-32051

AE111..BZG,XZ

 1
81870E - BULB, KEY CYLINDER LAMP
90981-11018

AE111..BZG,XZ

12V 1.2W ｿｹｯﾄ無し

 1
81870F - CAP, KEY CYLINDER LAMP BULB
84998-10070

AE111..BZG,XZ

 1
Common parts
90467-06132
93540-54016
Linked diagrams
8401
