AE111-BCMZF (1995)

Toyota Levin/Trueno

Production May 1995 - Apr 1997
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

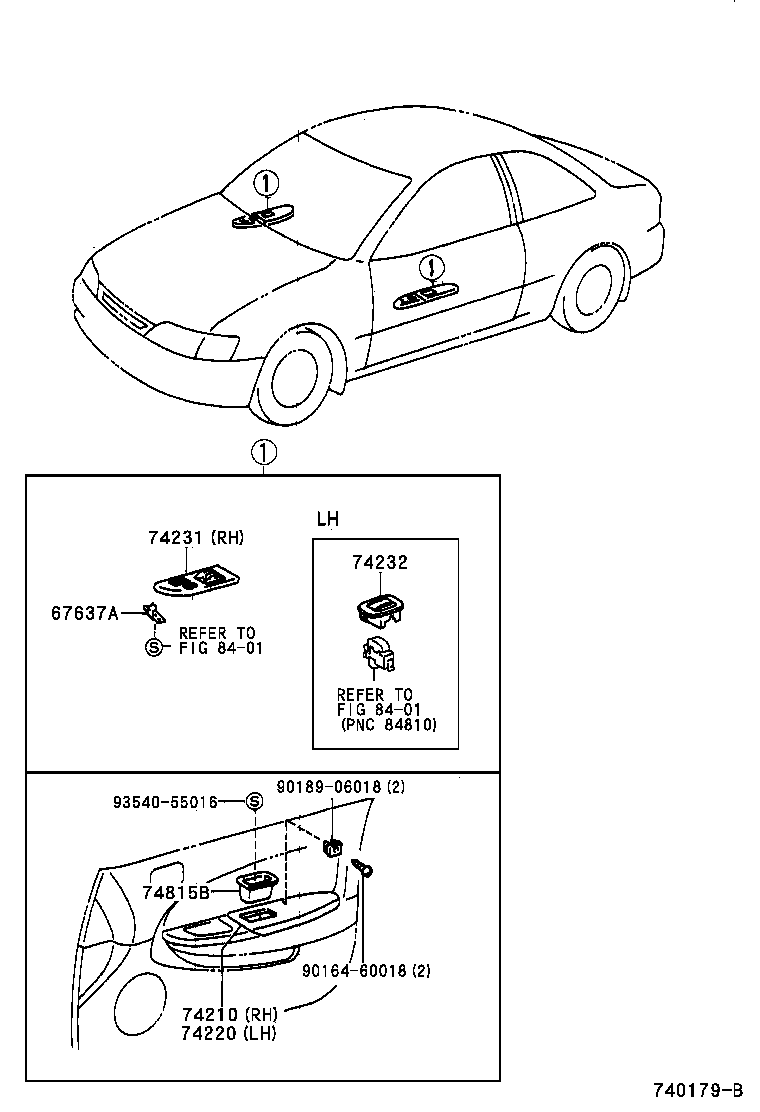

ILLUST NO. 1 OF 2(9505- )

Click highlighted areas on diagram

ｱ-ﾑﾚｽﾄ

diagram 67637A 74210 74220 74231 74232 74815B 8401 8401 9016460018 9018906018 9354055016
Part # Description Qty Price
67637A - PLATE, FRONT DOOR TRIM
67637-12030

AE11#

 1
74210 - ARMREST ASSY, FRONT, RH
74210-12170B0

AE11#

SHADOW GRAY,TRIM1#

 1
74220 - ARMREST ASSY, FRONT, LH
74220-12110B0

AE11#

SHADOW GRAY,TRIM1#

 1
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-12160B0

AE11#

SHADOW GRAY,TRIM1#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
84656-32020B0

AE11#

SHADOW GRAY,TRIM1#

 1
74815B - HANDLE, REAR DOOR PULL
74815-20030B0

AE11#

SHADOW GRAY,TRIM1#

 2
Common parts
90164-60018
90189-06018
93540-55016
Linked diagrams
8401

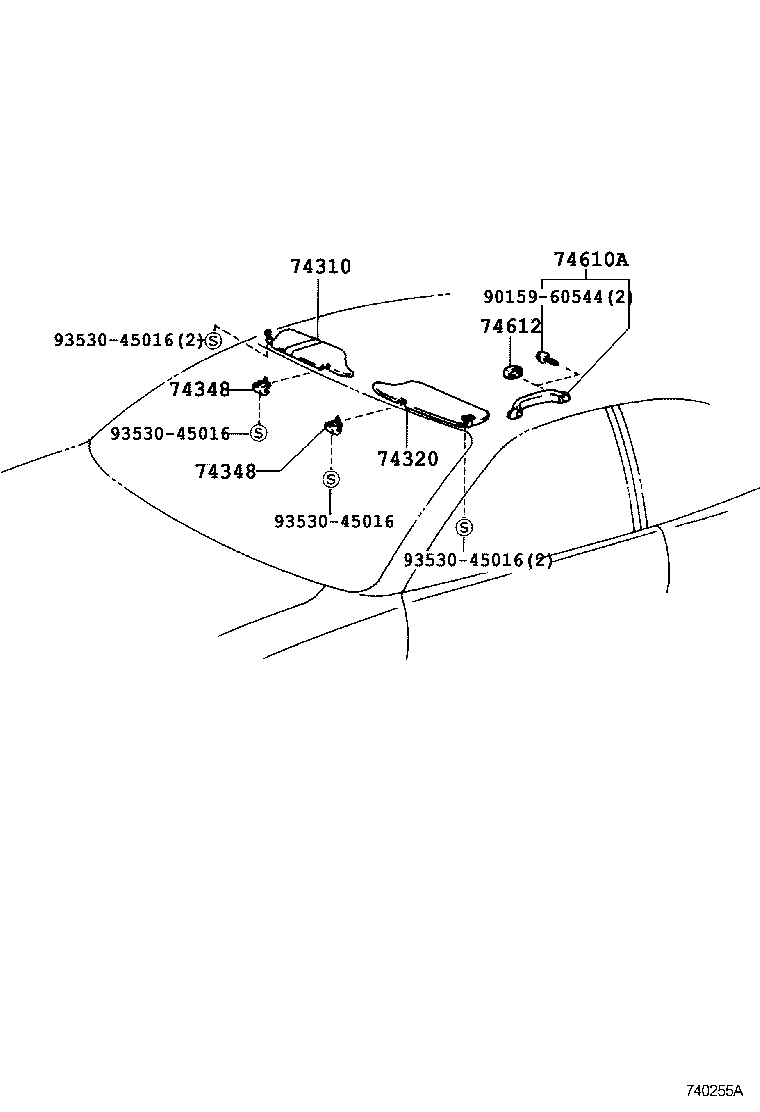

ILLUST NO. 2 OF 2(9505- )

Click highlighted areas on diagram

ﾊﾞｲｻﾞ & ｱｼｽﾄｸﾞﾘｯﾌﾟ

diagram 74310 74320 74348 74348 74610A 74612 9015960544 9353045016 9353045016 9353045016 9353045016
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-1A870B1

AE11#..BZG,BZV,FZ

LT. GRAY,TRIM1#

 1
74310-1A881B1

AE11#

LT. GRAY,TRIM1#

 1
74310-1A880B1

AE11#..BZG,BZV,FZ

ｱﾘ(*80,ｳﾝﾃﾝｾｷ),LT. GRAY,TRIM1#

 1
74320 - VISOR ASSY, LH
74320-1A650

AE111..BZG..5F;AE111..LVN..BZG..4FC

ｱﾘ(*80 & ﾊﾞﾆﾃｲ ﾐﾗ-)

 1
74320-1A500B1

AE111..BZG

LT. GRAY,TRIM1#

 1
74348 - HOLDER, VISOR
74348-22020B6

AE11#

LT.GRAY,TRIM1#

 2
74348 - HOLDER, VISOR
74348-22020B6

AE11#

LT.GRAY,TRIM1#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-12100B0

AE11#

LT.GRAY,TRIM1#

 1
74612 - COVER, ASSIST GRIP
74612-22050B1

AE11#

LI.GRAY,TRIM1#

 2
Common parts
90159-60544
93530-45016
