AE111-BCMZF (1995)

Toyota Levin/Trueno

Production May 1995 - Apr 1997
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

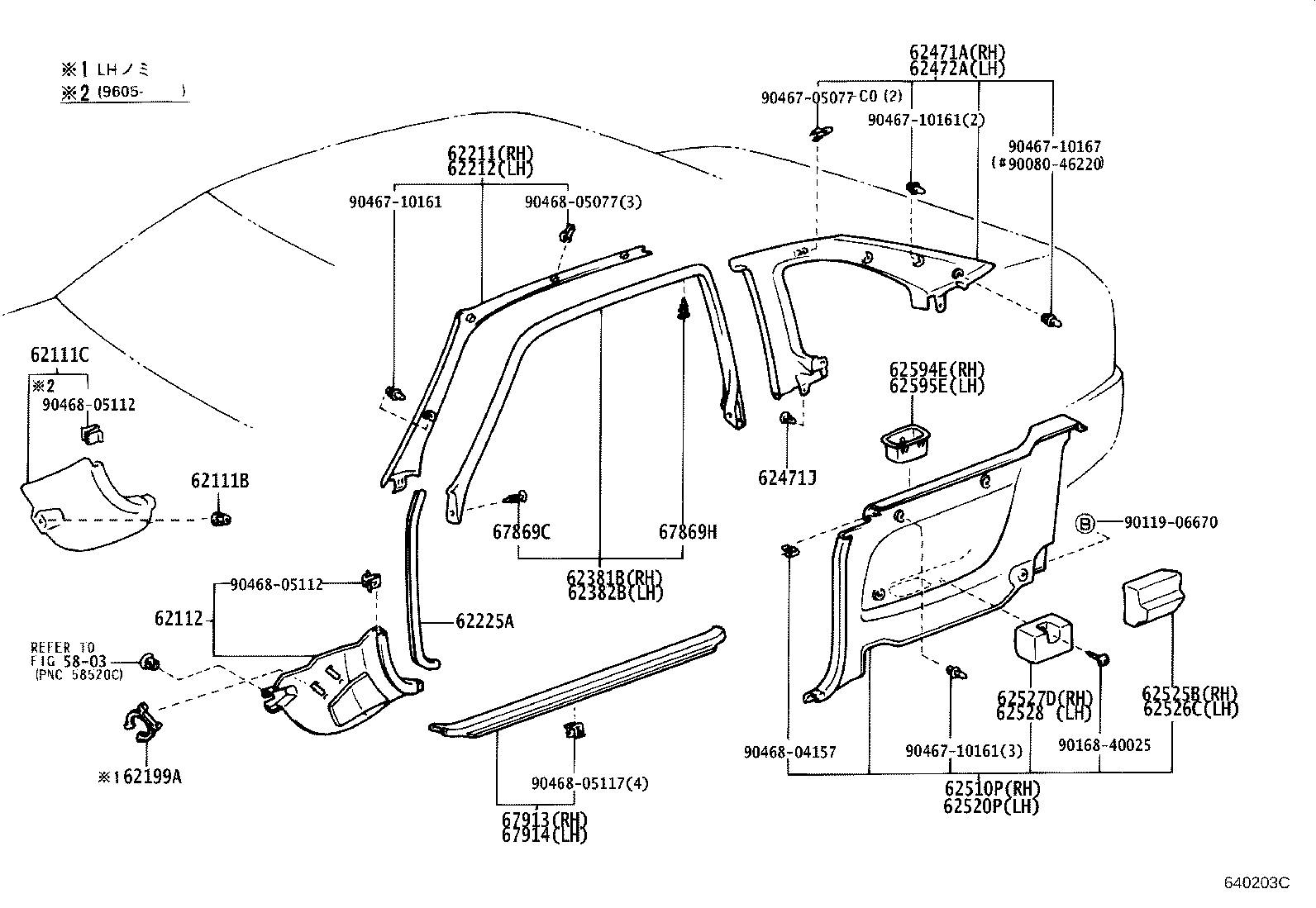

Click highlighted areas on diagram

diagram 5803 62111B 62111C 62112 62199A 62211 62212 62225A 62381B 62382B 62471A 62471J 62472A 62510P 62520P 62525B 62526C 62527D 62528 62594E 62595E 67869C 67869H 67913 67914 9008046220 9011906670 9016840025 9046705077 9046710161 9046710161 9046710161 9046710167 9046804157 9046805077 9046805112 9046805112 9046805117
Part # Description Qty Price
62111B - CLIP(FOR COWL SIDE TRIM)
90467-0505022

AE11#

BLACK,TRIM1#

 1
62111C - BOARD, COWL SIDE TRIM, RH
62111-12240B0

AE11#

SHADOW GRAY,TRIM1#

 1
62111-12241B0

AE11#

SHADOW GRAY,TRIM1#

 1
62112 - BOARD, COWL SIDE TRIM, LH
62112-12250B0

AE11#

SHADOW GRAY,TRIM1#

 1
62199A - HOLDER, FUSEE
90468-25003

AE11#

 2
62211 - GARNISH, FRONT PILLAR, RH
62211-12290B0

AE11#

SHADOW GRAY,TRIM1#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-12290B0

AE11#

SHADOW GRAY,TRIM1#

 1
62225A - GARNISH, FRONT PILLAR, LOWER RH
62225-12060B0

AE11#

SHADOW GRAY,TRIM1#

 2
62381B - WEATHERSTRIP, ROOF SIDE RAIL, RH
62381-12230

AE11#

 1
62382B - WEATHERSTRIP, ROOF SIDE RAIL, LH
62382-12240

AE11#

 1
62471A - GARNISH, ROOF SIDE, INNER RH
62471-12740B0

AE11#

SHADOW GRAY,TRIM1#

 1
62471J - CLIP (FOR ROOF SIDE GARNISH)
90467-0707201

AE11#

BLACK,TRIM1#

 4
90467-0707222

AE11#

BLACK,TRIM1#

 4
62472A - GARNISH, ROOF SIDE, INNER LH
62472-12740B0

AE11#

SHADOW GRAY,TRIM1#

 1
62510P - PANEL ASSY, QUARTER TRIM, FRONT RH
62510-1A690B0

AE11#

SHADOW GRAY,TRIM1#

 1
62520P - PANEL ASSY, QUARTER TRIM, FRONT LH
62520-1A590B0

AE11#

SHADOW GRAY,TRIM1#

 1
62525B - PAD, QUARTER TRIM, UPPER RH
62525-12060

AE11#

 1
62526C - PAD, QUARTER TRIM, UPPER LH
62526-12060

AE11#

 1
62527D - PAD, QUARTER TRIM, LOWER RH
62527-12260

AE11#

 1
62528 - PAD, QUARTER TRIM, LOWER LH
62528-12020

AE11#

 1
62594E - POCKET, QUARTER TRIM, RH
62594-12110B0

AE11#

SHADOW GRAY,TRIM1#

 1
62595E - POCKET, QUARTER TRIM, LH
62595-12050B0

AE11#

SHADOW GRAY,TRIM1#

 1
67869C - CLIP, ROOF SIDE RAIL WEATHERSTRIP
67869-30050

AE11#

 8
67869H - CLIP, ROOF SIDE RAIL WEATHERSTRIP
67869-12040

AE11#

 2
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-12250B0

AE11#

SHADOW GRAY,TRIM1#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67913-12250B0

AE11#

SHADOW GRAY,TRIM1#

 1
Common parts
90080-46220
90119-06670
90168-40025
90467-05077
90467-10161
90467-10167
90468-04157
90468-05077
90468-05112
90468-05117
Linked diagrams
5803
