AE111-BCMZF (1995)

Toyota Levin/Trueno

Production May 1995 - Apr 1997
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )MTM

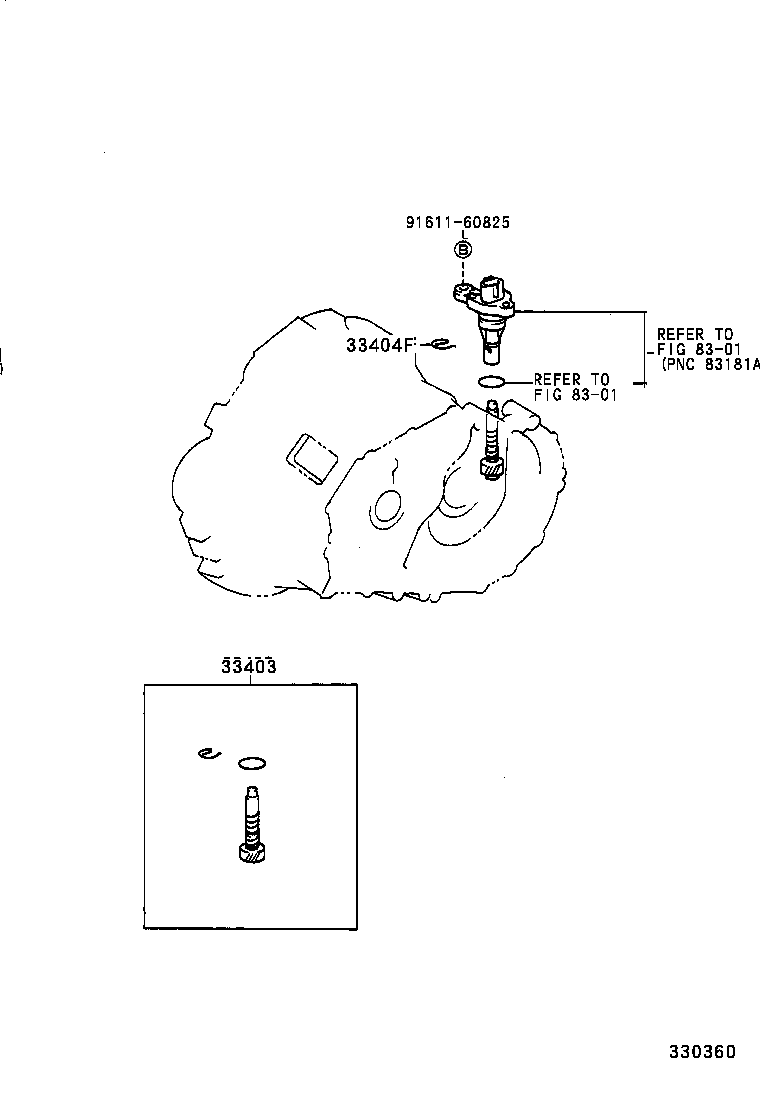

Click highlighted areas on diagram

C50,C51,C56,C160

diagram 33403 33404F 8301 8301 9161160825
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-19465

AE11#..(BZG,FZ,XZ)..5F

歯数=31,ﾏｰｸ 31:35

 1
33403-19455

AE111..BZG..5F

歯数=30,ﾏｰｸ 30:35,ｱﾘ(195/55VR15 ﾀｲﾔ)

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

AE11#..5F

 2
Common parts
91611-60825
Linked diagrams
8301
