AE111-BCMZF (1995)

Toyota Levin/Trueno

Production May 1995 - Apr 1997
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

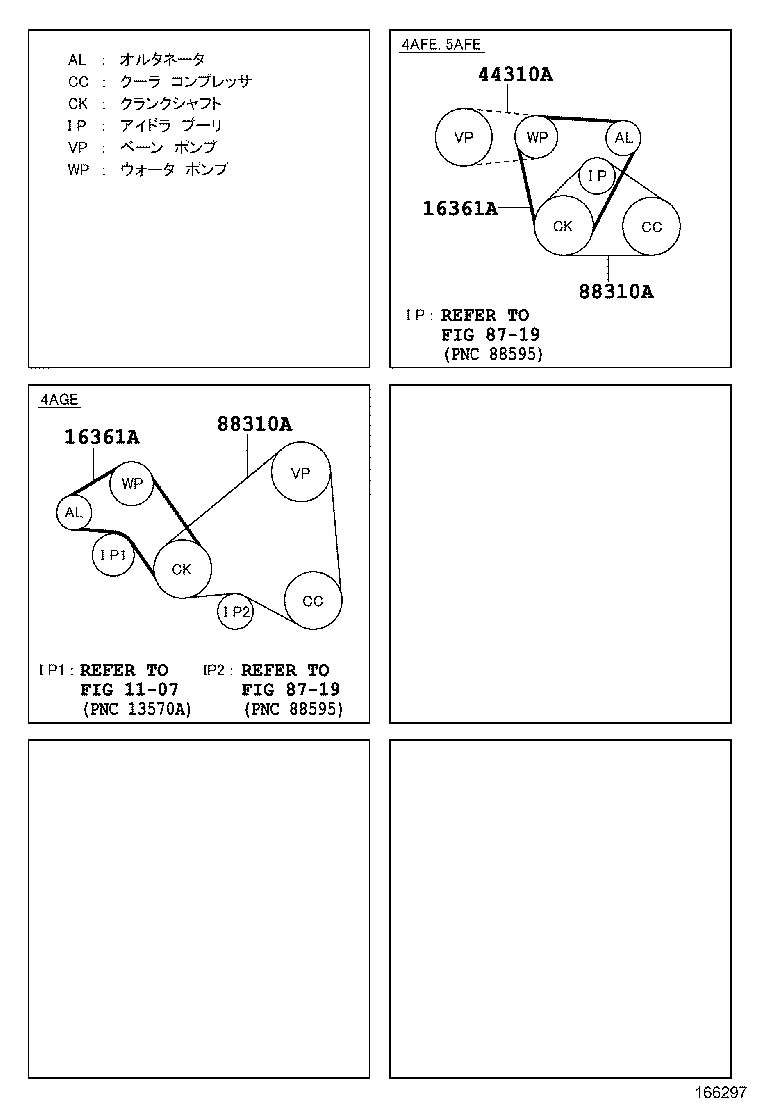

Click highlighted areas on diagram

diagram 1107 16361A 16361A 44310A 8719 8719 88310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99365-80840

4AGE..AE111

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
99365-80840

4AGE..AE111

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99365-21060

AE111..BZG,BZV

長さ=1060

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99365-21060

AE111..BZG,BZV

長さ=1060

 1
Linked diagrams
1107
8719
