AE111-BCMVF (1995)
Toyota Levin/Trueno
Production
May 1995
-
Apr 1997
Engine
4AGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )BZG,BZR,BZV

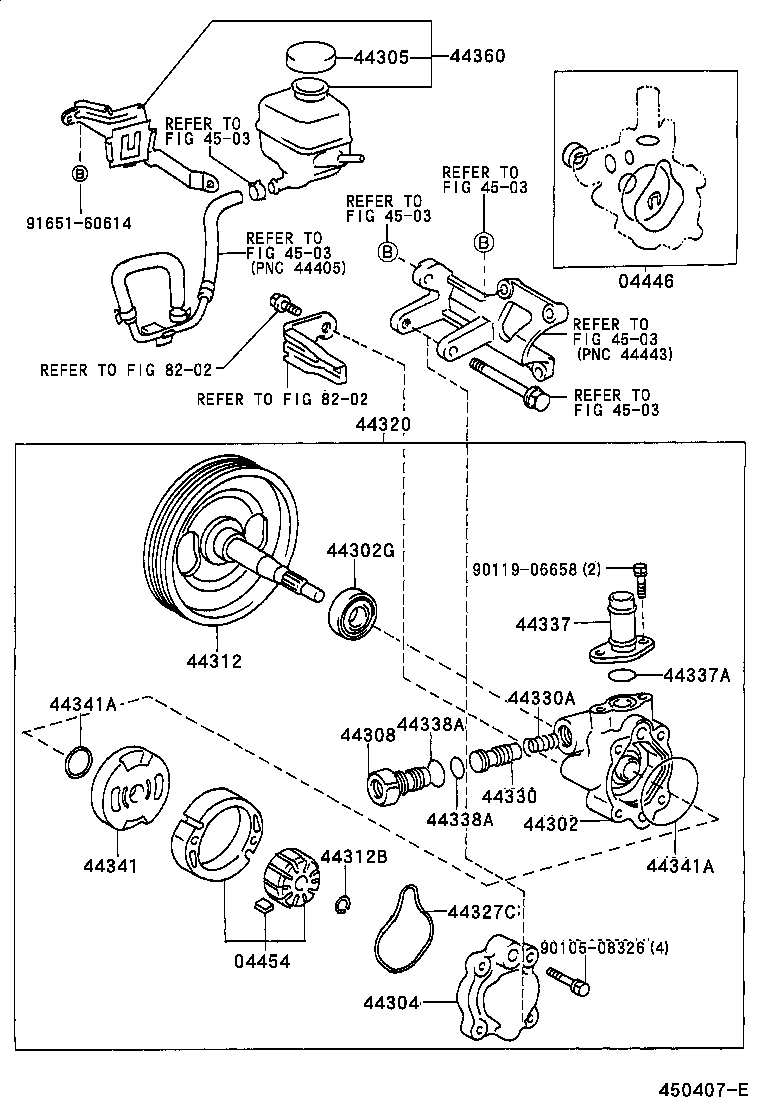

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-12070 |
AE111..BZG,BZV |
1 | ||
| 04454 - VANE KIT, POWER STEERING PUMP | ||||
| 04454-12010 |
AE111..BZG,BZV |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-12151 |
AE111..BZG,BZV |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-15010 |
AE111..BZG,BZV |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44304-12021 |
AE111..BZG,BZV |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-12030 |
AE111..BZG,BZV |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-12080 |
AE111..BZG,BZV |
1 | ||
| 44308-12130 |
AE111..BZG,BZV |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44303-12010 |
AE111..BZG,BZV |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10007 |
AE111..BZG,BZV |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44310-12301 |
AE111..BZG,BZV |
1 | ||
| 44310-12420 |
AE111..BZG,BZV |
1 | ||
| 44327C - GASKET, VANE PUMP HOUSING | ||||
| 44327-12030 |
AE111..BZG,BZV |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-12490 |
AE111..BZG,BZV |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12141 |
AE111..BZG,BZV |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-12080 |
AE111..BZG,BZV |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-17008 |
AE111..BZG,BZV |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-13001 |
AE111..BZG,BZV 内径=13.5,外径=16.5 |
1 | ||
| 90301-17008 |
AE111..BZG,BZV 内径=17.8,外径=22.6 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-13001 |
AE111..BZG,BZV 内径=13.5,外径=16.5 |
1 | ||
| 90301-17008 |
AE111..BZG,BZV 内径=17.8,外径=22.6 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-12041 |
AE111..BZG,BZV |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-16009 |
AE111..BZG,BZV 外側 |
1 | ||
| 90301-47004 |
AE111..BZG,BZV 内側 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-16009 |
AE111..BZG,BZV 外側 |
1 | ||
| 90301-47004 |
AE111..BZG,BZV 内側 |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-12050 |
AE111..BZG,BZV |
1 | ||
| Common parts | ||||
| 90105-08326 | ||||
| 90119-06658 | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 4503 | ||||
| 8202 | ||||
