AE111-BCMGK (1995)

Toyota Levin/Trueno

Production May 1995 - Aug 2000
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

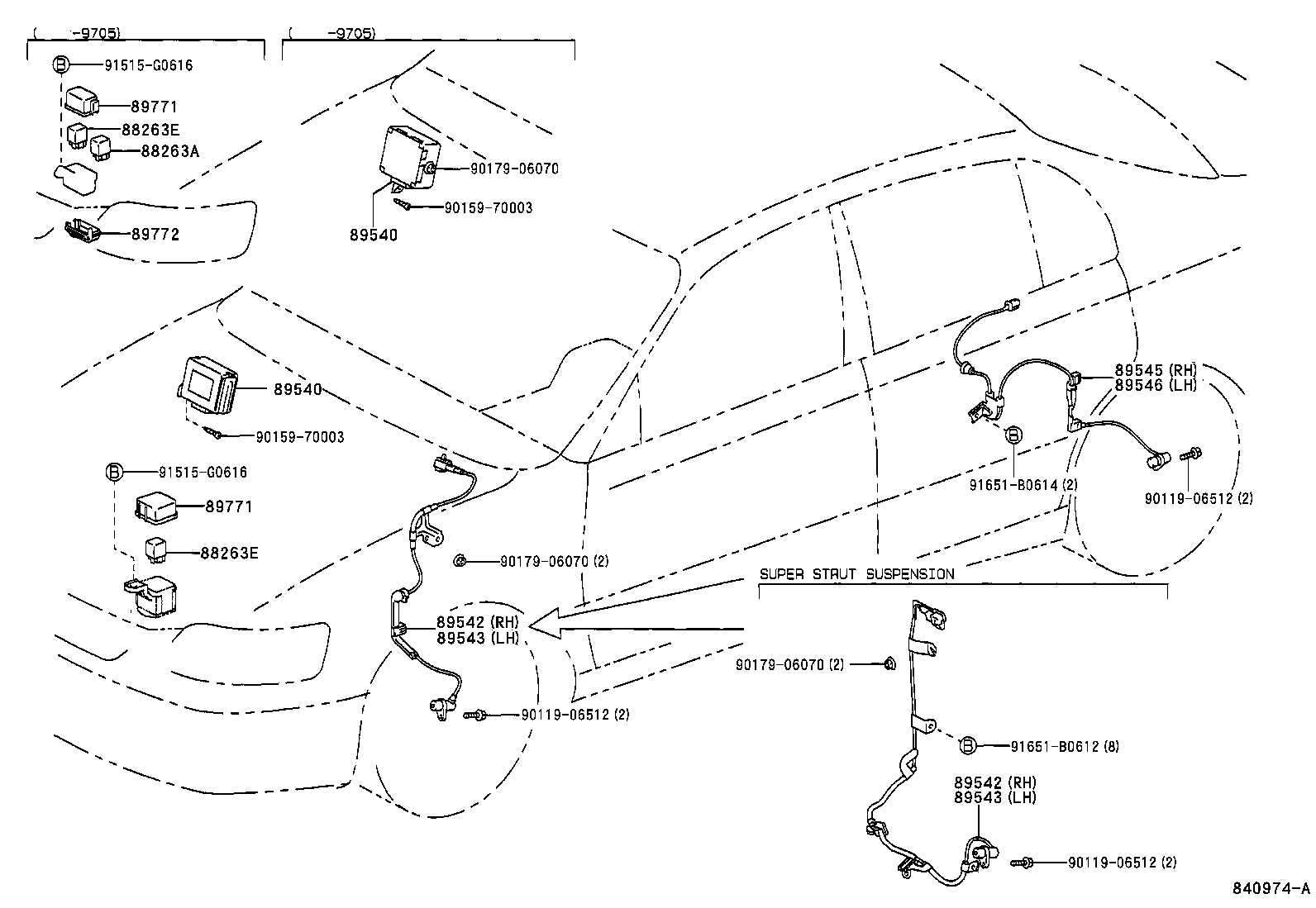

Click highlighted areas on diagram

diagram 88263A 88263E 88263E 89540 89540 89542 89542 89543 89543 89545 89546 89771 89771 89772 9011906512 9011906512 9011906512 9015970003 9015970003 9017906070 9017906070 9017906070 91515G0616 91515G0616 91651B0612 91651B0614
Part # Description Qty Price
88263A - RELAY, SKID CONTROL
88263-14110

AE11#

 1
88263E - RELAY, SKID CONTROL NO.2
88263-24030

AE11#

 1
88263-24030

AE11#

 1
88263E - RELAY, SKID CONTROL NO.2
88263-24030

AE11#

 1
88263-24030

AE11#

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-12200

AE11#..BZG,FZ,XZ

 1
89540-12390

AE11#

 1
89540-12391

AE11#

 1
89540-12320

AE11#

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-12200

AE11#..BZG,FZ,XZ

 1
89540-12390

AE11#

 1
89540-12391

AE11#

 1
89540-12320

AE11#

 1
89542 - SENSOR, SPEED, FRONT RH
89542-12040

AE11#..BZG,FZ,XZ

 1
89542-12040

AE11#..BZG,FZ,XZ

 1
89542 - SENSOR, SPEED, FRONT RH
89542-12040

AE11#..BZG,FZ,XZ

 1
89542-12040

AE11#..BZG,FZ,XZ

 1
89543 - SENSOR, SPEED, FRONT LH
89543-12040

AE11#..BZG,FZ,XZ

 1
89543-12040

AE11#..BZG,FZ,XZ

 1
89543 - SENSOR, SPEED, FRONT LH
89543-12040

AE11#..BZG,FZ,XZ

 1
89543-12040

AE11#..BZG,FZ,XZ

 1
89545 - SENSOR, SPEED, REAR RH
89545-12040

AE11#

 1
89545-12040

AE11#

 1
89546 - SENSOR, SPEED, REAR LH
89546-12040

AE11#

 1
89546-12040

AE11#

 1
89771 - COVER, ABS RELAY BLOCK, UPPER
89771-13010

AE11#

 1
89771-12010

AE11#

 1
89771 - COVER, ABS RELAY BLOCK, UPPER
89771-13010

AE11#

 1
89771-12010

AE11#

 1
89772 - COVER, ABS RELAY BLOCK, LOWER
89772-12010

AE11#

 1
Common parts
90119-06512
90159-70003
90179-06070
91515-G0616
91651-B0612
91651-B0614
