AE111-ACPZF (1995)

Toyota Levin/Trueno

Production May 1995 - Aug 2000
Engine 4AGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

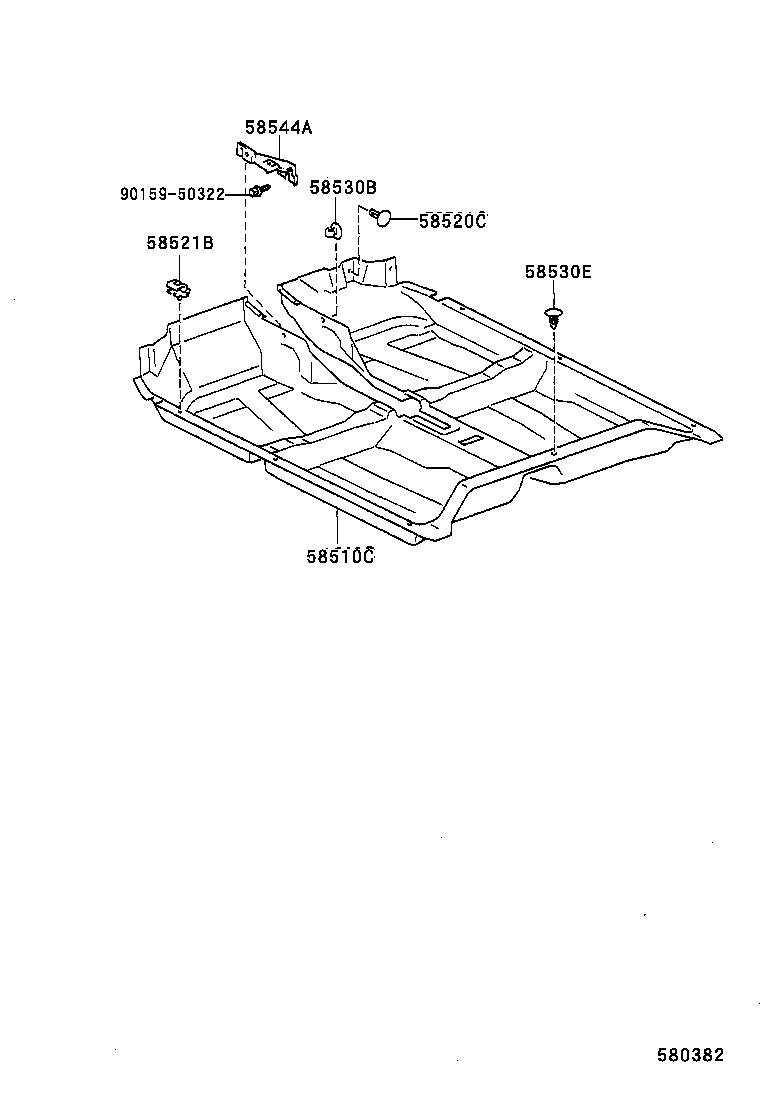

Click highlighted areas on diagram

diagram 58510C 58520C 58521B 58530B 58530E 58544A 9015950322
Part # Description Qty Price
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-1E520B0

AE11#

ｶﾝﾚｲﾁｼﾖｳ,SHADOW GRAY,TRIM1#

 1
58510-1H120C0

AE111..BZG,BZR,BZV

ｶﾝﾚｲﾁ ｼﾖｳ,BLACK,TRIM1#

 1
58510-1E510B0

AE11#

SHADOW GRAY,TRIM1#

 1
58510-1H110C0

AE111..BZG,BZR,BZV

BLACK,TRIM1#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-0906822

AE11#

BLACK,TRIM1#

 1
90467-0906822

AE11#

BLACK,TRIM1#

 1
58521B - HOOK, FLOOR CARPET
58521-12120

AE11#

 6
58521-12120

AE11#

 6
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-09118

AE11#

 2
90467-09118

AE11#

 2
58530E - CLIP(FOR FRONT FLOOR REAR CARPET)
90467-06023B0

AE11#

SHADOW GRAY,TRIM1#

 1
90467-06023C0

AE11#

BLACK,TRIM1#

 1
58544A - BRACKET, FLOOR CARPET, LH
58544-13040

AE11#

 1
Common parts
90159-50322
