AE111-ACPGK (1995)
Toyota Levin/Trueno
Production
May 1995
-
Aug 2000
Engine
4AFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9704- )

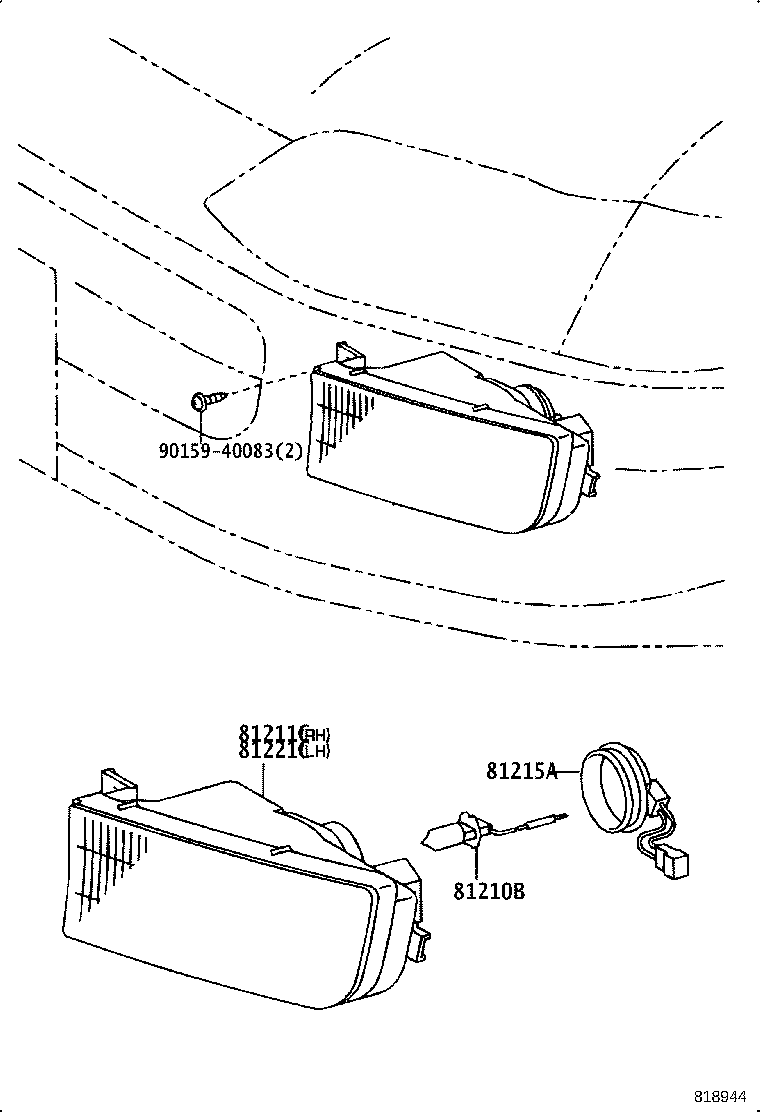

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81127C - BEARING FOG LAMP | ||||
| 90075-10811 |
AE11# |
2 | ||
| 81210B - BULB, FOG LAMP | ||||
| 90981-13040 |
AE11# 12V 35W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-13057 |
AE11# 12V 35W |
2 | ||
| 81211C - LAMP UNIT, FOG LAMP, RH | ||||
| 81211-12140 |
AE11# |
1 | ||
| 81211-12100 |
AE11#..LVN |
1 | ||
| 81215A - SOCKET & WIRE, FOG LAMP | ||||
| 81215-12100 |
AE11#..LVN |
2 | ||
| 90075-65003 |
AE11# |
2 | ||
| 81221C - LAMP UNIT, FOG LAMP, LH | ||||
| 81221-12090 |
AE11#..LVN |
1 | ||
| 81221-12130 |
AE11# |
1 | ||
| 81229 - BRACKET, FOG LAMP | ||||
| 81481-10030 |
AE11# |
4 | ||
(9505-9704)LVN
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81210B - BULB, FOG LAMP | ||||
| 90981-13040 |
AE11# 12V 35W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-13057 |
AE11# 12V 35W |
2 | ||
| 81211C - LAMP UNIT, FOG LAMP, RH | ||||
| 81211-12140 |
AE11# |
1 | ||
| 81211-12100 |
AE11#..LVN |
1 | ||
| 81215A - SOCKET & WIRE, FOG LAMP | ||||
| 81215-12100 |
AE11#..LVN |
2 | ||
| 90075-65003 |
AE11# |
2 | ||
| 81221C - LAMP UNIT, FOG LAMP, LH | ||||
| 81221-12090 |
AE11#..LVN |
1 | ||
| 81221-12130 |
AE11# |
1 | ||
| Common parts | ||||
| 90159-40083 | ||||
