AE111-ACMVF (1995)
Toyota Levin/Trueno
Production
May 1995
-
Apr 1997
Engine
4AGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )

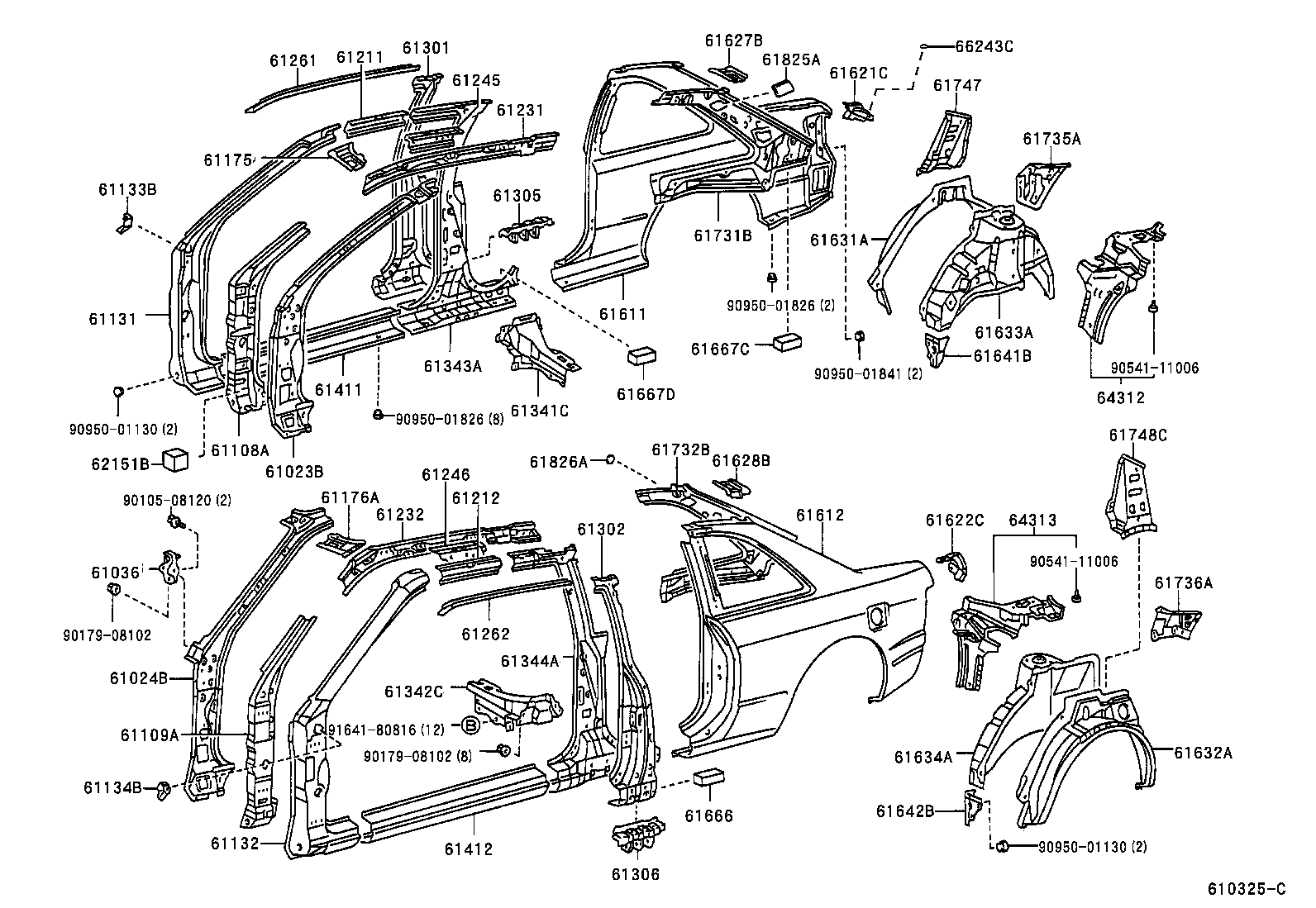

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-12150 |
AE11# |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-12150 |
AE11# |
1 | ||
| 61036 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH | ||||
| 61036-12080 |
AE11# |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-12170 |
AE11# |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-12160 |
AE11# |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-12460 |
AE11# |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-12460 |
AE11# |
1 | ||
| 61133B - BRACKET, FRONT BODY PILLAR ,OUTER RH | ||||
| 61133-12260 |
AE11# |
1 | ||
| 61134B - BRACKET, FRONT BODY PILLAR OUTER, LH | ||||
| 61134-12250 |
AE11# |
1 | ||
| 61175 - REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 RH | ||||
| 61175-12120 |
AE11# |
1 | ||
| 61176A - REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 LH | ||||
| 61176-12130 |
AE11# |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-12360 |
AE11# |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-12360 |
AE11# |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-1A090 |
AE11# |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-12860 |
AE11# |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-12140 |
AE11# |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-12140 |
AE11# |
1 | ||
| 61301 - PILLAR SUB-ASSY, CENTER BODY, RH | ||||
| 61301-12260 |
AE11# |
1 | ||
| 61302 - PILLAR SUB-ASSY, CENTER BODY, LH | ||||
| 61302-12340 |
AE11# |
1 | ||
| 61305 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH | ||||
| 61305-12110 |
AE11# |
1 | ||
| 61306 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH | ||||
| 61306-12110 |
AE11# |
1 | ||
| 61341C - PILLAR, CENTER BODY, INNER UPPER RH | ||||
| 61307-12160 |
AE11# |
1 | ||
| 61342C - PILLAR, CENTER BODY, INNER UPPER LH | ||||
| 61308-12160 |
AE11# |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-12130 |
AE11# |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-12130 |
AE11# |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-12600 |
AE11# |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-12590 |
AE11# |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-12916 |
AE11# |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-12924 |
AE11# |
1 | ||
| 61621C - TROUGH, LUGGAGE COMPARTMENT OPENING, RH | ||||
| 61621-12420 |
AE11# |
1 | ||
| 61622C - TROUGH, LUGGAGE COMPARTMENT OPENING, LH | ||||
| 61622-12420 |
AE11# |
1 | ||
| 61627B - EXTENSION, QUARTER PANEL, UPPER REAR RH | ||||
| 61627-12140 |
AE11# |
1 | ||
| 61628B - EXTENSION, QUARTER PANEL, UPPER REAR LH | ||||
| 61628-12150 |
AE11# |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-12310 |
AE11# |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-12330 |
AE11# |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-12921 |
AE11# |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-12919 |
AE11# |
1 | ||
| 61666 - SEAL, QUARTER PANEL | ||||
| 55522-33010 |
AE11# |
2 | ||
| 61667C - SEAL, QAURTER PANEL, NO.1 | ||||
| 61667-12090 |
AE11# NO.1 |
2 | ||
| 61667D - SEAL, QUARTER PANEL | ||||
| 61667-12070 |
AE11# |
2 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-12640 |
AE11# |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-12600 |
AE11# |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-12370 |
AE11# |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-12360 |
AE11# |
1 | ||
| 61747 - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH | ||||
| 61747-12270 |
AE11# |
1 | ||
| 61748C - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH | ||||
| 61748-12270 |
AE11# |
1 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61815-32020 |
AE11# |
2 | ||
| 61826A - PLATE, NOISE CONTROL, NO.3 | ||||
| 61824-12040 |
AE11# |
2 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-12130 |
AE11# |
2 | ||
| 64312 - BRACKET, PACKAGE TRAY, RH | ||||
| 64301-12903 |
AE11# |
1 | ||
| 64313 - BRACKET, PACKAGE TRAY, LH | ||||
| 64302-12903 |
AE11# |
1 | ||
| 66243C - PROTECTOR, REAR BODY, NO.1 | ||||
| 66243-20010 |
AE11# |
2 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90179-08102 | ||||
| 90541-11006 | ||||
| 90950-01130 | ||||
| 90950-01826 | ||||
| 90950-01841 | ||||
| 91641-80816 | ||||
