AE111-ACMVF (1995)
Toyota Levin/Trueno
Production
May 1995
-
Apr 1997
Engine
4AGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )4AGE

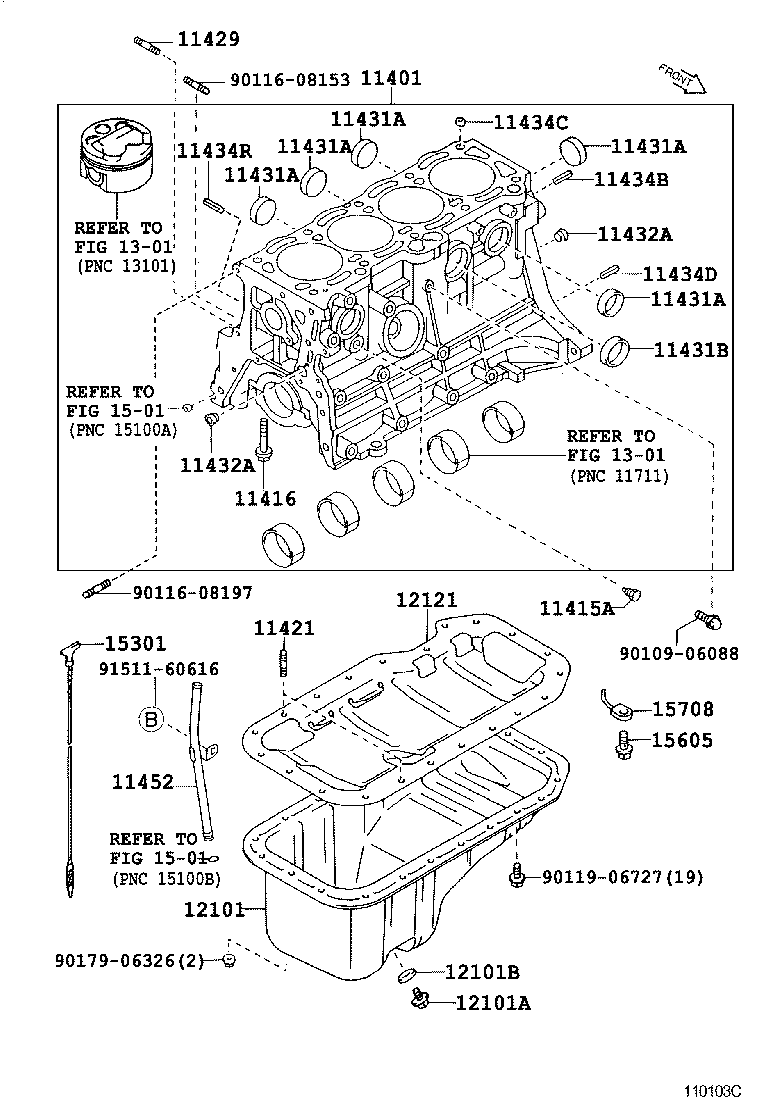

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-80001 |
4AGE..AE111 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90345-52003 |
4A#,5AFE..AE11# |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90105-10007 |
4A#,5AFE..AE11# |
10 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 90116-06022 |
4A#,5AFE..AE11# |
2 | ||
| 11429 - BOLT, STUD(FOR ALTERNATOR BRACKET) | ||||
| 90116-08170 |
4AGE..AE111 |
1 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
4A#..AE111 |
6 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
4A#..AE111 |
6 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
4A#..AE111 |
6 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
4A#..AE111 |
6 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
4A#..AE111 |
6 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-44000 |
4A#,5AFE..AE11# |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90344-53006 |
4A#,5AFE..AE11# |
2 | ||
| 90344-53008 |
4A#,5AFE..AE11# |
2 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90344-53006 |
4A#,5AFE..AE11# |
2 | ||
| 90344-53008 |
4A#,5AFE..AE11# |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 |
4A#,5AFE..AE11# 長さ=22,外径=10 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-13017 |
4A#,5AFE..AE11# 長さ=12,外径=13 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06003 |
4A#,5AFE..AE11# 長さ=14,外径=6 |
2 | ||
| 11434R - PIN, STRAIGHT(FOR DRIVE SHAFT BEARING BRACKET) | ||||
| 90250-06003 |
4AGE..AE111 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-16040 |
4AGE..AE111 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-16100 |
4A#,5AFE..AE11# |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12026 |
4A#,5AFE..AE11# |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
4A#,5AFE..AE11# |
1 | ||
| 12121 - PLATE, OIL PAN BAFFLE, NO.1 | ||||
| 12122-16031 |
4AGE..AE111 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-16070 |
4AGE..AE111 |
1 | ||
| 15605 - VALVE SUB-ASSY, OIL CHECK | ||||
| 15703-16010 |
4AGE..AE111 |
4 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-16010 |
4AGE..AE111 NO.1,2,4 |
3 | ||
| 15708-16020 |
4AGE..AE111 NO.3 |
1 | ||
| Common parts | ||||
| 90109-06088 | ||||
| 90116-08153 | ||||
| 90116-08197 | ||||
| 90119-06727 | ||||
| 90179-06326 | ||||
| 91511-60616 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1501 | ||||
