AE111-ACMVF (1995)
Toyota Levin/Trueno
Production
May 1995
-
Apr 1997
Engine
4AGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )4AGE

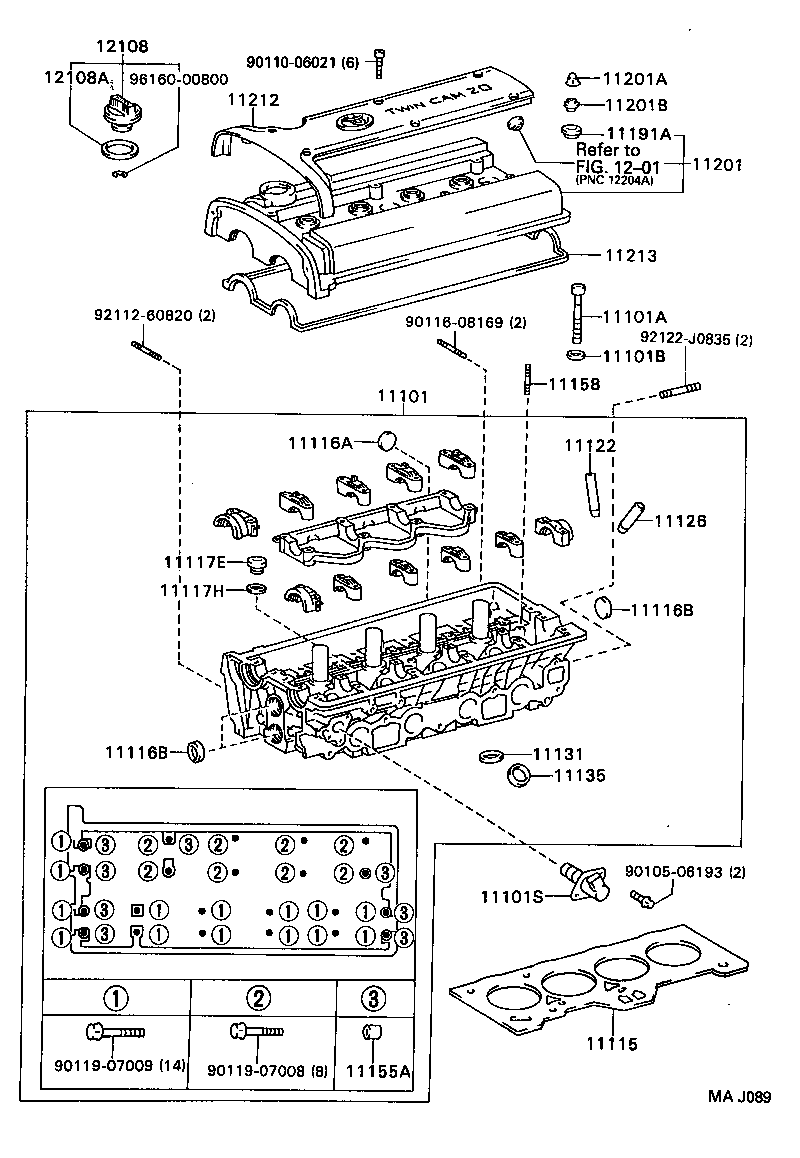

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-19475 |
4AGE..AE111 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02106 |
4AGE..AE111 |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-10344 |
4A#,5AFE..AE11# |
10 | ||
| 11101S - VALVE ASSY, CAMSHAFT TIMING OIL SWITCHING | ||||
| 15330-16020 |
4AGE..AE111 |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-16111 |
4AGE..AE111 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-42500 |
4AGE..AE111 |
1 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 96411-42800 |
4AGE..AE111 |
3 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 96411-42800 |
4AGE..AE111 |
3 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-20002 |
4AGE..AE111 |
2 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-20004 |
4AGE..AE111 |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-16040 |
4AGE..AE111 O/S 0.05 |
12 | ||
| 11122-16040 |
4AGE..AE111 STD |
12 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11126-16020 |
4AGE..AE111 STD |
8 | ||
| 11127-16020 |
4AGE..AE111 O/S 0.05 |
8 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11132-16030 |
4AGE..AE111 O/S 0.03 |
12 | ||
| 11147-16030 |
4AGE..AE111 STD |
12 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11136-16030 |
4AGE..AE111 O/S 0.03 |
8 | ||
| 11135-16030 |
4AGE..AE111 STD |
8 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-10004 |
4AGE..AE111 |
8 | ||
| 11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER) | ||||
| 90116-08363 |
4AGE..AE111 長さ=86 |
3 | ||
| 11191A - GASKET(FOR SPARK PLUG TUBE) | ||||
| 11193-16010 |
4AGE..AE111 |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-16030 |
4AGE..AE111 |
1 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 90176-08047 |
4AGE..AE111 |
3 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-09016 |
4AGE..AE111 |
3 | ||
| 11212 - COVER, CYLINDER HEAD, NO.2 | ||||
| 11212-16080 |
4AGE..AE111 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-16021 |
4AGE..AE111 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-46010 |
4AGE..AE111 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 12195-46011 |
4AGE..AE111 |
1 | ||
| Common parts | ||||
| 90105-06193 | ||||
| 90110-06021 | ||||
| 90116-08169 | ||||
| 90119-07008 | ||||
| 90119-07009 | ||||
| 92112-60820 | ||||
| 92122-J0835 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 1201 | ||||
