AE111-ACMGK (1995)

Toyota Levin/Trueno

Production May 1995 - Aug 2000
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

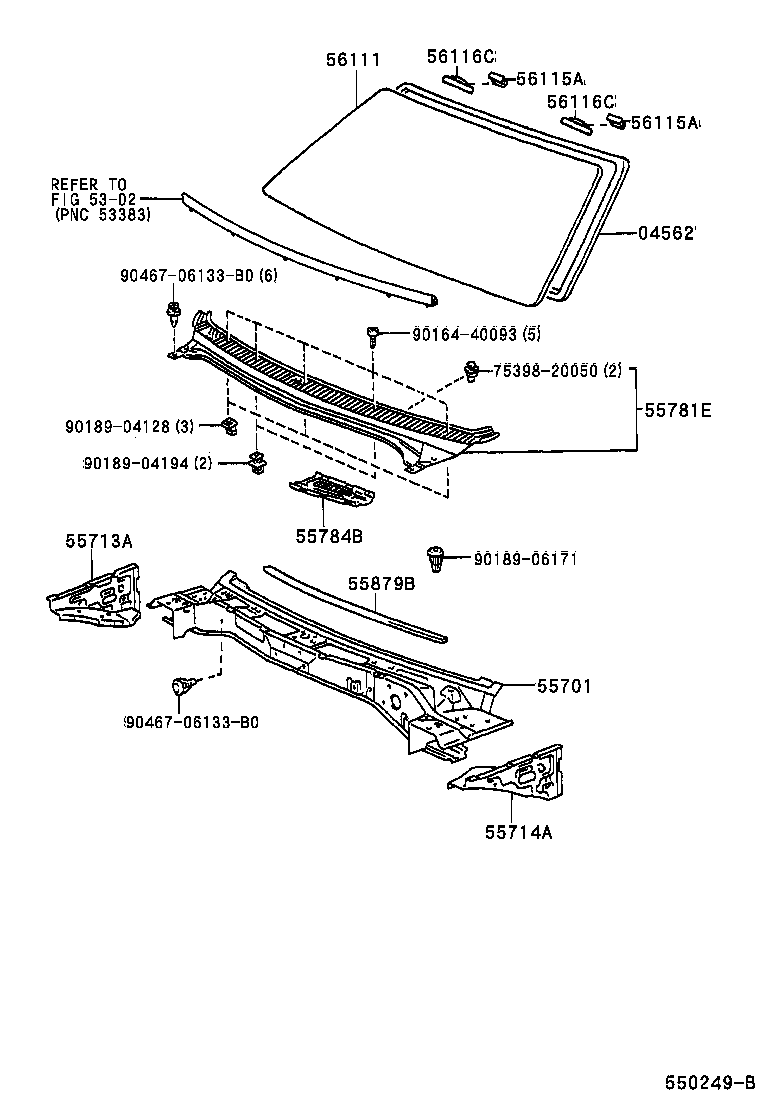

Click highlighted areas on diagram

diagram 04562 5302 55701 55713A 55714A 55781E 55784B 55879B 56111 56115A 56115A 56116C 56116C 7539820050 9016440093 9018904128 9018904194 9018906171 9046706133B0 9046706133B0
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-12010

AE11#

 1
04562-12010

AE11#

 1
55701 - PANEL SUB-ASSY, COWL
55700-1A130

AE111..XZ

 1
55700-1A190

AE11#..FZ,XZ

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-12081

AE11#

 1
55713-12081

AE11#

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-12081

AE11#

 1
55714-12081

AE11#

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-12180

AE11#

 1
55708-12190

AE11#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
55708-12180

AE11#

 1
55708-12190

AE11#..4FC,5F

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
55784B - LOUVER, COWL TOP VENTILATOR, CENTER NO.2
55784-12110

AE11#

 1
55784-12110

AE11#

 1
55879B - SEAL, COWL VENT
55879-12090

AE11#

 2
55879-12090

AE11#

 2
56111 - GLASS, WINDSHIELD
56111-1A730

AE11#

*LAM,T=4.76,ｸﾞﾘｰﾝ

 1
56111-1A730

AE11#

*LAM,T=4.76,ｸﾞﾘｰﾝ

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-12050

AE11#

 2
56115-12040

AE11#

 2
56115-12040

AE11#

 2
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-12050

AE11#

 2
56115-12040

AE11#

 2
56115-12040

AE11#

 2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

AE11#

 2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

AE11#

 2
Common parts
75398-20050
90164-40093
90189-04128
90189-04194
90189-06171
90467-06133B0
Linked diagrams
5302
