AE111-ACFZF (1997)

Toyota Levin/Trueno

Production Apr 1997 - Aug 2000
Engine 4AGE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )4AGE

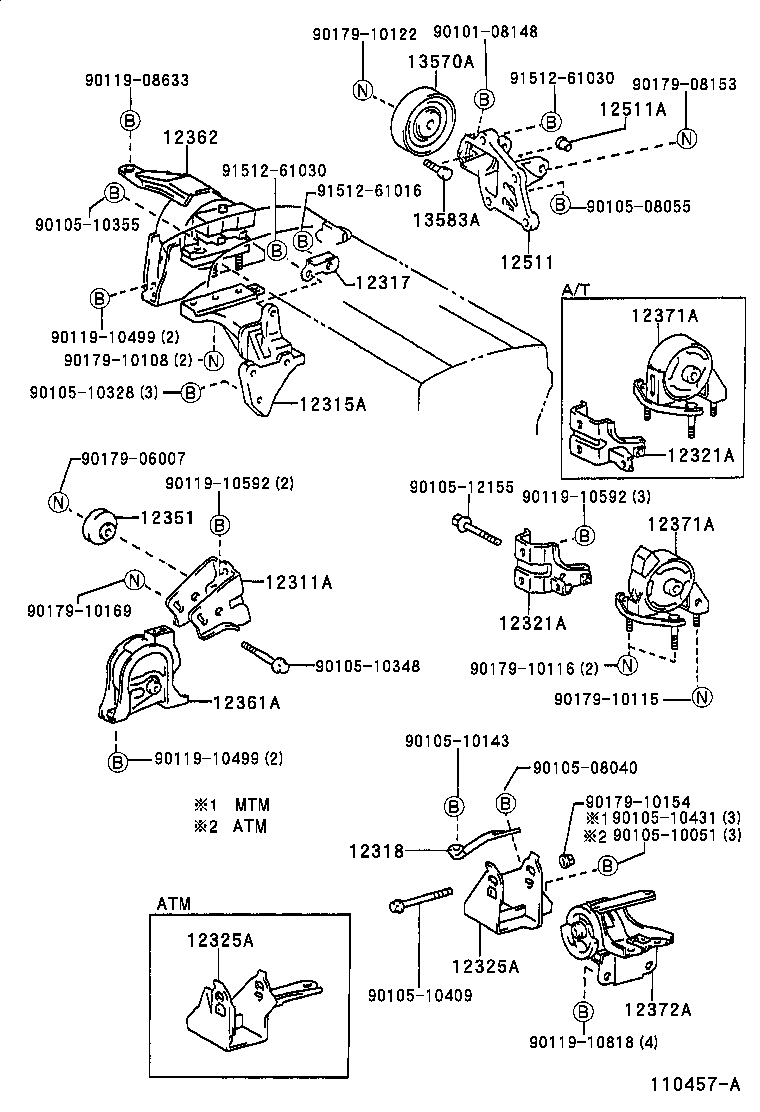

Click highlighted areas on diagram

diagram 12311A 12315A 12317 12318 12321A 12321A 12325A 12325A 12351 12361A 12362 12371A 12371A 12372A 12511 12511A 13570A 13583A 9010108148 9010508040 9010508055 9010510051 9010510143 9010510328 9010510348 9010510355 9010510409 9010510431 9010512155 9011908633 9011910499 9011910499 9011910592 9011910592 9011910818 9017906007 9017908153 9017910108 9017910115 9017910116 9017910122 9017910154 9017910169 9151261016 9151261030 9151261030
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-16090

4AGE..AE111

 1
12311-16090

4AGE..AE111

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-16070

4AGE..AE111

 1
12315-16070

4AGE..AE111

 1
12317 - STAY, ENGINE MOUNTING, RH
12317-16050

4AGE..AE111

 1
12317-16050

4AGE..AE111

 1
12318 - STAY, ENGINE MOUNTING, LH
12318-11050

4AGE..AE111..6F

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-16210

4AGE..AE111..6F

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-16210

4AGE..AE111..6F

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-16270

4AGE..AE111..6F

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-16270

4AGE..AE111..6F

 1
12351 - DAMPER, ENGINE MOUNTING
12351-15060

4A#,5AFE..AE11#

 1
12351-15060

4A#,5AFE..AE11#

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-15170

4A#,5AFE..AE11#..MTM

 1
12361-15171

4A#,5AFE..AE11#..MTM

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12305-16100

4AGE..AE111

 1
12305-16100

4AGE..AE111

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-15241

4A#,5AFE..AE11#..MTM

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-15241

4A#,5AFE..AE11#..MTM

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-16430

4AGE..AE111..6F

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-16080

4AGE..AE111

 1
12511-16080

4AGE..AE111

 1
12511A - BUSH, ALTERNATOR BRACKET
90389-10017

4AGE..AE111

 1
90389-10017

4AGE..AE111

 1
13570A - IDLER ASSY, V-RIBBED, NO.1
13570-16010

4AGE..AE111

 1
13570-16010

4AGE..AE111

 1
13583A - SHAFT, IDLER, V-RIBBED BELT
13583-16010

4AGE..AE111

 1
13583-16010

4AGE..AE111

 1
Common parts
90101-08148
90105-08040
90105-08055
90105-10051
90105-10143
90105-10328
90105-10348
90105-10355
90105-10409
90105-10431
90105-12155
90119-08633
90119-10499
90119-10592
90119-10818
90179-06007
90179-08153
90179-10108
90179-10115
90179-10116
90179-10122
90179-10154
90179-10169
91512-61016
91512-61030
