AE110-BCPGK (1995)
Toyota Levin/Trueno
(9505- )

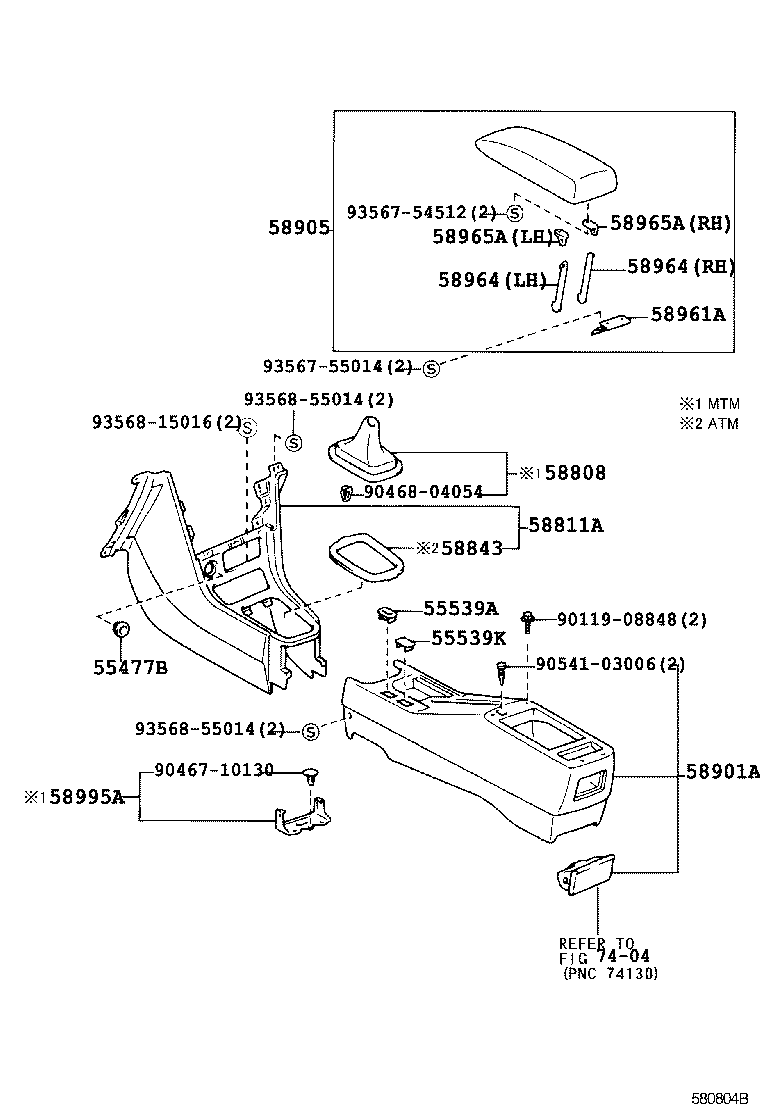

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55477B - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-20110 |
AE11# |
1 | ||
| 55477-20110 |
AE11# |
1 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-20020P0 |
AE110;AE111..MTM SHADOW GRAY,TRIM1# |
1 | ||
| 55539-20020P0 |
AE110;AE111..5F SHADOW GRAY,TRIM1# |
1 | ||
| 55539K - COVER, SPARE SWITCH HOLE | ||||
| 55539-32040C0 |
AE110;AE111..5F BLACK,TRIM1# |
1 | ||
| 55539-32040C0 |
AE110;AE111..MTM BLACK,TRIM1# |
1 | ||
| 55539-32040P0 |
AE110;AE111..5F SHADOW GRAY,TRIM1# |
1 | ||
| 58811A - BOX, CONSOLE, FRONT | ||||
| 58810-12510B0 |
AE11#..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 58810-12510B1 |
AE11#..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 58843 - BEZEL, SHIFTING HOLE | ||||
| 58843-12070B0 |
AE11#..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 58843-12070B0 |
AE11#..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-12270B0 |
AE11# SHADOW GRAY,TRIM1# |
1 | ||
| 58901-12270B0 |
AE11# SHADOW GRAY,TRIM1# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-12140B0 |
AE11# SHADOW GRAY,TRIM1# |
1 | ||
| 58905-12140B0 |
AE11# SHADOW GRAY,TRIM1# |
1 | ||
| 58961A - HINGE, CONSOLE COMPARTMENT DOOR MALE | ||||
| 58961-12060B0 |
AE11# SHADOW GRAY,TRIM1# |
1 | ||
| 58961-12060B0 |
AE11# SHADOW GRAY,TRIM1# |
1 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-12050 |
AE11# 右側 |
1 | ||
| 58964-12050 |
AE11# 右側 |
1 | ||
| 58965-12050 |
AE11# 左側 |
1 | ||
| 58965-12050 |
AE11# 左側 |
1 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-12050 |
AE11# 右側 |
1 | ||
| 58964-12050 |
AE11# 右側 |
1 | ||
| 58965-12050 |
AE11# 左側 |
1 | ||
| 58965-12050 |
AE11# 左側 |
1 | ||
| 58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2 | ||||
| 58965-12010 |
AE11# 左側 |
1 | ||
| 58965-20020 |
AE11# 右側 |
1 | ||
| 58965-12010 |
AE11# 左側 |
1 | ||
| 58965-20020 |
AE11# 右側 |
1 | ||
| 58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2 | ||||
| 58965-12010 |
AE11# 左側 |
1 | ||
| 58965-20020 |
AE11# 右側 |
1 | ||
| 58965-12010 |
AE11# 左側 |
1 | ||
| 58965-20020 |
AE11# 右側 |
1 | ||
| Common parts | ||||
| 90119-08848 | ||||
| 90467-10130 | ||||
| 90468-04054 | ||||
| 90541-03006 | ||||
| 93567-54512 | ||||
| 93567-55014 | ||||
| 93568-15016 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 7404 | ||||
