HZJ81V-RNPNS (1990)

Toyota Land Cruiser Van

Production Jan 1990 - May 1993
Engine 1HZ
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

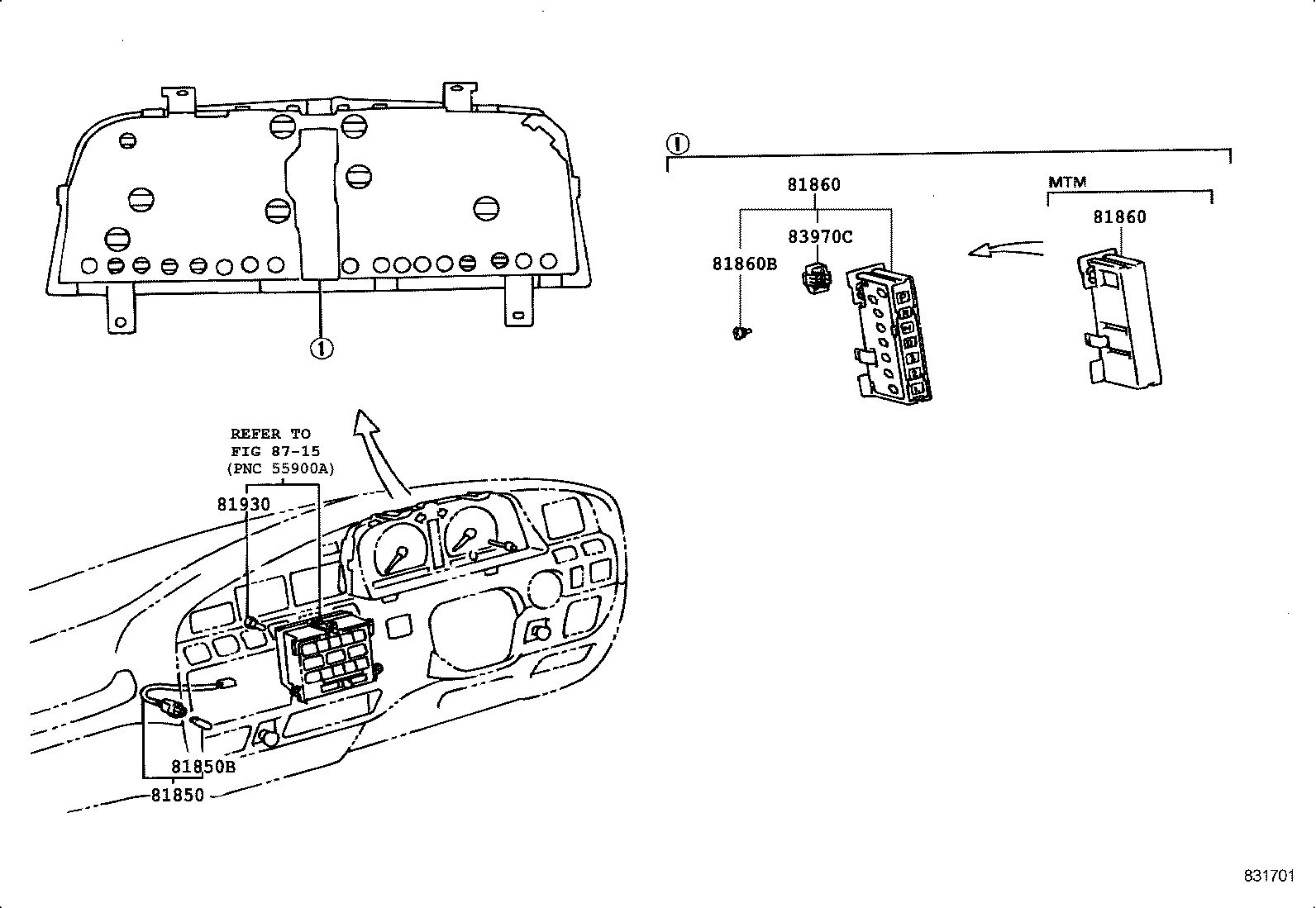

Click highlighted areas on diagram

diagram 81850 81850B 81860 81860 81860B 81930 83970C 8715
Part # Description Qty Price
81850 - LAMP ASSY, INDICATOR
81850-60480

FJ80,HDJ81,HZJ81

 1
81850B - BULB, INDICATOR LAMP
90981-11014

FJ80,FZJ80,HDJ81,HZJ81

14V 1.4W,14V 1.4W,ﾊｲｻﾞﾗｼﾖｳﾒｲ

 1
81860 - LAMP ASSY, TRANSMISSION INDICATOR
81860-60050

FJ80,HDJ81,HZJ81..ATM

 1
81860 - LAMP ASSY, TRANSMISSION INDICATOR
81860-60050

FJ80,HDJ81,HZJ81..ATM

 1
81860B - BULB, TRANSMISSION INDICATOR LAMP
84999-50180

FJ80,HDJ81,HZJ81..ATM

12V 1.2W

 7
84999-50190

FJ80,HDJ81,HZJ81..ATM

12V 1.2W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,照明

 1
83970C - BUZZER ASSY, REVERSE WARNING
83970-20010

FJ80,HDJ81,HZJ81..ATM

 1
Linked diagrams
8715
