HZJ81V-RNPNS (1990)

Toyota Land Cruiser Van

Production Jan 1990 - May 1993
Engine 1HZ
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9001- )

Click highlighted areas on diagram

diagram 73198A 73199 73200A 73200A 73210 73220 73230 73230 73240 73240 73252 73253 8271112120 9011910492 9011910492 9163140614
Part # Description Qty Price
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-6001006

FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL

LIGHT SABLE,TRIM4#

 2
73200-6001003

FJ80,FZJ80,HDJ81,HZJ81

LIGHT GRAY,TRIM1#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-6001006

FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL

LIGHT SABLE,TRIM4#

 2
73200-6001003

FJ80,FZJ80,HDJ81,HZJ81

LIGHT GRAY,TRIM1#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-6007003

FJ80,HDJ81,HZJ81

BLUISH GRAY,TRIM1#

 1
73210-6007006

FJ80,HDJ81,HZJ81..LUB

SABLE,TRIM4#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-6007006

FJ80,HDJ81,HZJ81..LUB

SABLE,TRIM4#

 1
73220-6007003

FJ80,HDJ81,HZJ81

BLUISH GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-6005006

FJ80,HDJ81,HZJ81..LUB

SABLE,TRIM4#

 1
73230-6005003

FJ80,HDJ81,HZJ81

BLUISH GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-6005006

FJ80,HDJ81,HZJ81..LUB

SABLE,TRIM4#

 1
73230-6005003

FJ80,HDJ81,HZJ81

BLUISH GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-6006006

FJ80,HDJ81,HZJ81..LUB

SABLE,TRIM4#

 1
73240-6006003

FJ80,HDJ81,HZJ81

BLUISH GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-6006006

FJ80,HDJ81,HZJ81..LUB

SABLE,TRIM4#

 1
73240-6006003

FJ80,HDJ81,HZJ81

BLUISH GRAY,TRIM1#

 1
73252 - COVER, SHOULDER BELT ANCHOR ADJUST, RH
73252-6001003

FJ80,FZJ80,HDJ81,HZJ81

LIGHT GRAY,TRIM1#

 1
73252-6001006

FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL

LIGHT SABLE,TRIM4#

 1
73253 - COVER, SHOULDER BELT ANCHOR ADJUST, LH
73253-6001003

FJ80,FZJ80,HDJ81,HZJ81

LIGHT GRAY,TRIM1#

 1
73253-6001006

FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL

LIGHT SABLE,TRIM4#

 1
Common parts
82711-12120
90119-10492
91631-40614

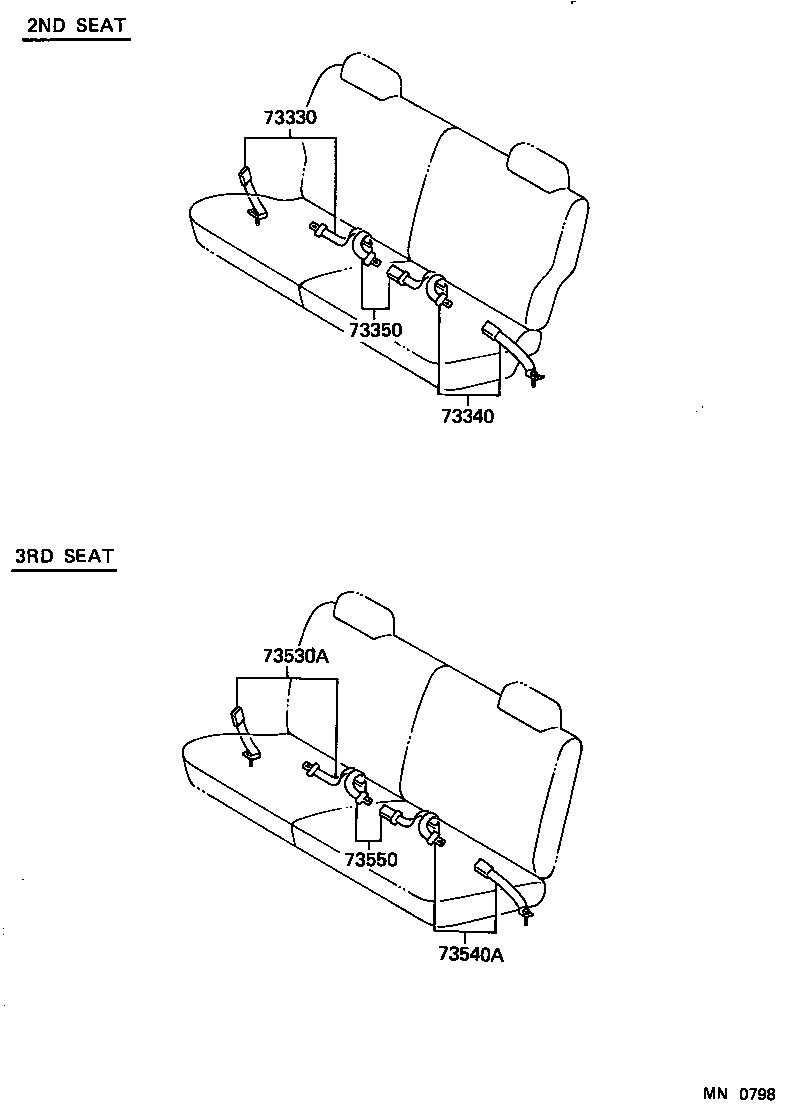

ILLUST NO. 2 OF 2(9001-9108)

Click highlighted areas on diagram

diagram 73330 73340 73350 73530A 73540A 73550
Part # Description Qty Price
73330 - BELT ASSY, REAR SEAT LAP TYPE, RH
73330-6004003

FJ80,HDJ81,HZJ81

BLUISH GRAY,TRIM1#

 1
73330-6004006

FJ80,HDJ81,HZJ81..LUB

SABLE,TRIM4#

 1
73340 - BELT ASSY, REAR SEAT LAP TYPE, LH
73340-6001003

FJ80,HDJ81,HZJ81

BLUISH GRAY,TRIM1#

 1
73340-6001006

FJ80,HDJ81,HZJ81..LUB

SABLE,TRIM4#

 1
73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER
73330-6005006

FJ80,HDJ81,HZJ81..LUB

SABLE,TRIM4#

 1
73330-6005003

FJ80,HDJ81,HZJ81

BLUISH GRAY,TRIM1#

 1

ILLUST NO. 2 OF 2(9108- )

Click highlighted areas on diagram

diagram 73350 73360 73370 73380 73390 73550 73560 73570 73580 73590 9163140614 9163140614
Part # Description Qty Price
73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER
73330-6005006

FJ80,HDJ81,HZJ81..LUB

SABLE,TRIM4#

 1
73330-6005003

FJ80,HDJ81,HZJ81

BLUISH GRAY,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-60110B0

FJ80,HDJ81,HZJ81

BLUISH GRAY,TRIM1#

 1
73360-60110E0

FJ80,HDJ81,HZJ81..LUB

SABLE,TRIM4#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-60060E0

FJ80,HDJ81,HZJ81..LUB

SABLE,TRIM4#

 1
73370-60060B0

FJ80,HDJ81,HZJ81

BLUISH GRAY,TRIM1#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-6005006

FJ80,HDJ81,HZJ81..LUB

SABLE,TRIM4#

 1
73380-6005003

FJ80,HDJ81,HZJ81

BLUISH GRAY,TRIM1#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-6005006

FJ80,HDJ81,HZJ81..LUB

SABLE,TRIM4#

 1
73380-6005003

FJ80,HDJ81,HZJ81

BLUISH GRAY,TRIM1#

 1
Common parts
91631-40614
