HZJ81V-RNPNS (1990)

Toyota Land Cruiser Van

Production Jan 1990 - May 1993
Engine 1HZ
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )

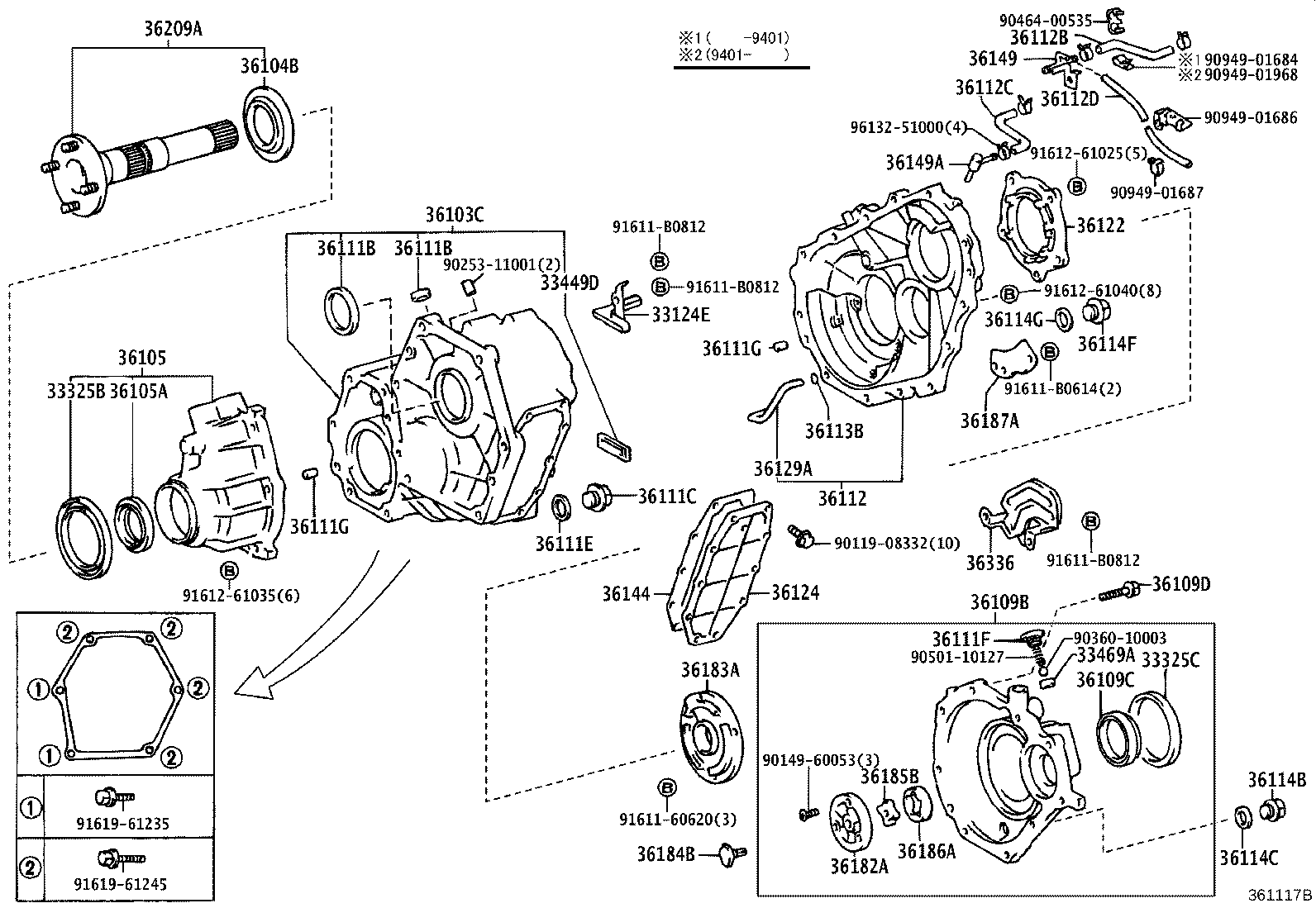

Click highlighted areas on diagram

HF2AV

diagram 33124E 33325B 33325C 33449D 33469A 36103C 36104B 36105 36105A 36109B 36109C 36109D 36109D 36111B 36111B 36111C 36111E 36111F 36111G 36111G 36112 36112B 36112C 36112D 36113B 36114B 36114C 36114C 36114F 36122 36124 36129A 36132 36144 36149 36149A 36177 36182A 36183A 36184A 36184B 36185B 36186A 36187A 36209A 9011908332 9011910262 9011910749 9014960053 9025311001 9034112008 9036010003 9050110127 9094901684 9094901686 9094901687 9094901968 9161160620 91611B0614 91611B0812 9161261025 9161261035 9161261040 9161961235 9161961245 91651B0825 9613251000
Part # Description Qty Price
33124E - PIPE, OIL RECEIVER(FOR TRANSFER)
33124-60030

FJ80,HDJ81,HZJ81

 1
33325B - DEFLECTOR, DUST (FOR TRANSFER EXTENSION FRONT HOUSING)
33325-60050

FJ80,HDJ81,HZJ81

 1
33325C - DEFLECTOR, DUST (FOR TRANSFER EXTENSION REAR HOUSING)
33325-60070

FJ80,HDJ81,HZJ81

 1
33449D - MAGNET (FOR TRANSFER CASE)
33449-60010

FJ80,HDJ81,HZJ81

 1
33469A - SEAT, RELIEF VALVE (FOR TRANSFER EXTENSION REAR HOUSING
33469-60010

FJ80,HDJ81,HZJ81

 1
36103C - CASE, TRANSFER, FRONT
36103-60230

FJ80,HDJ81,HZJ81

 1
36103-60240

FJ80,HDJ81,HZJ81..ATM

ｱﾘ(PTO ﾄﾞﾗｲﾌﾞ ｷﾞﾔ)

 1
36104B - DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT)
33325-60040

FJ80,HDJ81,HZJ81

 1
36105 - HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT
36105-60020

FJ80,HDJ81,HZJ81

 1
36105A - SEAL, OIL (TRANSFER EXTENSION FRONT HOUSING SUB-ASSY)
90311-50014

FJ80,HDJ81,HZJ81

 1
36109B - HOUSING SUB-ASSY, TRANSFER EXTENSION, REAR
36109-60020

FJ80,HDJ81,HZJ81..LUB

 1
36109C - SEAL, OIL (TRANSFER EXTENSION REAR HOUSING SUB-ASSY)
90311-58008

FJ80,HDJ81,HZJ81

 1
36109D - BOLT (FOR TRANSFER EXTENSION REAR HOUSING)
90119-10180

FJ80,FZJ80,HDJ81,HZJ81

*10−1.25PX75−30

 5
90119-10390

FJ80,FZJ80,HDJ81,HZJ81

*10−1.25PX35−30

 4
36109D - BOLT (FOR TRANSFER EXTENSION REAR HOUSING)
90119-10180

FJ80,FZJ80,HDJ81,HZJ81

*10−1.25PX75−30

 5
90119-10390

FJ80,FZJ80,HDJ81,HZJ81

*10−1.25PX35−30

 4
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-48016

FJ80,FZJ80,HDJ81,HZJ81

ｼｬﾌﾄ側

 1
90310-16001

FJ80,FZJ80,HDJ81,HZJ81

ﾚﾊﾞｰ側

 1
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-48016

FJ80,FZJ80,HDJ81,HZJ81

ｼｬﾌﾄ側

 1
90310-16001

FJ80,FZJ80,HDJ81,HZJ81

ﾚﾊﾞｰ側

 1
36111F - PLUG (FOR TRANSFER CASE)
90341-18039

FJ80,HDJ81,HZJ81

 1
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-12002

FJ80,HDJ81,HZJ81

長さ=16,外径=12

 6
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-12002

FJ80,HDJ81,HZJ81

長さ=16,外径=12

 6
36112 - CASE, TRANSFER, REAR
36104-60020

HDJ81,HZJ81..LUB

ｱﾘ(*CDL)

 1
36104-60030

HDJ81,HZJ81..LUB

ｱﾘ(*VCD)

 1
36104-60020

FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL

 1
36112B - HOSE, NO.1 (FOR TRANSFER REAR CASE)
90445-11122

HDJ81,HZJ81..ATM

ｱﾘ(*VCD)

 1
90445-11112

HDJ81,HZJ81..ATM

 1
36112C - HOSE, NO.2 (FOR TRANSFER REAR CASE)
90445-11108

FJ80,HDJ81,HZJ81

 1
36112D - HOSE, NO.3 (FOR TRANSFER REAR CASE)
90445-08277

FJ80,HDJ81,HZJ81

 1
36113B - RING, O (FOR TRANSFER CASE PLUG)
90301-09015

HDJ81,HZJ81..LUB

内径=9.5,ｱﾘ(*VCD)

 1
90301-07012

HDJ81,HZJ81..ATM

内径=6.0,ｱﾘ(*CDL & PTO ﾄﾞﾗｲﾌﾞ ｷﾞﾔ)

 1
90301-07012

FJ80,FZJ80,HDJ81,HZJ81

内径=6.0

 1
36114B - PLUG, NO.1 (FOR TRANSFER CASE)
90341-18006

FJ80,HDJ81,HZJ81

 1
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
90430-18008

FJ80,HDJ81,HZJ81

 1
90430-18008

HZJ81

 1
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
90430-18008

FJ80,HDJ81,HZJ81

 1
90430-18008

HZJ81

 1
36114F - PLUG (FOR TRANSFER DRAIN)
90341-18057

FJ80,HDJ81,HZJ81

 1
36122 - COVER, TRANSFER CASE, NO.2
36122-36010

FJ80,HDJ81,HZJ81

 1
36124 - COVER, TRANSFER POWER TAKE-OFF
36124-60030

FJ80,HDJ81,HZJ81

 1
36129A - TUBE, TRANSFER OIL
36129-60030

HDJ81,HZJ81..LUB

ｱﾘ(*CDL)

 1
36129-60040

HDJ81,HZJ81..LUB

ｱﾘ(*VCD)

 1
36129-60030

FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL

 1
36144 - GASKET, TRANSFER POWER TAKE-OFF COVER
36144-60030

FJ80,HDJ81,HZJ81

 1
36149 - PIPE, TRANSFER BREATHER
36149-60010

FJ80,HDJ81,HZJ81

 1
36149A - PIPE, TRANSFER BREATHER, NO.2
36149-60020

FJ80,HDJ81,HZJ81

 1
90407-07001

FJ80,HDJ81,HZJ81

 1
36182A - COVER, TRANSFER OIL PUMP
36182-60010

HDJ81,HZJ81..ATM

ｱﾘ(*CDL)

 1
36182-60010

FZJ80,HDJ81,HZJ81

 1
36182-60011

HDJ81,HZJ81..LUB

ｱﾘ(*VCD & PTO ﾄﾞﾗｲﾌﾞ ｷﾞﾔ)

 1
36182-60010

FJ80,FZJ80,HDJ81,HZJ81

 1
36183A - PLATE, TRANSFER OIL PUMP
36183-60011

HDJ81,HZJ81..LUB

ｱﾘ(*CDL & PTO ﾄﾞﾗｲﾌﾞ ｷﾞﾔ)

 1
36183-60010

FJ80,FZJ80,HDJ81,HZJ81..LUB

 1
36183-60011

HDJ81,HZJ81..LUB

ｱﾘ(*VCD & PTO ﾄﾞﾗｲﾌﾞ ｷﾞﾔ)

 1
36183-60010

FZJ80,HDJ81,HZJ81..LUB

 1
36183-60010

HDJ81,HZJ81..LUB

ｱﾘ(*CDL)

 1
36184B - SHAFT, TRANSFER OIL PUMP DRIVE
36184-60010

FJ80,HDJ81,HZJ81

 1
36185B - ROTOR, TRANSFER OIL PUMP DRIVE
36185-60010

HDJ81,HZJ81..LUB

ｱﾘ(*VCD)

 1
36185-60030

HDJ81,HZJ81..ATM

ｱﾘ(*CDL & PTO ﾄﾞﾗｲﾌﾞ ｷﾞﾔ)

 1
36185-60030

FJ80,FZJ80,HDJ81,HZJ81

 1
36186A - ROTOR, TRANSFER OIL PUMP DRIVEN
36186-60010

HDJ81,HZJ81..ATM

ｱﾘ(*CDL & PTO ﾄﾞﾗｲﾌﾞ ｷﾞﾔ)

 1
36186-60020

HDJ81,HZJ81..LUB

ｱﾘ(*VCD)

 1
36186-60010

FJ80,FZJ80,HDJ81,HZJ81

 1
36187A - STRAINR, TRANSFER OIL, NO.1
36187-60010

HDJ81,HZJ81..ATM

ｱﾘ(*CDL & PTO ﾄﾞﾗｲﾌﾞ ｷﾞﾔ)

 1
36187-60070

HDJ81,HZJ81..LUB

ｱﾘ(*VCD)

 1
36187-60010

FJ80,FZJ80,HDJ81,HZJ81

 1
36209A - SHAFT, TRANSFER OUTPUT, FRONT
36209-60020

FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL

 1
Common parts
90119-08332
90119-10262
90119-10749
90149-60053
90253-11001
90341-12008
90360-10003
90501-10127
90949-01684
90949-01686
90949-01687
90949-01968
91611-60620
91611-B0614
91611-B0812
91612-61025
91612-61035
91612-61040
91619-61235
91619-61245
91651-B0825
96132-51000

(9001- )HDJ81,HZJ81

Click highlighted areas on diagram

HF1A

diagram 33124B 33124E 33309 33309A 33325B 33325C 33449D 33469A 36103C 36104B 36105 36105A 36109B 36109C 36109D 36111B 36111B 36111C 36111E 36111F 36111G 36111G 36112 36112B 36113B 36114B 36114C 36114F 36114G 36122 36124 36129A 36144 36149A 36182A 36184B 36185B 36186A 36187A 36209A 36336 9011908332 9014960053 9025311001 9036010003 9050110127 9094901685 91611B0614 91611B0812 91611B0812 91611B0812 9161261025 9161261035 9161261040 9161961235 9161961245 9613251000
Part # Description Qty Price
33124E - PIPE, OIL RECEIVER(FOR TRANSFER)
33124-60030

FJ80,HDJ81,HZJ81

 1
33325B - DEFLECTOR, DUST (FOR TRANSFER EXTENSION FRONT HOUSING)
33325-60050

FJ80,HDJ81,HZJ81

 1
33325C - DEFLECTOR, DUST (FOR TRANSFER EXTENSION REAR HOUSING)
33325-60070

FJ80,HDJ81,HZJ81

 1
33449D - MAGNET (FOR TRANSFER CASE)
33449-60010

FJ80,HDJ81,HZJ81

 1
33469A - SEAT, RELIEF VALVE (FOR TRANSFER EXTENSION REAR HOUSING
33469-60010

FJ80,HDJ81,HZJ81

 1
36103C - CASE, TRANSFER, FRONT
36103-60230

FJ80,HDJ81,HZJ81

 1
36103-60240

FJ80,HDJ81,HZJ81..ATM

ｱﾘ(PTO ﾄﾞﾗｲﾌﾞ ｷﾞﾔ)

 1
36104B - DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT)
33325-60040

FJ80,HDJ81,HZJ81

 1
36105 - HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT
36105-60020

FJ80,HDJ81,HZJ81

 1
36105A - SEAL, OIL (TRANSFER EXTENSION FRONT HOUSING SUB-ASSY)
90311-50014

FJ80,HDJ81,HZJ81

 1
36109B - HOUSING SUB-ASSY, TRANSFER EXTENSION, REAR
36109-60020

FJ80,HDJ81,HZJ81..LUB

 1
36109C - SEAL, OIL (TRANSFER EXTENSION REAR HOUSING SUB-ASSY)
90311-58008

FJ80,HDJ81,HZJ81

 1
36109D - BOLT (FOR TRANSFER EXTENSION REAR HOUSING)
90119-10180

FJ80,FZJ80,HDJ81,HZJ81

*10−1.25PX75−30

 5
90119-10390

FJ80,FZJ80,HDJ81,HZJ81

*10−1.25PX35−30

 4
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-48016

FJ80,FZJ80,HDJ81,HZJ81

ｼｬﾌﾄ側

 1
90310-16001

FJ80,FZJ80,HDJ81,HZJ81

ﾚﾊﾞｰ側

 1
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-48016

FJ80,FZJ80,HDJ81,HZJ81

ｼｬﾌﾄ側

 1
90310-16001

FJ80,FZJ80,HDJ81,HZJ81

ﾚﾊﾞｰ側

 1
36111F - PLUG (FOR TRANSFER CASE)
90341-18039

FJ80,HDJ81,HZJ81

 1
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-12002

FJ80,HDJ81,HZJ81

長さ=16,外径=12

 6
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-12002

FJ80,HDJ81,HZJ81

長さ=16,外径=12

 6
36112 - CASE, TRANSFER, REAR
36104-60020

HDJ81,HZJ81..LUB

ｱﾘ(*CDL)

 1
36104-60030

HDJ81,HZJ81..LUB

ｱﾘ(*VCD)

 1
36104-60020

FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL

 1
36112B - HOSE, NO.1 (FOR TRANSFER REAR CASE)
90445-11122

HDJ81,HZJ81..ATM

ｱﾘ(*VCD)

 1
90445-11112

HDJ81,HZJ81..ATM

 1
36113B - RING, O (FOR TRANSFER CASE PLUG)
90301-09015

HDJ81,HZJ81..LUB

内径=9.5,ｱﾘ(*VCD)

 1
90301-07012

HDJ81,HZJ81..ATM

内径=6.0,ｱﾘ(*CDL & PTO ﾄﾞﾗｲﾌﾞ ｷﾞﾔ)

 1
90301-07012

FJ80,FZJ80,HDJ81,HZJ81

内径=6.0

 1
36114B - PLUG, NO.1 (FOR TRANSFER CASE)
90341-18006

FJ80,HDJ81,HZJ81

 1
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
90430-18008

FJ80,HDJ81,HZJ81

 1
90430-18008

HZJ81

 1
36114F - PLUG (FOR TRANSFER DRAIN)
90341-18057

FJ80,HDJ81,HZJ81

 1
36114G - GASKET (FOR TRANSFER DRAIN PLUG)
90430-18008

FJ80,HDJ81,HZJ81

 1
36122 - COVER, TRANSFER CASE, NO.2
36122-36010

FJ80,HDJ81,HZJ81

 1
36124 - COVER, TRANSFER POWER TAKE-OFF
36124-60030

FJ80,HDJ81,HZJ81

 1
36129A - TUBE, TRANSFER OIL
36129-60030

HDJ81,HZJ81..LUB

ｱﾘ(*CDL)

 1
36129-60040

HDJ81,HZJ81..LUB

ｱﾘ(*VCD)

 1
36129-60030

FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL

 1
36144 - GASKET, TRANSFER POWER TAKE-OFF COVER
36144-60030

FJ80,HDJ81,HZJ81

 1
36149A - PIPE, TRANSFER BREATHER, NO.2
36149-60020

FJ80,HDJ81,HZJ81

 1
90407-07001

FJ80,HDJ81,HZJ81

 1
36182A - COVER, TRANSFER OIL PUMP
36182-60010

HDJ81,HZJ81..ATM

ｱﾘ(*CDL)

 1
36182-60010

FZJ80,HDJ81,HZJ81

 1
36182-60011

HDJ81,HZJ81..LUB

ｱﾘ(*VCD & PTO ﾄﾞﾗｲﾌﾞ ｷﾞﾔ)

 1
36182-60010

FJ80,FZJ80,HDJ81,HZJ81

 1
36184B - SHAFT, TRANSFER OIL PUMP DRIVE
36184-60010

FJ80,HDJ81,HZJ81

 1
36185B - ROTOR, TRANSFER OIL PUMP DRIVE
36185-60010

HDJ81,HZJ81..LUB

ｱﾘ(*VCD)

 1
36185-60030

HDJ81,HZJ81..ATM

ｱﾘ(*CDL & PTO ﾄﾞﾗｲﾌﾞ ｷﾞﾔ)

 1
36185-60030

FJ80,FZJ80,HDJ81,HZJ81

 1
36186A - ROTOR, TRANSFER OIL PUMP DRIVEN
36186-60010

HDJ81,HZJ81..ATM

ｱﾘ(*CDL & PTO ﾄﾞﾗｲﾌﾞ ｷﾞﾔ)

 1
36186-60020

HDJ81,HZJ81..LUB

ｱﾘ(*VCD)

 1
36186-60010

FJ80,FZJ80,HDJ81,HZJ81

 1
36187A - STRAINR, TRANSFER OIL, NO.1
36187-60010

HDJ81,HZJ81..ATM

ｱﾘ(*CDL & PTO ﾄﾞﾗｲﾌﾞ ｷﾞﾔ)

 1
36187-60070

HDJ81,HZJ81..LUB

ｱﾘ(*VCD)

 1
36187-60010

FJ80,FZJ80,HDJ81,HZJ81

 1
36209A - SHAFT, TRANSFER OUTPUT, FRONT
36209-60020

FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL

 1
Common parts
90119-08332
90149-60053
90253-11001
90360-10003
90501-10127
90949-01685
91611-B0614
91611-B0812
91612-61025
91612-61035
91612-61040
91619-61235
91619-61245
96132-51000

(9001- )

Click highlighted areas on diagram

HF2A

diagram 33124E 33325B 33325C 33449D 33469A 36103C 36104B 36105 36105A 36109B 36109C 36109D 36111B 36111B 36111C 36111E 36111F 36111G 36111G 36112 36112B 36112C 36112D 36113B 36114B 36114C 36114F 36114G 36122 36124 36129A 36144 36149 36149A 36182A 36183A 36184B 36185B 36186A 36187A 36209A 36336 9011908332 9014960053 9025311001 9036010003 9046400535 9050110127 9094901684 9094901686 9094901687 9094901968 9161160620 91611B0614 91611B0812 91611B0812 91611B0812 9161261025 9161261035 9161261040 9161961235 9161961245 9613251000
Part # Description Qty Price
33124E - PIPE, OIL RECEIVER(FOR TRANSFER)
33124-60030

FJ80,HDJ81,HZJ81

 1
33325B - DEFLECTOR, DUST (FOR TRANSFER EXTENSION FRONT HOUSING)
33325-60050

FJ80,HDJ81,HZJ81

 1
33325C - DEFLECTOR, DUST (FOR TRANSFER EXTENSION REAR HOUSING)
33325-60070

FJ80,HDJ81,HZJ81

 1
33449D - MAGNET (FOR TRANSFER CASE)
33449-60010

FJ80,HDJ81,HZJ81

 1
33469A - SEAT, RELIEF VALVE (FOR TRANSFER EXTENSION REAR HOUSING
33469-60010

FJ80,HDJ81,HZJ81

 1
36103C - CASE, TRANSFER, FRONT
36103-60230

FJ80,HDJ81,HZJ81

 1
36103-60240

FJ80,HDJ81,HZJ81..ATM

ｱﾘ(PTO ﾄﾞﾗｲﾌﾞ ｷﾞﾔ)

 1
36104B - DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT)
33325-60040

FJ80,HDJ81,HZJ81

 1
36105 - HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT
36105-60020

FJ80,HDJ81,HZJ81

 1
36105A - SEAL, OIL (TRANSFER EXTENSION FRONT HOUSING SUB-ASSY)
90311-50014

FJ80,HDJ81,HZJ81

 1
36109B - HOUSING SUB-ASSY, TRANSFER EXTENSION, REAR
36109-60020

FJ80,HDJ81,HZJ81..LUB

 1
36109C - SEAL, OIL (TRANSFER EXTENSION REAR HOUSING SUB-ASSY)
90311-58008

FJ80,HDJ81,HZJ81

 1
36109D - BOLT (FOR TRANSFER EXTENSION REAR HOUSING)
90119-10180

FJ80,FZJ80,HDJ81,HZJ81

*10−1.25PX75−30

 5
90119-10390

FJ80,FZJ80,HDJ81,HZJ81

*10−1.25PX35−30

 4
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-48016

FJ80,FZJ80,HDJ81,HZJ81

ｼｬﾌﾄ側

 1
90310-16001

FJ80,FZJ80,HDJ81,HZJ81

ﾚﾊﾞｰ側

 1
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-48016

FJ80,FZJ80,HDJ81,HZJ81

ｼｬﾌﾄ側

 1
90310-16001

FJ80,FZJ80,HDJ81,HZJ81

ﾚﾊﾞｰ側

 1
36111F - PLUG (FOR TRANSFER CASE)
90341-18039

FJ80,HDJ81,HZJ81

 1
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-12002

FJ80,HDJ81,HZJ81

長さ=16,外径=12

 6
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-12002

FJ80,HDJ81,HZJ81

長さ=16,外径=12

 6
36112 - CASE, TRANSFER, REAR
36104-60020

HDJ81,HZJ81..LUB

ｱﾘ(*CDL)

 1
36104-60030

HDJ81,HZJ81..LUB

ｱﾘ(*VCD)

 1
36104-60020

FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL

 1
36112B - HOSE, NO.1 (FOR TRANSFER REAR CASE)
90445-11122

HDJ81,HZJ81..ATM

ｱﾘ(*VCD)

 1
90445-11112

HDJ81,HZJ81..ATM

 1
36112C - HOSE, NO.2 (FOR TRANSFER REAR CASE)
90445-11108

FJ80,HDJ81,HZJ81

 1
36112D - HOSE, NO.3 (FOR TRANSFER REAR CASE)
90445-08277

FJ80,HDJ81,HZJ81

 1
36113B - RING, O (FOR TRANSFER CASE PLUG)
90301-09015

HDJ81,HZJ81..LUB

内径=9.5,ｱﾘ(*VCD)

 1
90301-07012

HDJ81,HZJ81..ATM

内径=6.0,ｱﾘ(*CDL & PTO ﾄﾞﾗｲﾌﾞ ｷﾞﾔ)

 1
90301-07012

FJ80,FZJ80,HDJ81,HZJ81

内径=6.0

 1
36114B - PLUG, NO.1 (FOR TRANSFER CASE)
90341-18006

FJ80,HDJ81,HZJ81

 1
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
90430-18008

FJ80,HDJ81,HZJ81

 1
90430-18008

HZJ81

 1
36114F - PLUG (FOR TRANSFER DRAIN)
90341-18057

FJ80,HDJ81,HZJ81

 1
36114G - GASKET (FOR TRANSFER DRAIN PLUG)
90430-18008

FJ80,HDJ81,HZJ81

 1
36122 - COVER, TRANSFER CASE, NO.2
36122-36010

FJ80,HDJ81,HZJ81

 1
36124 - COVER, TRANSFER POWER TAKE-OFF
36124-60030

FJ80,HDJ81,HZJ81

 1
36129A - TUBE, TRANSFER OIL
36129-60030

HDJ81,HZJ81..LUB

ｱﾘ(*CDL)

 1
36129-60040

HDJ81,HZJ81..LUB

ｱﾘ(*VCD)

 1
36129-60030

FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL

 1
36144 - GASKET, TRANSFER POWER TAKE-OFF COVER
36144-60030

FJ80,HDJ81,HZJ81

 1
36149 - PIPE, TRANSFER BREATHER
36149-60010

FJ80,HDJ81,HZJ81

 1
36149A - PIPE, TRANSFER BREATHER, NO.2
36149-60020

FJ80,HDJ81,HZJ81

 1
90407-07001

FJ80,HDJ81,HZJ81

 1
36182A - COVER, TRANSFER OIL PUMP
36182-60010

HDJ81,HZJ81..ATM

ｱﾘ(*CDL)

 1
36182-60010

FZJ80,HDJ81,HZJ81

 1
36182-60011

HDJ81,HZJ81..LUB

ｱﾘ(*VCD & PTO ﾄﾞﾗｲﾌﾞ ｷﾞﾔ)

 1
36182-60010

FJ80,FZJ80,HDJ81,HZJ81

 1
36183A - PLATE, TRANSFER OIL PUMP
36183-60011

HDJ81,HZJ81..LUB

ｱﾘ(*CDL & PTO ﾄﾞﾗｲﾌﾞ ｷﾞﾔ)

 1
36183-60010

FJ80,FZJ80,HDJ81,HZJ81..LUB

 1
36183-60011

HDJ81,HZJ81..LUB

ｱﾘ(*VCD & PTO ﾄﾞﾗｲﾌﾞ ｷﾞﾔ)

 1
36183-60010

FZJ80,HDJ81,HZJ81..LUB

 1
36183-60010

HDJ81,HZJ81..LUB

ｱﾘ(*CDL)

 1
36184B - SHAFT, TRANSFER OIL PUMP DRIVE
36184-60010

FJ80,HDJ81,HZJ81

 1
36185B - ROTOR, TRANSFER OIL PUMP DRIVE
36185-60010

HDJ81,HZJ81..LUB

ｱﾘ(*VCD)

 1
36185-60030

HDJ81,HZJ81..ATM

ｱﾘ(*CDL & PTO ﾄﾞﾗｲﾌﾞ ｷﾞﾔ)

 1
36185-60030

FJ80,FZJ80,HDJ81,HZJ81

 1
36186A - ROTOR, TRANSFER OIL PUMP DRIVEN
36186-60010

HDJ81,HZJ81..ATM

ｱﾘ(*CDL & PTO ﾄﾞﾗｲﾌﾞ ｷﾞﾔ)

 1
36186-60020

HDJ81,HZJ81..LUB

ｱﾘ(*VCD)

 1
36186-60010

FJ80,FZJ80,HDJ81,HZJ81

 1
36187A - STRAINR, TRANSFER OIL, NO.1
36187-60010

HDJ81,HZJ81..ATM

ｱﾘ(*CDL & PTO ﾄﾞﾗｲﾌﾞ ｷﾞﾔ)

 1
36187-60070

HDJ81,HZJ81..LUB

ｱﾘ(*VCD)

 1
36187-60010

FJ80,FZJ80,HDJ81,HZJ81

 1
36209A - SHAFT, TRANSFER OUTPUT, FRONT
36209-60020

FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL

 1
Common parts
90119-08332
90149-60053
90253-11001
90360-10003
90464-00535
90501-10127
90949-01684
90949-01686
90949-01687
90949-01968
91611-60620
91611-B0614
91611-B0812
91612-61025
91612-61035
91612-61040
91619-61235
91619-61245
96132-51000
