HZJ81V-RNPGS (1993)

Toyota Land Cruiser Van

Production May 1993 - Aug 1996
Engine 1HZ
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

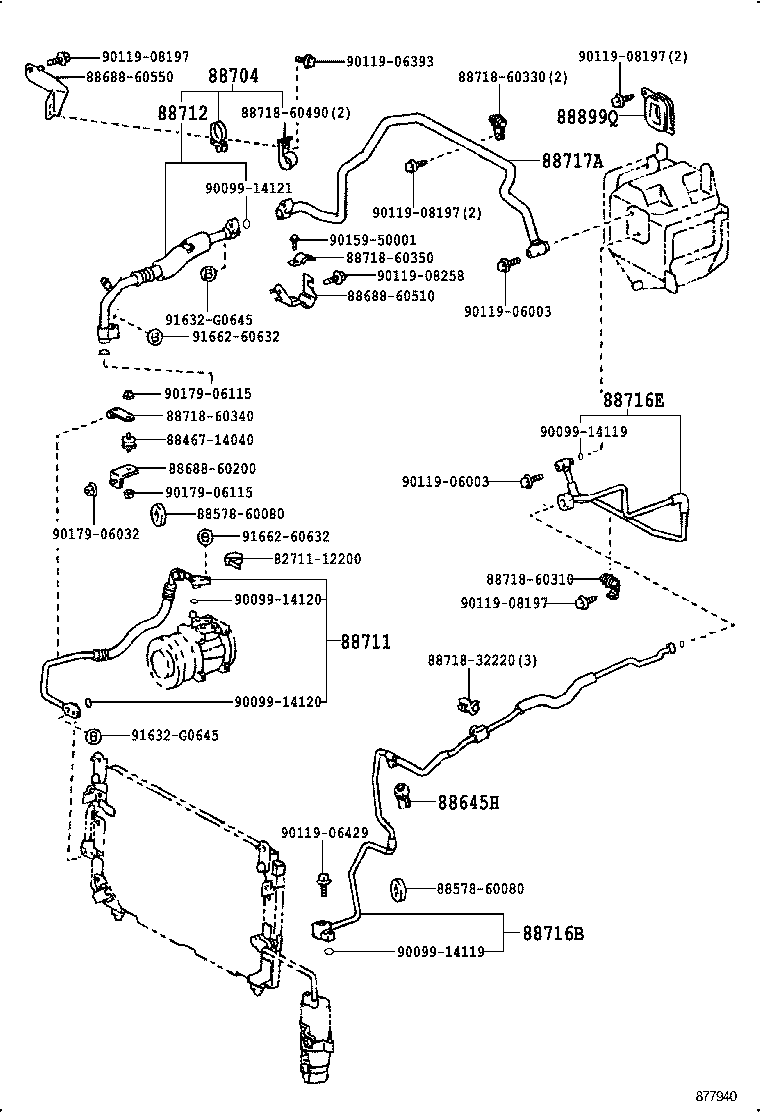

ILLUST NO. 2 OF 4(9501- )HDJ81,HZJ81

Click highlighted areas on diagram

FRONT PIPING ﾒ-ｶ ｵﾌﾟｼﾖﾝ

diagram 8271112200 8846714040 8857860080 8857860080 88645H 8868860200 8868860510 8868860550 88704 88711 88712 88716B 88716E 88717A 8871832220 8871860310 8871860330 8871860340 8871860350 8871860490 88899Q 9009914119 9009914119 9009914120 9009914120 9009914121 9011906003 9011906003 9011906393 9011906429 9011908197 9011908197 9011908197 9011908197 9011908258 9015950001 9017906032 9017906115 9017906115 91632G0645 91632G0645 9166260632 9166260632
Part # Description Qty Price
88704 - HOSE SUB-ASSY, SUCTION
88704-60010

HDJ81,HZJ81

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60100

HZJ81

ﾃﾞｲ-ﾗ-ｵﾌﾟｼﾖﾝ

 1
88711-60140

HDJ81;HZJ81..ATM

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
88711-60350

HDJ81,HZJ81

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-6A380

HDJ81,HZJ81..LUB

ｱﾘ(ｸ-ﾙﾎﾞﾂｸｽ),NO.1

 1
88726-60230

HDJ81,HZJ81..LUB

ｱﾘ(ｸ-ﾙﾎﾞﾂｸｽ),NO.2

 1
88716-6A380

HDJ81,HZJ81

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-60070

FJ80,HDJ81,HZJ81

ﾃﾞｲ-ﾗ-ｵﾌﾟｼﾖﾝ

 1
88726-60240

HDJ81,HZJ81..LUB

ｱﾘ(ｸｰﾙ ﾎﾞﾂｸｽ)

 1
88726-60220

FZJ80..GX;HDJ81,HZJ81

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-60390

FJ80,HDJ81;HZJ81..ATM

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
88717-60670

HDJ81,HZJ81

 1
88717-60250

HZJ81..ATM

 1
88899Q - PLATE, COVER
88899-60060

FJ80,HDJ81,HZJ81

ﾅｼ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ)

 1
88899-60050

HZJ81

 1
Common parts
82711-12200
88467-14040
88578-60080
88688-60200
88688-60510
88688-60550
88718-32220
88718-60310
88718-60330
88718-60340
88718-60350
88718-60490
90099-14119
90099-14120
90099-14121
90119-06003
90119-06393
90119-06429
90119-08197
90119-08258
90159-50001
90179-06032
90179-06115
91632-G0645
91662-60632

ILLUST NO. 2 OF 4(9001-9501)

Click highlighted areas on diagram

FRONT PIPING---W(COOL BOX)

diagram 8271112200 8846714040 8857860080 88645H 8868860200 8868860210 8868860280 8868860281 88691W 88704 88706A 88711 88712 88716B 88716B 88716E 8871832220 8871832220 8871832220 8871860330 8871860330 8871860340 8871860350 8871860360 8871860400 8871860400 8871860490 88726E 88727A 88899Q 9011906003 9011906003 9011906429 9011908197 9011908197 9011908197 9011908197 9011908258 9011908572 9015950001 9017906032 9017906115 9017906115 9017906161 9017906161 91651B0835 91651G0850
Part # Description Qty Price
88704 - HOSE SUB-ASSY, SUCTION
88704-60010

HDJ81,HZJ81

 1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-60010

HDJ81,HZJ81

ﾃﾞｲ-ﾗ-ｵﾌﾟｼﾖﾝ

 1
88706-60080

HDJ81,HZJ81..LUB

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60100

HZJ81

ﾃﾞｲ-ﾗ-ｵﾌﾟｼﾖﾝ

 1
88711-60140

HDJ81;HZJ81..ATM

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
88711-60350

HDJ81,HZJ81

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-6A380

HDJ81,HZJ81..LUB

ｱﾘ(ｸ-ﾙﾎﾞﾂｸｽ),NO.1

 1
88726-60230

HDJ81,HZJ81..LUB

ｱﾘ(ｸ-ﾙﾎﾞﾂｸｽ),NO.2

 1
88716-6A380

HDJ81,HZJ81

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-6A380

HDJ81,HZJ81..LUB

ｱﾘ(ｸ-ﾙﾎﾞﾂｸｽ),NO.1

 1
88726-60230

HDJ81,HZJ81..LUB

ｱﾘ(ｸ-ﾙﾎﾞﾂｸｽ),NO.2

 1
88716-6A380

HDJ81,HZJ81

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-60070

FJ80,HDJ81,HZJ81

ﾃﾞｲ-ﾗ-ｵﾌﾟｼﾖﾝ

 1
88726-60240

HDJ81,HZJ81..LUB

ｱﾘ(ｸｰﾙ ﾎﾞﾂｸｽ)

 1
88726-60220

FZJ80..GX;HDJ81,HZJ81

 1
88726E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-6A500

HDJ81,HZJ81..LUB

 1
88727A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-60750

HDJ81,HZJ81..LUB

 1
88899Q - PLATE, COVER
88899-60060

FJ80,HDJ81,HZJ81

ﾅｼ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ)

 1
88899-60050

HZJ81

 1
Common parts
82711-12200
88467-14040
88578-60080
88688-60200
88688-60210
88688-60280
88688-60281
88718-32220
88718-60330
88718-60340
88718-60350
88718-60360
88718-60400
88718-60490
90119-06003
90119-06429
90119-08197
90119-08258
90119-08572
90159-50001
90179-06032
90179-06115
90179-06161
91651-B0835
91651-G0850

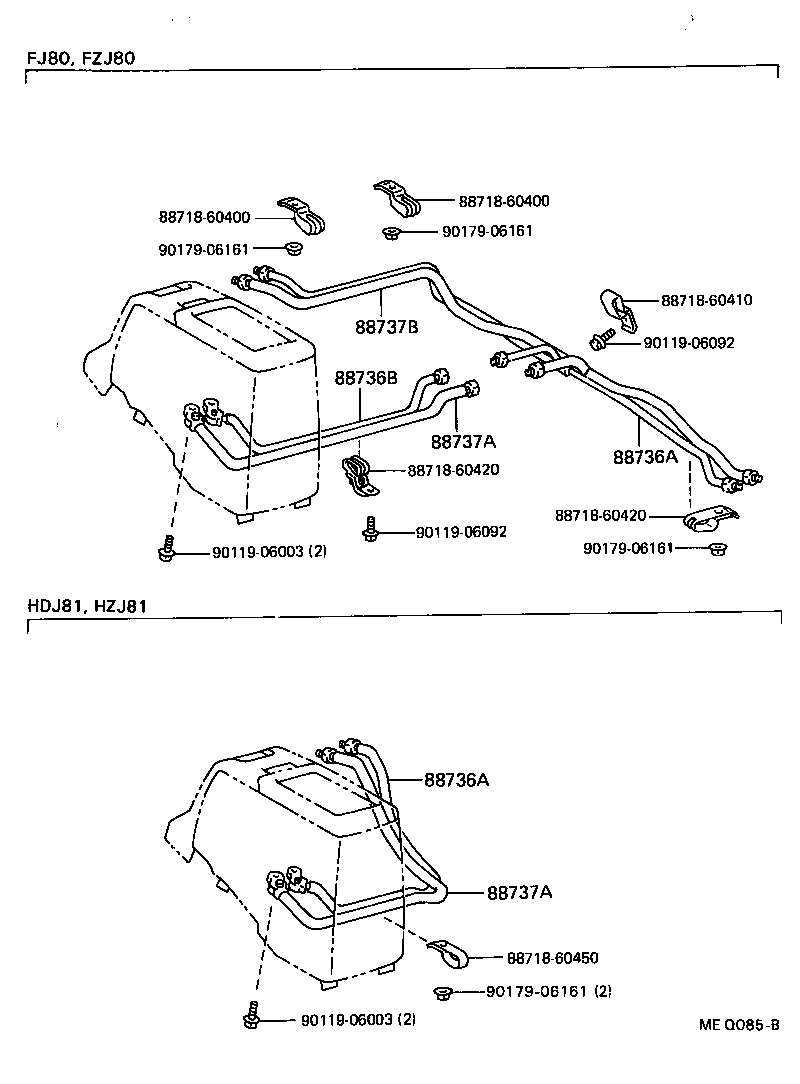

ILLUST NO. 4 OF 4(9001-9501)FJ80,FZJ80,HDJ81 ; (9305-9501)HZJ81

Click highlighted areas on diagram

COOL BOX

diagram 8871860400 8871860400 8871860410 8871860420 8871860420 8871860450 88736A 88736A 88736B 88737A 88737A 88737B 9011906003 9011906003 9011906092 9011906092 9017906161 9017906161 9017906161 9017906161
Part # Description Qty Price
Common parts
88718-60400
88718-60410
88718-60420
88718-60450
90119-06003
90119-06092
90179-06161

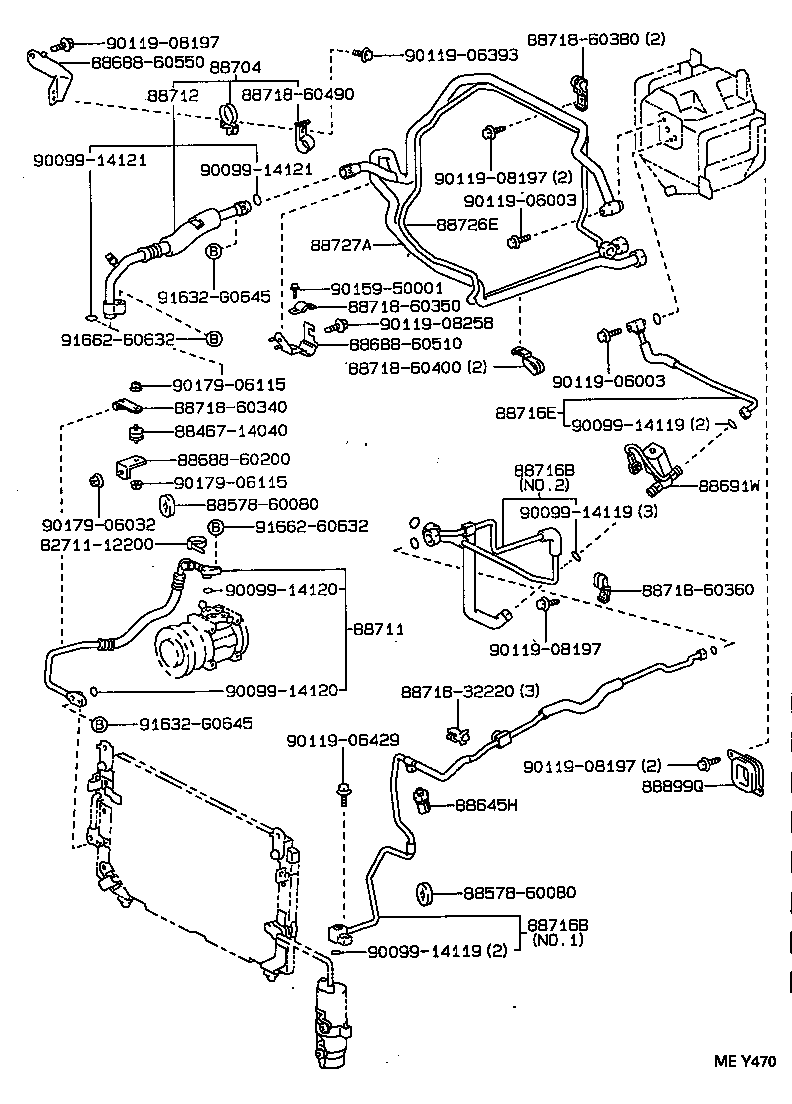

ILLUST NO. 2 OF 4(9501- )

Click highlighted areas on diagram

FRONT PIPING---W(COOL BOX)

diagram 8271112200 8846714040 8857860080 8857860080 88645H 8868860200 8868860510 8868860550 88691W 88704 88711 88712 88716B 88716B 88716E 8871832220 8871860340 8871860350 8871860360 8871860380 8871860400 8871860490 88726E 88727A 88899Q 9009914119 9009914119 9009914119 9009914120 9009914120 9009914121 9009914121 9011906003 9011906003 9011906393 9011906429 9011908197 9011908197 9011908197 9011908197 9011908258 9015950001 9017906032 9017906115 9017906115 91632G0645 91632G0645 9166260632 9166260632
Part # Description Qty Price
88704 - HOSE SUB-ASSY, SUCTION
88704-60010

HDJ81,HZJ81

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60100

HZJ81

ﾃﾞｲ-ﾗ-ｵﾌﾟｼﾖﾝ

 1
88711-60140

HDJ81;HZJ81..ATM

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
88711-60350

HDJ81,HZJ81

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-6A380

HDJ81,HZJ81..LUB

ｱﾘ(ｸ-ﾙﾎﾞﾂｸｽ),NO.1

 1
88726-60230

HDJ81,HZJ81..LUB

ｱﾘ(ｸ-ﾙﾎﾞﾂｸｽ),NO.2

 1
88716-6A380

HDJ81,HZJ81

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-6A380

HDJ81,HZJ81..LUB

ｱﾘ(ｸ-ﾙﾎﾞﾂｸｽ),NO.1

 1
88726-60230

HDJ81,HZJ81..LUB

ｱﾘ(ｸ-ﾙﾎﾞﾂｸｽ),NO.2

 1
88716-6A380

HDJ81,HZJ81

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-60070

FJ80,HDJ81,HZJ81

ﾃﾞｲ-ﾗ-ｵﾌﾟｼﾖﾝ

 1
88726-60240

HDJ81,HZJ81..LUB

ｱﾘ(ｸｰﾙ ﾎﾞﾂｸｽ)

 1
88726-60220

FZJ80..GX;HDJ81,HZJ81

 1
88726E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-6A500

HDJ81,HZJ81..LUB

 1
88727A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-60750

HDJ81,HZJ81..LUB

 1
88899Q - PLATE, COVER
88899-60060

FJ80,HDJ81,HZJ81

ﾅｼ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ)

 1
88899-60050

HZJ81

 1
Common parts
82711-12200
88467-14040
88578-60080
88688-60200
88688-60510
88688-60550
88718-32220
88718-60340
88718-60350
88718-60360
88718-60380
88718-60400
88718-60490
90099-14119
90099-14120
90099-14121
90119-06003
90119-06393
90119-06429
90119-08197
90119-08258
90159-50001
90179-06032
90179-06115
91632-G0645
91662-60632
