HZJ81V-RNPGS (1993)

Toyota Land Cruiser Van

Production May 1993 - Aug 1996
Engine 1HZ
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9501- )HDJ81,HZJ81

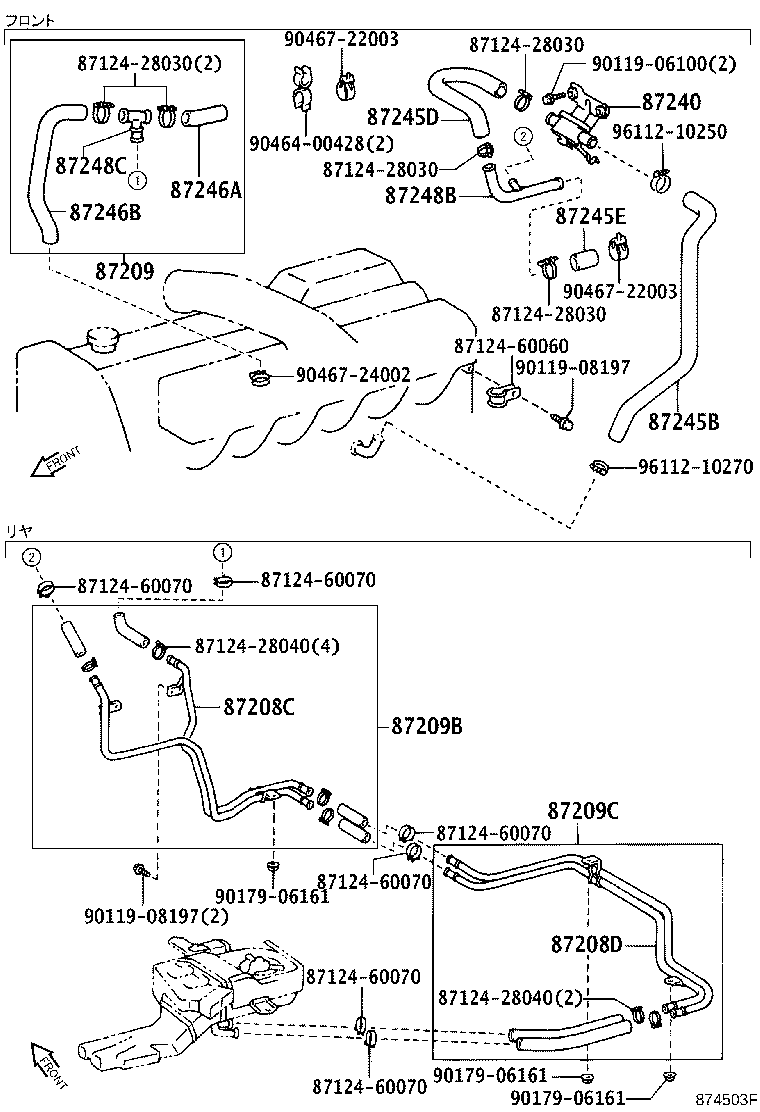

Click highlighted areas on diagram

diagram 8712428030 8712428030 8712428030 8712428030 8712428040 8712428040 8712460060 8712460070 8712460070 8712460070 8712460070 8712460070 8712460070 87208C 87208D 87209 87209B 87209C 87240 87245B 87245D 87245E 87246A 87246B 87248B 87248C 9011906100 9011908197 9011908197 9017906161 9017906161 9017906161 9046400428 9046722003 9046722003 9046724002 9611210250 9611210270
Part # Description Qty Price
87209 - HOSE SUB-ASSY, WATER
87209-60150

HDJ81,HZJ81

 1
87209B - HOSE SUB-ASSY, WATER, B
87209-60301

FZJ80,HDJ81,HZJ81

 1
87209-60260

FJ80,HDJ81,HZJ81

 1
87209C - HOSE SUB-ASSY, WATER, C
87209-60270

FJ80,HDJ81,HZJ81

 1
87240 - VALVE ASSY, HEATER WATER
87240-60080

HDJ81,HZJ81

 1
87245B - HOSE, HEATER WATER, INLET B
87245-60110

HDJ81,HZJ81

 1
87245D - HOSE, HEATER WATER, INLET D
99556-30100

FZJ80,HDJ81,HZJ81

*H,L=60

 1
Common parts
87124-28030
87124-28040
87124-60060
87124-60070
90119-06100
90119-08197
90179-06161
90464-00428
90467-22003
90467-24002
96112-10250
96112-10270
