Toyota Land cruiser van HZJ81 SWITCH & RELAY & COMPUTER

Manufacturers Home
Toyota
JP
LAND CRUISER VAN
HZJ81V-RNPGS (1993)
8401 - SWITCH & RELAY & COMPUTER

HZJ81V-RNPGS (1993)

Toyota Land Cruiser Van

Production May 1993 - Aug 1996

Engine 1HZ

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9501- )

Click highlighted areas on diagram

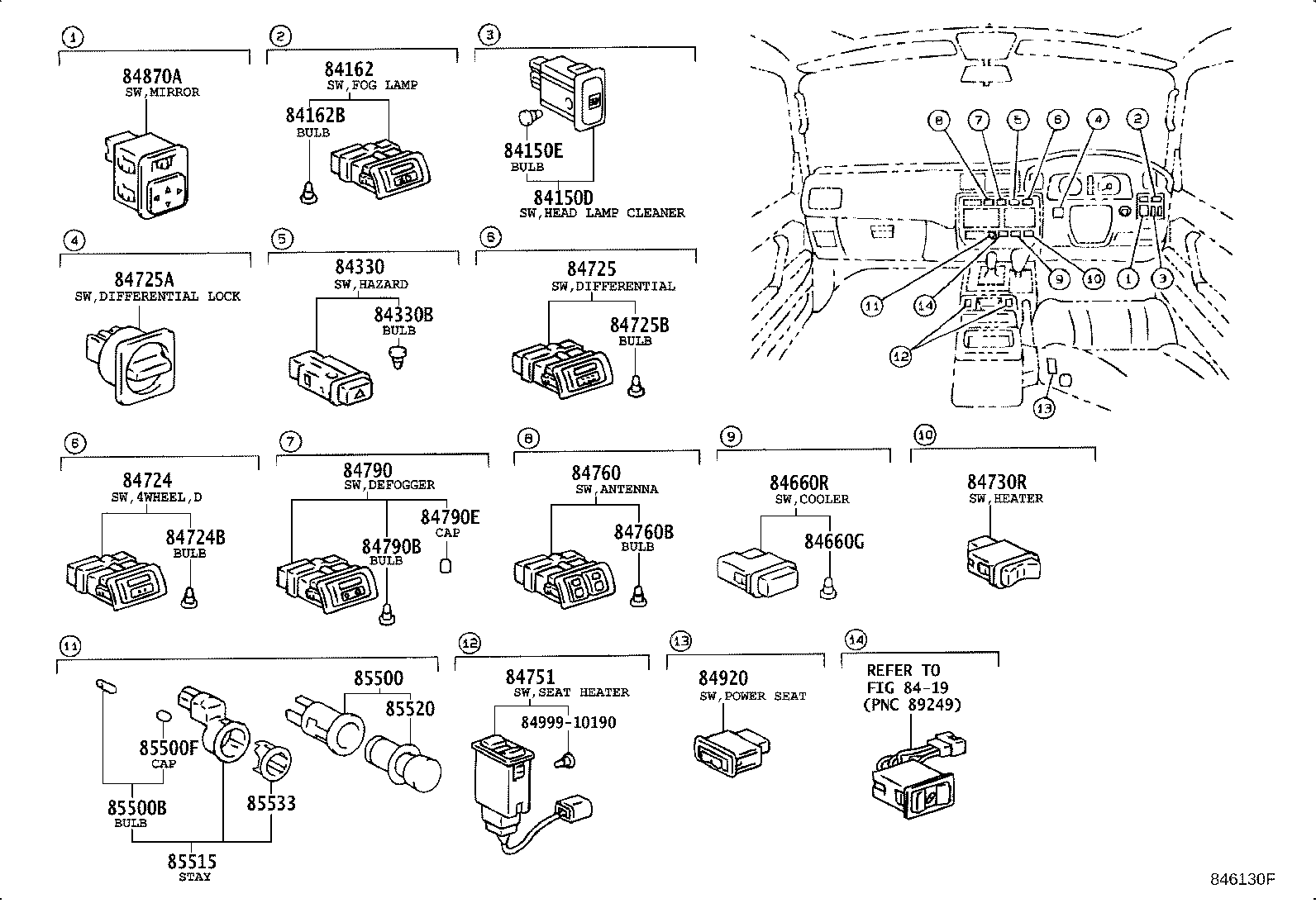

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

Part #	Description	Period	Qty
84150D - SWITCH ASSY, HEADLAMP CLEANER
84150-60010	FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL	01/1990 - 01/1995	1
84150E - BULB, HEADLAMP CLEANER SWITCH
84999-10320	FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 14V 0.84W	01/1990 - 01/1998	1
84162 - SWITCH, FRONT FOG LAMP
84160-60030	FJ80,FZJ80,HDJ81,HZJ81	01/1990 - 01/1995	1
84162B - BULB, FOG LAMP SWITCH
84999-10320	FZJ80,HDJ81,HZJ81 14V 0.84W	01/1990 - 01/1998	1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-60190	FJ80,HDJ81,HZJ81	01/1990 - 08/1991	1
84330B - BULB, HAZARD WARNING SIGNAL SWITCH
84999-10320	FJ80,HDJ81,HZJ81 14V 0.84W	01/1990 - 08/1992	1
84725 - SWITCH, CENTER DIFFERENTIAL LOCK
84725-60010	FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL	01/1990 - 01/1995	1
84725-60040	FZJ80,HDJ81,HZJ81	01/1995 - 08/1996	1
84725A - SWITCH, DIFFERENTIAL LOCK
84725-60020	FJ80,FZJ80,HDJ81,HZJ81	01/1990 - 01/1998	1
84730R - SWITCH ASSY, HEATER BLOWER
84730-60030	FJ80,FZJ80,HDJ81,HZJ81	01/1990 - 01/1998	1
84751 - SWITCH, SEAT HEATER
84751-60010	HDJ81..LUB;HZJ81..GX,VX,VXL ｶﾝﾚｲﾁｼﾖｳ,右側	01/1990 - 01/1998	1
84751-60020	HDJ81..LUB;HZJ81..GX,VX,VXL ｶﾝﾚｲﾁｼﾖｳ,左側	01/1990 - 01/1998	1
84760 - SWITCH ASSY, ANTENNA
84760-60010	FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL	01/1990 - 01/1995	1
84760B - BULB, ANTENNA SWITCH
84999-10410	FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL	01/1990 - 01/1995	2
84790 - SWITCH ASSY, REAR WINDOW DEFOGGER
84790-60020	FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL	01/1990 - 01/1995	1
84870A - SWITCH ASSY, OUTER MIRROR
84870-20050	FJ80,FZJ80,HDJ81,HZJ81..VX,VXL ｱﾘ(ﾌｴﾝﾀﾞﾘﾓ-ﾄｺﾝﾄﾛ-ﾙﾐﾗ-)	01/1990 - 01/1998	1
84870-60010	FJ80,FZJ80,HDJ81,HZJ81..VX,VXL	01/1990 - 01/1998	1
85500 - LIGHTER ASSY, CIGARETTE
85500-30440	FJ80,FZJ80,HDJ81,HZJ81	01/1990 - 02/1993	1
85500B - BULB, CIGARETTE LIGHTER
84999-10250	FJ80,FZJ80,HDJ81,HZJ81 14V 1.4W	01/1990 - 01/1998	1
85500F - CAP, CIGARETTE LIGHTER BULB
84998-10550	FJ80,FZJ80,HDJ81,HZJ81	01/1990 - 01/1998	1
85515 - STAY, CIGARETTE LIGHTER BEZEL
85515-22010	FJ80,FZJ80,HDJ81,HZJ81	01/1990 - 01/1998	1
Common parts
84999-10190
Linked diagrams
8419

(9001-9501)

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

Part #	Description	Period	Qty
84150D - SWITCH ASSY, HEADLAMP CLEANER
84150-60010	FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL	01/1990 - 01/1995	1
84150E - BULB, HEADLAMP CLEANER SWITCH
84999-10320	FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 14V 0.84W	01/1990 - 01/1998	1
84162 - SWITCH, FRONT FOG LAMP
84160-60030	FJ80,FZJ80,HDJ81,HZJ81	01/1990 - 01/1995	1
84162B - BULB, FOG LAMP SWITCH
84999-10320	FZJ80,HDJ81,HZJ81 14V 0.84W	01/1990 - 01/1998	1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-60190	FJ80,HDJ81,HZJ81	01/1990 - 08/1991	1
84330B - BULB, HAZARD WARNING SIGNAL SWITCH
84999-10320	FJ80,HDJ81,HZJ81 14V 0.84W	01/1990 - 08/1992	1
84660C - SWITCH, COOLER
84660-60030	HZJ81..ATM	01/1990 - 08/1991	1
84660D - BULB(FOR COOLER SWITCH)
88607-16010	HZJ81..ATM 14V 0.065A	01/1990 - 08/1991	1
84725 - SWITCH, CENTER DIFFERENTIAL LOCK
84725-60010	FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL	01/1990 - 01/1995	1
84725-60040	FZJ80,HDJ81,HZJ81	01/1995 - 08/1996	1
84725A - SWITCH, DIFFERENTIAL LOCK
84725-60020	FJ80,FZJ80,HDJ81,HZJ81	01/1990 - 01/1998	1
84730 - SWITCH ASSY, HEATER BLOWER
84732-60020	HZJ81	01/1990 - 08/1991	1
84730R - SWITCH ASSY, HEATER BLOWER
84730-60030	FJ80,FZJ80,HDJ81,HZJ81	01/1990 - 01/1998	1
84751 - SWITCH, SEAT HEATER
84751-60010	HDJ81..LUB;HZJ81..GX,VX,VXL ｶﾝﾚｲﾁｼﾖｳ,右側	01/1990 - 01/1998	1
84751-60020	HDJ81..LUB;HZJ81..GX,VX,VXL ｶﾝﾚｲﾁｼﾖｳ,左側	01/1990 - 01/1998	1
84760 - SWITCH ASSY, ANTENNA
84760-60010	FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL	01/1990 - 01/1995	1
84760B - BULB, ANTENNA SWITCH
84999-10410	FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL	01/1990 - 01/1995	2
84790 - SWITCH ASSY, REAR WINDOW DEFOGGER
84790-60020	FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL	01/1990 - 01/1995	1
84790 - SWITCH ASSY, REAR WINDOW DEFOGGER
84790-60020	FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL	01/1990 - 01/1995	1
84870A - SWITCH ASSY, OUTER MIRROR
84870-20050	FJ80,FZJ80,HDJ81,HZJ81..VX,VXL ｱﾘ(ﾌｴﾝﾀﾞﾘﾓ-ﾄｺﾝﾄﾛ-ﾙﾐﾗ-)	01/1990 - 01/1998	1
84870-60010	FJ80,FZJ80,HDJ81,HZJ81..VX,VXL	01/1990 - 01/1998	1
85500 - LIGHTER ASSY, CIGARETTE
85500-30440	FJ80,FZJ80,HDJ81,HZJ81	01/1990 - 02/1993	1
85500B - BULB, CIGARETTE LIGHTER
84999-10250	FJ80,FZJ80,HDJ81,HZJ81 14V 1.4W	01/1990 - 01/1998	1
85500F - CAP, CIGARETTE LIGHTER BULB
84998-10550	FJ80,FZJ80,HDJ81,HZJ81	01/1990 - 01/1998	1
85515 - STAY, CIGARETTE LIGHTER BEZEL
85515-22010	FJ80,FZJ80,HDJ81,HZJ81	01/1990 - 01/1998	1
Common parts
84999-10190
Linked diagrams
8419

(9001-9501)HDJ81 ; (9001- )HZJ81

Click highlighted areas on diagram

E/G,T/M,T/F & FR DIFF

Part #	Description	Period	Qty
28621 - RESISTOR, GLOW PLUG
28621-68010	1HDT,1HZ..HDJ81,HZJ81	01/1990 - 01/1998	1
28625 - PLATE, GLOW PLUG RESISTOR
28625-68040	1H#..HDJ81,HZJ81	01/1990 - 06/1992	1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20020	FJ80,HDJ81,HZJ81	01/1990 - 08/1992	1
83520 - GAGE ASSY,OIL PRESSURE SENDER
83520-60010	FJ80,HDJ81,HZJ81..LUB	01/1990 - 12/1991	1
84222 - SWITCH, TRANSFER INDICATOR, NO.1
84222-12010	FJ80,FZJ80,HDJ81,HZJ81	01/1990 - 01/1998	1
84222B - SWITCH, TRANSFER INDICATOR, NO.2
84222-60080	HZJ81;HDJ81..MTM..TD2;FJ80,FZJ80,HDJ81..ATM	01/1990 - 01/1998	1
84222C - SWITCH, TRANSFER INDICATOR, NO.3
84222-12010	FJ80,FZJ80,HDJ81,HZJ81	01/1990 - 01/1998	1
84222D - SWITCH, TRANSFER INDICATOR, NO.4
84222-12010	FJ80,FZJ80,HDJ81,HZJ81	01/1990 - 01/1998	2
84540 - SWITCH ASSY, NEUTRAL START
84540-60010	FJ80,FZJ80,HDJ81,HZJ81..ATM	01/1990 - 01/1995	1
89422A - SENSOR, WATER TEMPERATURE
89422-20010	HDJ81,HZJ81	01/1990 - 01/1998	1
89428E - SWITCH, TEMPERATURE, NO.2 (FOR TRANSMISSION)
89428-26030	FJ80,FZJ80,HDJ81,HZJ81..ATM	01/1990 - 01/1995	1
Common parts
19877-66010
82711-12200
82715-60010
90170-04002
90179-05032
90189-04042
90189-05006
90430-12221
90430-18008
90430-27001
91651-40814
91651-40825
93385-16014

(9501- )

Click highlighted areas on diagram

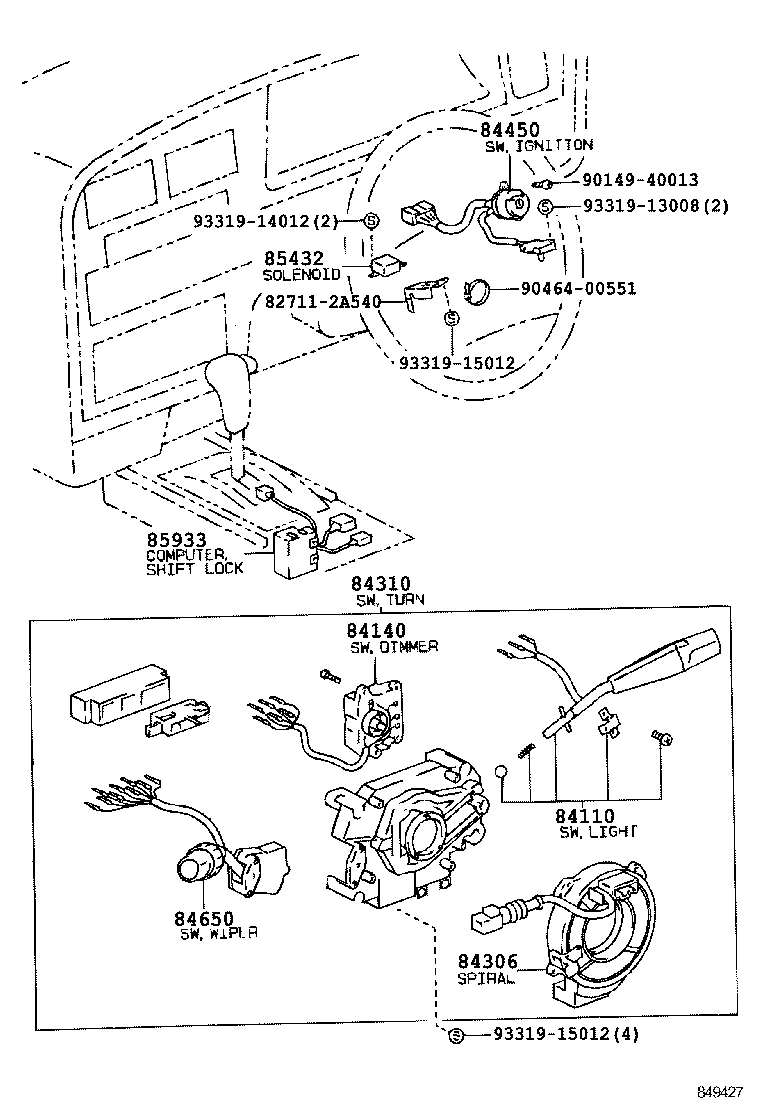

ｲｸﾞﾆﾂｼﾖﾝ & ｺﾝﾋﾞﾈ-ｼﾖﾝｽｲﾂﾁ--ｱﾘ(*80)

Part #	Description	Period	Qty
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-69385	FJ80,HDJ81,HZJ81	01/1990 - 08/1992	1
84112-69435	FZJ80,HDJ81,HZJ81..LUB ｱﾘ(ｴｱﾊﾞﾂｸ)	01/1995 - 08/1996	1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-60130	FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL	01/1990 - 01/1998	1
84310 - SWITCH ASSY, TURN SIGNAL
84310-60810	FJ80,HDJ81,HZJ81..LUB	01/1990 - 08/1991	1
84310-6A230	HZJ81..LUB;FZJ80,HDJ81..VX ｱﾘ(ｴｱﾊﾞﾂｸ)	01/1995 - 08/1996	1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-60170	HZJ81	01/1990 - 08/1991	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-60760	FZJ80,HDJ81,HZJ81 ｱﾘ(ｴｱﾊﾞﾂｸ)	01/1995 - 08/1996	1
84652-60620	FJ80,HDJ81,HZJ81..LUB	01/1990 - 08/1991	1
85432 - SOLENOID, KEY INTER LOCK
85432-20040	FJ80,FZJ80,HDJ81,HZJ81..ATM	01/1990 - 01/1995	1
85933 - COMPUTER, SHIFT LOCK CONTROL
85933-60010	FJ80,HDJ81,HZJ81..ATM	01/1990 - 08/1992	1
Common parts
82711-2A540
90149-40013
90464-00551
93319-13008
93319-14012
93319-15012
